China factory 144V 200Ah EV battery for car, 75 kWh battery pack 350V for electric car, 30 kwh 50kWh lithium ion car battery

Supplier: Hunan CTS Technology Co.,LTD
Region: Hunan, China
Contact: Ms Emily Hu
Price: $6250.00 / 2 - 49 sets
$5625.00 / 50 - 199 sets
$5288.00 / >=200 sets
Min. Order: 2 sets

Click here to contact

Product details

Car Make:	EV;	Supply Ability:	10000 Sets per Month;
Packaging Detail:	Wooden case well protect. UN carton.;	Battery type:	LiFePO4, NMC;
Voltage:	100.8V,72V 96V 108V 144V 330V;	The charging ratio:	1C ev car battery pack;
Size:	customized,Customized;	Capacity:	200Ah;
Cycle life:	3000times;	Weight:	140kg,140kg;
Warranty:	3 Years,60 Months;	Port:	Any China port;
Place of Origin:	Hunan, China;	Protection:	BMS Protection;
CC:	1C discharging;	Brand Name:	CTS;
The discharge rate:	3C 144V 200Ah EV battery for car;	Payment Terms:	L/C,Western Union,T/T;

Specification

China manufacturer 144V 200Ah EV battery for car, EV battery pack 350V for electric car, 30 kwh 50kWh lithium ion car battery

Features of 614V 100Ah Lifepo4 Battery:

1. Lifepo4 battery technology, 614.4V 100AH, 192S1P. 2. 60KW continue discharge, 120KW max discharge for 10 seconds. 3. Smart BMS integrated in the battery pack with CAN communication. 4. Short circuit/ Over current/ Over voltage/ Over temperature protection/SOC/SOH. 5. Strong steelcase with high strength. 6. Liquid cooling system on request. 7. Precharging.

Parameter of 614V 100Ah Lifepo4 Battery :

Items	Technical requirement	Note
Model	CTS-F614100
Battery type	Lifepo4	192S1P
Capacity（kWh）	≥61.4
Weight（kg）	614.5Kg
Rated voltage（DC V）	614.4	192S
Voltage range（DC V）	480-700.8
Continuous discharge current（A）	100	@EOL，@25℃
Peak discharge current（A）	200	10 seconds
Continuous charging current（A）	10-50A	@EOL，@25℃
Fast charging	80A	GB charging protocol
Charging requirements	CC-CV
Charge discharge energy efficiency	≥98%	@EOL，@0.5C charge and discharge
Warranty	3 years or 1500 times
Cooling method	Liquid cooling
IP grade	IP67
Working environment temperature (℃)	-20~45	@Heating and cooling
System self discharge rate	≤5%	@25℃，30days
Insulation resistance	≥50MΩ

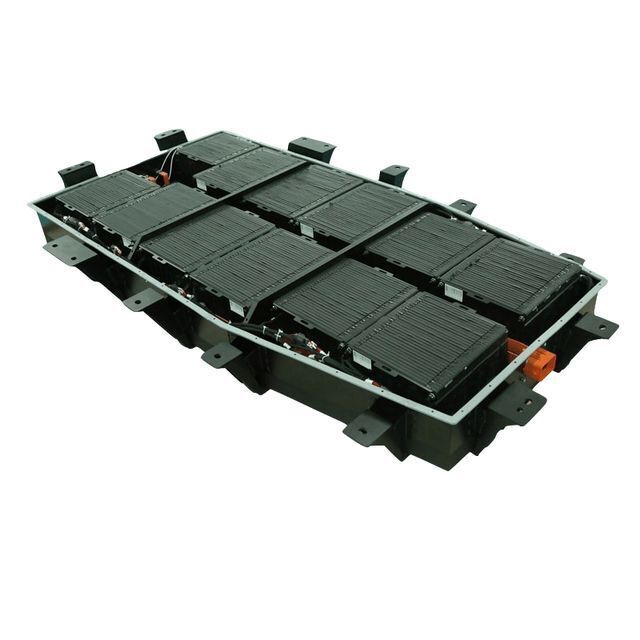

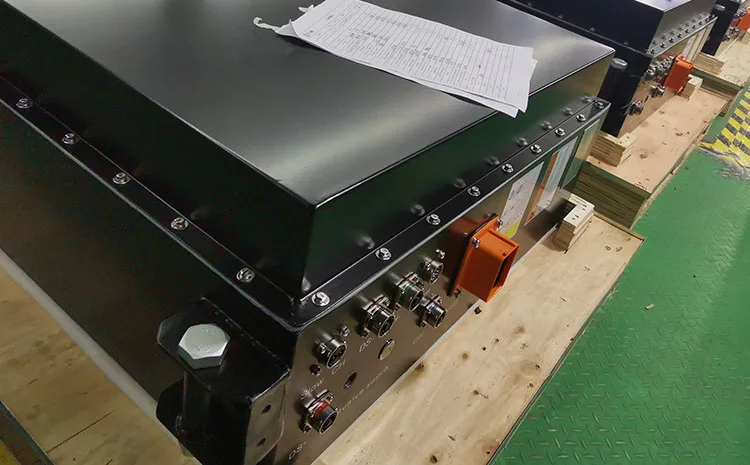

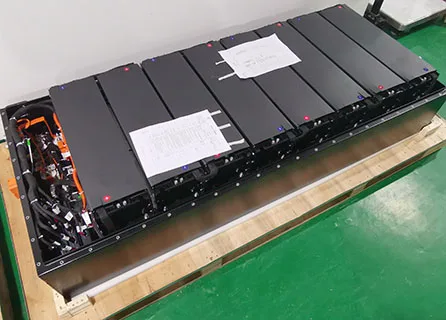

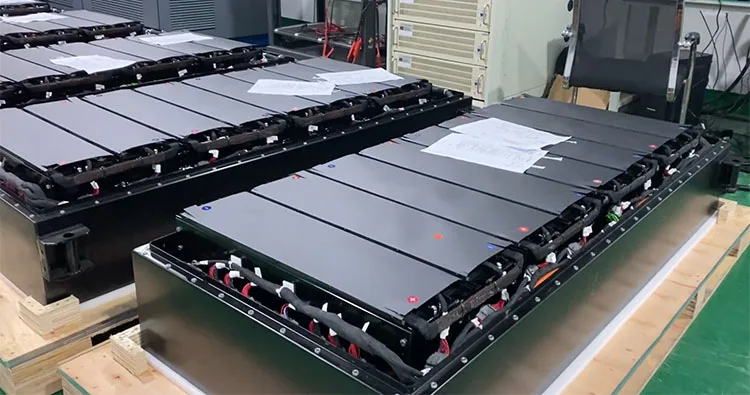

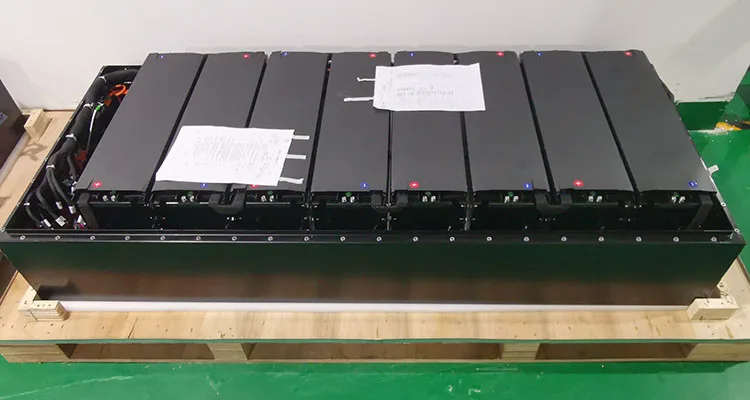

Pictures of 614V 100Ah Lifepo4 Battery ：

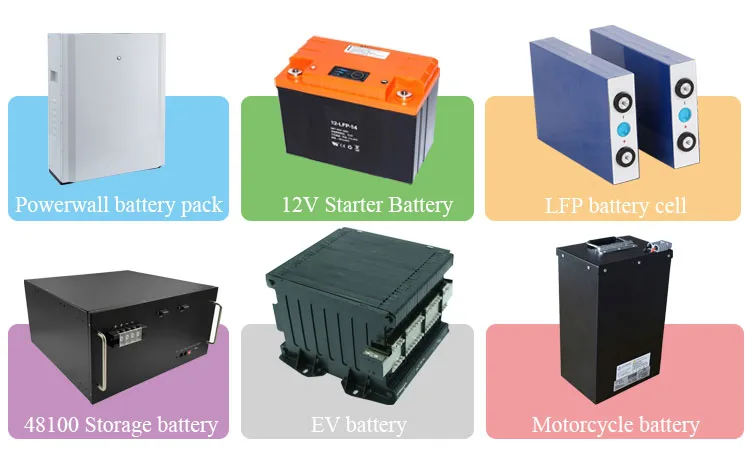

More Batteries

Model	CTS-N330100
Voltage	330V
Capacity	100Ah
Battery type	NCM
Weigh	270KGS
IP grade	IP67
Warranty	2 years

Model	CTS-144200
Voltage	144V
Capacity	200Ah
Battery type	Lifepo4
Weight	120kgs
IP grade	IP67
Warranty	2 years

Model	CTS-F118100
Voltage	118.4V
Capacity	100Ah
Weight	115kgs
Dimensions (L x W x H)	958450193mm
IP grade	IP67
Warranty	2 years

Applications of 614V 100Ah Lifepo4 Battery ：

Related products

Company Overview

Hunan CTS Technology Co,Ltd. is a professional manufacturer engaging in research,

development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.Those products are widely used in EV,HEV,UPS,solar and wind system and remote control products.

Located in Hunan National Economic Development Zone in 2012,CTS power has registered capital of RMB 50 million and been proved by government to be a national high tech enterprise.

CTS Power has more than 800 staffs,including 20 advanced managing people, more than 40 development and research engineers.It has
building area of 120,000 square meters and 3 factory bases ,those are,Ningxiang base.

CTS has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements.To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality,we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

Customer feedback

Order information

Lead Time:

For battery cells : 5-7days

For customize battery pack : 25-30 days

Bulk order for battery pack : 30-40 days

If you need a large quantity please contact us in advance to check the production plan , after received the deposit we will arrange your order at once.

Multiple modes of transportation

Transportation to US:

By Sea+FEDEX Delivery(DDP,Tax free)

ETA:25-35 days after delivery

The tracking will be update after pick up by local express.Usually it will take around 15-25 days after delivery.

By UPS/DHL/Fedex

ETA: 10 days after delivery

the battery weight of each pack needs less than 30KG

By Sea to port

Bulk order or Large battery pack (>200kg)

Transportation to EU:

By railway+UPS(DDP,Tax free)

ETA:30-35 days after delivery

The tracking will be update after pick up by local express.Usually it will take around 20-30 days after delivery. Please notice: UK may will cost tax fees

By UPS/DHL/Fedex
ETA: 10 days after delivery
the weight of each pack needs less than 30KG

By Sea to port
Bulk order or Large battery pack (>200kg)

If you want to get the battery as quickly as possible (each pack less than 30kg) , it is recommended to ship by UPS/DHL. If you are not in a hurry, DDP is good choice no tax . If it is a large quantity , sea transportation is the most affordable .
