Counter Pressure Retort Autoclave For Bottle/Canned/Pouches Food

Supplier: Anhui HouYuan Medical Technology Co.,Ltd
Region: Anhui, China
Contact: Ms Summer Zhang
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

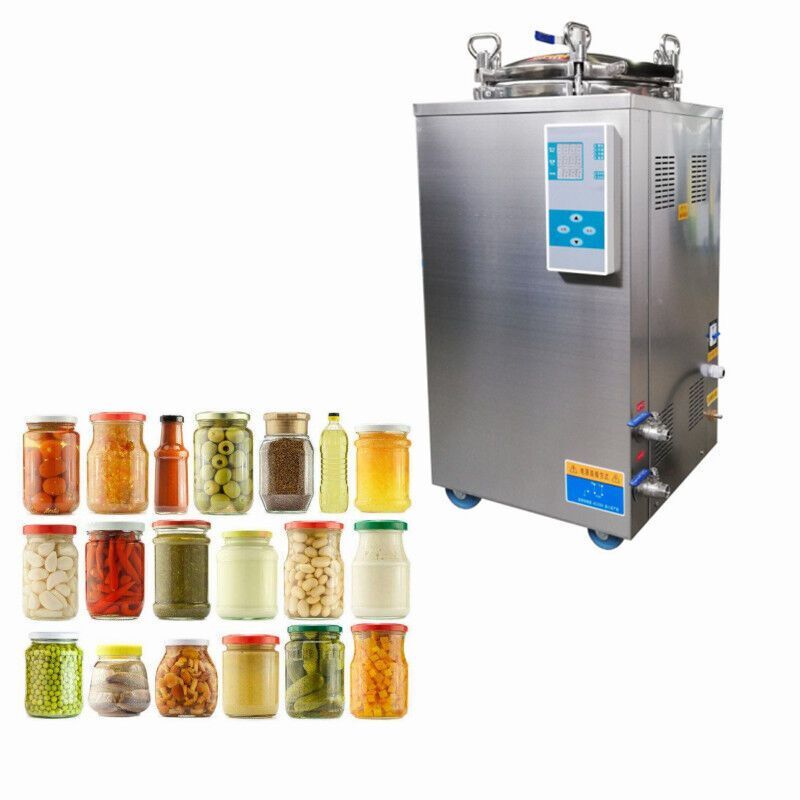

Counter Pressure Retort Autoclave For Bottle/Canned/Pouches Food

This food sterilizer is counter pressure vertical type autoclave sterilizer, widely used in food sterilization, suitable for all vacuum packaged food.

Main Features:

Safety performance: When the steam over-pressure is 0.25MPa, the pressure will be released automatically. When the temperature exceeds 140 ℃, the power supply will be cut off automatically, and the double safety protection, water cut-off and overheating protection, and current overload automatic cut-off safety interlock device protection will be provided.

* When the water level is lower than the specified water level, the sterilizer will automatically cut off the heating power and send out an alarm signal.
* Equipped with timer to automatically control the sterilization time.
* This product is equipped with safety valve, with steam overpressure 0.25MPa self relief, when the temperature exceeds 140 ℃, the power supply is automatically cut off, double safety protection, water cut-off overheating protection, current overload automatic cut-off safety interlock device protection, safe and reliable use.
* This product is suitable for the disinfection and sterilization of food packaging, utensils, instruments and other articles. It is an ideal equipment for aseptic test in Food Research Institute.
* The whole machine is made of high-quality stainless steel, which has the advantages of corrosion resistance, easy maintenance and long service life.

Main Specifications:

Model	HY-F35DC	HY-F50DC	HY-F75DC	HY-F100DC
Volume	35 liter	50 liter	75 liter	100 liter
Chamber	318*450mm	340*550mm	400*600mm	440*650mm
Sterilizing Baskets	2pcs	2pcs	2pcs	2pcs
Basket Size per pc	290*190mm/pc	315*250mm/pc	370*250mm/pc	410*250mm/pc
Working Pressure	0.22MPa
Working Temperature	134℃
Max. Working Pressure	0.23MPa
Heat Average	≤±1℃
Temperature Range	105~134℃
Timer	0~99min or 0~99hour59min
Voltage	AC110-220V±10V, 50-60Hz
Power Supply	2.5KW	3KW	4.5KW	4.5KW
Overall Size mm	470450840	520500970	550530990	5805601060
Transportation Size mm	5705701000	6106101130	6506501150	6806801220
G.W./N.W.	64/46 KG	75/56 KG	90/67 KG	198/73 KG
