CCMHC 12V 24V 36V 12V-40V 10A PWM HHO DC Motor Speed Control

Supplier: Shenzhen Setsail Business Co., Ltd.
Region: Guangdong, China
Contact: Mr Jason Chen
Price: $1.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

max power:	400W;	type:	motor speed controller;
style:	motor speed control;	voltage:	DC 12V-40V;
accept Customized:	yes;	Net weight:	66g;
Brand Name:	Setsail;	size:	605528mm;
Model Number:	MS13;	Packaging Detail:	yes;
Supply Ability:	10000 Piece/Pieces per Week;	PWM frequency:	13khz;
Duty Cycle adjustable:	10%-100%;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal RMB;
Port:	shenzhen;	current:	max 10A;
Place of Origin:	Guangdong China (Mainland);

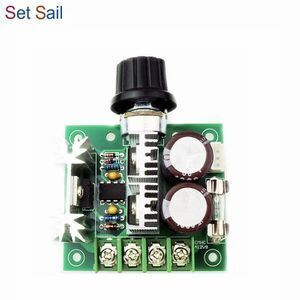

CCMHC 12V 24V 36V 10A DC PWM HHO Motor Speed Control Controller

Specification:

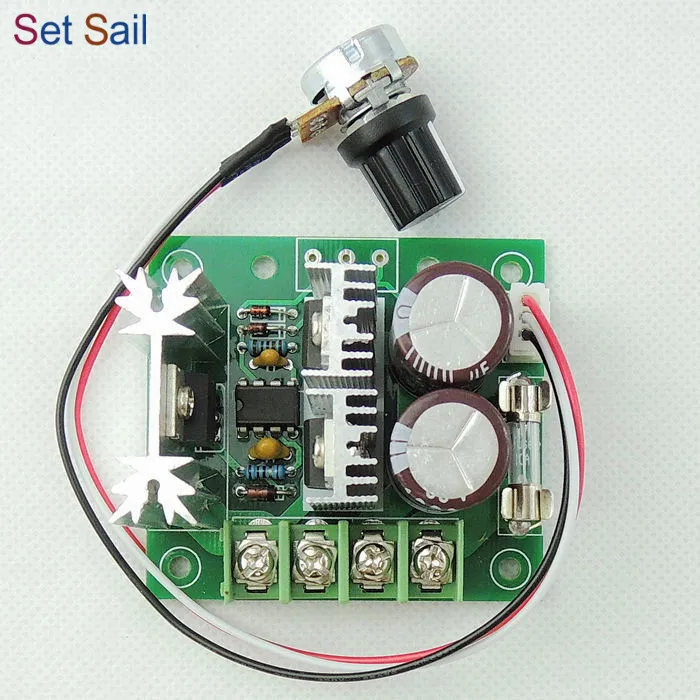

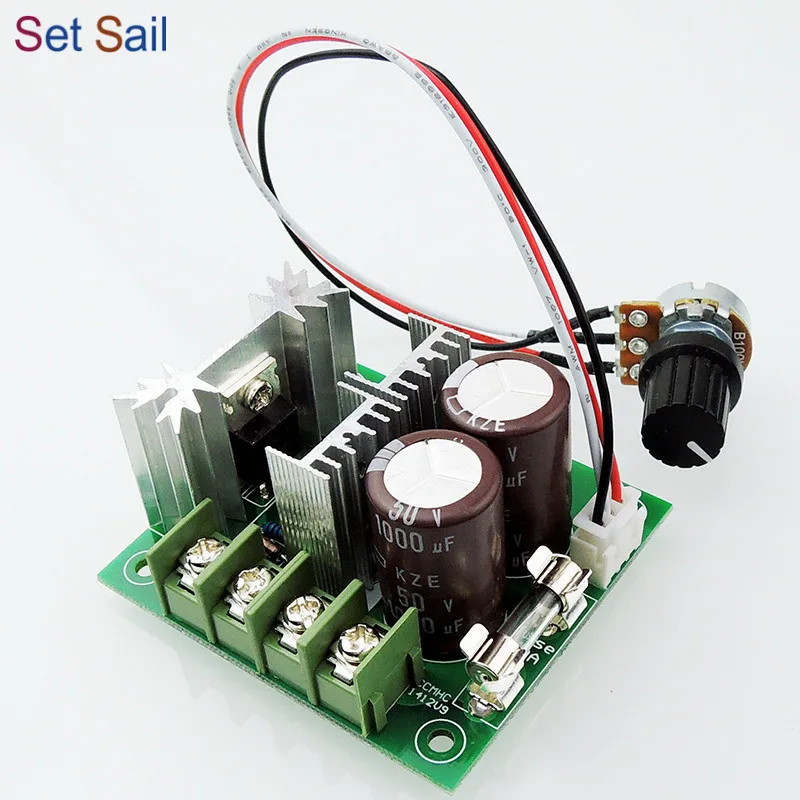

DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 0%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load.
The circuit also includes a 20A fuse, with reverse connection of power supply and control voltage over-voltage protection function.

Main technical parameters:

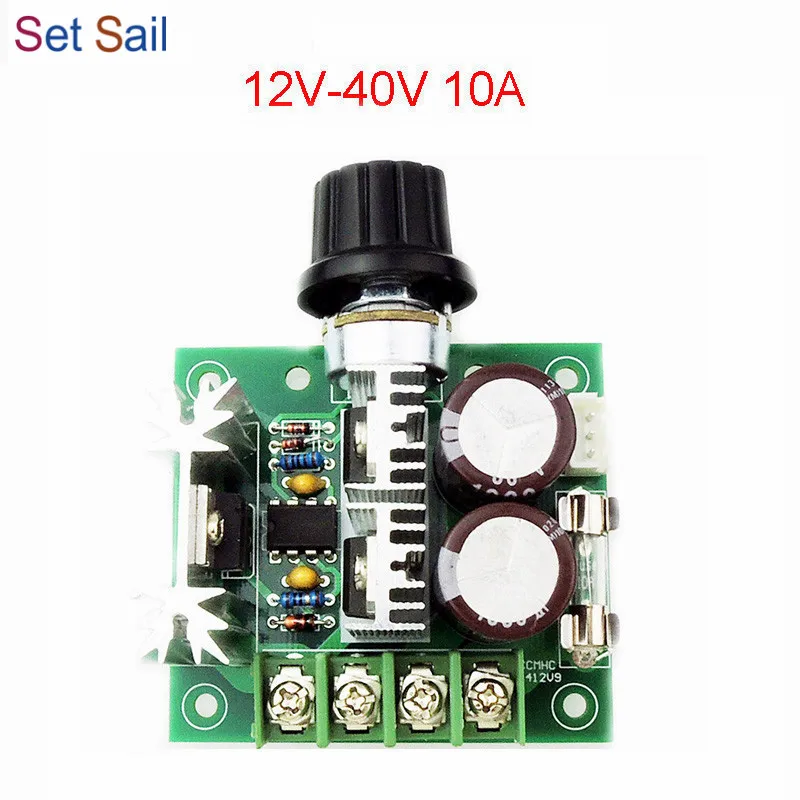

Input supply voltage: 12V-40VDC
The maximum output power: 0.01-400W
The maximum continuous output current :8A;
The overload and short circuit protecting current is 10A
PWM frequency: 13kHz
Duty Cycle adjustable:10%-100%
The 20A fuse with reverse connection of power supply and control
voltage over-voltage protection function
Can adjust the speed by the external 0-5V signal

Specifications:

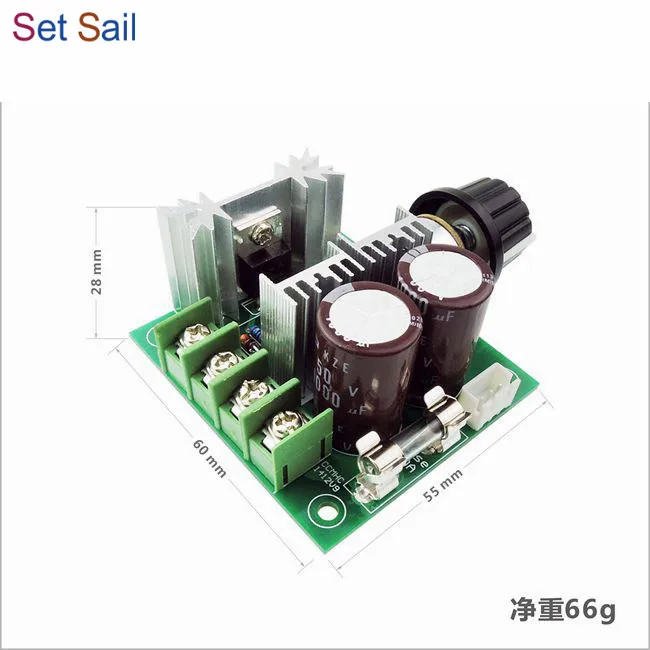

Item size:60*55*28mm
Two mounting holes of 3.2 mm each
Net weight:66g

Important Notes
An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is
recommended to ensure safe operation.

The controller is with reverse-polarity protection and the fuse will be damaged if connect the
supply voltage with wrong polarity. Double check all connections before applying power and always
turn off the power supply before making any wiring changes.
