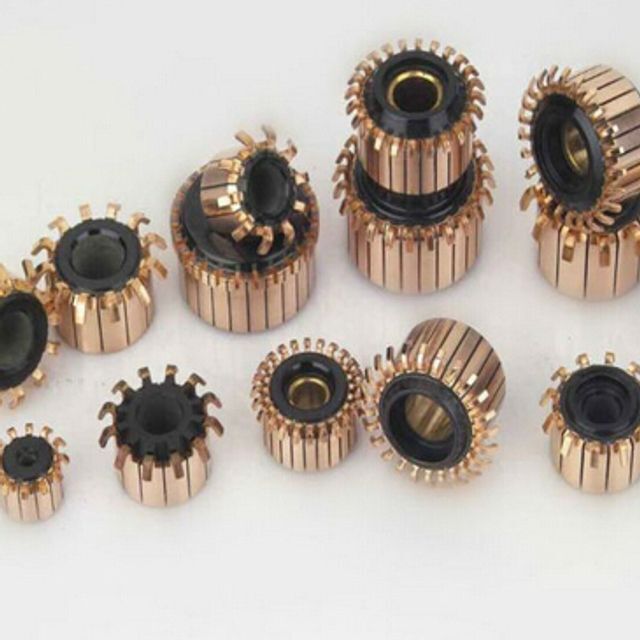

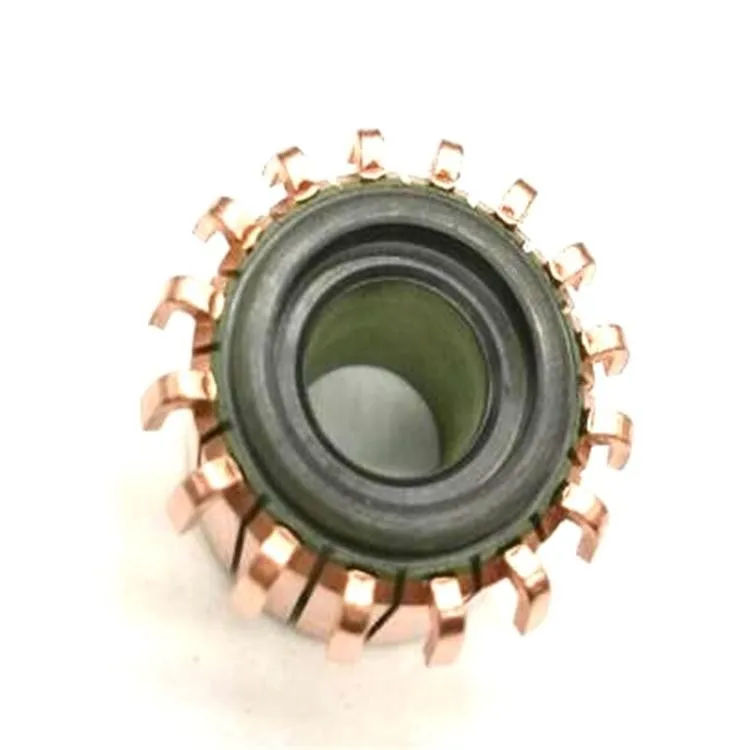

Commutator

Sitejieyou Industrial  Co., Ltd. is located in Asia's largest auto parts. We are a professional manufacturer of auto parts,
set design, development, manufacturing as a professional manufacturer.We focus on a series of fashion accessories,
a wide range of diversity, reasonable price and on-time delivery.

More Details

Place of Origin : ningbo,China(Mainland)
Usage :Gear
Motor: Brush
Voltage :12V,24V,48V,60V
Material : copper
Certification :ISO9001
Type: AC/DC motor
Advantages of our commutators
1.Silver copper with high intension and wear resistance
2.Longer service life
3.High quality
4.Competitive price
5.Extensive range of commutators
We can supply Commutators in high quality with CE certificate.
Our commutators are widely used in many industries,like;For Car industry, starting motors,windscreen wipers, window lifts etc.,for power tools, electric drill, hammers,planers.For household appliance, Vaccum cleaners,washing machines,AC,We have been exporting our Commutators to many countries,Like USA,Korea,Japan,Greece,Italy etc. we had enjoyed very high reputation in the world markets.
For more details,pls contact us .
Product Description:
Materials 0.03% or 0.08% sliver copper/bakelite CN6551
Size Customized
Structure Segmented/ Hook/ Groove commutator
Usage Motor spare parts
MOQ 500pcs
Sample Time 15-30 days
Delivery Time 30 days
Packing Paper cartons on pallets/ Customized
Production Capacity 1000000pcs/month
Service& Warranty Best service for all customers, with 6 months' warranty
Technical Specifications:
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4±0.1, width 0.5± 0.05 ) should be tolerated.
2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl
3. Spin Test: Under 180±2 ºC , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003.
4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V.

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
