Liquid/oil/wine/beer/honey/syrup/paint filtration machine Stainless Steel 304 multi Bag Filter Housing

Supplier: Shandong Yate Filter Material Co., LTD
Region: Shandong, China
Contact: Ms Shirley Ju
Price: $160.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Type:	Single bag / multiple bags;
Filter Bag Material:	PP/PE/SS;	Brand Name:	yate;
Packaging Detail:	wooden case;	Size:	Customized Size;
Warranty:	1 Year;	Core Components:	Pressure vessel;
Name:	1-24 bag filter;	Product name:	Stainless Steel Bag filters;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Weight (KG):	85;
Usage:	Liquild Filter;	Supply Ability:	20 Sets per Day;
Payment Terms:	L/C,T/T;	Working Pressure:	12 bar;
Application:	Water Treatment;	Min. Filtration Precision:	0.5-500 μm;
Material:	Stainless Steel 304;	Port:	qingdao;
Showroom Location:	Russia;	Machinery Test Report:	Provided;
Package Preview:	;	Marketing Type:	New Product 2022;
Place of Origin:	Shandong, China;	Condition:	New;
Warranty of core components:	1 Year;

APPLICATION OF STAINLESS STEEL BAG FILTER

Food and beverage: beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: electrophoretic paint filtration; varnishes and topcoats filtration
Electronics industry: lithium battery coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel filtration ；graphene, ink filtration

Contact: Shirley Ju
Email: yate20201225@163.com
Whatsapp/WeChat/Mob.: + 8615265667398

Products Description

PROFESSIONAL CUSTOMIZATION BY TECHNICAL TEAM

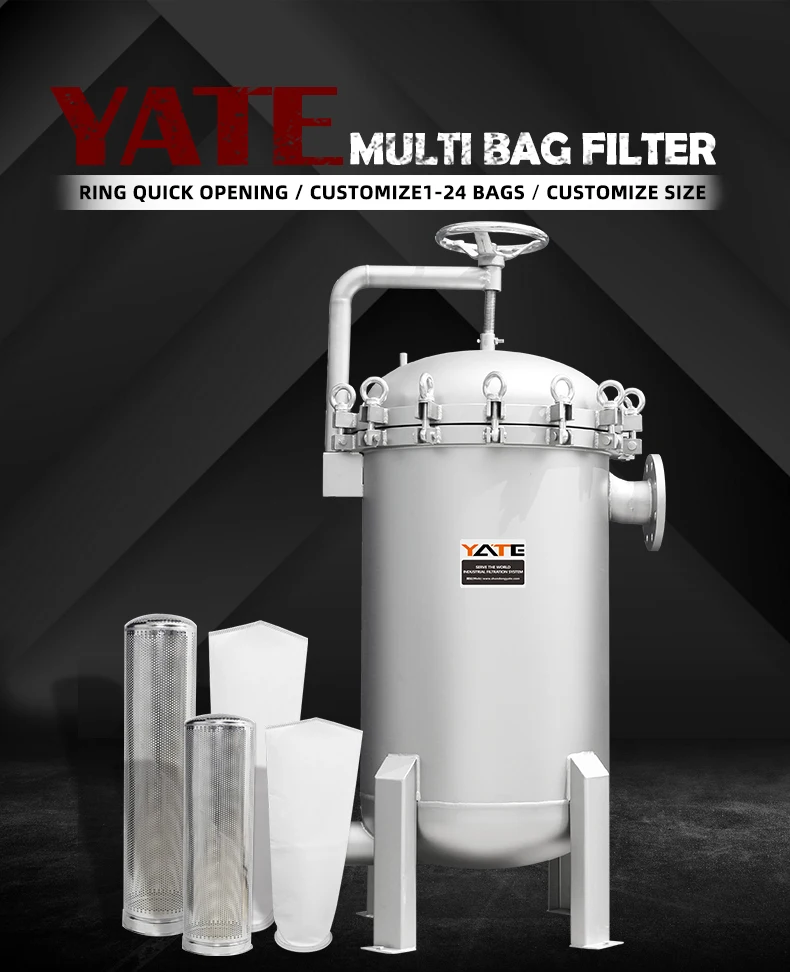

Multi-bag filter is designed for high capacity pollution or large flow filtration requirements, provide 2-24 bags of design customization, import and export of a variety of sizes optional (DN80-DN250), convenient direct connection, ensure sufficient equipment strength and pipeline load bearing capacity, quick open design, unscrew the nut to remove the cover, convenient maintenance, Made of high-quality stainless steel 304, 316L and other materials.

Model	Filter Bag#	Filter Bag Qty	Filtration Area(m2)	Connection	Max.Flow (m3/h)	Working Pressure(MPa)
YT-1D	1#	1	0.25	DN50	20	0.6
YT-2D	2#	1	0.5	DN50	40	0.6
YT-2P2S	2#	2	1	DN50-DN100	70	0.6
YT-3P2S	2#	3	1.5	DN80-DN100	100	0.6
YT-4P2S	2#	4	2	DN80-DN100	140	0.6
YT-5P2S	2#	5	2.5	DN80-DN100	175	0.6
YT-6P2S	2#	6	3	DN80-DN100	240	0.6
YT-7P2S	2#	7	3.5	DN80-DN100	245	0.6
YT-8P2S	2#	8	4	DN100-DN200	280	0.6
YT-10P2S	2#	10	5	DN150-DN200	350	0.6
YT-12P2S	2#	12	6	DN150-DN250	420	0.6
YT-14P2S	2#	14	7	DN200-DN250	490	0.6
YT-16P2S	2#	16	8	DN200-DN300	560	0.6
YT-18P2S	2#	18	9	DN250-DN350	630	0.6
YT-20P2S	2#	20	10	DN250-DN400	700	0.6
YT-22P2S	2#	22	11	DN300-DN450	770	0.6
YT-24P2S	2#	24	12	DN350-DN450	840	0.6

Recommend Products

Advantages

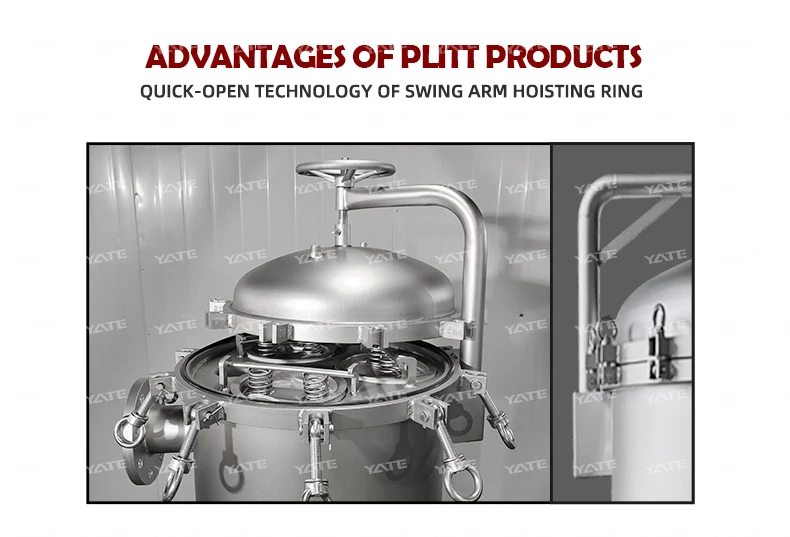

QUICK OPENING TECHNOLOGY OF ROCKER RING

M16 high strength lifting ring, rocker arm cap opening mechanism, easy maintenance, reduce costs, widely used in industrial and water treatment and filtration fields.
