Model Number: | 19600.060; | Place of Origin: | Italy; |
Port: | Dalian; | OE NO.: | 19600.060; |
Type: | Carburetor; | Car Make: | Porsche,Beetle,Chevrolet Nova/ Chevelle/ Camaro/ Impalas; |
Supply Ability: | 10000 Piece/Pieces per Year; | Delivery Detail: | 10days; |
Size: | 45MM; | Warranty: | 1 Years; |
Brand Name: | weber; | Payment Terms: | T/T,Western Union,MoneyGram; |
Packaging Detail: | Yellow carton packaging; |

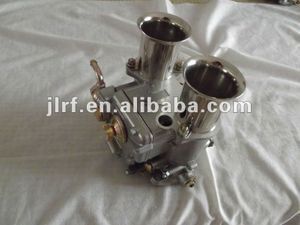

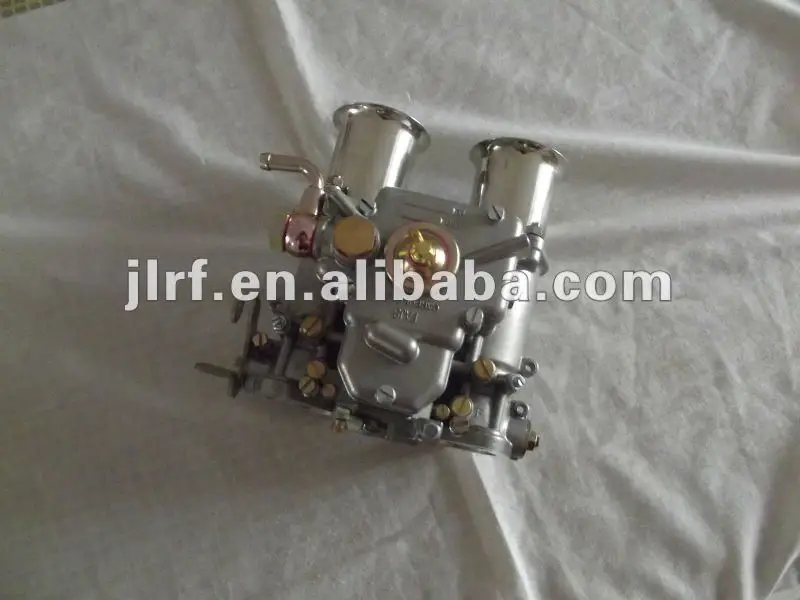

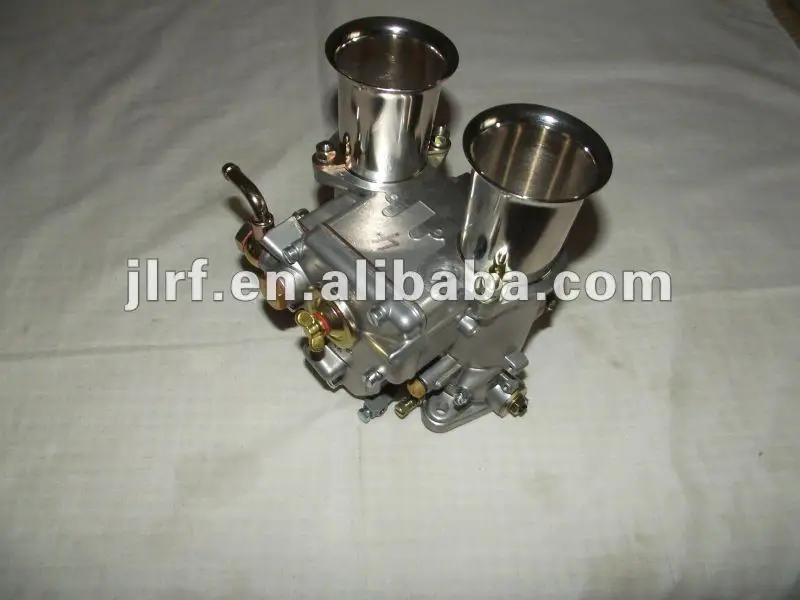

FAJS 40/45 DCOE - PERFORMANCE, ADAPTABILITY, AND BEAUTY!
The 40/45mm Weber DCOE – a legendary performer in European Grand Prix racing, is a study in superb design and craftsmanship. One of our most versatile carburetor models, DCOE carburetors are available from FAJS in either 40 or 45mm bore and throttle plate diameter. The "DCOE" suffix indicates that this is a high-performance, 2-barrel side draft carburetor.
The DCOE carburetor architecture is simple and elegant, with no metering rods, power valves, rubber seals or plastic parts. It features a brass accelerator pump and floats, and its throttle shaft rides in precision roller bearings. Our DCOE carburetors can be set up to work with nearly any engine by virtue of interchangeable venturi and a host of precision tuning parts. Superb throttle response, torque, and horsepower output are the hallmarks of these excellent carbs.
\
Fig | Qty | Description | Part Number | Fig | Qty | Description | Part Number |
---|---|---|---|---|---|---|---|
1 | 1 | Filter Cover | 61002.010 | 46 | 2 | Cup Washer | 58000.006 |
2 | 1 | Filter Cover Gasket | 41530.024 | 47 | 3 | Spring | 47600.007 |
3 | 1 | Filter Element | 37022.010 | 48 | 2 | Vacuum Screw | 64590.008 |
4 | 1 | Jet Inspection Cover | 32376.003 | 49 | 2 | Pump Jet Gasket | 41535.021 |
5 | 9 | Screw | 64700.001 | 50 | 1 | Spring | 47605.012 |
6 | 1 | Jet Inspection Cover Gasket | 41550.002 | 51 | 1 | Spring Plate | 52210.006 |
7 | 1 | Top Cover Gasket | 41715.011 | 52 | 1 | Throttle Stop Screw | 64625.012 |
8 | 1 | Needle Valve | 79503.200 | 53 | 1 | Pump Plunger | 58602.003 |
9 | 1 | Float (plastic) | 41030.034 | 54 | 2 | Starter Valve | 64330.003 |
10 | 2 | Emulsion Tube Holder | 52580.001 | 55 | 2 | Starter Valve Spring | 47600.105 |
11 | 2 | Air Corrector Jet | 77401.* | 56 | 2 | Idle Mixture Screw | 64750.003 |
12 | 2 | Idle Jet Holder | 52585.006 | 57 | 2 | Pump Jet | 76801.* |
13 | 2 | Emuslion Tube | 61450.* | 58 | 2 | Pump Jet Oring | 41565.009 |
14 | 1 | Stud | 64955.007 | 59 | 2 | Pump Jet Cover | 61015.008 |
15 | 2 | Main Jet | 73401.* | 60 | 1 | Pump Rod Spring | 47600.064 |
16 | 2 | Idle Jet | *.* | 61 | 1 | Pump Rod | 10410.015 |
17 | 2 | Auxillary Venturi | 69602.450 | 62 | 2 | Starter Jet | 75507.085 |
18 | 2 | Air Horn | 52840.001 | 63 | 2 | Pump Valve Ball | 58300.003 |
19 | 4 | Air Horn nut | 34705.004 | 64 | 2 | Stuffing Ball | 52730.001 |
20 | 4 | Waasher | 55525.010 | 65 | 2 | Retaining Screw | 58070.008 |
21 | 4 | Air Horn Tab | 521550.012 | 66 | 1 | Neddle Valve Gasket | 83102.100 |
22 | 2 | Main Venturi | 72116.* | 67 | 1 | Fuel Union Gasket | 41530.031 |
23 | 4 | Stud | 64955.110 | 68 | 1 | Fuel Union | 10536.035 |
24 | 2 | Lock Washer | 34710.003 | 69 | 1 | Fuel Union Gasket | 41530.024 |
25 | 2 | Cap | 14945.003 | 70 | 1 | Fuel Union Bolt | 12715.008 |
26 | 2 | Air Bypass Screw | 64750.002 | 71 | 2 | Inspection Cover | 61015.009 |
27 | 2 | Lock Nut | 34705.001 | 72 | 1 | Float Pin | 52000.001 |
28 | 2 | Locking Screw | 64830.006 | 73 | 1 | Cable Clamp | 64605.017 |
31 | 2 | Lock Washer | 55520.004 | 74 | 2 | Starter Air Jet | 77505.150 |
32 | 2 | Throttle Shaft Nut | 34710.003 | 75 | 1 | Top Cover | 31734.197 |
33 | 2 | Throttle Plate | 64005.044 | 76 | 1 | Plate | 52130.003 |
35 | 4 | Throttle Plate Screw | 64520.027 | 77 | 2 | Washer | 55510.128 |
36 | 1 | Cover Gasket | 41640.001 | 78 | 2 | Bearing | 32650.001 |
39 | 2 | Screw | 64750.009 | 79 | 2 | Oring | 41575.019 |
40 | 2 | Screw | 64700.004 | 80 | 1 | Inspection Cover | 52135.024 |
41 | 1 | Pump Cover Gasket | 41640.021 | 81 | 1 | Gasket | 41640.021 |
42 | 1 | Cold Start Unit | 32556.018 | 82 | 1 | Pin | 58445.001 |
43 | 1 | Pump Exhaust Valve | 79701.040 | 83 | 1 | Cover | 32374.008 |
44 | 2 | Idle Mixture Screw Oring | 41565.002 | 84 | 1 | Pump Cam | 45082.005 |
45 | 1 | Throttle Lever | 45048.007 | 85 | 1 | Throttle Shaft | 10005.438 |
86 | 1 | Washer | 55555.010 |
* Please see Calibrated Parts Listing
45 DCOE Initial Settings | |||
---|---|---|---|
Main Venturi | 36 ? | Auxillary Venturi | 5.0 mm |
Main Jet | 1.85 mm | Air Corrector Jet | 1.60 mm |
Emulsion Tuber | F16 | Idle Jet | 0.60/F8 |
Needle Valve | 2.25 mm (spring loaded) | Pump Jet | 0.60 |
Pump Exhaust Valve | 40 ? | Float/Cover Gasket Level | 5 mm * |
Chokes | 40.0 mm | ||
* When the level between the float and cover gasket is measured, it is important that the float is allowed to hang vertically. A false reading will be obtained if the lid is held horizontally. |
