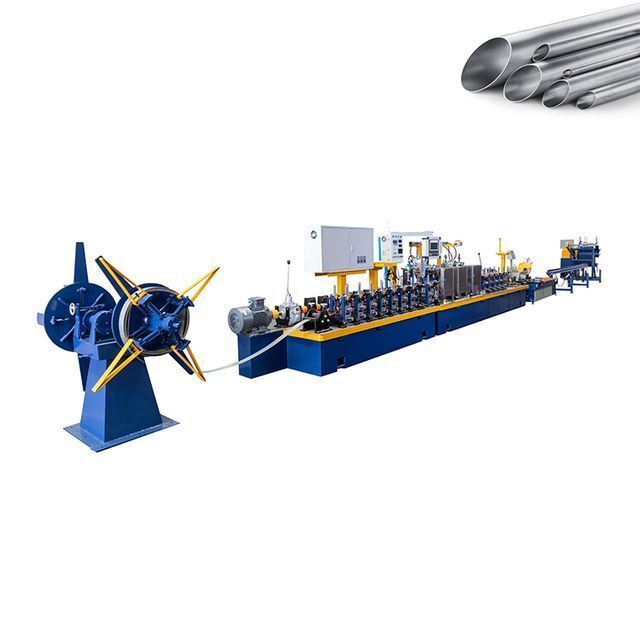

High Frequency Iron / Carbon Steel Stainless steel Pipe Making Machine / Tube Mill

Supplier: Foshan Jopar Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Linna Ke
Price: $26500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 Year;	Place of Origin:	Guangdong, China;
Pipe Application:	Furniture,curtains,chimney,handrails,baluster,construction tubes;	Thickness:	0.5-2.0mm;
Market:	Global;	Pipe Material:	Stainless Steel;
Type:	Pipe Production Line;	Machinery Test Report:	According to the actual situation;
Dimension(LWH):	29M*1.5M;	Name:	Jopar Pipe making machine;
Marketing Type:	Ordinary Product;	Key Selling Points:	High Safety Level;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Erw tube mill;	Warranty:	1 Year;
Pipe diameter:	8-51mm;	Production Capacity:	1-15m/min;
Showroom Location:	None;	Condition:	New;
Package Preview:	;	Port:	FOSHAN/GUANGZHOU/ SHENZHEN(INCOTERMS 2010);
Voltage:	220/380/415/420/440V;	Weight:	7500 kg;
Video outgoing-inspection:	Provided;	Power:	7.5kw+7.5kw;
After-sell service:	Installation,training,skilled engineer for working;	Packaging Detail:	Exprot standard:Use stranded wire and bracket to secure the large mechanical.Use shock-film protecting the external motor. foshan,guangzhou,shenzhen or depend on your need;

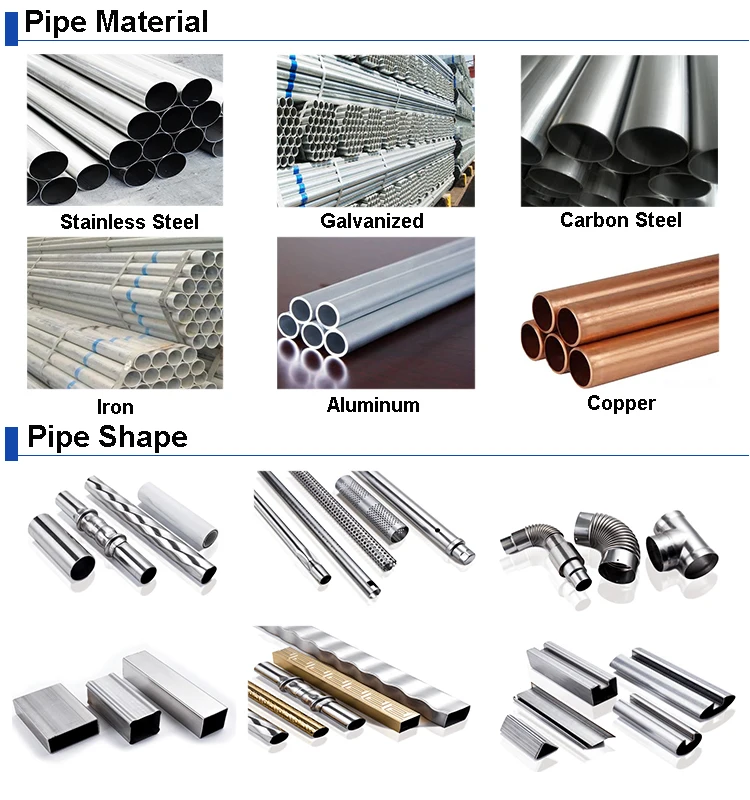

Pipe shape:	Round/Square /Rectangle pipe Etc;	Useful life:	40 Years;
Core Components:	PLC,Bearing,Gearbox,Motor;	Application:	Use for furniture,decorative, building,Energy Supply Pipe;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company;	Color:	Customized Colors;
Brand Name:	Jopar pipe making machine;	Supply Ability:	30 Sets per Month Erw tube mill;

Product Description

Foshan Jopar Machinery Co., Ltd. is a manufacturer of pipe making machines, offer different metal tube mill manufacturing machine,covering range from diameter is 5mm to 630mm. and thickness is 0.2mm to 6.0mm round pipe,square pipe,rectangle pipe,oval pipe and other irregular pipe as well.

TECHNICAL PARAMETERS

Model

Horizontal

Shaft Size

Vertical

Shaft Size

Out Diameter.

Range

Thickness

Drive Motor

Dimension

ZP-P40

40mm

25mm

8-51mm

0.5-2.0mm

7.5kw+7.5kw

29m*1.5m

ZP-P50

50mm

30mm

25-76mm

0.5-3.0mm

11kw+11kw

32m*1.5m

ZP-P60

60mm

40mm

50-114mm

0.6-3.5mm

15kw+15kw

35m*1.8m

ZP-P80

80mm

50mm

89-168mm

1.0-4.5mm

18.5kw+18.5kw

40m*2.5m

ZP-P100

100mm

60mm

114-219mm

1.0-5.0mm

22kw+22kw

43m*3.0m

OFFERING THE PROFESSIONAL WELDED TUBE SOLUTIONS

160mm

426-630mm

6.0-14.0mm

110(kw)*2

65m*6.0m

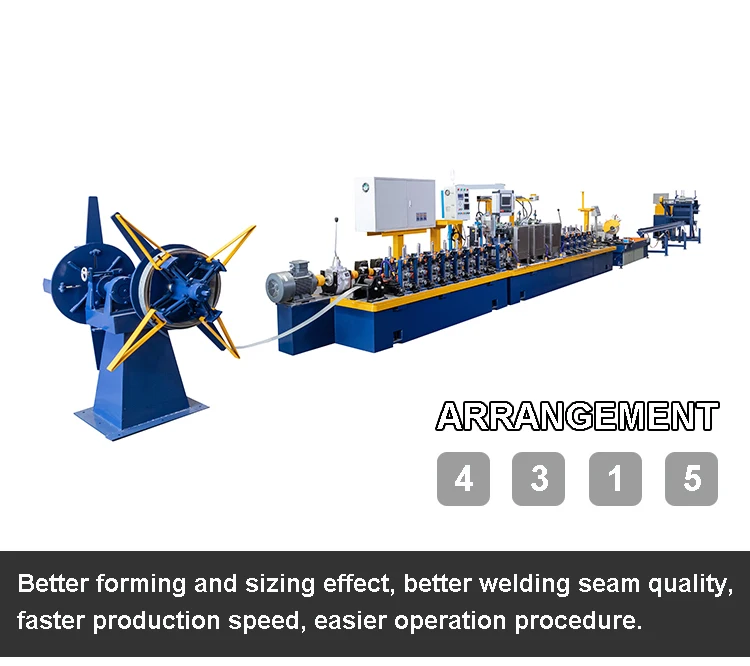

Automatic Production Processes:

After the technology of decoiling branding,molding,welding,grinding,sizing,alignment,cut-to length,abscission

splicing and so on.

Company Profile

Customer Case

FAQ

1. Who are we?
Foshan Jopar Machinery Co., Ltd, We are based in Guangdong, China, start from 2014.

2. How can we guarantee quality?
In order to ensure the processing accuracy of the machine and ensure the stability of the machine's operation, the accessories on
the pipe making machine are independently processed and produced. We have a variety of processing equipment,such as Horizontal machining center,Vertical Machining Center,CNC lathe,Coordinate Boring Machine.
India largest steel pipe factoryIt's an old customer we have worked with for many years‘Suncity Sheet’-Tube Project
Always final Inspection before shipment.

3. What can you buy from us?
Pipe making machine,pipe polishing machine,pipe embossing machine,pipe mould,flap wheel ,saw balde ,Inside bead rewove machine,in-line annealing machine,pipe chamfering machine.

4. Why should you buy from us not from other suppliers?
Foshan Jopar Machinery Co., Ltd,is located in Nanhai Foshan China where is famous label area .
Professional service team, to provide you with one-stop service:project for factory-production services-sale services-after
sales services;
R&Dtechnical team Customized service for client's requiement;
High quality, competive price.

5. What services can we provide?
Offer Services
We can provide pre-sales consultant& On-purchase for everyday
1. Reply Time: Within 10minutes(Not 24 hours)
2. Provide Tube Mill Machine relevant product information
3. Give you technical good suggestion

After Service--Provide service 24 hours*7 days per week
1. Test the tube mill machine before shipment
2. Provide installation service, according to customer needs;
3. OTO Training service: teach customers how to use the machine
4 Assistance service: ①Improve pipe quality;②Improve production capacity;③Reduce production cost;④Reduce warehouse storage
