High Speed Tubular Centrifuge Machine Plant for Animal Blood Plasma Separation Provided Shenzhou Bearing

Supplier: Liaoyang Shenzhou Machinery Equipment Co., Ltd.
Region: China
Contact: Ms Cathy X
Price: $3980.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Description

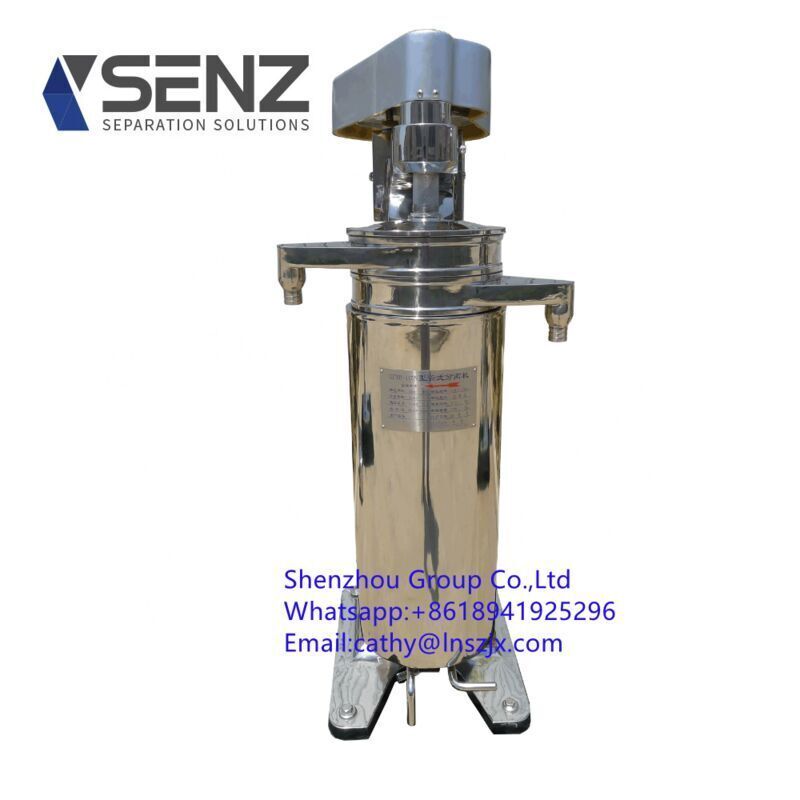

High Speed Tubular Centrifuge Machine Plant for Animal Blood Plasma Separation Provided Shenzhou Bearing

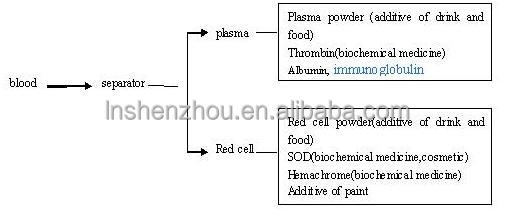

Main Purposes
The blood separator is one kind of tubular separator. This machine is the improved one on the base of the original separator and through experiment again and again. This kind of machine can be extensively used in separating blood plasma and cell of pig, cow, sheep and chicken etc.

Main Features
The main feature of it is the high yield and the rate of broken blood cell can be reduced to the lowest extent. The contact part between the separator and material is made of stainless steel which can meet the requirement of GMP in medicine making industry.

Structure and principle

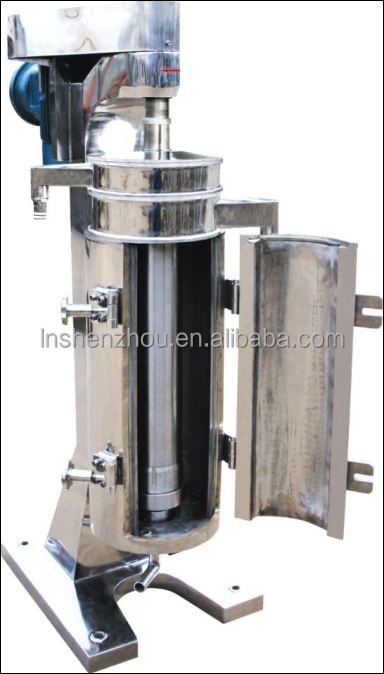

It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.

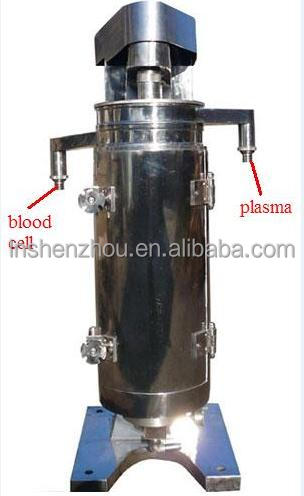

GFXY model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets.
The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.

GFXY: It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro powder, extract liquid from plants, separation of plasma and cell.

Specification

Model	GFXY1	GFXY2
Diameter(mm)	105	112
Height (mm)	730	730
Sedimentation volume（L)	6	7
Max speed（r/min)	16800	15800
Max separation factor	15300	16300
Inlet nozzle diameter (mm)	4/6/8	4/6/8
Material inlet pressure (Mpa)	≧0.05	≧0.05
Capacity of fresh blood(L/H)	300-400	400-600
Motor model	3 phase two pole motor	3 phase two pole motor
Motor power (kw)	2.2	3
Machine dimension (mm)	60010001600
Machine weight (kg)	490	510

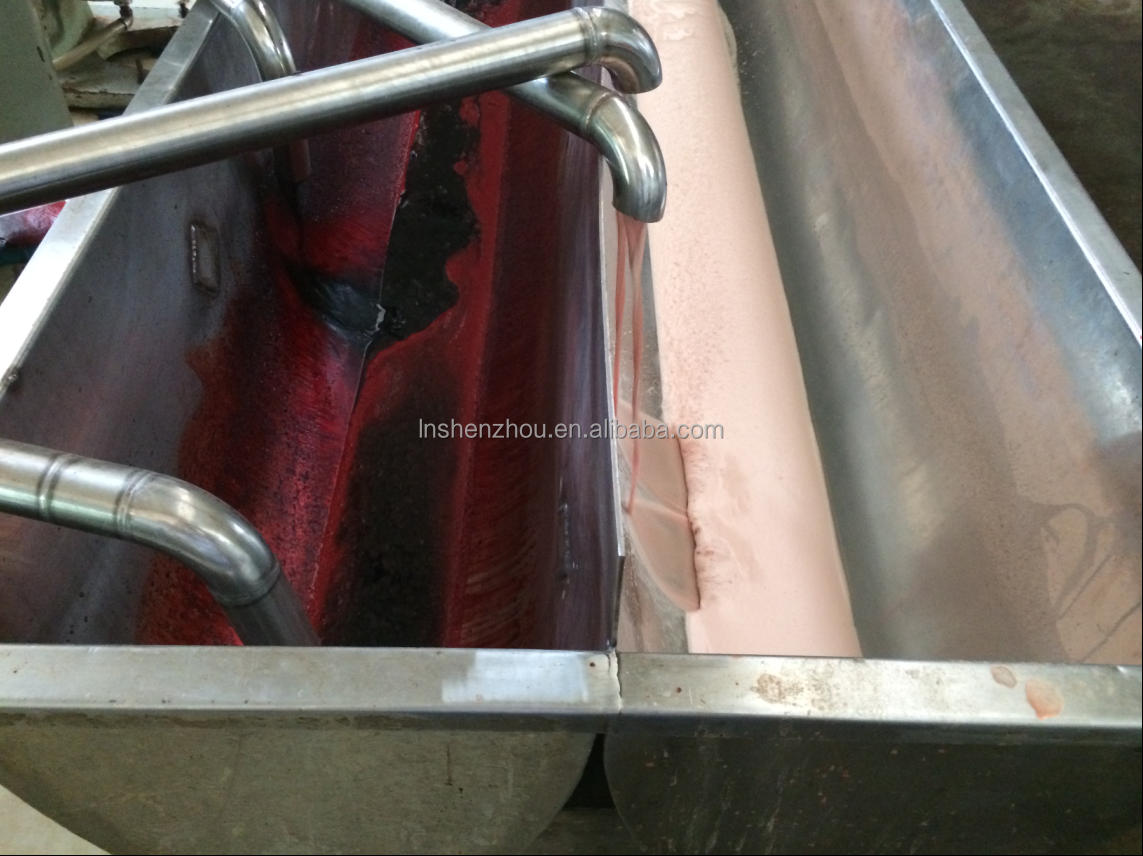

Separation blood show:

Customer’s working Show

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. What certificates do you have?
We can provide CE, ISO 9001, etc

2. What is the warranty period of the equipment?
Normally 1 year warranty.

3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.

4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc

5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
