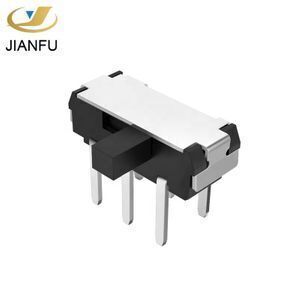

dip right angle dpdt horizontal 6 pin slide switch

Supplier: Zhejiang Jianfu Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Doris Lin
Price: $0.027 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Feature:	Low profile;
Feature3:	dp2t slide switch;	Feature2:	IR reflow to 260 degree solder profile;
Packaging Detail:	900pcs/reel;	Application2:	Computer peripherals;
Application4:	Instrumentations;	Application:	Telecommunication products;
Mechanical Life:	5,000 make-and-break cycles;	Application3:	Thermostat select switch;
Port:	Ningbo;	Supply Ability:	100000 Piece/Pieces per Week;
Brand Name:	JF;	Max. Current:	0.3A;
Type:	THT;	Feature4:	Rohs compliant;
Product type:	2 position slide switch;	Model Number:	SHDCN-22D01;
Place of Origin:	Zhejiang China (Mainland);	Max. Voltage:	6V DC;

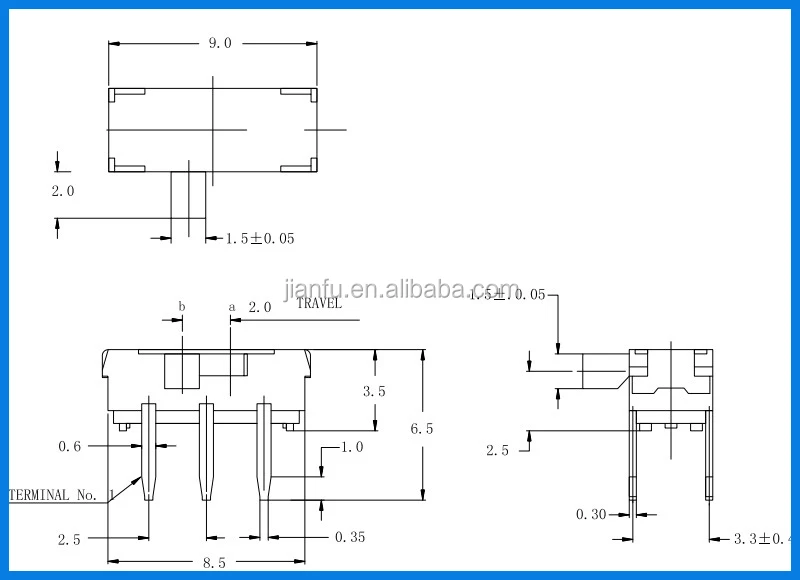

Dimensions

PCB layout

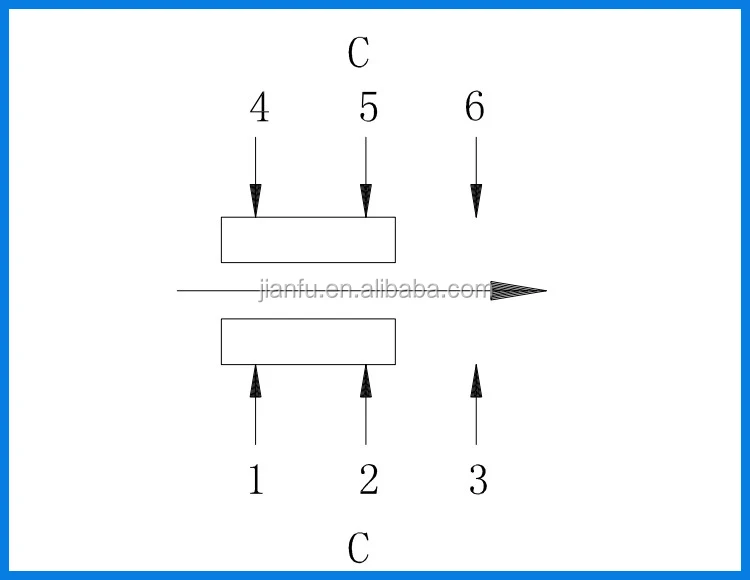

Circuit diagram

Specifications
CONTACT RATING:		6 VDC @ 0.3A
ELECTRICAL LIFE:		5,000 make-and-break cycles
CONTACT RESISTANCE:		70 mΩ max
INSULATION RESISTANCE:		100 MΩ min. @ 500V.
DIELECTRIC STRENGTH:		500 VAC min. @ sea level.
OPERATING TEMPERATURE:		-40?C to +85?C
STORAGE TEMPERATURE:		-40?C to +85?C
Features/Benefits		Typical Applications
Positive detent		Telecommunication products
Low profile		Computer peripherals
IR reflow to 260? solder profile		Thermostat select switch
Surface and thru hole mounting		Instrumentations
SPDT, DPDT, DP3T models

Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.

Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .

Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.

Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
