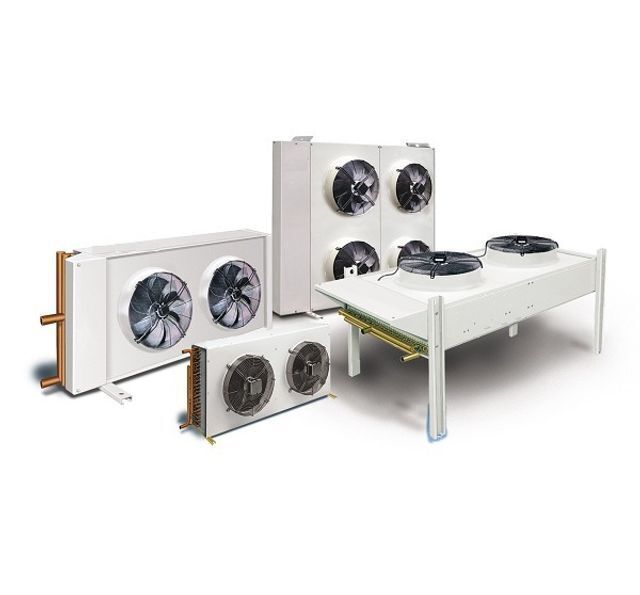

BC-888 MODEF60 oil Copper tube aluminum fin dry cooler for data center

Click here to contact
Product details
Operating Voltage:380/400 VAC;Port:Shanghai;
Power(W):Max. 1200kW;Airflow:300m³/h;
Warranty of core components:1 Year;Fan material:Stainless Steel, aluminum;
Video outgoing-inspection:Provided;Place of Origin:Jiangsu, China;
Brand Name:VRCOOLER;Tube diameter:Up to our mold sheet;
Packaging Detail:Wooden packing;Condition:New;
Weight (KG):2000 KG;Machinery Test Report:Provided;
Package Preview:;Warranty:1 Year;
Supply Ability:450 Units per Month;Weight:100~1800KG;
Dimension(L*W*H):Model Closed;Tube and Fin material:Copper, aluminum, stainless steel, hot deep carbon steel;
Frame material:SS304/316, galvanized steel;Marketing Type:Hot Product 2019;
Applicable Industries:Manufacturing Plant;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Core Components:Pump;Dimensions:Customized;
Key Selling Points:Long Service Life;Mounting:Floor Standing;
Defrost:Hot gas, electric, water;Type:EVAPORATIVE AIR COOLER;
Product description
1. Material options
·Heavy-gauge hot-dip galvanized steel is used for unit steel panels and structural elements featuring a zinc aluminium coating.
2. Heat transfer media
·The dry cooler is constructed of staggered and seamless copper tubes (15,9 or 12,7 diameter) with aluminium, rippled and corrugated fins (0,14 or 0,17 thickness). ·2,5 mm fin spacing for optimal air turbulence ·Thick and seamless copper headers and threaded steel connections ·Pressure tested at 15 bar ·Try our options for aggressive environments: special pre-coated anti-corrosion aluminium fins or copper fins (0,2 mm thickness).
3. Air movement system
·Axial fan with exceptionally compact direct drive short integrated motor and fan guard. ·The fan features an impeller and motor and is balanced as a complete unit using dynamic single plane balancing. Balance grade is G6.3. ·Fan and motor totally maintenance free. ·Bearings seals and motor encapsulation for long service life.
Case study
Projects name: Dry cooler for Sweden Garbage industry

Customer's request: Outdoor temp -20 to +30 driving all year, Water 10000 liters/houer In temp 80dg Out about 40c, Fan power 400volt 50Hz, Montage on the roof outdoor we have 3” pip up and down, Size inside 20 feet container

Our first solution:
Customer's first feedback: This is a plane cooler, I want v type. I want about 2 meter x 5 meter v type. I want to have as big as possible V type. I’m going to montage more hydraulic pumps now. I don’t know what I need but pleas offer 1 ho fits in 20 feet container and then I fix the rest here in Sweden. To day we have 10 m3/h, But I can have less if you want. We are cooling water and then oil from the water.

Our reply: The cooler we designed is enough to cool the 10m3/h water. Will you increase the flow rate in the future? Of course we can change our design to a V-type cooler.

Customer: Yes we will total have 40m3 Water in the future but maybe its better to take 2pc v type for 20m3 Please offer 2pc v type for 20m3/h.

Our second solution:
Customer's reply: Looks really good, please send me PI.

Dry cooler for bitcoin mining cooling in USA

Application: bitcoin mining farm
Heat Transfer capacity: 250kw
Cooling medium: BC-888
Medium flow rate: 100gpm
Inlet medium temp: 60
Outlet medium temp: 40
Inlet air temp: 32
Power Supply: 451v/3ph/60Hz
Material: Cu tube, golden coated AI fin condenser, galvanized sheet frame
Dry cooler for ore yard in Russian

Heat Transfer capacity: 493kw
Cooling medium: 20% ethylene glycol Inlet medium temp: 45
Outlet medium temp: 40
Inlet air temp: 35
Medium volume: 88m3/h
Air volume: 19372m3/h
Power Supply: 400v/3ph/50Hz
Material: copper tube aluminum fin galvanized sheet frame,power coating

Dry Cooler for Injection Molding Machine Factory

Application: injection molding machine factory
Heat transfer capacity: 94kW
Cooling medium: water
Inlet air temp.: 20℃
Inlet medium temp.: 35℃
Outlet medium temp.: 25℃
Medium volume: 60l/s
Material: copper tube aluminum fin and galvanized steel frame.
Supply power: 400V/3P/50Hz
Colombia dry cooler for injection machine
Britain dry cooler for steam turbine
Japan dual system radiator for engine
New zealand cooler for power industry
Saudi Arabia project for data center
Canada projects for bitcoin server farm
Engineering Data
We have customized products for many customers, following are some projects we did before.
We can provide designing data and prodcution drawings.
We promise we use the design software sold by a well-known European HAVC software company. Through 8 years of cooperation with them, we have designed, processed and exported dry coolers to various countries all around the world. All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Our Company
MORE THAN 15 YEARS OF SUCCESS
Changzhou Vrcoolertech Refrigeration Co.,Ltd specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
OUR MISSION
We are committed to quality products and services to meet our customer's expectations and the needs of industrials. We are dedicated to our mission and goal and we believe in long term business relationship with our customers which is based on integrity, responsiveness and quality
A STRATEGIC LOCATION
Address: Qingsitang, Henglin Town, Wujin Dist, Changzhou, Jiangsu, China.
QUALITY CERTIFICATES
Since 2004 UNI EN ISO 9001:2008 Quality System Since 2005 UNI EN ISO 14001:2004 Environmental Management System
Packing and delivery
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q1: What is your strength ? A: Design and manufacture. Q2: How long is your delivery time? A:Different products' production time is different. Generally, it needs 10 to 40 working days. Q3: What is your terms of payment ? A:50% TT deposit in advance, 50% TT balance before delivery. We provide Alibaba Trade Assurance Service. Welcome for more advise. Q4: How do you guarantee the quality of your products A: Our products go through layers of inspection from raw materials to production to shipment. First the tube will go through a flaw detection test. The entire tube fin heat exchanger is subjected to pressure test and leak test. Q5. How to contact with you ? A: 24hours online from TradeManager, quick answer, or email with us, wechat, skype, whatsapp is available. Select one product and leave message to us.
