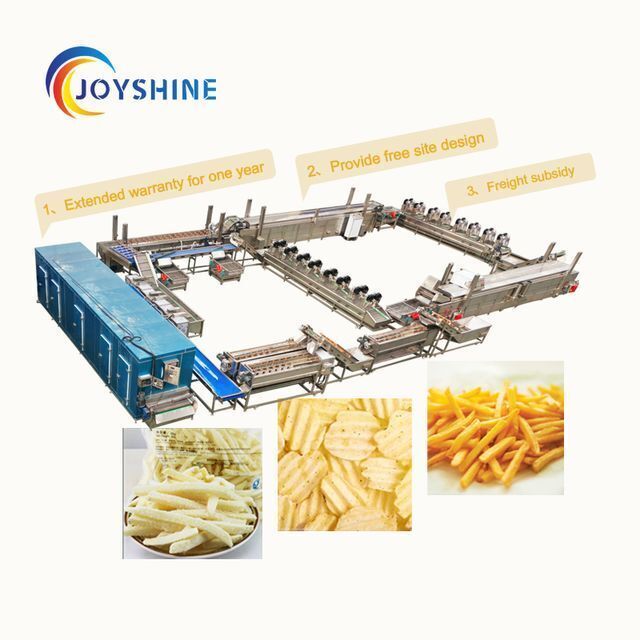

New Frozen French Fries Potato Crisps Processing Machinery Production Line Potato Chips Making Machine

Click here to contact
Product details
Applicable Industries:Hotels,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Food & Beverage Shops;Power:10KW;
Brand Name:JOYSHINE;Warranty of core components:1 Year;
Key Selling Points:High Productivity;Packaging Detail:For New Frozen French Fries Potato Crisps Processing Machinery Production Line 1.Our company usually packs in standard export wooden case . 2. Shipping, train, express or upon clients' demands.;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Machinery Test Report:Provided;
Supply Ability:20 Sets per Month;Marketing Type:New Product 2020;
Item:Industrial Potatos Chips Fries;Type:Fully Automatic Processing Line;
Heating type:Gas Or Electric;Output product name:Potato Crisps Processing Machinery;
Weight:200 KG;Place of Origin:Henan, China;
Warranty:1 Year;Feature:High Efficiency Potato Chips Line;
Capacity:50-2000kg/h;Port:Shanghai, Qingdao;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Showroom Location:Egypt,Italy,Peru,Russia,South Korea,Romania,Nigeria;
Voltage:220V/380V;Dimension(L*W*H):5500*2000*2000mm;
Application:Snack Food Production Line;After Warranty Service:Video technical support;
Video outgoing-inspection:Provided;Machinery Function:potato chips french fries making production line;
Accessory:Oil Tank And Extra Oil;Raw material:Fruit,Vegetables,Water;
Application fields:Vegetable processing plant,Commercial catering,Fruit processing plant,Frozen food Factory;
Products Description
We are professional direct manufacturer for potato chips or french fries making machines in China.
We have different solutions for different demands:
1: Different machines for making potato chips or french fries
2: Small, medium and large capacity from 30kg/h, 50kg/h, to 100kg/h, 300kg/h, to 1000kg/h, 2000kg/h output and workflow can be customized
3: Semi automatic or fully automatic processing machines
4: Electricity or gas, diesel heating source for blanching and frying machine.
5: The size of french fries and the thickness of potato chips are adjustable.
6: For french fries line, we have special equipment to remove the unqualified fries.
7: All machines are made of SUS304, Schneider electrical components and Siemens brand motor.
8: With special designed fryer, quick heating and energy saving, enabled good performance
Fully Automatic Frozen French Fries Production Process:
No.
Machine Name
Function
1
PVC Elevator
For elevating and conveying fresh potatoes into the next washing peeling machine
2
Potato Washing and Peeling Machine
Thoroughly washing and peeling the potatoes
3
Sorting Conveyor
For manually disposing the uncleaned places and selecting the defective potatoes
4
Fries Cutting Machine
Cutting the potatoes into fries,  sizes adjustable from 7*7 to 12*12mm
5
Water Tank Elevator
water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step
6
Fries Sorting Machine
Automatically picking up the small pieces fries
7
Bubble Washing Machine
Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch
8
Blanching Machine
Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries
9
Vibration Dewatering Machine
Through vibration to remove the surface water and also to transport the fries uniformly to the next machine
10
Air Drying Machine
Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon
11
Elevating Conveyor
For elevating and conveying the fries into next fryer machine
12
Continuous Frying Machine
For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life
13
Vibration Deoiling Machine
Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine
14
Pre-cooling Machine
Through high pressure wind blowing for pre-cooling and deoiling the fries
15
Freezing Machine
Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF
16
Automatic Packing Machine
For packing the finished frozen french fries
Detailed Description
PVC Elevator for Fresh Potatoes
Potato Washing Peeling Machine
Unqualitied Potato Sorting Conveyor
Potato Cutter
fries cutting chips slicing
Water Tank Elevator
Fries Sorting Machine
Bubble Washing Machine
Blanching Machine
Vibration Dewatering Machine
Air Drying Machine
Elevator Conveyor
Continuous Fryer Machine
Vibration Deoiling Machine
Air Cooling Machine
IQF Freezing Tunnel
Automatic Weighing and Packing Machine
Suitable for large and small potato chips, banana chips and other processing workshop, we can make suitable solution according to your workshop area and your real situation!
About Us
We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.
Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Our company's productivity can meet the stock of spot products. One of the independent warehouses has an area of more than 2000 square meters, and we can quickly supply customers with machine sets, for production lines.
Certifications
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
FAQ
What's the applicable materials:
Root vegetables or fruits.
Serving life of blades:
1-2 years
Date of delivery:
5-7 working days
Voltage:
Customize according to the needs of different countries.
Payment Tems:
T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChatPay.
Packing:
Exporting standard fumigation wooden box.
Transportation:
Shipping by express, air, railway and sea.
Warranty:
 2 years
OEM:
Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc.
