Stir Motor: | 375W; | Applicable Industries: | Building Material Shops,Farms,Restaurant,Food Shop; |
Exhaust Fan: | 375W; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Brand Name: | DONGYI; | Raw material: | coffee bean; |
Certification: | CE / ISO9001:2008/RoHS; | Power Source: | Gas; |
Application fields: | Snack food factory,Cooking oil factory,Bakery; | Warranty of core components: | 1 Year; |
Packaging Detail: | wooden case and wrapped by plastic foil as customer's request; | Drum Motor/Cooling Fan: | 750W; |
Power: | 2500W; | Output product name: | coffee roaster; |
Supply Ability: | 200 Sets per Month; | Capacity: | 20-22KG/Batch; |
Weight: | 580kg; | Video outgoing-inspection: | Provided; |
Machinery Function: | coffee roasting,coffee beans roaster; | Core Components: | Engine,Bearing,Motor; |
Local Service Location: | None; | Showroom Location: | None; |
Roasting time: | 15-20Min/Batch; | Payment Terms: | L/C,D/A,T/T; |
Port: | Qing dao Shenzhen Shanghai; | Voltage: | AC 380V 50/60HZ; |
Place of Origin: | Henan, China; | Marketing Type: | Ordinary Product; |
Machinery Test Report: | Provided; | Dimension(L*W*H): | 2100*1200*1950MM; |
Warranty: | 12 months for whole machine; | material: | stainless steel; |
Gas consumption: | 2.2KG/HR; | Type: | Deck Baking Oven; |
Product Name: | Coffee cocoa bean roasting/baking; |

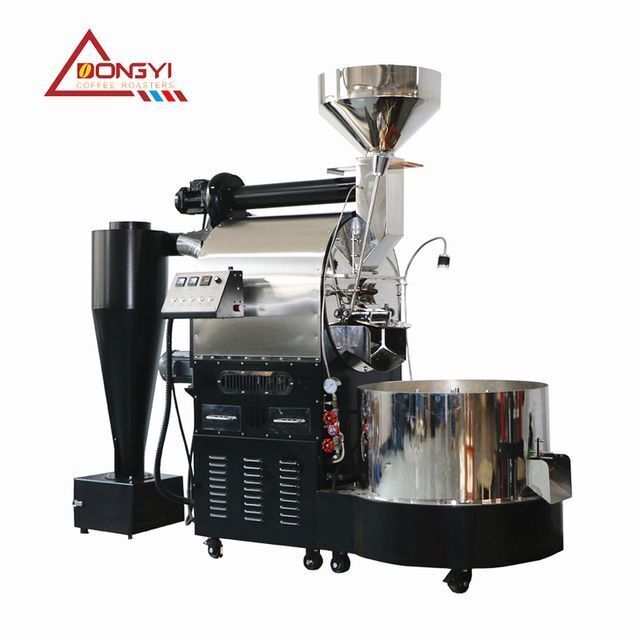

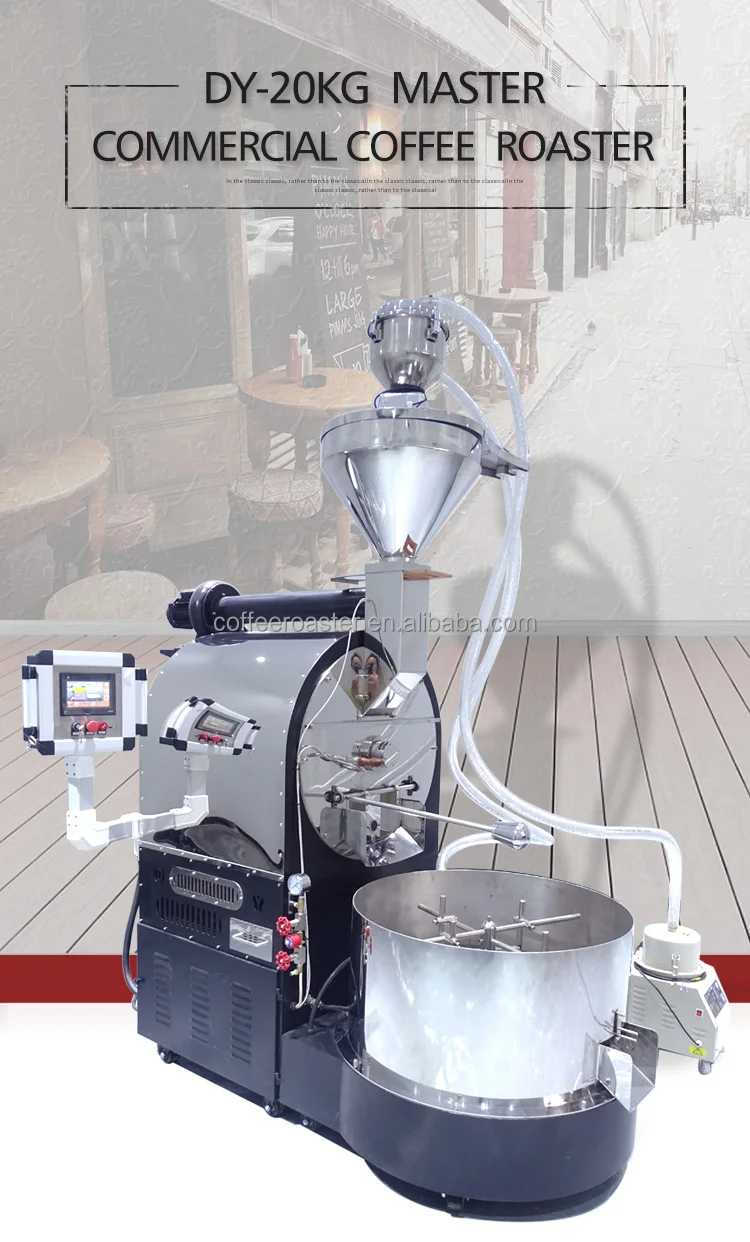

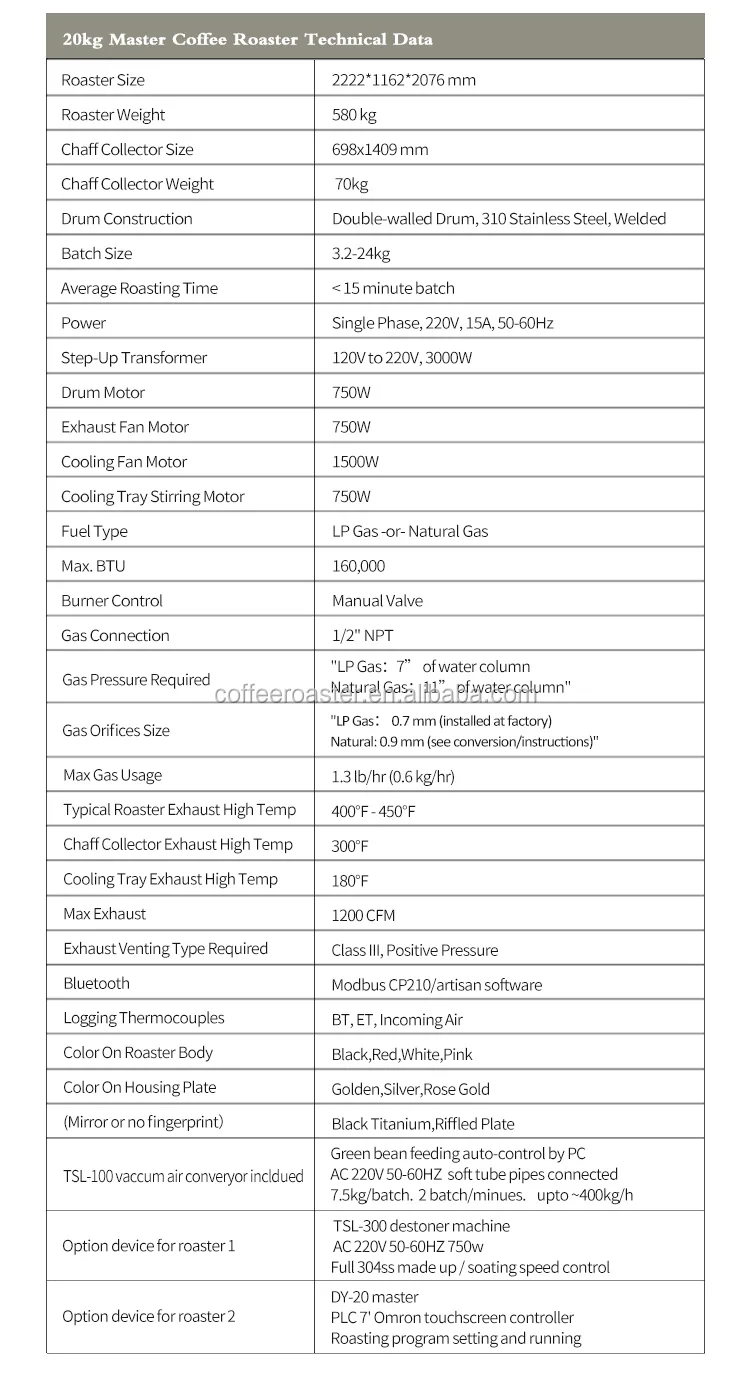

Technical Data | Model | DY-20kg |
Basic Parameters | Batch Capacity | 3.2-24kg/batch |
Roasting Time | 12-15 minutes/ drum (after preheat) | |
Heating Type | LPG gas, N-Gas | |
Temperature Range | 0-300℃ | |
Drum Construction | Heat-resistant double layer 304 food grade stainless steel | |
Cooling Time | 1-2 minutes | |
Gas Consumption | 0.6kg/H | |
Power | Drum Motor | 750W |
Cooling Tray Fan Motor | 1500W | |
Hot Air Fan Motor | 750W | |
Cooling Mixing Motor | 750W | |
Electric Heating Power | / | |
Gas Heating Power | 3750W | |
Description | Machine Weight | 580KG |
Chaff Cyclone Weight | 70KG | |
Machine Dimension | 2222*1162*2076MM | |
Body Color | Red/Black/White/Blue/Green/Pink | |
Drum Housing color | Stainless steel/Gold/Rose gold/Brass | |
Package | Film plastic&wooden case | |
Packing Size | 1450*630*1300(W*D*H) | |
Gross Weight | 783KG | |
Others | Certificate | CE/RoHS/ISO9001 |
Warranty | 1 year limited |
