solar pump set for agriculture solar panel with water pump drip irrigation screw solar pumps

Supplier: Hangzhou Qinjie Electromechanical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Pike Zhang
Price: $172.00 / 1 - 29 pieces
$156.00 / 30 - 99 pieces
$147.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Selling Units:	Single item;	Pressure:	High Pressure;
Single gross weight:	10.000 KG;	Material:	stainless steel solar pump;
Keywords:	DC solar pump;	Single package size:	31X16X46 cm;
Max Flow Rate:	1.8m3/h;	Power:	270W,270w;
Voltage:	DC24v solar deep well pump,DC24v;	Max Head:	100m;
Structure:	SCREW PUMP;	Outlet dia:	0.75inch;
Customized support:	OEM,ODM;	Horsepower:	0.36hp;
Model Number:	3FLS1.8/100-DC24/270;	Warranty:	2 Years,2 years;
Place of Origin:	Zhejiang, China;	Power Source:	solar power;
Outlet Size:	1inch;	Motor:	Permanent Magnetic SYnchronous motor;
Brand Name:	Qingeal pump;	Cable Length:	3m;
Application:	Submersible,Irrigation and Agriculture,Water Treatment Solutions;

Pump Description

Pump Details

MPPT Controller

Advantage of DC controller

(1) Waterproof grade:IP65

(2) Ambient temperature:-15C-60C

(3) MPPT function, the solar power uilization rate is higher.

(4)Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, thebattery can make the pump continuously working.

(5) LED displays the power, voltage,current. speed etc working condition

(6)Frequency conversion function:It can automatically run with frequency conversion according to the solar power,and user also canchange the speed of pump manually.

(7) Automatically start and stop working.

(8) Water proof and leak-proof: Double seal effect
(9) Soft start: No impulse current, protect the pump motor.

(10) High voltage/Low voltage/Over- current/High temperature protection

Product Parameter and Connection

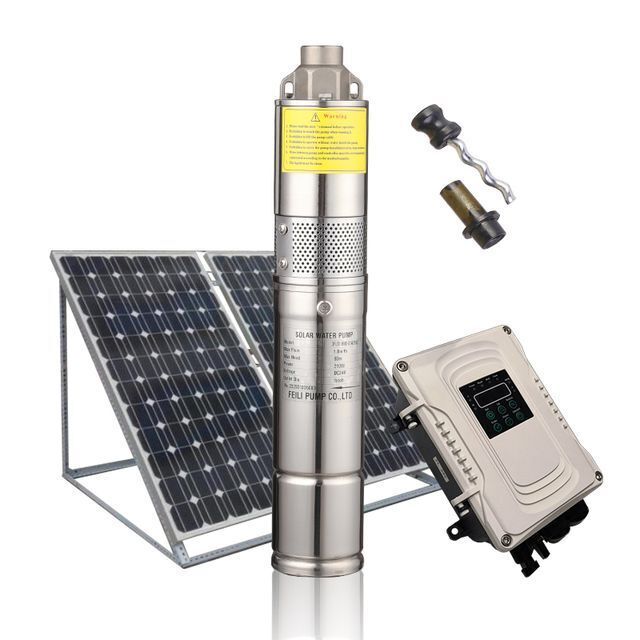

Submersible Solar Water Pump

Model: 3FLS1.8/100-D24/270C

Power: 270W

Voltage: 24V

Maxflow:1.8m3/h=6480L/day
(pump 6hours on daytime)

Max head:100m(suit for 60m deep well)
Outlet Dia:1inch

Pump Dia:3inch
Cable: 3M

suggest euqip solar panels: 2*275W
Pump Size:
A=418mm; B=190mm; C=228mm; D=78mm

Packing Details

Complete Solar Pump System
