Ripping depth: | 320mm; | Forward Speed(km/h): | 39.7; |
Warranty: | 1 Year; | Hydraulic Pump Brand: | Hercule; |
Model: | SG21-3; | Marketing Type: | Hot Product 2019; |
Video outgoing-inspection: | Not Available; | Core Components: | Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
Dimension(L*W*H): | 9430 *3660*3400mm; | UNIQUE SELLING POINT: | Low Maintenance Cost; |
Showroom Location: | Viet Nam,Philippines,Saudi Arabia,Pakistan,Mexico,Thailand,Argentina,UAE,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Morocco; | Working diameter: | optional; |
Applicable Industries: | Construction works ,Energy & Mining; | Warranty of core components: | 1 Year; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Max.cutting depth: | 500mm; |

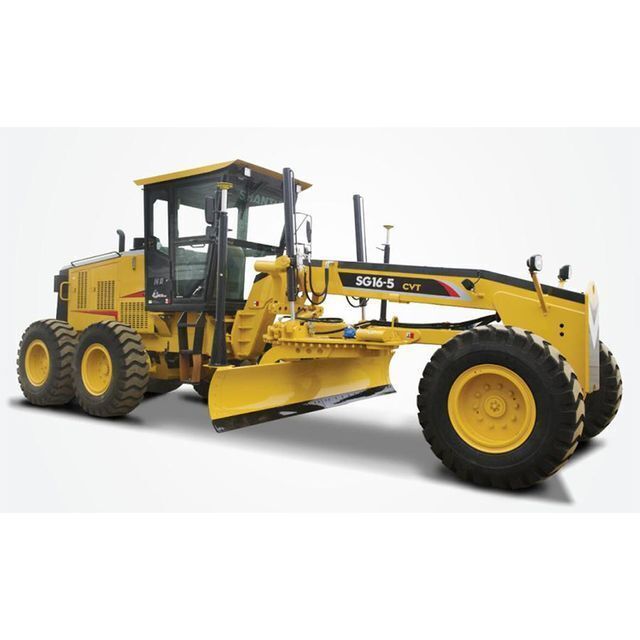

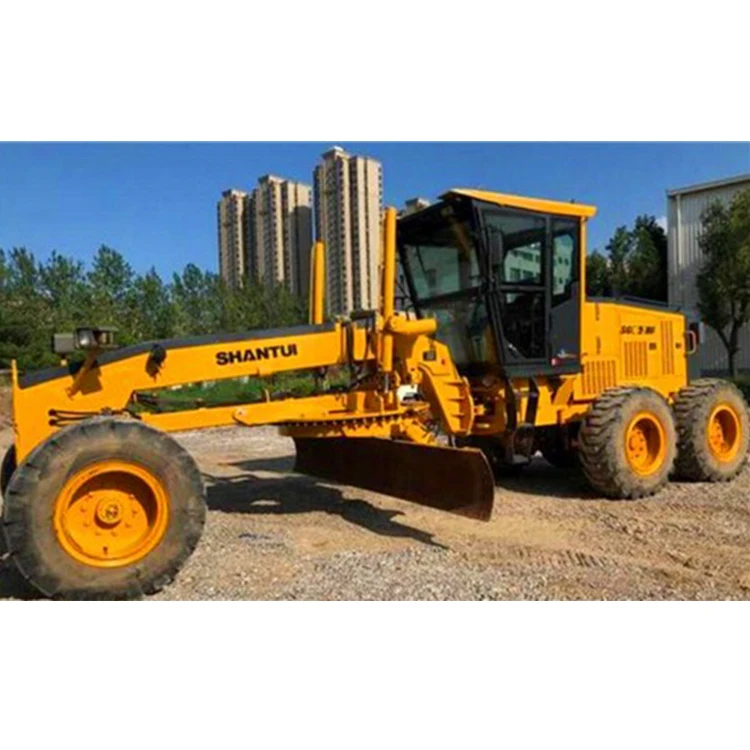

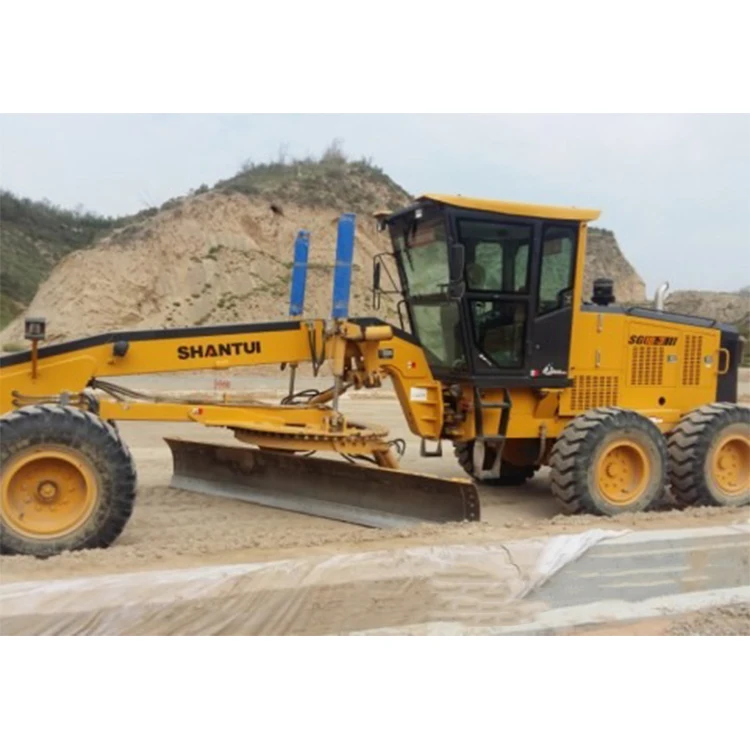

Product name: | Motor Grader; | Fuel tank: | 340L; |
Max.lifting height: | 440mm; | Brand: | Shantui; |
Supply Ability: | 50 Sets per Week; | Number of cylinders: | 6; |
Hydraulic Valve Brand: | Mico; | Condition: | Used,Used; |
Package Preview: | ; | Hydraulic Cylinder Brand: | Wendeng; |
Brand Name: | shantui; | Weight: | 16800 kg; |
Reverse Speed(km/h): | 29.6; | Year: | 2016; |
Port: | Shanghai;Dalian;Qingdao; | Make: | shantui; |
Machinery Test Report: | Not Available; | Working width: | 2085mm; |
Place of Origin: | SHN; | Packaging Detail: | Nude package , container; |
Engine Brand: | Cummins; |

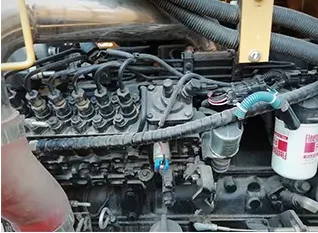

Engine | Engine model | Dongfeng Cummin s (DCEC) 6BTAA5.9-C150 | |||||||||||
Rated power/speed | 112kW/2200rpm | ||||||||||||
Transmission and torque converter: Electronic controlled transmission with 6 forward gears and 3 reverse gears. | |||||||||||||
travel speed | Gear | 1st | 2nd | 3rd | 4th | 5th | 6th | ||||||
Forward | 0~5.4 km/h | 0~8.3 km/h | 0~13.2 km/h | 0~20.6 km/h | 0~29.6 km/h | 0~44 km/h | |||||||
Reverse | 0~5.4 km/h | 0~13.2 km/h | 0~29.6 km/h | ||||||||||
TRAVEL | Tire Type | 13.00-24TG PR12 | |||||||||||
Steering system | Max. steering angle of front wheel | ±45° | |||||||||||
Max. tilting angle of front wheel | ±17° | ||||||||||||
Max. oscillating angle of front axle | ±15° | ||||||||||||
Steering angle of frame | ±25° | ||||||||||||
Max. oscillating angle of rear axle | ±15° | ||||||||||||
Min. turning radius | 6600 mm | ||||||||||||
Operation weight | Operating weight (standard configuration) | 11600kg | |||||||||||
Front axle load | 3480kg | ||||||||||||
Rear axle load | 8120kg | ||||||||||||
Blade | Max. lifting height | 460mm | |||||||||||
Max. cutting depth | 500mm | ||||||||||||
Max. position angle | 90° | ||||||||||||
Cutting angle adjustment range | 30°- 70° | ||||||||||||
rotational angle | 360° | ||||||||||||
Length×height | 3660×615mm |
