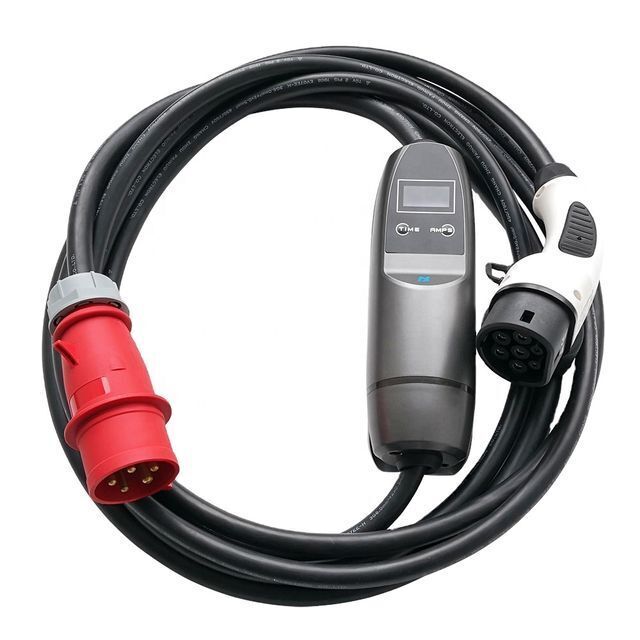

KHONS 3 Phase Home Use Portable type 2 ev charger 32A

Supplier: Chengdu Khons Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Jicheng Wang
Price: $335.00 / 1 - 49 pieces
$325.00 / 50 - 99 pieces
$315.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Insulation resisitance:	>1000MΩ(DC500V);	Mechanical life:	no-load plug in/pull out >1000times;
Contact impedance:	0.5mΩ Max;	Model Number:	G2-KHONS-32A-3P;
Packaging Detail:	Khons' type 2 portable ev charging cable packed by carton;	Rated current:	32A;
Terminal temperature rise:	<50K;	Brand Name:	KHONS;
Rated Voltage:	250V AC;	Place of Origin:	China;
Supply Ability:	1000 Pieces per Month;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Operating temperature:	-30°C ~ +50°C;	Vibration resistance:	Meet JDQ53.36.1.1-53.36.1.2 requirements;
Withstand voltage:	2000V;	Package Preview:	;
Insertion and Extration Force:	45N

Products Description

KHONS 3 Phase Home Use Portable type 2 ev charger 32A

Phase	Single phase	Three phase
Input/Output voltage	110~250Va.c.	110~450Va.c.
Frequency	50Hz/60Hz	50Hz/60Hz
Max. current	16A/32A	16A/32A
EV connector	Type 1 & Type 2	Type 2
RCD	Type A	Type A+6mA d.c.
IP degree	IP65	IP65
Operating temperature	-25°C~+50°C	-25°C~+50°C
Relative humidity	5%RH~95%RH	5%RH~95%RH
Altitude	<2000m	<2000m
Static Power	<2W	<2W

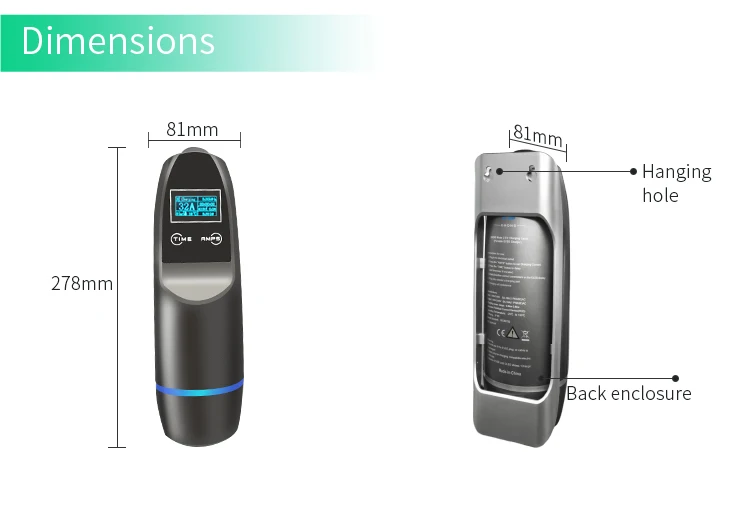

Dimension	278mm(L)x81mm(D)	278mm(L)x81mm(D)
Standards	IEC/EN 62752	IEC/EN 62752

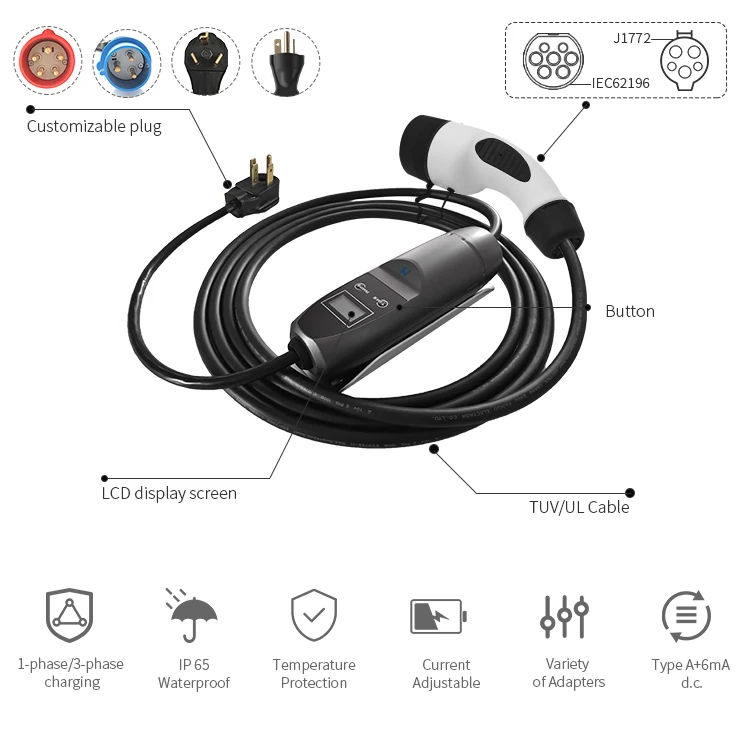

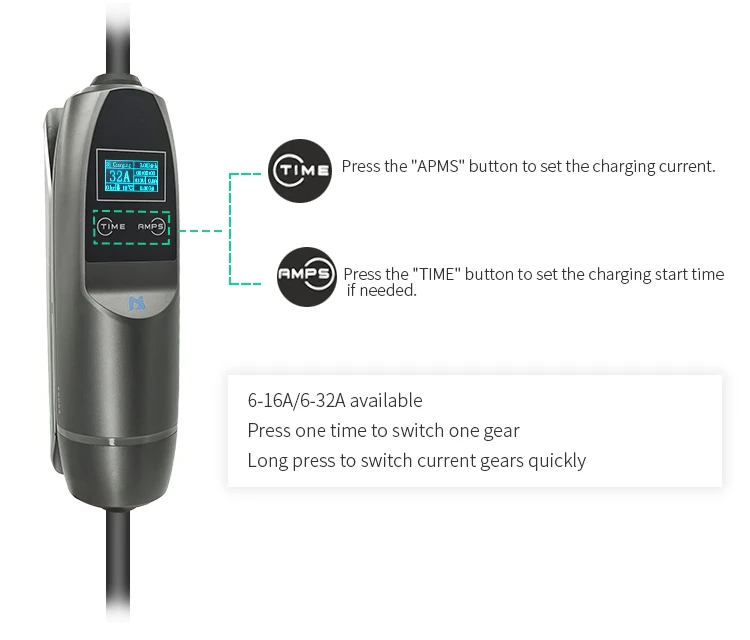

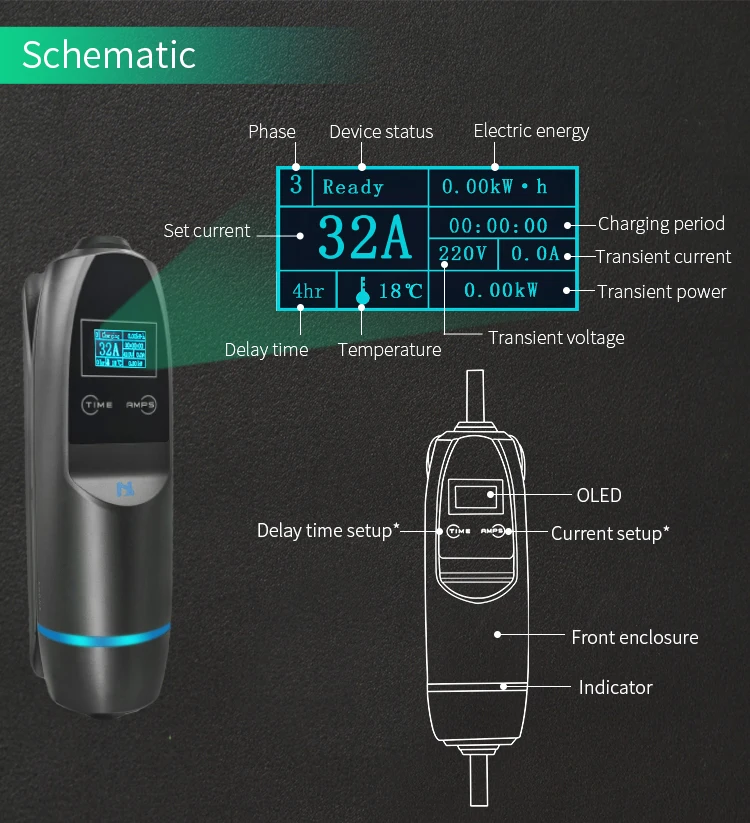

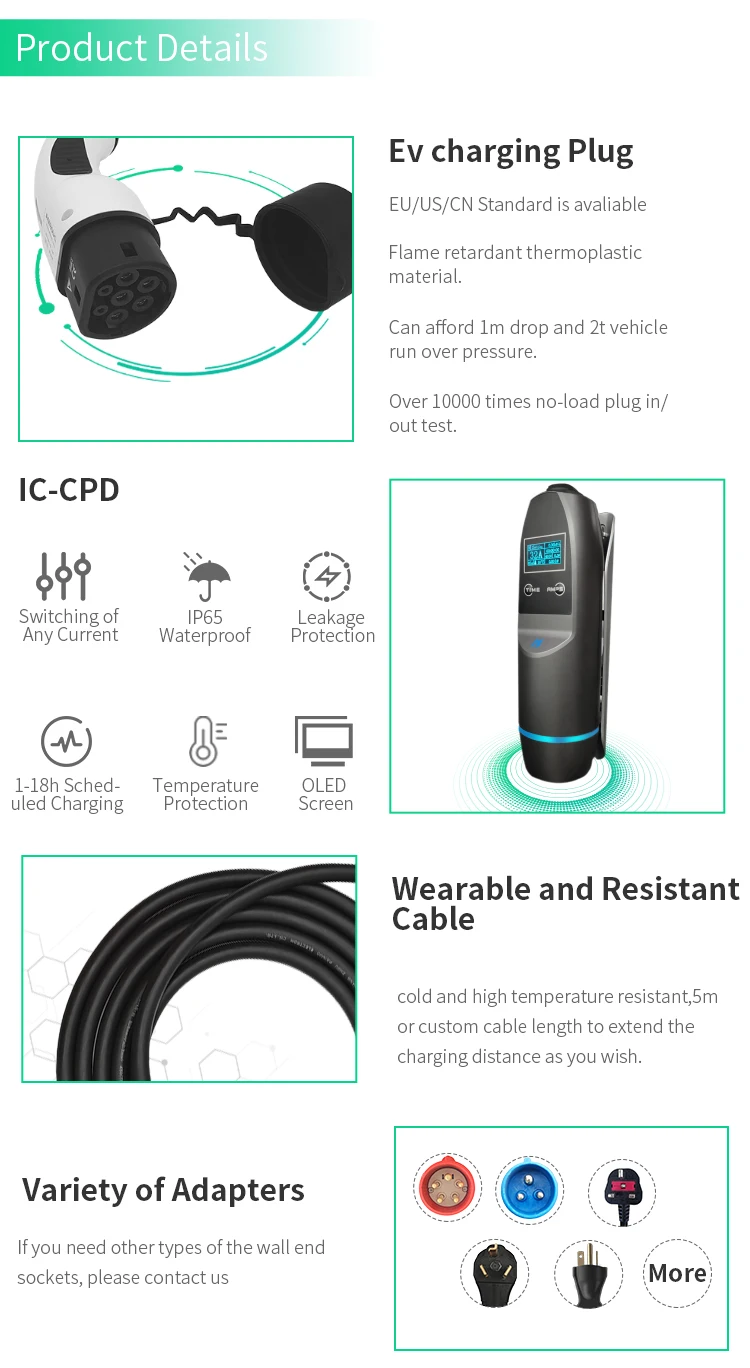

Details Images

Company Information

Certifications

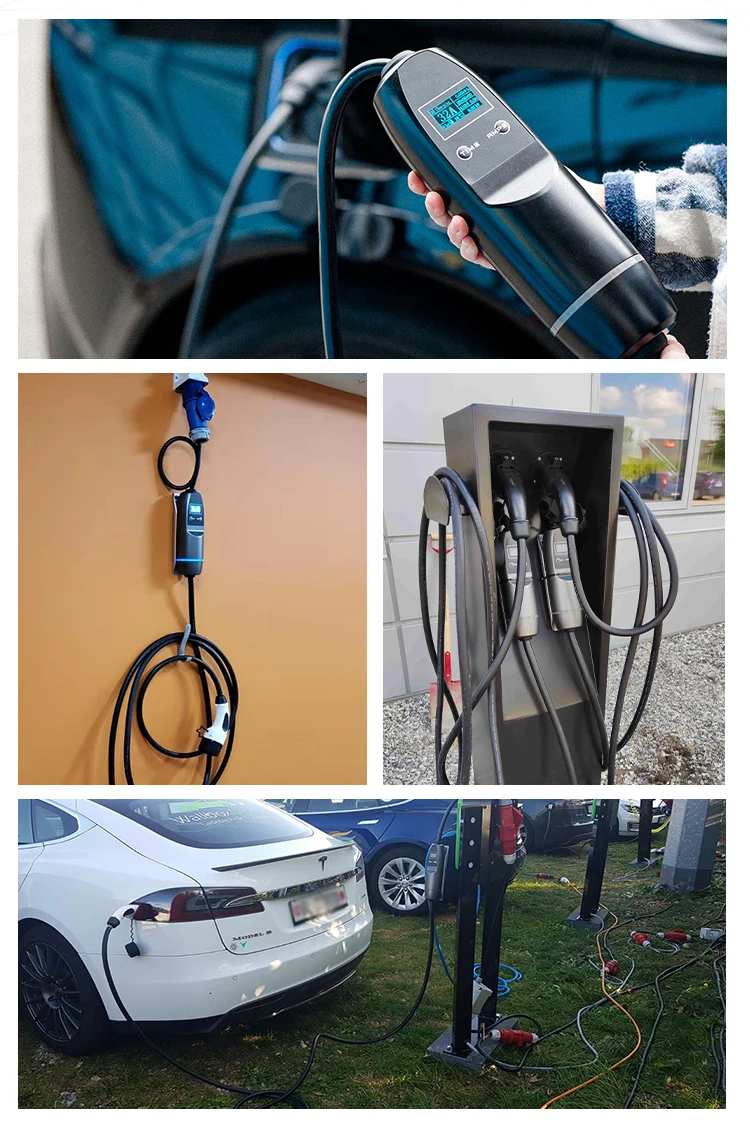

Success Case

Why Choose Us

We have various ways of shipment for customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. We can offer 2,000 sets of each product per month, and we follow the principle that “Lead time for sample order is 1 day, mass order can be shipped within 10 days.”
And the package and label can customized according to our customers.

FAQ

Q1: How can l put my order?

A1: You can order by yourself or contact our sales personnel who can provide you with a full quotation and understanding of your needs. We have an efficient sales team who will reply you in good time and who strive to give you the best service.

Q2: Do you post to all countries?
A2: We ship globally to many countries. lf you are unsure, kindly contact us via email or message.

Q3: How much do you charge for shipping?
A3: Each product has been weighed and we will price it according to the carrier's charges, we do not profit through the shipping cost.

Q4: What is your sample policy?
A4: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Any needed please contact our sales team.

Q4: What payment method do you accept?
A4: We accept all payment methods include PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and bank transfers. Please contact us for more details.

Q5: What if my item arrives damaged, faulty or incorrect?
A5: On the unfortunate case that this happens, please contact us as soon as you receive the item. Please provide your name, order number and issue so that we can get it resolved quickly for you.

Q6: What power/kw to buy?
A6: First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it. However, although Khons EV charging station are three phase and single phase compatible so even you buy a three phase charger, with only single phase power supply, it can be installed too.

Q7: How long does it take to fully charge a car?
A7: It’s the battery capacity divides the actual charging power. Take BMW i4 eDrive40 for example, the batter is 83.9kw.h, charge power is 11kw, so if you have three phase power, install a 11kw charging station, actually charge at 11kw per hour, then the time to charge should be 83.9/11=7.62 hours. But usually after charging to 90%, the charging will slower. And if charge at a 7kw charging station, it should be 83.9/7=12hours.

Q8: What types of charging connector/plug to buy for AC charging?
A8: Please refer to below picture to confirm your plug type:
