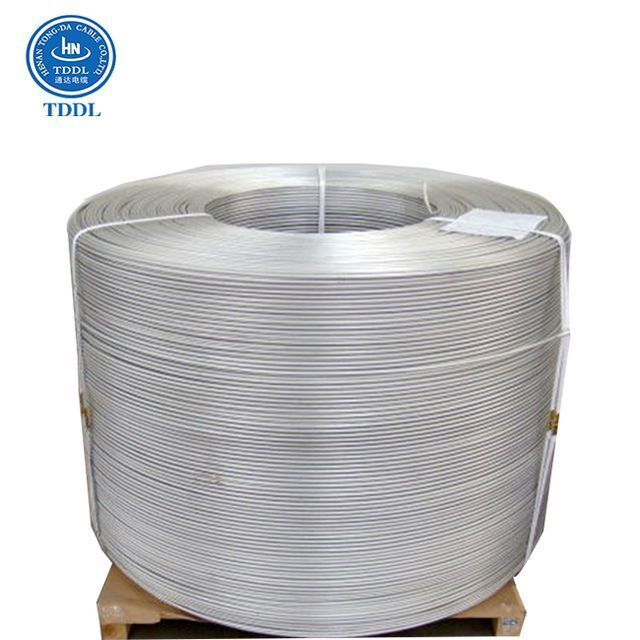

EC Grade Aluminium wire rod 1350 for electrical purposes

Supplier: Henan Tong-Da Cable Co., Ltd.
Region: Henan, China
Contact: Mr. Admin hntddl
Price: $1.00 /meter
Min. Order: 1 meter

Click here to contact

Product details

Packaging Detail:	rolls;	Jacket:	N/A;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Conductor Material:	Aluminum;
Number of Conductors:	Single;	Application:	Industry;
Standard:	ASTM B 233, DIN, EN 17152:1997;	Supply Ability:	8000 Tons per Month;
Certificate:	ISO9001 & ISO14001;	Brand Name:	HNTDDL;
Model Number:	HNTDDL;	Wire Range:	1.56-5.36 & 9.5 mm;
Insulation Material:	N/A;	Port:	QingDao;
Place of Origin:	Henan, China;

EC Grade Aluminium wire rod 1350 for electrical purposes

Product Description

Brief introduction of aluminum wire rod

The aluminium rod is used for electrical purposes, is the raw material for the overhead power transmission lines , for example : AACSR, AAAC, ACAR, etc.

Standard

The aluminium rod is produce according to the Chinese standard GB/T3954-2001, and consulting and following the American standard ASTM B 233, Germany DIN, and EN 17152:1997 .

The Quanlity on surface

a. It should be neat and well-distributed on surface

b.The surface should be clean and not be flaw, wrong round, crackles, mess, kink and no other shortcoming for using, but it is permitted for slightly mechanical rub speck, pit, losing leather or fling border.

The Component of Material

Name of Element	Si	Fe	Cu	V+Ti+Mn+Cr	Other	Al
Percentage%	0.10	0.20	0.01	0.02	0.03	≥99.7

Specification

Temper	Ksj	Mpa
1350-O	8.5--14.0	59--97
1350-H12 and -H22	12.0--17.0	83--117
1350-H14 and -H24	15.0--20.0	103--138
1350-H16 and -H26	17.0--22.0	117--152

Temper	Resistivity	Equivalent Volume Conductivity
1350-O	0.027899	61.8
1350-H12 and -H22	0.028035	61.5
1350-H14 and -H24	0.028080	61.4
1350-H16 and -H26	0.028026	61.3
