Railroad Digital Rolling Track Gauge for Rail Gauge Measurement While Walking

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $4500.00 / 1 - 5 units
$4200.00 / 6 - 10 units
Min. Order: 1 unit

Click here to contact

Product details

Product Description

Railway portable rolling track gauge

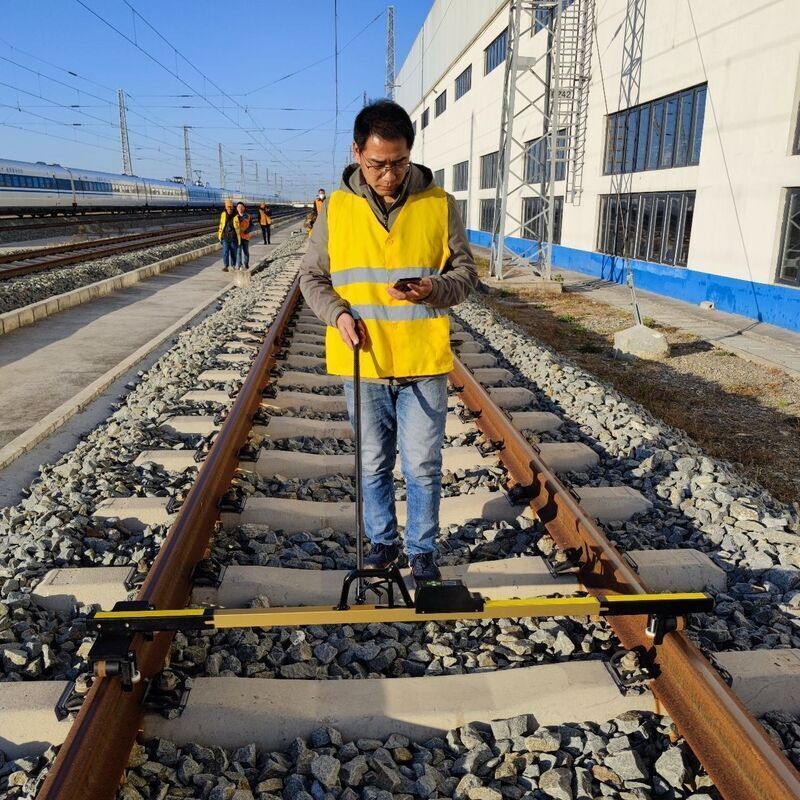

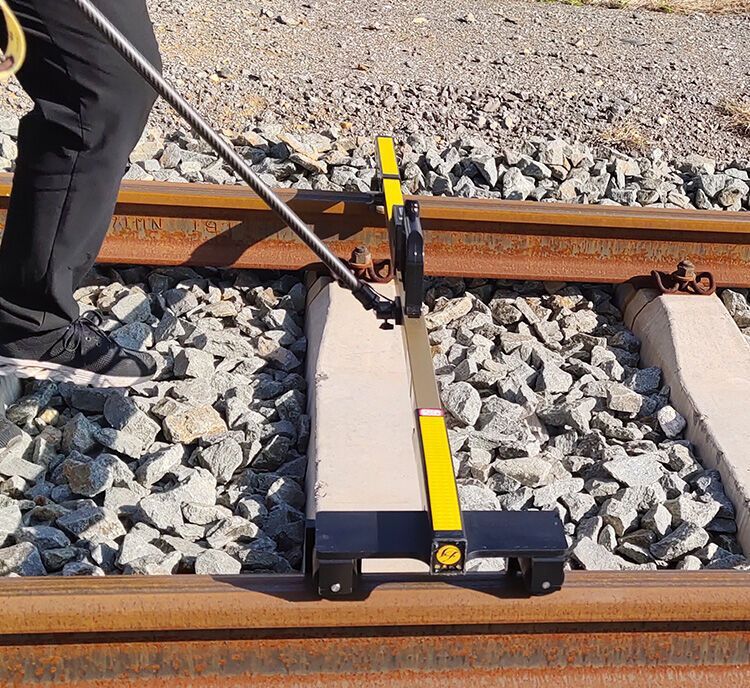

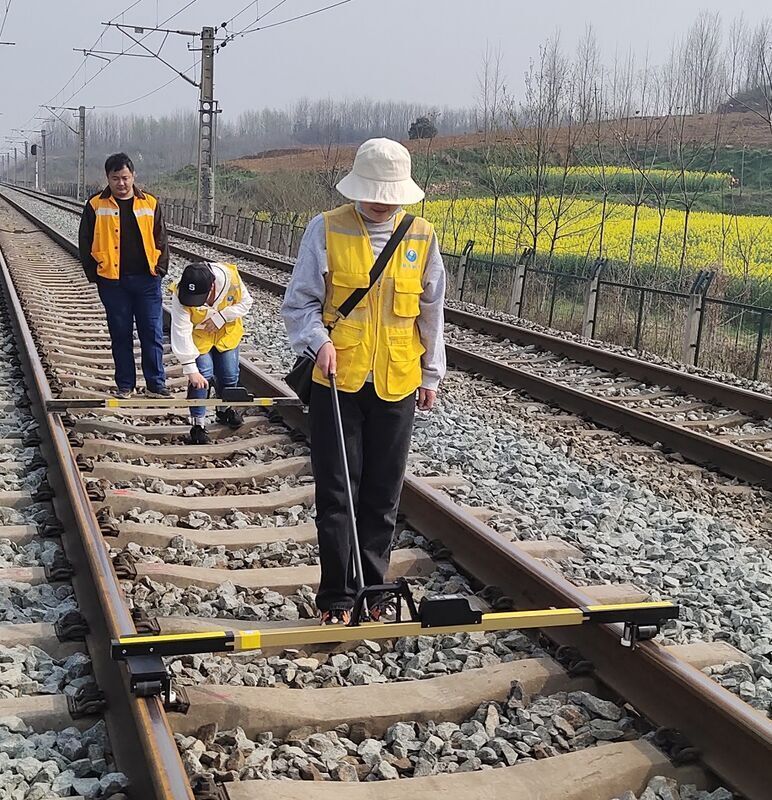

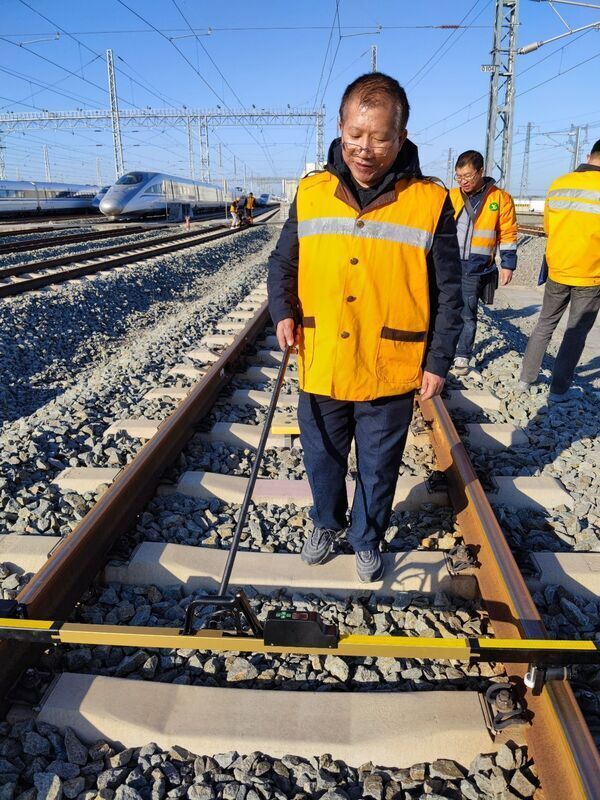

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation(cant), check rail gauge and back to back distance measurement.It can be used for track inspection and fine adjustment of rail gauge.This product has the advantages of fast measuring speed, stable pushing rod, easy to carry,and night-time and tunnel work,legible even in direct sunlight are supported.It is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying.

Product Paramenters

Model(1435mm)	GJC-TJG0
Track gauge(mm)	1384-1470
Gauge rail check gauge(mm)	1364-1450
Guard rail face gauge(mm)	1344-1430
Superelevation measuring range	-200~+200
Flangeway Clearance	20-107
Superelevation division value	0.05
Track gauge division value	0.1
Track gauge max indication error	±0.25
Superelevation error	±0.3
Application rail line	railway speed less than 350km/h
1000mm,1067mm,1600mm,1676mm portable rolling track gauge can be customize
