factory price industrial endoscope car ac evaporator cleaner gun auto wash endoscopic camera air conditioner cleaning borescope

Product details
Model Number:AV7828;LED:6 pcs brightness adjusting in 6 levels;

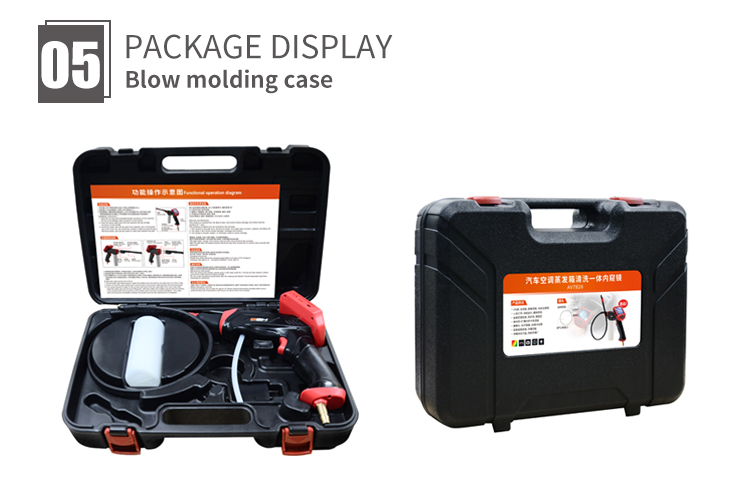

Packaging Detail:tools box and standard export carton box;snake tube length:1 meter ( standard / customized);
Camera diameter:9.0mm;Type:Other;
Supply Ability:10000 Sets per Month;snake ture:forward spray or side spray for optional;
Year:1977-1979,1977-1986;Name:Air conditioner cleaning kit;
Car Fitment:bmw;Size:tools bag: 41*12*32cm;
View angle:60degree Fov (D);Place of Origin:Guangdong, China;
Payment Terms:Western Union,T/T;Camera Pixel:720*625;
Package Preview:;Screen:3.5'' IPS LCD color;
Model:7 Series;Brand Name:QBH;
Battery for screen:1650 mAh;Material:ABS+ PC;
Port:shenzhen port china;

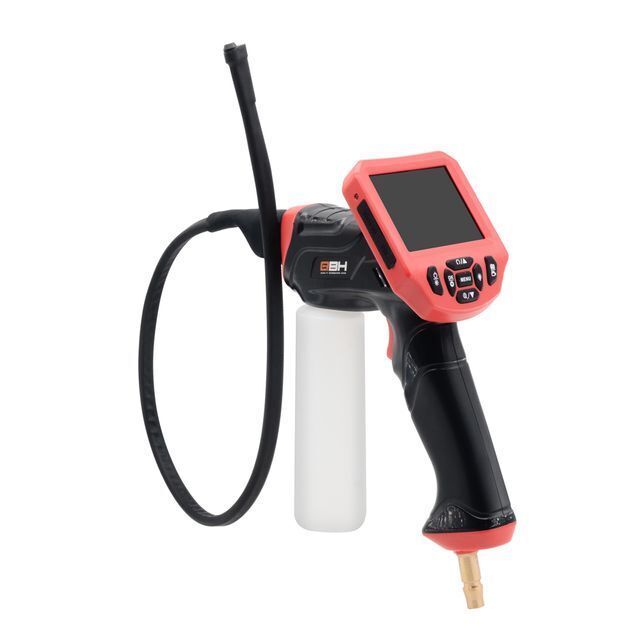

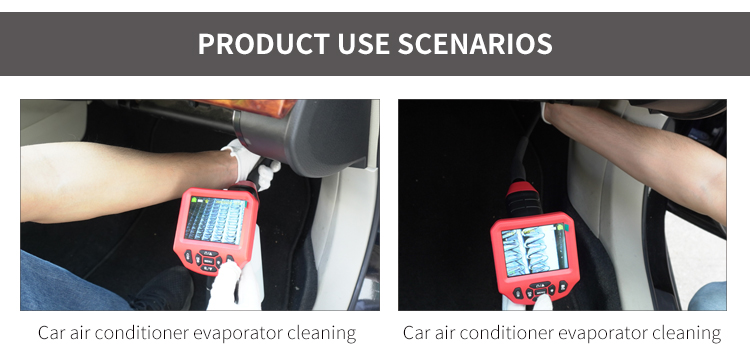

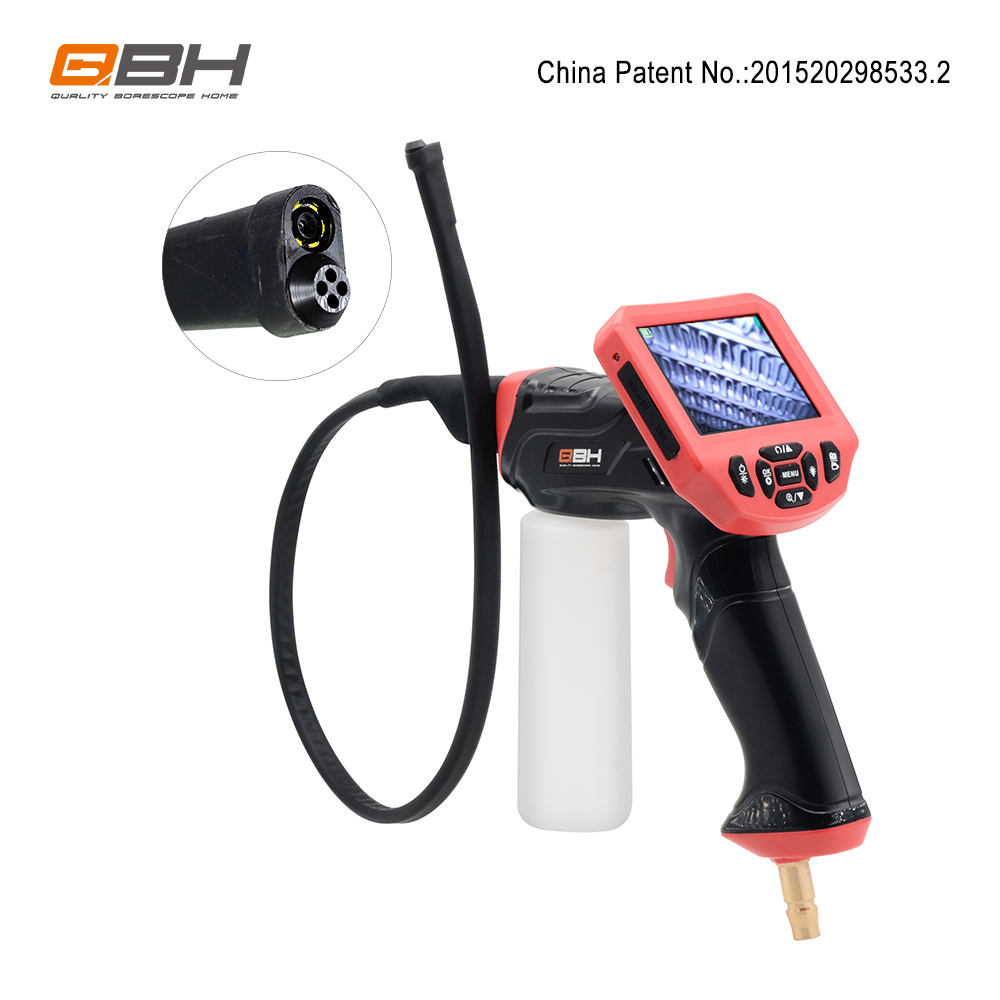

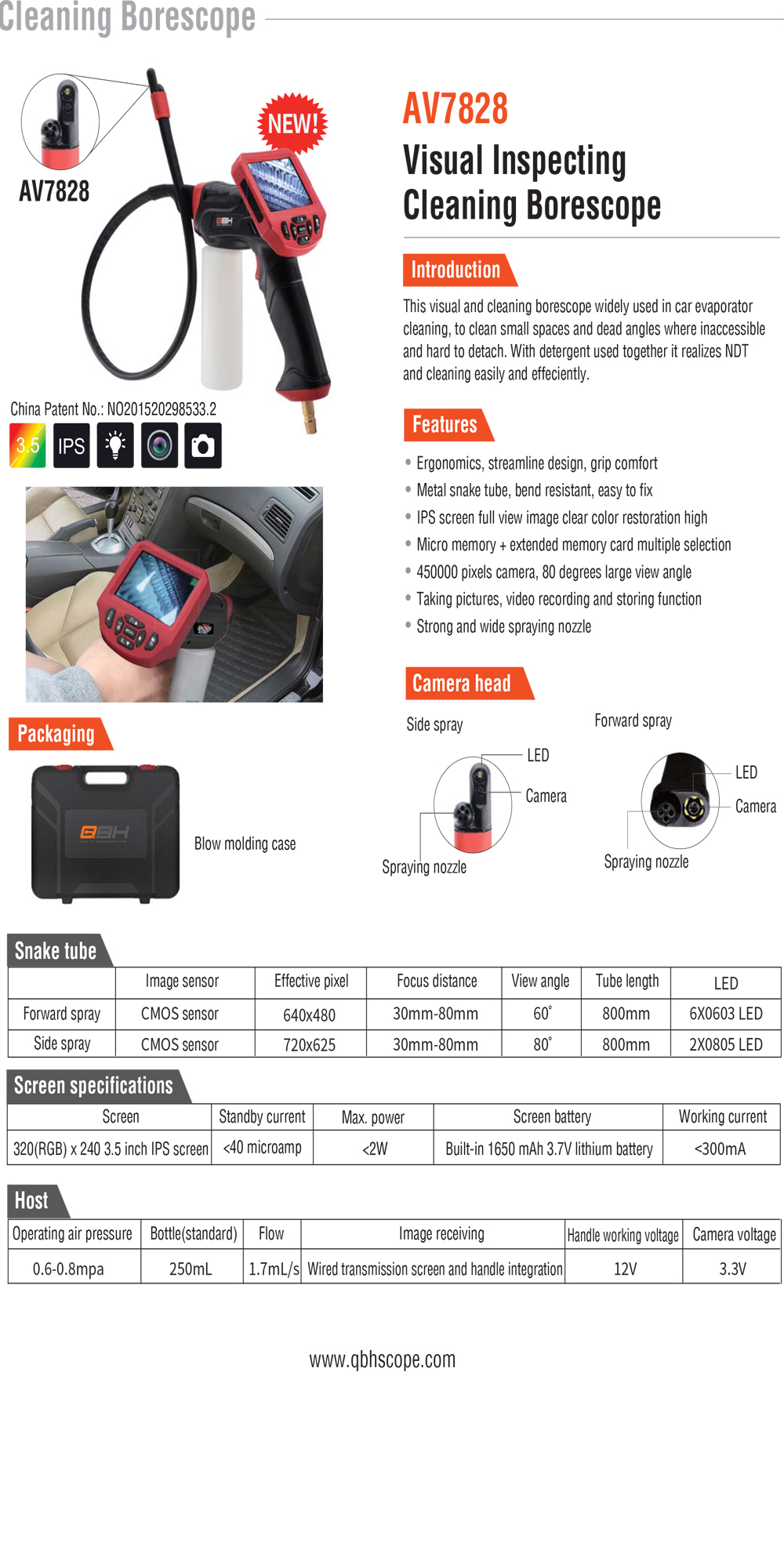

AV7828 VISUAL INSPECTING CLEANING BORESCOPE FOR CAR EVAPORATOR CLEANING

Product Description







Forward spray mode:



Snake Tube (camera)
Image sensor CMOS Sensor
Effective Pixel 720*625
Focus distance 30mm-80mm
View angle 60 degree Fov(D)
Probe diameter Φ9.0 mm
Probe tube length 800m
LED illumination 6 lamps, 3.level adjustment the lights

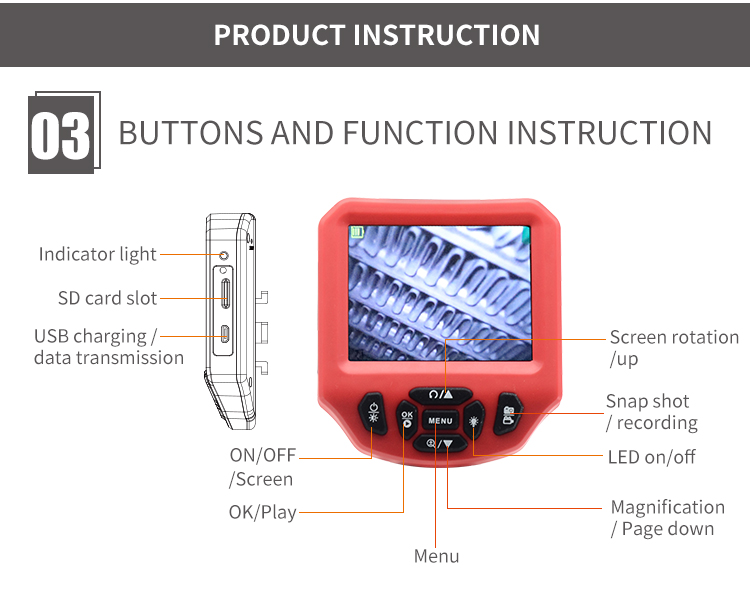

Host
Screen 3.5'' 320 (RGB) x 240 IPS screen
Record and Photograph Photo format:JPG/BMP/JPEG; Video Format:AVI
Memory card Max capacity of 32G mini TF card
Screen Battery Built-in Li-battery 1650MAH
Working Current <300MA/H



























































Side spray mode:

Snake Tube (camera)
Image sensor CMOS Sensor
Effective Pixel 640*480
Focus distance 30mm-80mm
View angle 80 degree Fov(D)
Probe diameter Φ9.0 mm
Probe tube length 800m
LED illumination 2 lamps, 3.level adjustment the lights
Host
Screen 3.5'' 320 (RGB) x 240 IPS screen
Record and Photograph Photo format:JPG/BMP/JPEG; Video Format:AVI
Memory card Max capacity of 32G mini TF card
Screen Battery Built-in Li-battery 1650MAH
Working Current <300MA/H











Packaging & Shipping



Company Information





 SHENZHEN QBH TECHNOLOGY DEVELOPMENT CO.,LTD. is located in Shenzhen, our company is an innovative high-tech enterprise with a 16-year history of manufacturing intelligent endoscopes. Having more than 30 patent certificates, including 2 patents for invention, our company enjoys the well reputation of possessing one of the most productive and specializing snake camera production lines around the world.







FAQ

1. Question: What mode of payment do you support?

     Answer: We support these mode of payment such as: Paypal, TT, L/C, Western Union. According to your specific circumstances, you can choose the most suitable mode of payment.



2. Question: What's length of the snake tube?

     Answer: The standard tube length is 1M. The tube can be made up to 10M.  We can provide ODM and OEM service according to your requirements.



3. Question: How long time can the host and the screen keep working?

    Answer: The screen can keeping working for 1 hours. The host can keep working for 6 hours. The screen charger time is 4-6 hours.



4. Question: Is the snake tube detachable? Is the host removable from the screen?

     Answer: The tube is detachable. The host can be removed from the screen. The screen can keep working when separated from host within 10 M.





Related Products

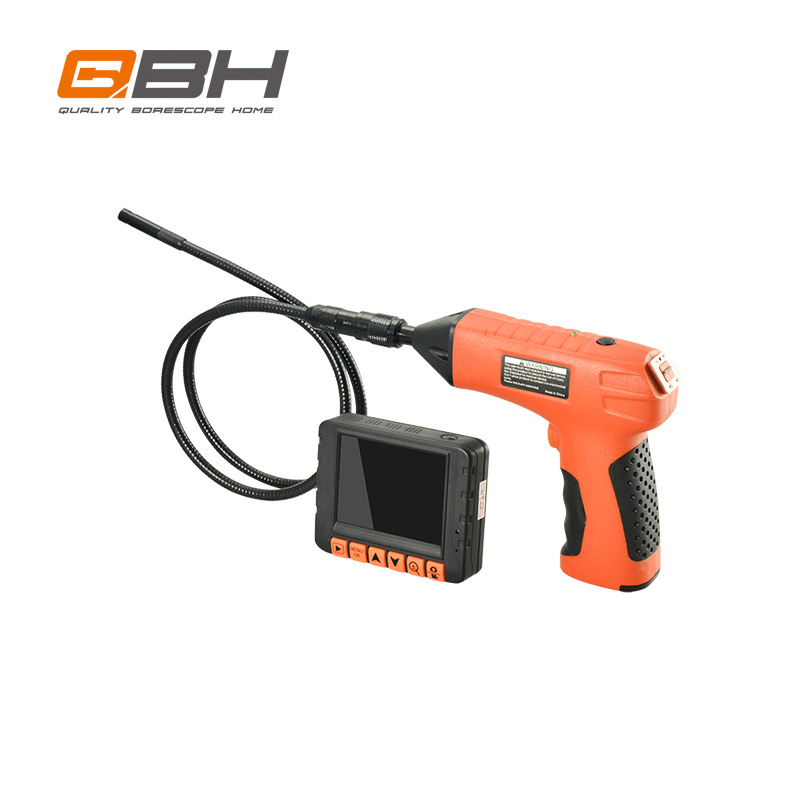

 AV7810 Wireless borescope

 92.6% Related Rate

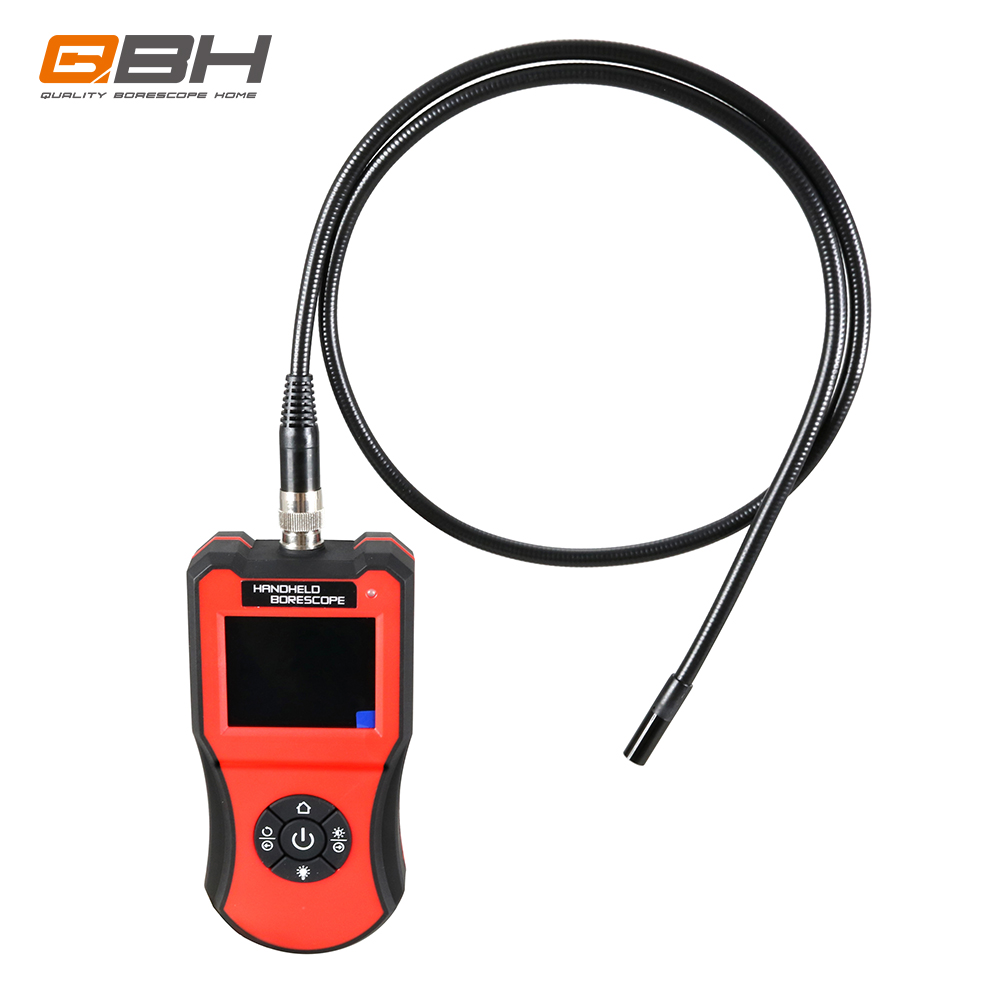

AV7716i Inspection borescope

 91.3% Related Rate

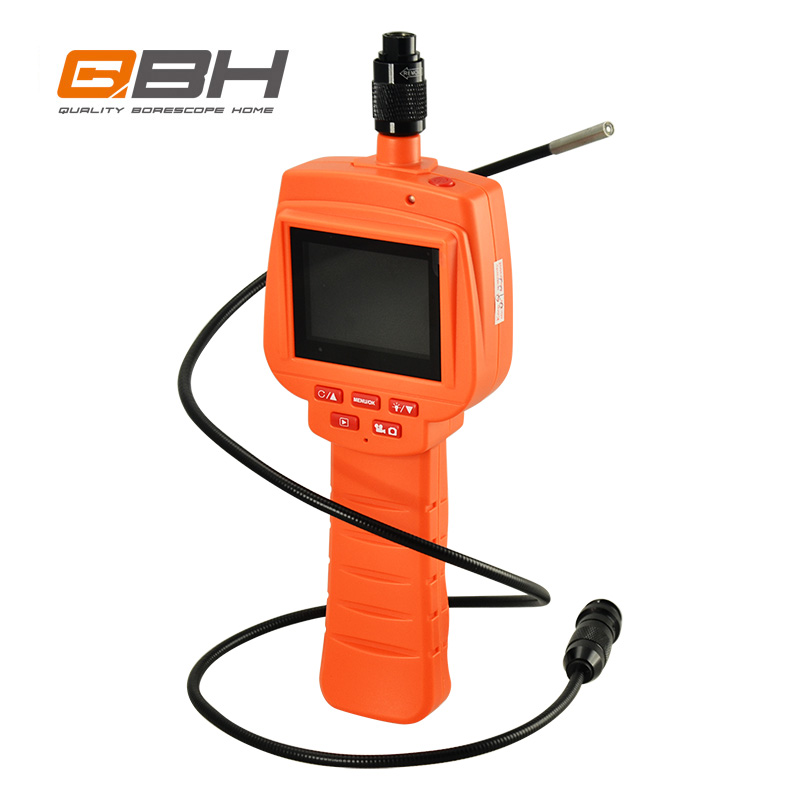

 KS02 Inspection borescope

 86.9% Related Rate

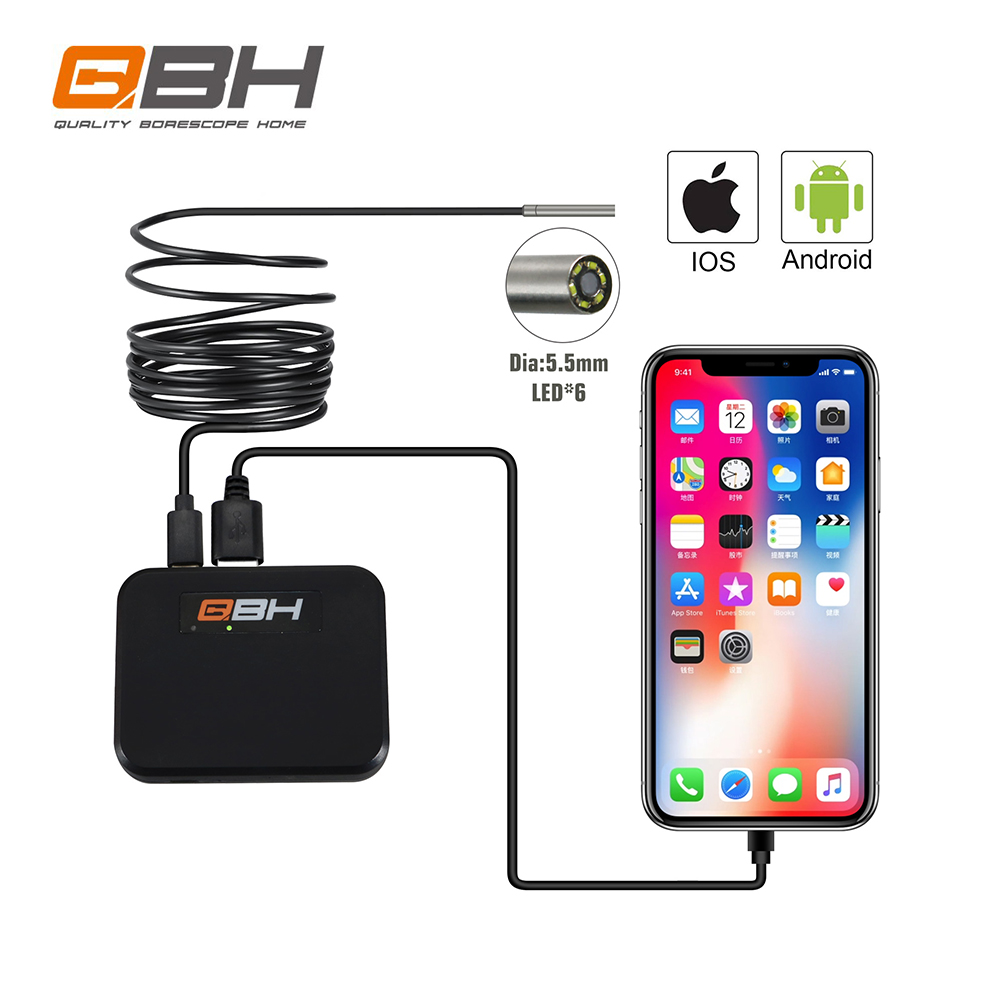

 MV03 USB Phone borescope

 78.4% Related Rate

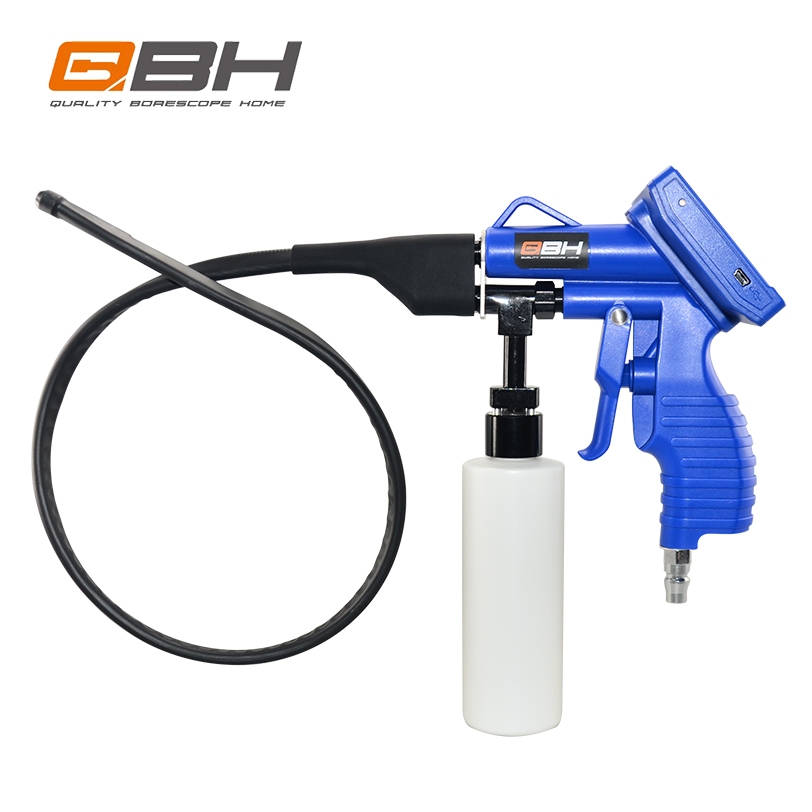

 AV7821 Cleaning borescope

 85.1% Related Rate

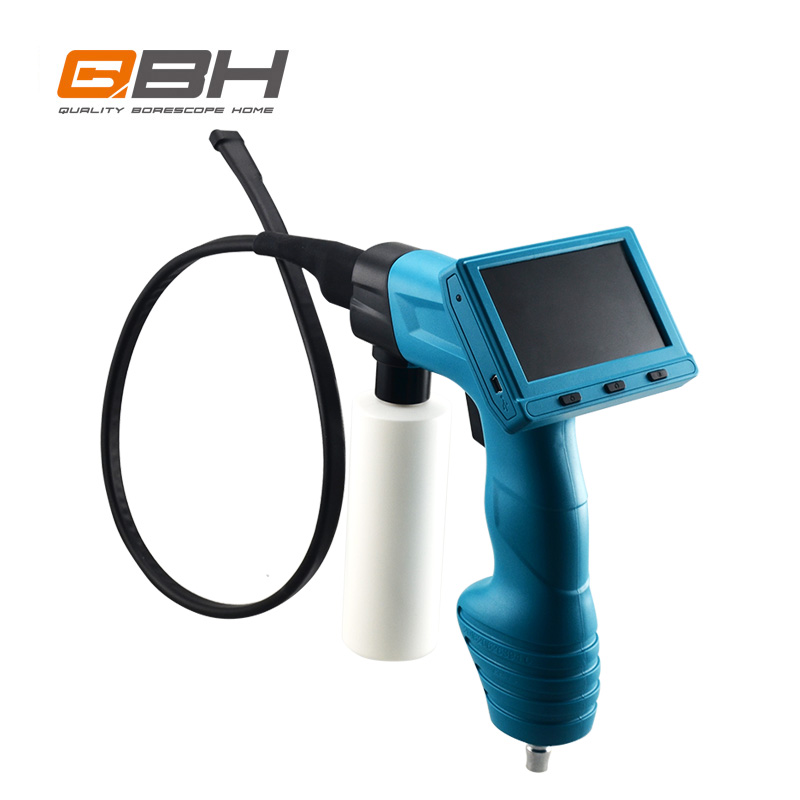

 AV7823 Cleaning borescope
