YUCHAI YC135-9 Backhoe Hydraulic Excavator With Japan Engine

Product details
Condition:New;Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Construction works ,Energy & Mining;
After Warranty Service:Field maintenance and repair service;Brand Name:YUCHAI;
Package Preview:;Maximum Digging Depth:5257mm;
Warranty:2 years;Operating Weight:13TON;
Machine Weight:13800 kg;Place of Origin:China;
Hydraulic Cylinder Brand:Kawasaki;UNIQUE SELLING POINT:Short turning radius;
Local Service Location:South Africa;Maximum Digging Height:8335mm;
Packaging Detail:nude;Payment Terms:L/C,D/P,D/A,T/T;
After-sales Service Provided:Free spare parts;Engine Brand:YUCHAI;
Port:SHENZHEN;Supply Ability:100 Sets per Month;
Warranty of core components:2 years;Machinery Test Report:Provided;
Marketing Type:Hot Product 2019;Hydraulic Pump Brand:Kawasaki;
Power:86/2200 KW/rpm;Video outgoing-inspection:Provided;
Bucket capacity:0.52m³;Rated Speed:3.1/5.0km/h;
Moving Type:Crawler Excavator;Showroom Location:Canada,France,Germany,Philippines,Thailand,Bangladesh,South Africa,Australia;
Max Digging Radius:8070mm;Core Components:PLC,Pressure vessel,Engine,Gear,Motor,Pump,Bearing,Gearbox;
Hydraulic Valve Brand:KYB;
32+
32 years's experience in construction machinery R&D and manufacturing.
45 Billions
Yuchai Group's Annual sales revenue exceeded RMB 45 billion Yuan
70
70 year's experience in Diesel engine R&D and manufacturing;
100
Yuchai Group ranks among the top 500 Chinese enterprises, the top 500 Chinese manufacturing companies, the top 100 Chinese machinery manufacturers
100+
Exports to more than 100 countries and regions.
100000+
Large number of retained, large number retained in China excavator market reach
100000 units,It is the brand that the customer believes in.
PRODUCT SHOW

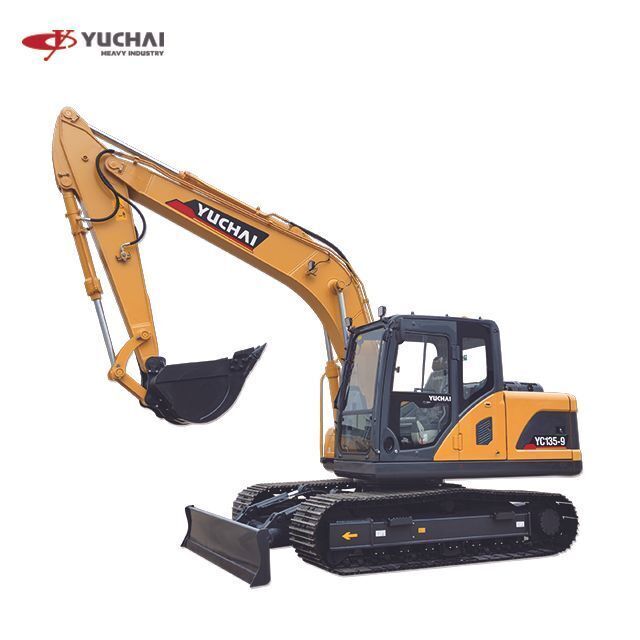

YC135-9
Yc135-9 is a new generation excavator product upgraded by Yuchai Heavy Industry Company. It has a wide range of working conditions. Its outstanding excavation performance is suitable for high strength conditions such as soil and rock excavation and crushing, with moderate tonnage. It is also suitable for flexible operations such as urban construction, cold plateau environment and rural reconstruction

Technical Specification

Basic parameter
Machine weight
13800 kg
Bucket capacity
0.52  m3
Width of bucket
934 mm





Performance parameter
Engine model
YUCHAI
Engine power
86/2200 kW/rpm
Max. Gradeability
35°
Max. digging force of arm
75.8 KN
Max. digging force of bucket
106 KN
Traveling speed
3.1/5.0 km/h
Max.hualing force
121 kN
Slewing speed of platform
11 rpm




Operating parameter
Max.digging height
8335 mm
Max.digging depth
5257 mm
Max.digging radius
8070 mm
Max.digging radius on ground level
7933 mm

Operating parameter

Max.dumping height
5896 mm
Min.slewing radius
2561 mm
Max.vertical digging depth
4380 mm

Transportation dimension
Overall length
7784 mm
Overall width
2530 mm
Overall height
2853 mm





Other Parameter
Width of undercarriage
2500  mm
Length of track
3695 mm
Width of track
500 mm
Height between undercarriage and ground
415 mm
Height between platform and ground
919 mm
Platform tail turning radius
2315 mm
Track gauge
2950 mm
Fuel tank capacity
270 L
Hydraulic oil tank capacity
105 L
Easily replace the filter element
Open the back cover can stand on the ground to replace the filter element, maintenance of various parts are very convenient
Renowned brand hydraulic valve
International famous brand control system High coordination for composite movements Easy assessing hydraulic valve block High reliability

New electric control hydraulic pump
New generation renowned brand electric control hydraulic pump Intelligent control to realize precise match of engine and hydraulic pump,Excellent operation efficiency.

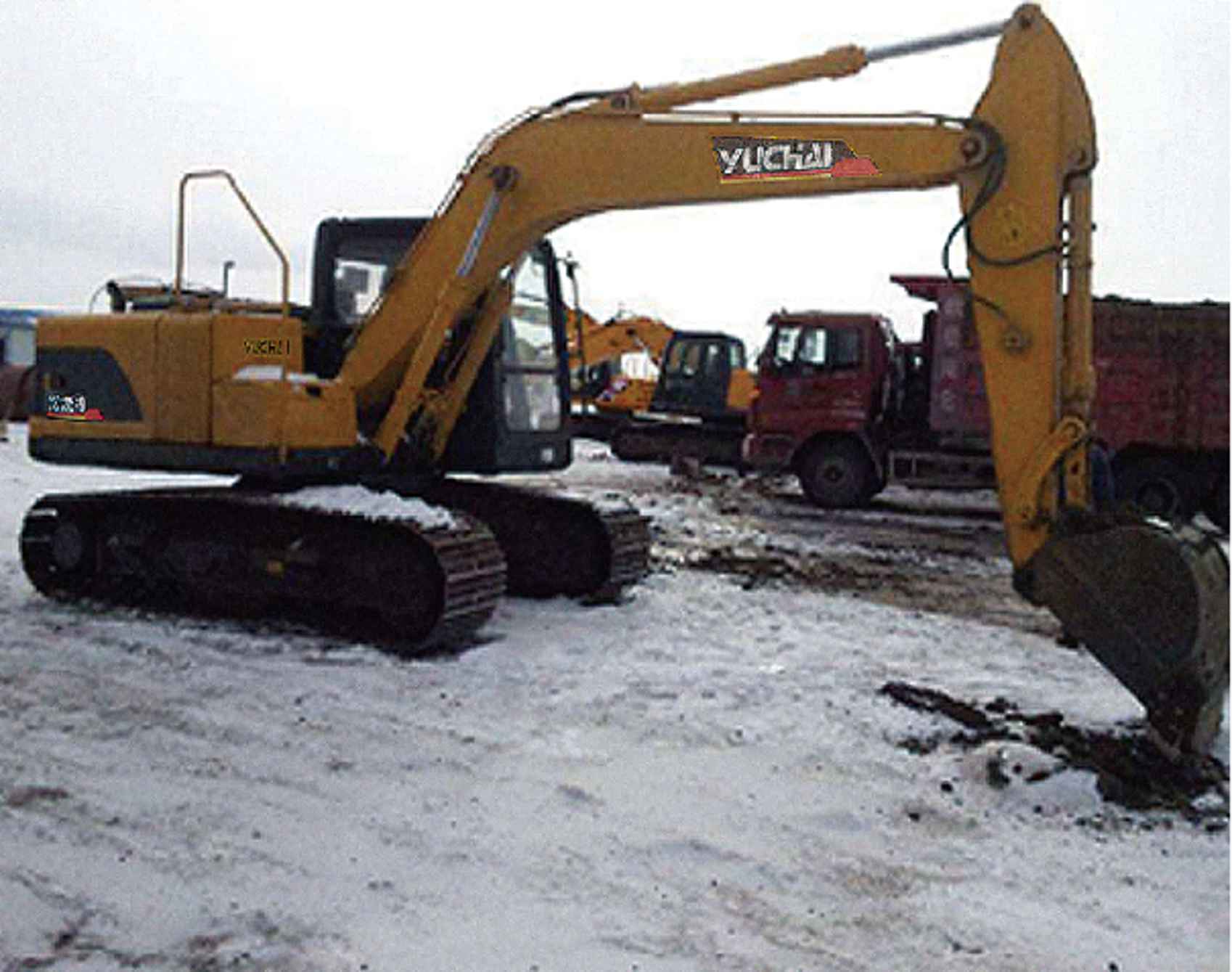

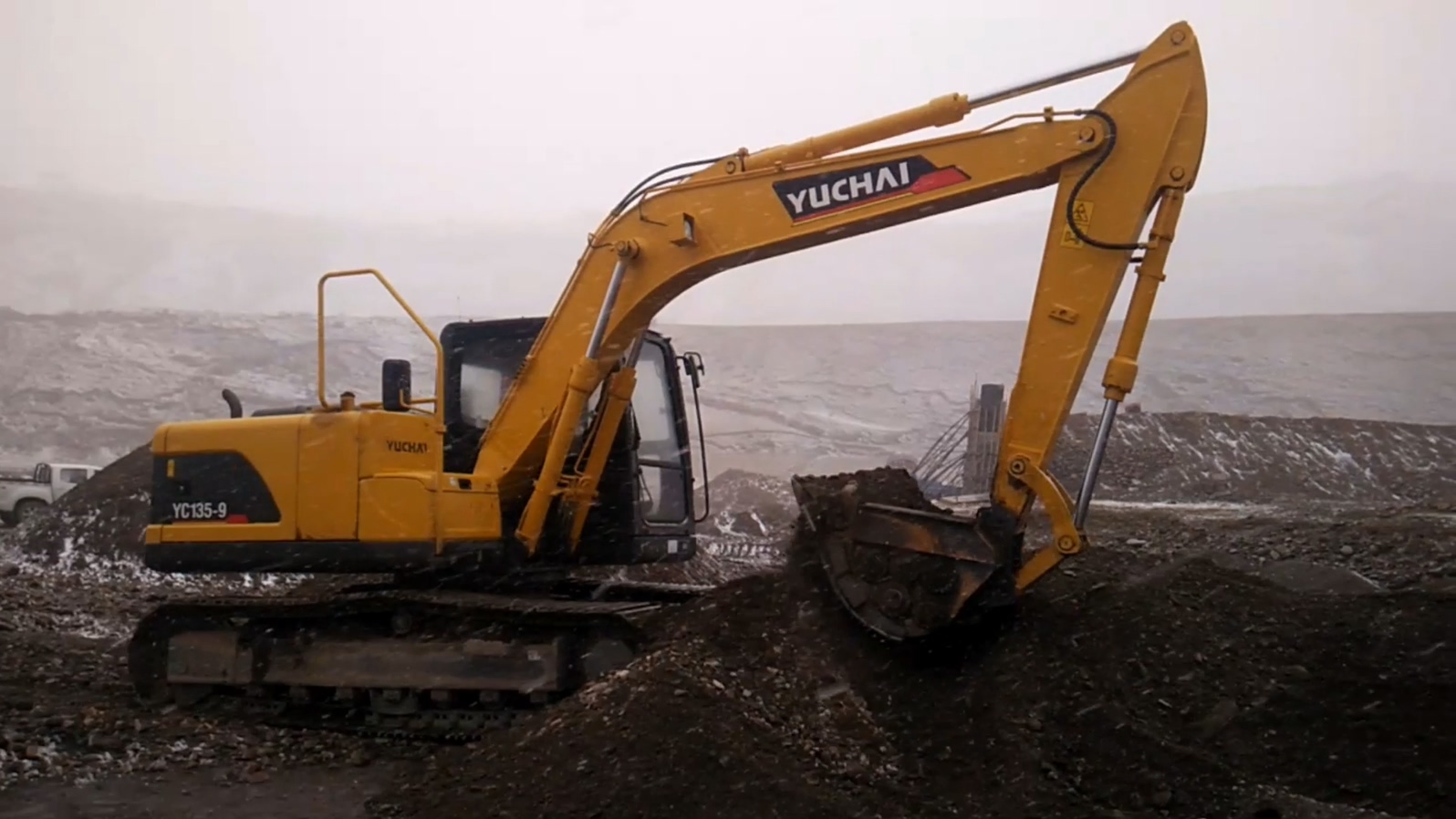

Be able to work in harsh environment

Yuchai excavator YC135-9 has excellent performance, stable hydraulic system and yuchai engine, so that Yuchai excavator can deal with various working conditions, including a series of tests of high temperature and high humidity, high strength at plateau, low temperature and cold environment

Excellent performance

Yuchai excavators are favored by consumers. There are also many engineering project teams to buy Yuchai excavators. Yuchai excavators can be seen in various engineering projects

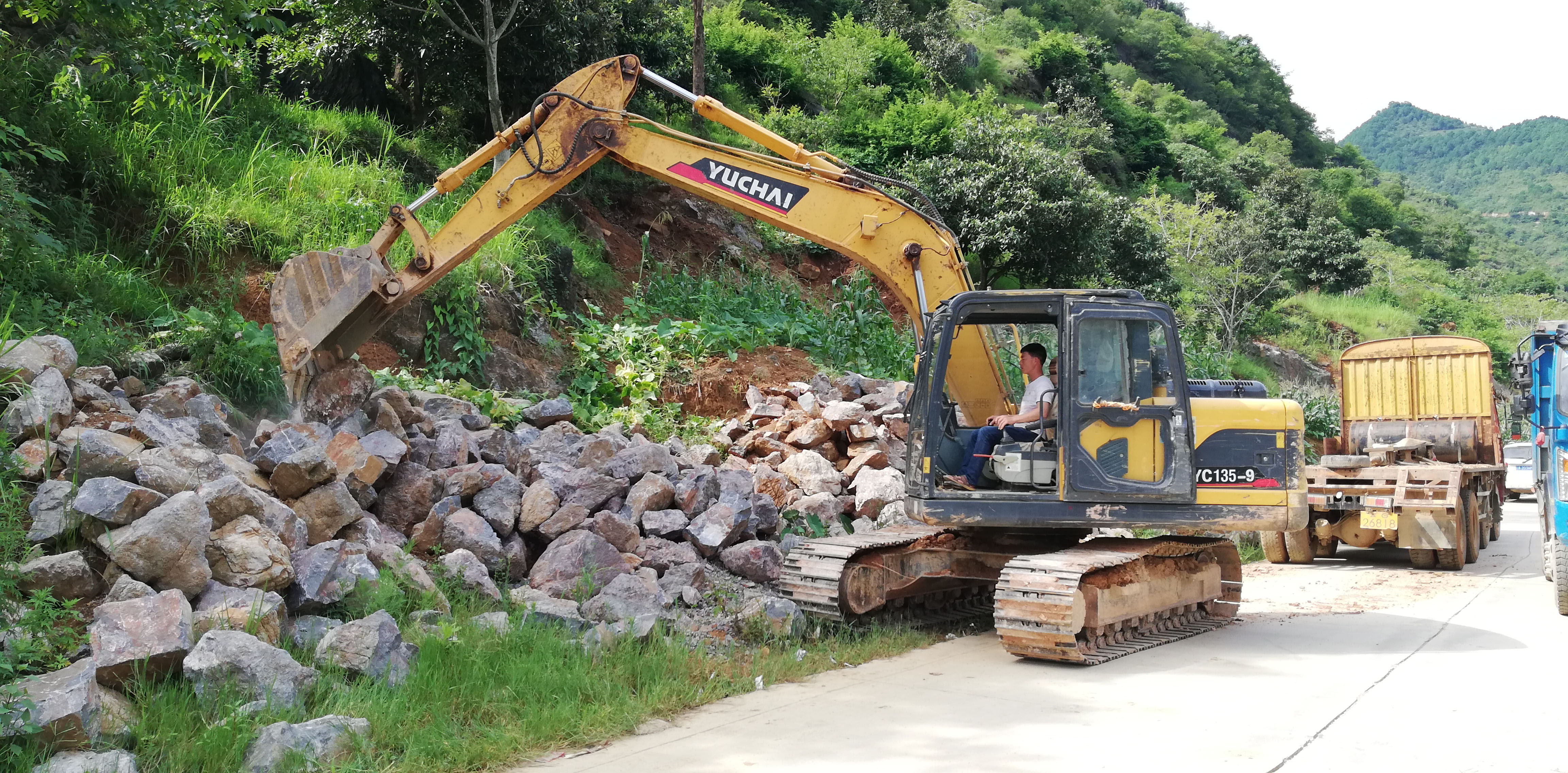

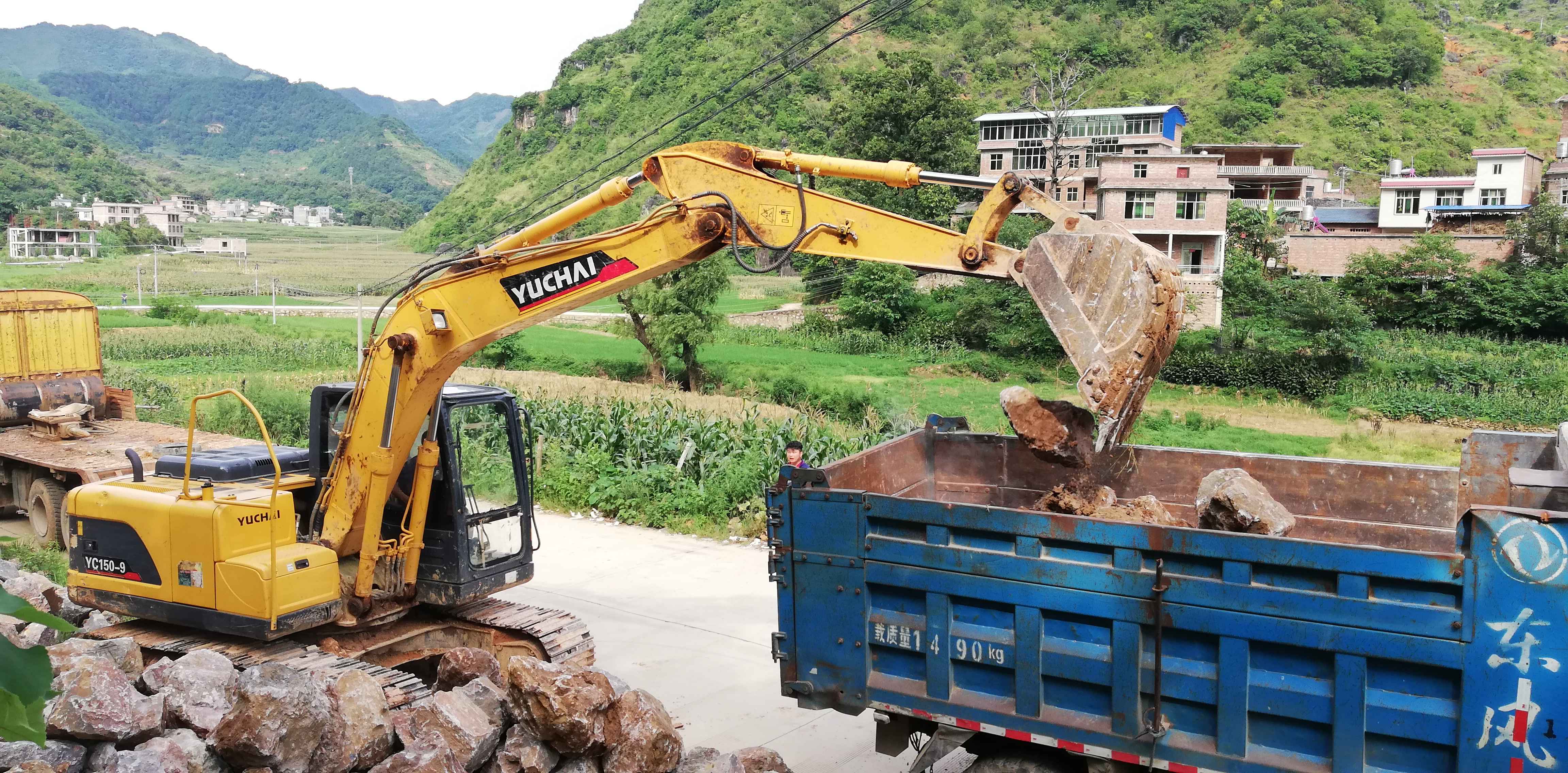

Gravel loading

Yc135-9 is equipped with 0.52m³ capacity bucket, which is capable of digging and loading large rocks

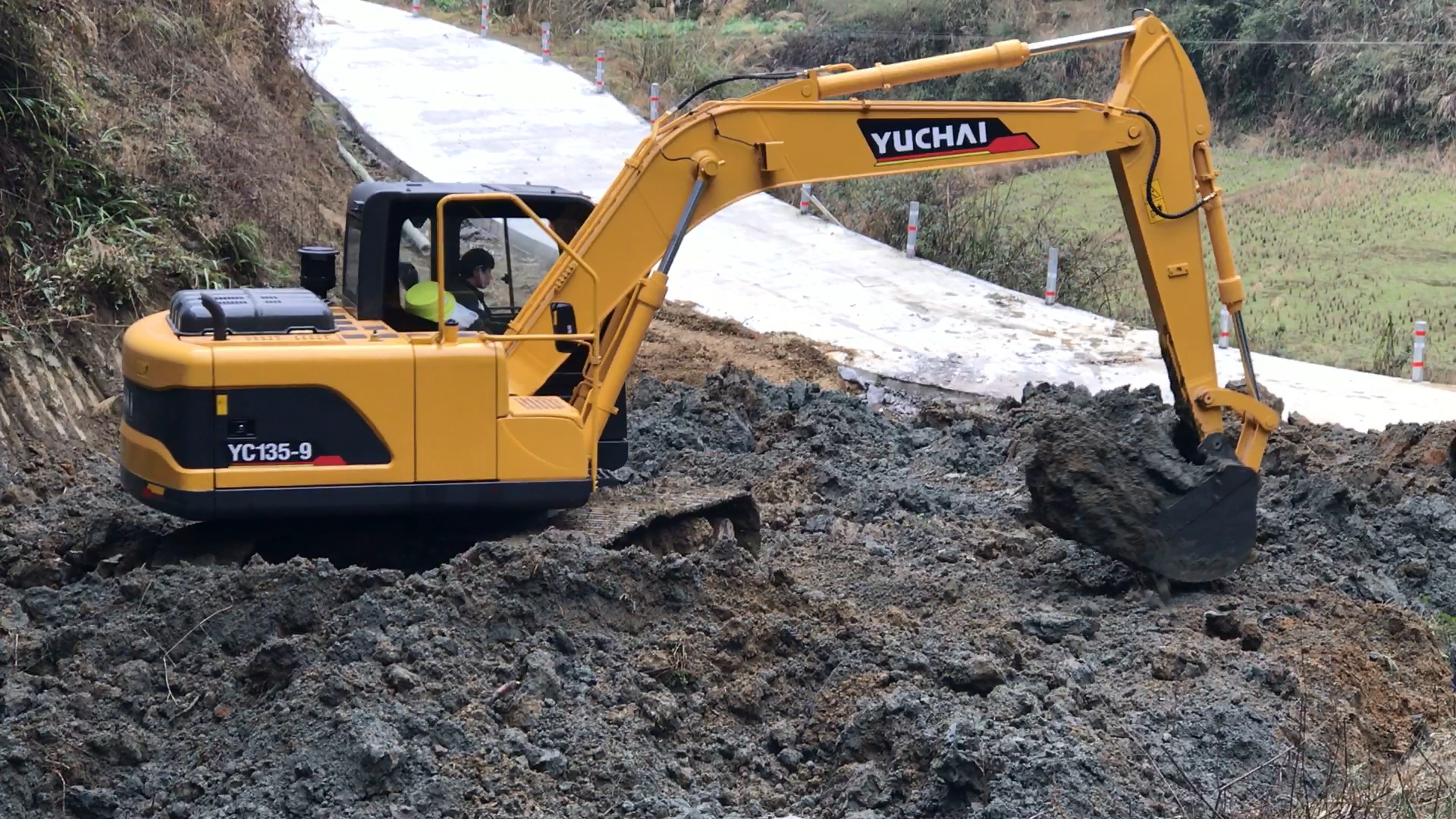

Rural road improvement

Yc135-9 has excellent ability to dig peaceful soil and can complete the work efficiently

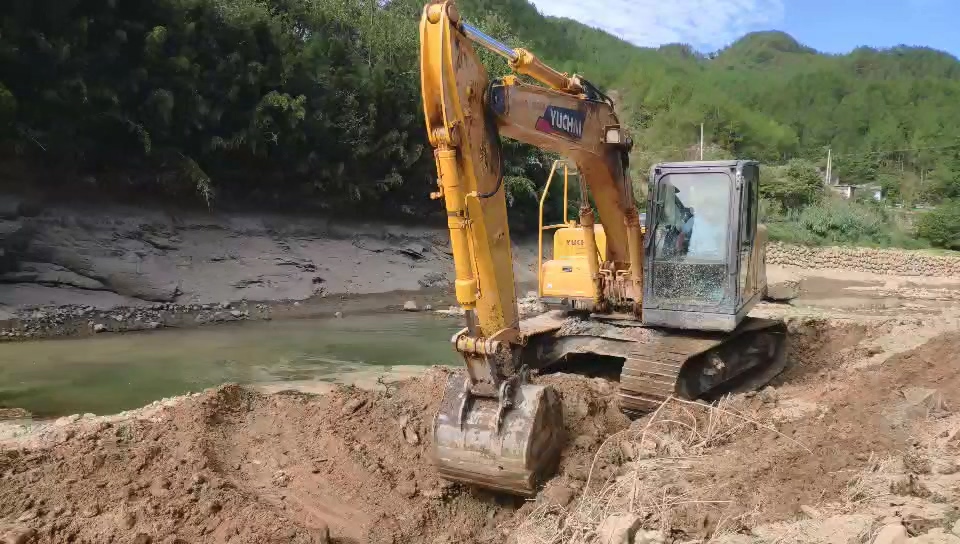

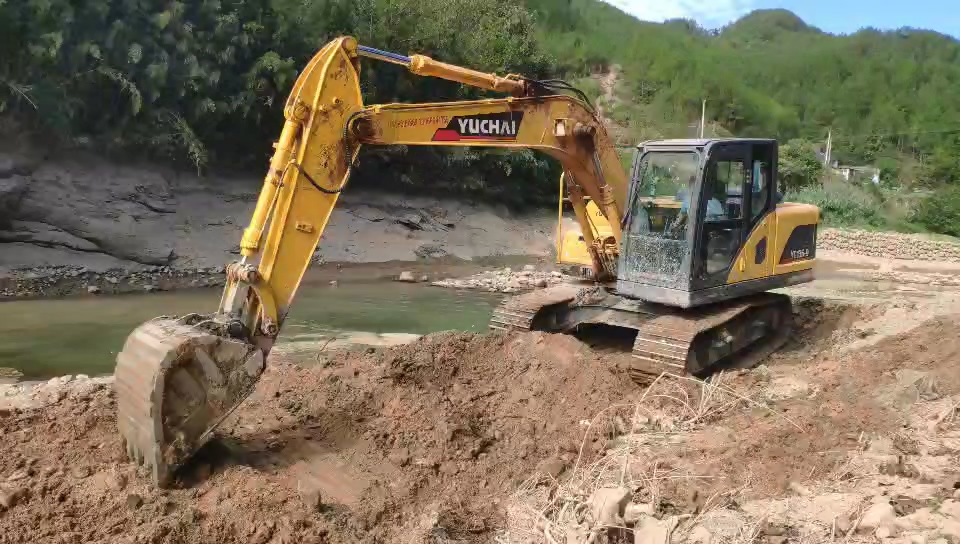

Channel modification work

Yc135-9 has very strong adaptability, with a digging radius of 8070mm and a digging depth of 5257mm. It also has excellent performance in river transformation

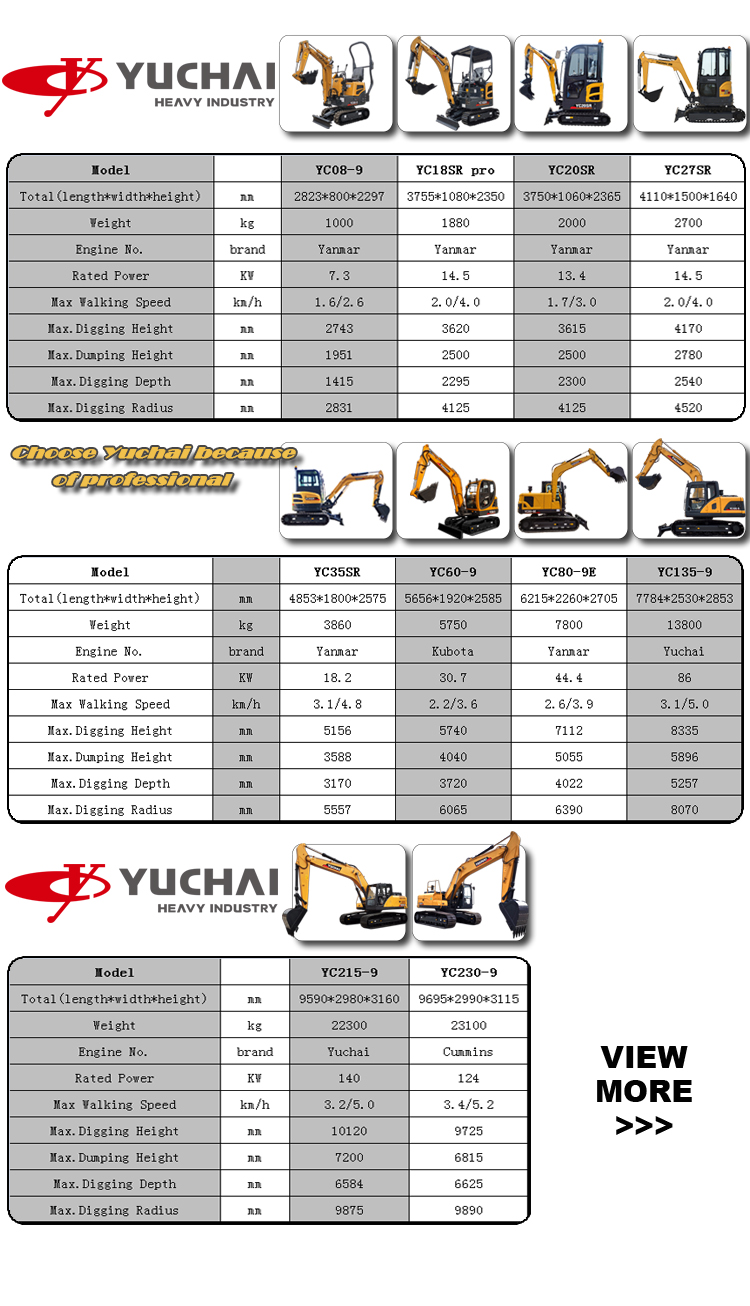

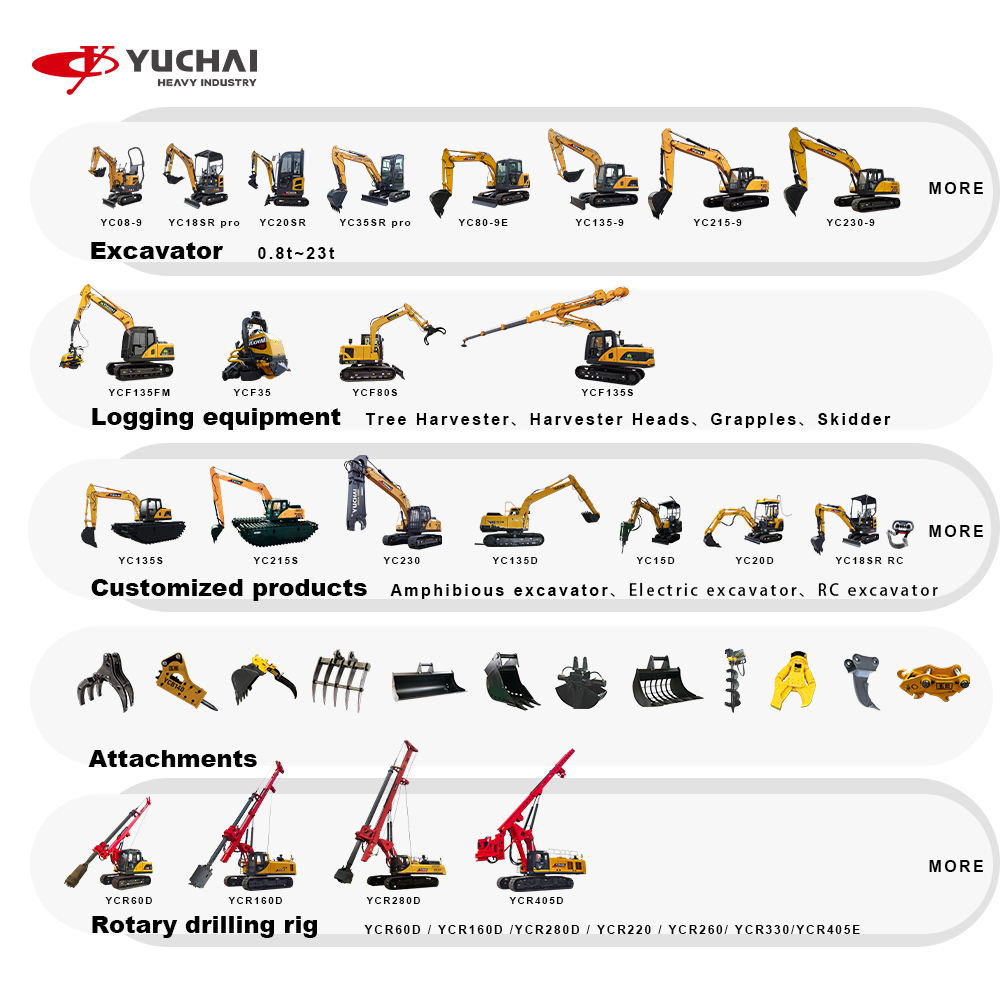

Yuchai excavator
It has nine traditional excavator product platforms Standard and short turn (tailless) two series;
 Market segments offer 6 solutions

Traditional excavators have: Micro dig, Small dig, Large dig, model tonnage from 0.8T to 23T a total of dozens of models Products in the segmented fields are: Electric digging, Boat digging, Logging equipment, Remote control digging, Railway digging, Cold area digging

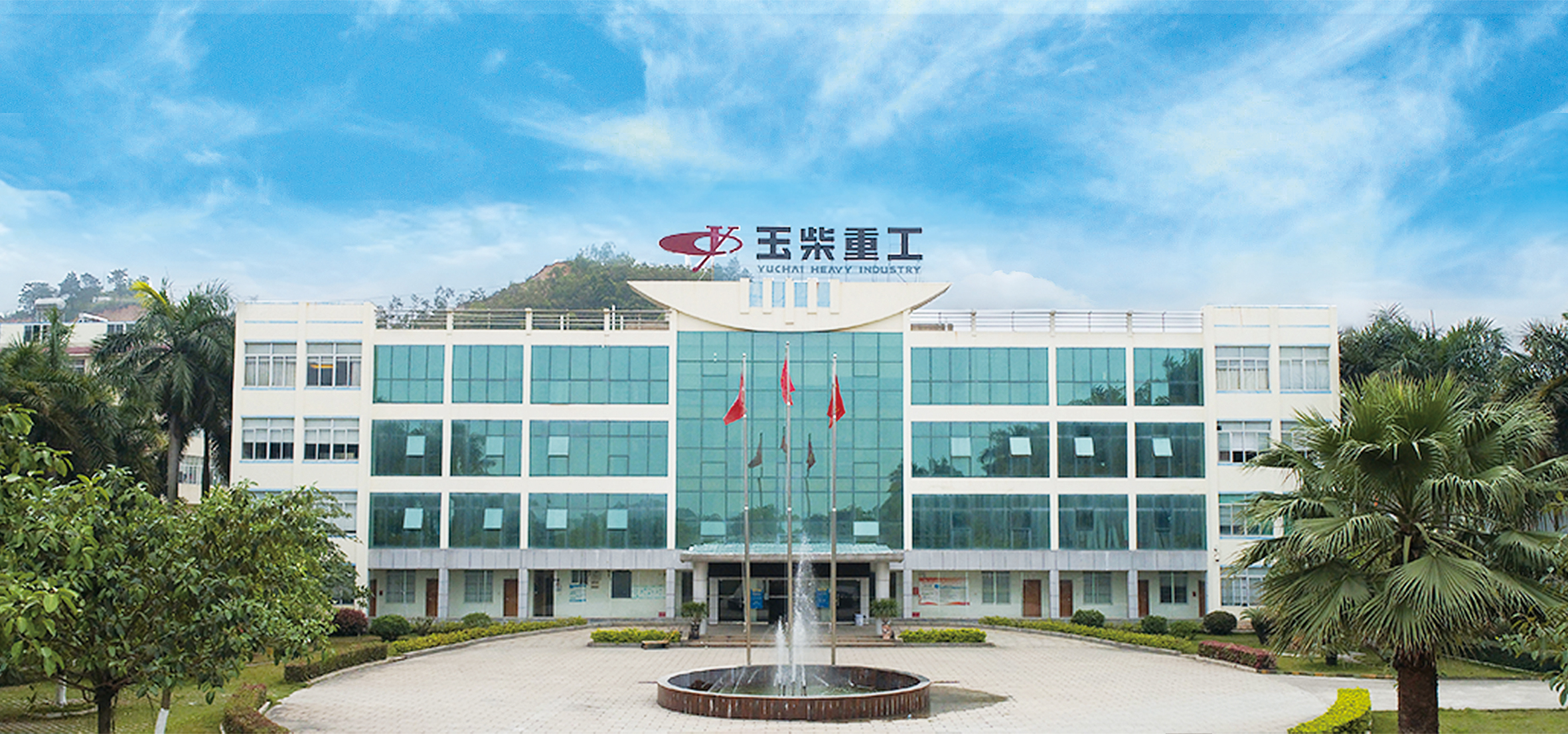

Company Profile
Guangxi Yuchai Heavy Industry Co., Ltd.
Guangxi Yuchai Heavy Industry Co., Ltd. is a Sino-foreign joint venture enterprise controlled by Yuchai Machinery Group Co., Ltd.It is al professional manufacturer who focus on crawler excavators since 1989, engaged in R&D, manufacturing and sales of varioussized construction machinery. It is the first manufacturer of mini excavator in China, as well as the main export base of miniconstruciton machinery.The company upholds such quality concepts with Creating famous brand name by manufacturing crowned product and such serviceprinciples with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world. With an annual capacity to produce 10,000 sets of construction machinery. The main products are the Hydraulic Excavator, Rotary Drilling Rig, Skid Steer loader etc. There are more than 18 models of multi-functional full hydraulic excavators. The products are of compac structure and reliable quality. The performance indexes of the products have reached the international advanced level, and obtained more thar 300 national patents. Most of them are CE certified. They could conduct digging, rock-breaking, drilling, grabbing and ditch-cleaning, and widely used in construction projects such as public and municipal infrastructure works, garden, farm, mine and irrigation etc. And such service principles with striving all out to serve the customers, spending full sincerity to confidence the world, And is trying all the time to provide better products to the world.

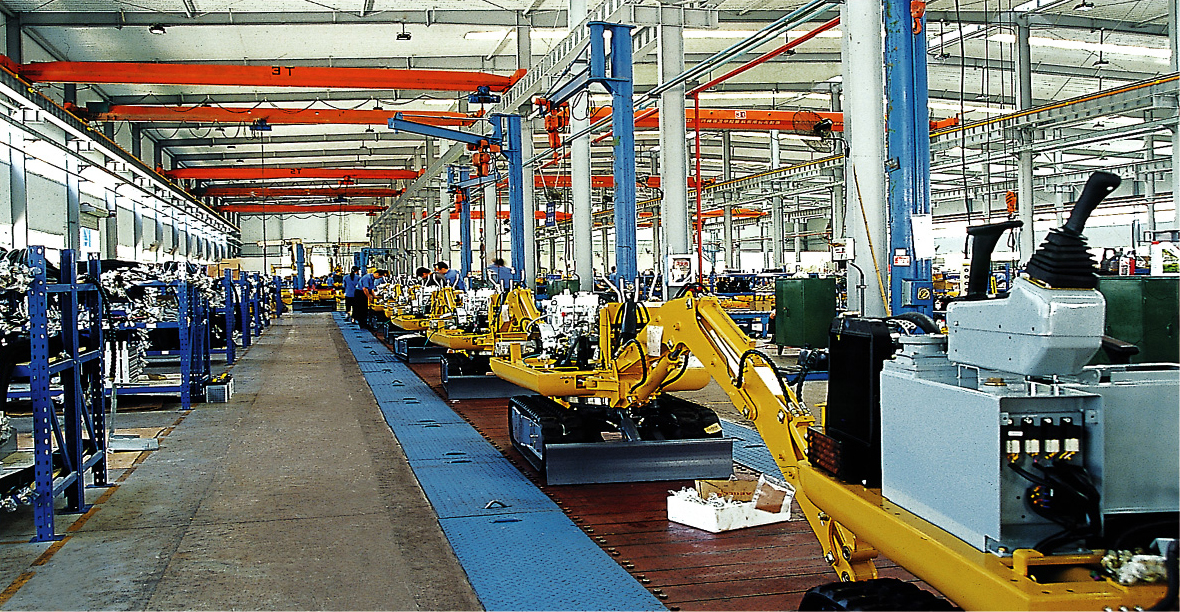

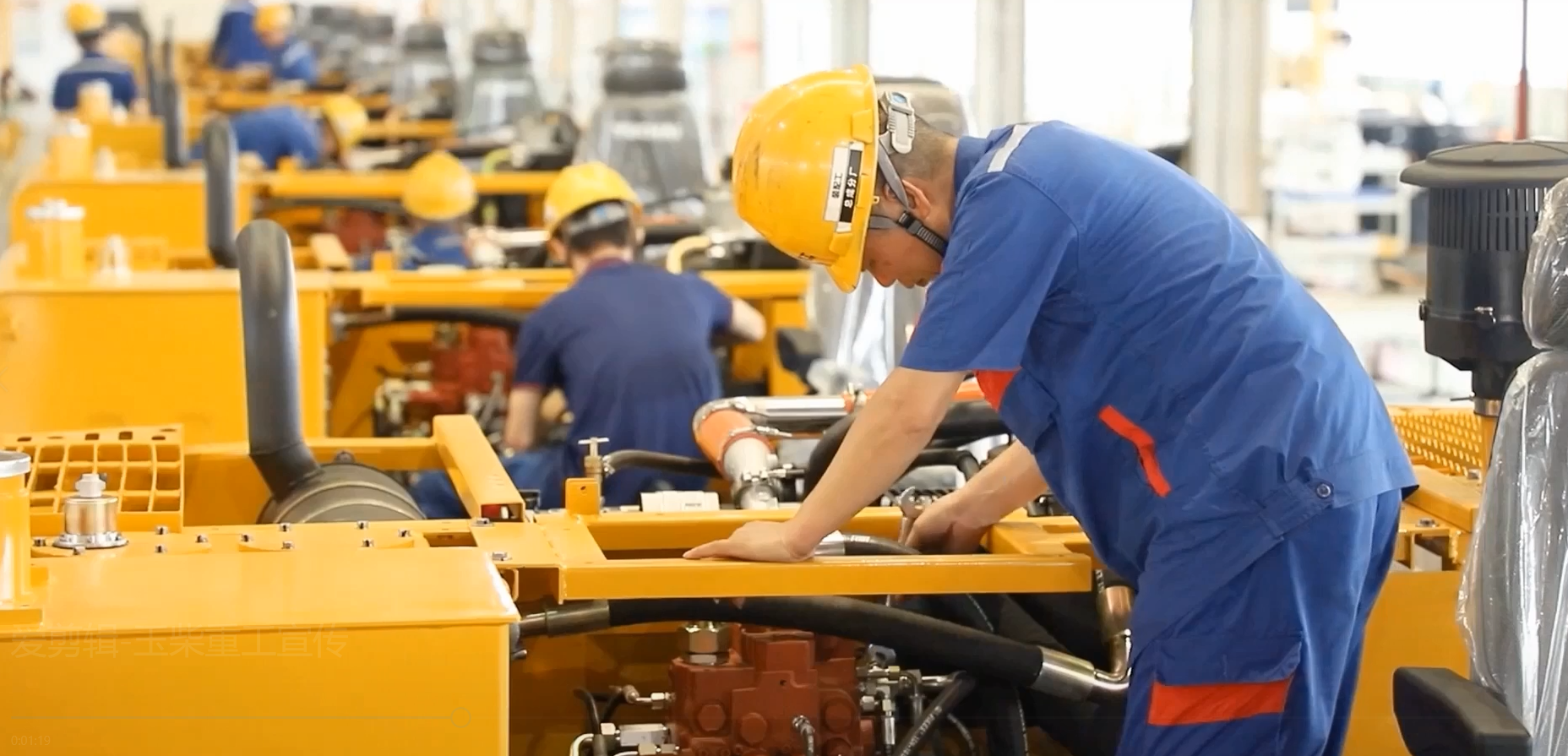

Workshop&Product packaging
Yuchai excavators are favored by consumers all over the world.
Yuchai Heavy Industry has excellent international trade ability, and our products can be delivered to customers by various shipping and land transportation modes. Yuchai Heavy Industry has many dealers all over the world, providing high-quality guarantee for customer after-sales service.
Exhibition
Yuchai excavator has participated in many trade fairs, and high-quality brands attract many buyers.
Yuchai excavator adopts pure accessories management system and the most powerful accessory supply system. Each link has passed strict quality control and inspection. All accessories adopt unified standards, unified identification and unified packaging of Yuchai Heavy Industry. At the same time, we can provide customers with high quality OEM/ODM services to meet the needs of dealers/customers; The advanced DMS spare parts collaborative management platform is used to implement the information management of the whole process of parts import, sale and storage to ensure the accurate, timely and efficient supply of parts.
Certifications
Sales Network
Yuchai excavators provide you with quality services
Choose Yuchai excavators, can provide you with quality construction machinery products and services! Yuchai Heavy Industry has established a huge and perfect sales and service system network covering more than 30 provinces, municipalities and autonomous regions in China and more than 30 countries and regions on five continents In order to provide better service, yuchai Heavy Industry call Center provides 24-hour online customer service 365 days a day to provide users with strong pre-sale, in-sale and after-sales service support.
