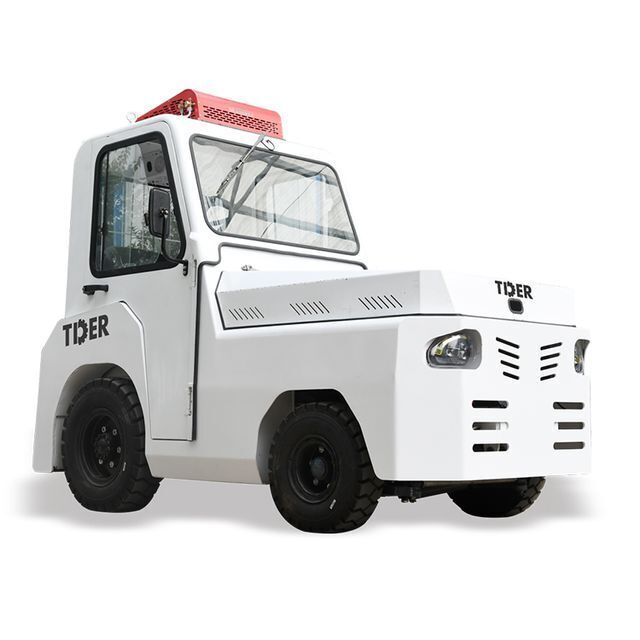

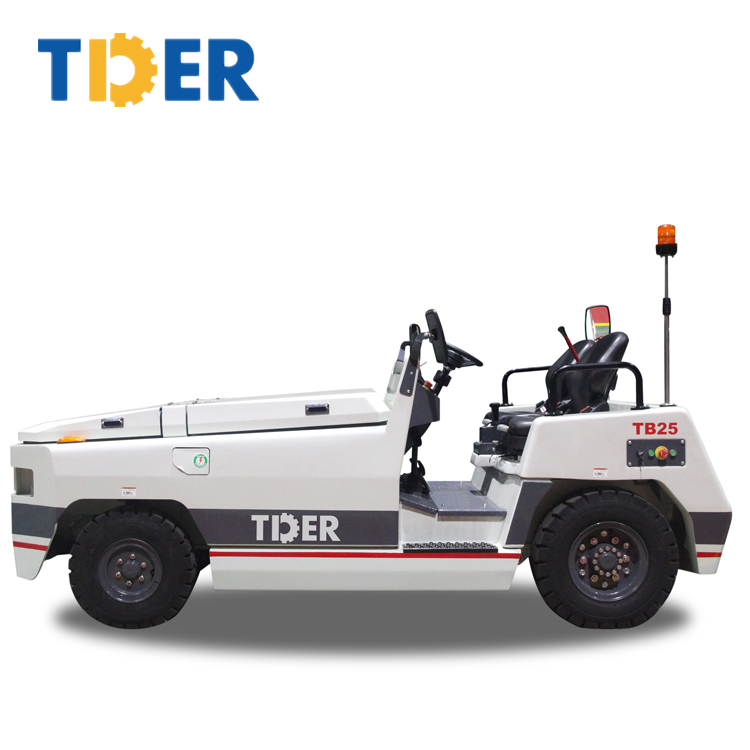

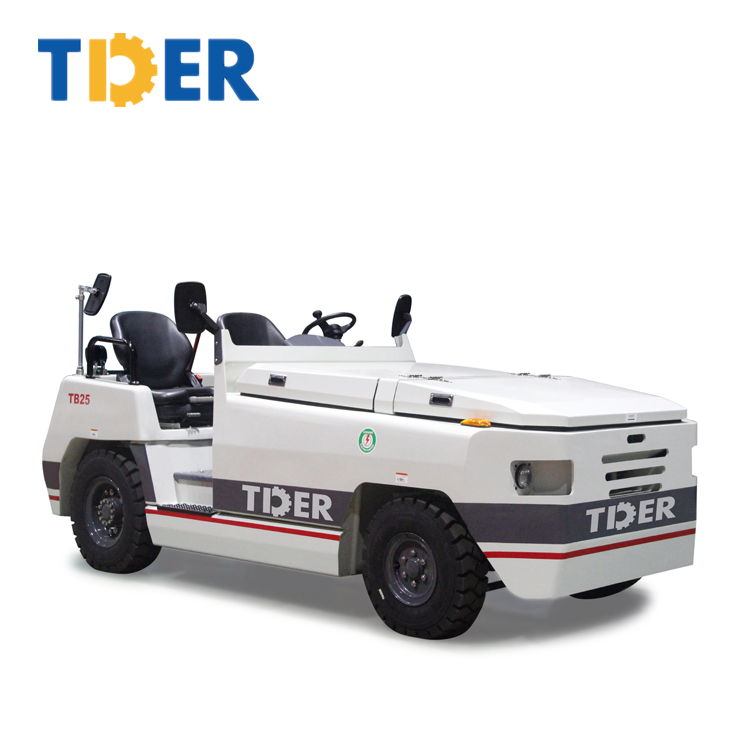

Item Name: | TIDER 2.5 ton capacity mini electric towing tractor; | motor: | 23kw; |
Battery: | 80/660VAH; | Port: | Ningbo,China; |
Item: | airport tow tractor; | Truck weight: | 4500kg; |
Warranty: | 1 year or 2000 working hours; | Min. ground clearance: | 110mm; |
Max. towed weight: | 25000kg; | Payment Terms: | L/C,Western Union,T/T,MoneyGram; |
Overall size: | 3860*1420*1940mm; | Brand Name: | TIDER; |
Function: | aircraft towing tractor; | Supply Ability: | 300 Units per Month airport tow tractor; |

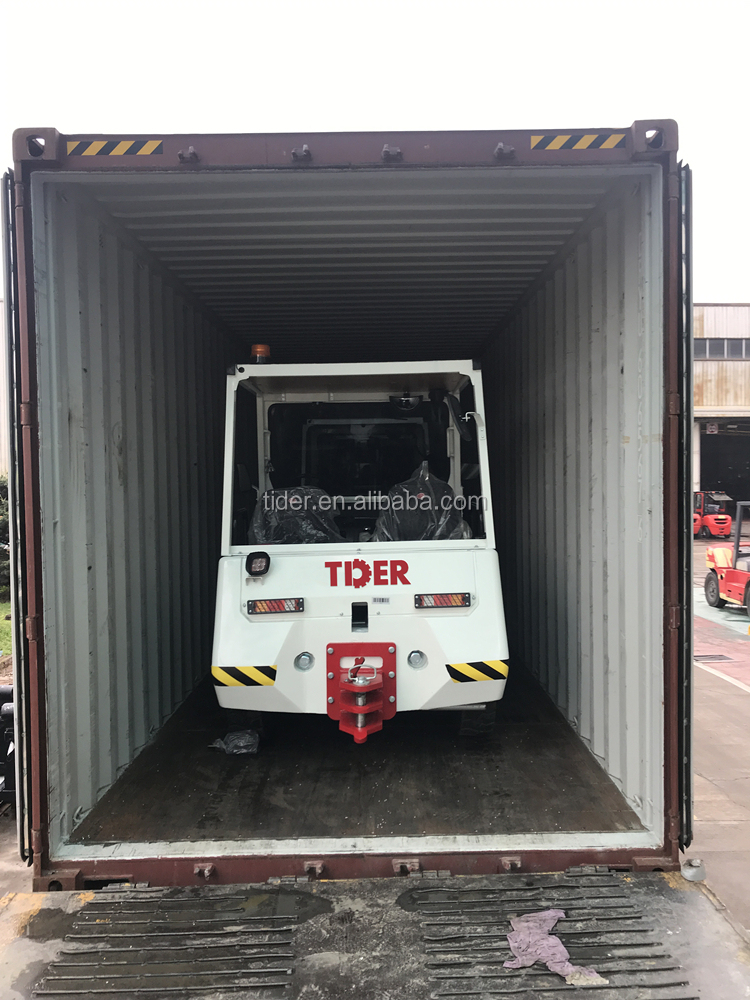

Packaging Detail: | Nude packing, delivered by container; | Place of Origin: | Zhejiang, China; |
Tider Industrial Co.,Ltd. is a manufacturer,which is specialized in the development and production of streamlined engineering machinery. TIDER provides professional technical support and product training supportservices and OEM service to clients is also available. TIDER are committed to providing even greater satisfaction to all our customers and business partners.
1.hydraulic steering system with shock absorption ,easy and flexible operation;

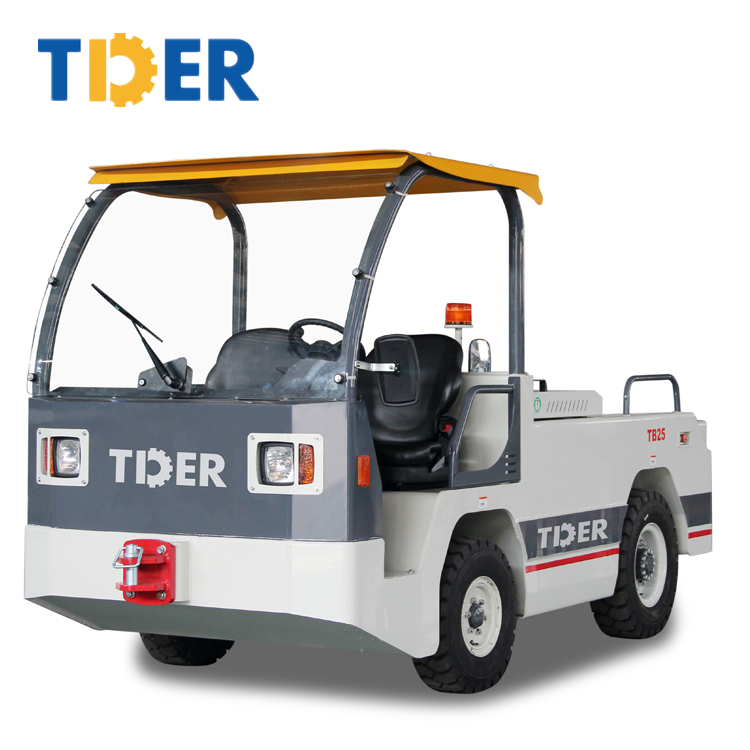

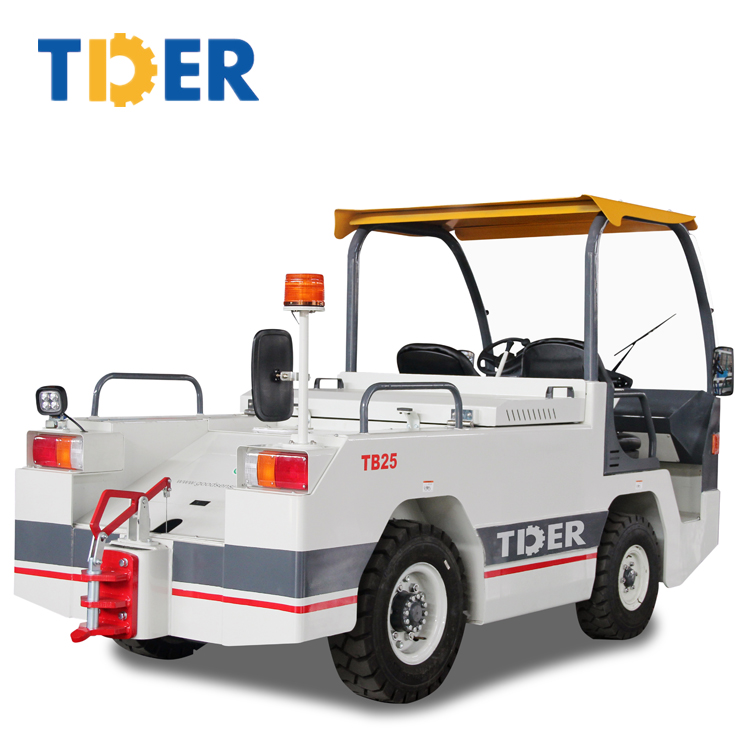

2.Towing couplers both in front and rear, the rear couplers can be adjusted by the control leveler in the cab
3. Semi - sealed cab with sunshade type provides a wide visual ,harmonious color and beautiful look ;
4.American import Curtis controller , precise control with self -diagnosis unction .
5.Vacuum booster hydraulic dual re -circulation four wheel braking system ,reliable and safe.

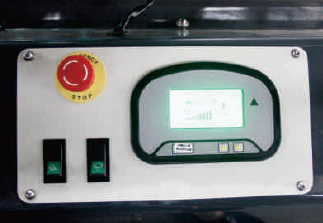

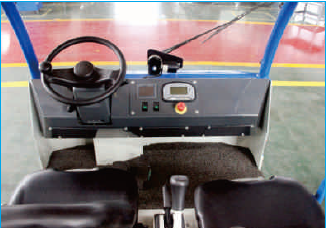

Ergonomically designed and configured operator interface for more comfortable, convenient and safe operation

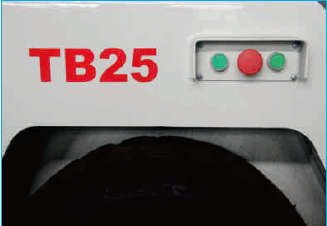

Micro- switch for micro adjustment function, high work efficiency
Model | TB20 | ||
Performance | Max. drawbar pull | kn | 25 |
Rated traction weight | kg | 25000 | |
Min. turning radius | mm | 5800 | |
Max. gradeability | % | 25 | |
Weight | Truck weight(no load) | Kg | 4500 |
Dimensions | Overall demension | mm | 3860*1420*1940 |
Wheelbase | mm | 1610 | |
Front overhang | mm | 1225 | |
wheel tread (F/R) | mm | 1235/1185 | |
Towing bar height | mm | 304.8 | |
Min. ground clearance | mm | 110 | |
Motor | Rated power | KW | 23 |
Rated torque | N.m | 106.5 | |
Rated speed | rpm | 2063 | |
Rated Current | A | 295 | |
Motor rating | S2 60min | ||
Battery | Type | Lead -acid Battery | |
Voltage/Capacity | 80/660 | ||
Tire | Front | 6.50-10-10PR | |
Rear | 7.00-12-12PR | ||
Mileage | Empty | h | 12 |
15t loaded | h | 4 |
Click here to get more information.
Tider always treat after-sale service important as the same as product quality.
Tider grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
Tider can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
1. Why choose us?
As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?

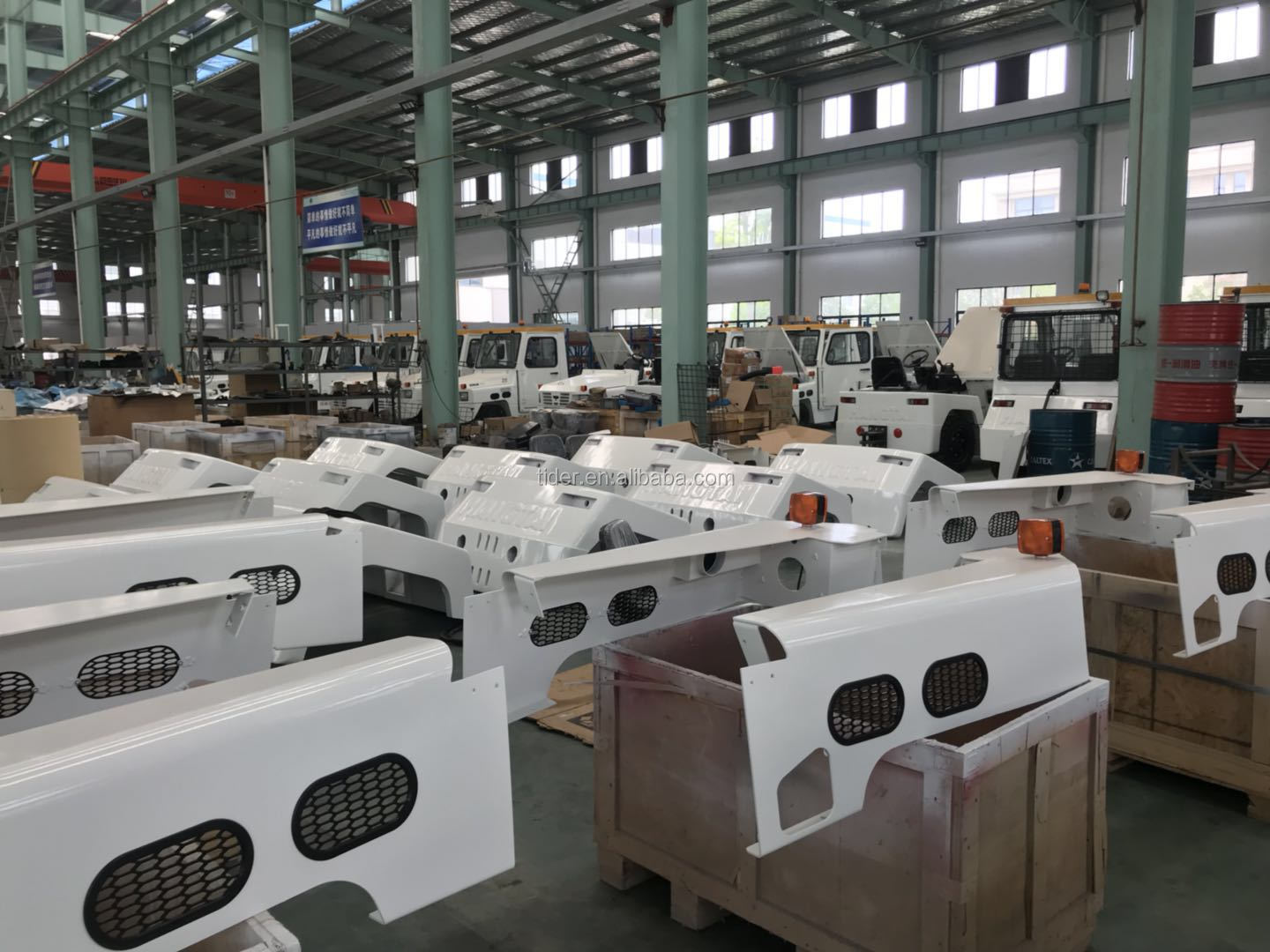

Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
