230v 350w 400w 500w 800w 1000w U W I shape Industrial electric rod immersion water heating element tubular tube heater

Supplier: Yancheng Hongtai Alloy Electric Apparatus Co., Ltd.
Region: Jiangsu, China
Contact: Ms Judy Bian
Price: $3.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Hongtai;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,paypal for u shape electric heating element tubular heater;
sample days:	5-7 days;	Video outgoing-inspection:	Provided;
screw size:	M12,M14,M16,M18,M20,M22;	Material:	Incoloy800&840,SUS321,SUS304,ect,Stainless Steel;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Insulation material:	High-purity Mgo Powder;
lead time:	3-5 days;	Package Preview:	;
Certification:	CE ROHS;	Voltage:	12V,24V,48V,110V,220V,240V,380V,480V and so on .,240V;
Core Components:	Other;	Port:	Shanghai;
Packaging Detail:	u shape electric heating element tubular heater carton,wooden case;	Supply Ability:	10000 Pieces per Month for u shape electric heating element tubular heater;
Place of Origin:	Jiangsu, China;	Warranty of core components:	1 Year;
Weight:	0.8 KG;	application:	heating U Shape Electric Tubular Heater;
Condition:	New;	Dimension(LWH):	customized;
Type:	Immersion Heater;	Other Shape:	U,W,I, round squre and so on;
Power Source:	Electric;	Key Selling Points:	Energy saving;
Tubular diameter:	6mm,8mm,10mm,12mm,14mm,16mm and so on.;	Machinery Test Report:	Provided;
Warranty:	1 Year;

Product Description

Tubular Heaters are the most versatile and widely used source of electric heat for industrial, commercial and scientific applications. They can be designed in a wide range of electrical ratings, diameters, lengths, terminations, and sheath materials.

Also screw plug immersion heaters, flanged immersion heaters, circulation heaters, and high temperature process air heaters are available.

Hongtai engineering is available to assist with the design and development of special heaters for particular requirements.

Product Name	230v 350w 400w 500w 800w 1000w U W I shape Industrial electric rod immersion water heating element tubular tube heater
Heating wire	Precision helical wound nickel-chrome resistance wire
Certification	ISO9001, CE
Insulation Material	High purity magnesium oxide powder compacted
Voltage	120V, 240V, 480V, 600V and so on
Power	50-2000W, or customized
Tube Diameter	6MM 8MM 10MM 12MM 14MM 16MM 18MM 20MM
Thread size	M12 M14 M16 M18 M20 M22
Tube Material	Copper ,Steel,Incoloy,Titanium

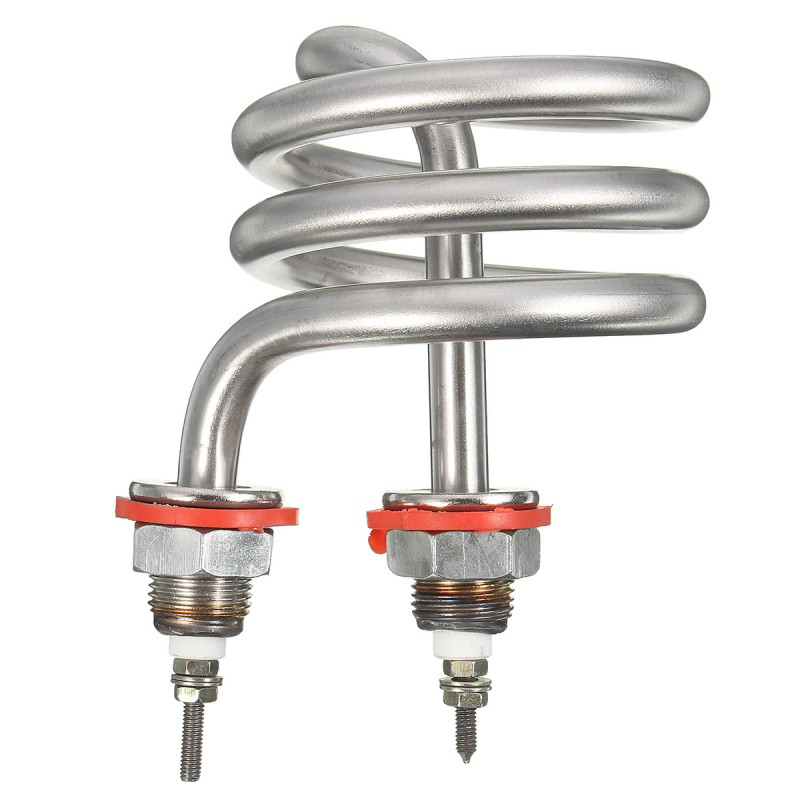

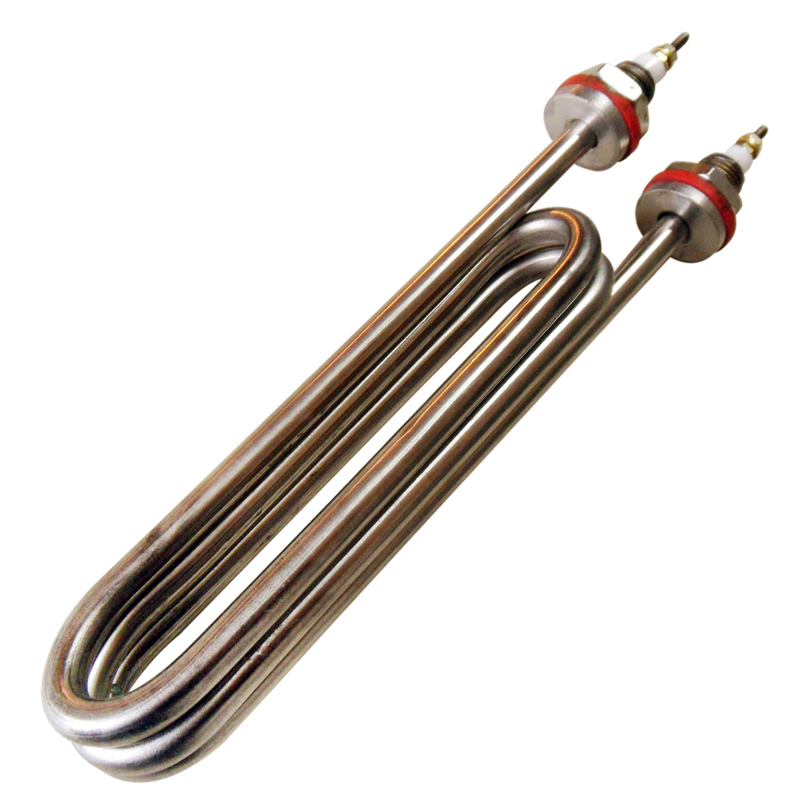

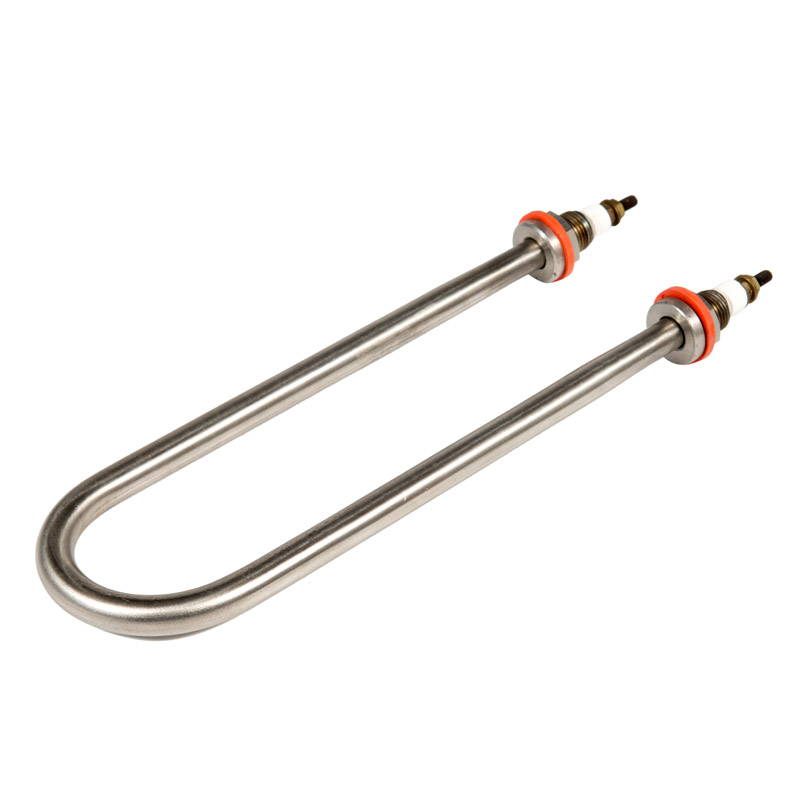

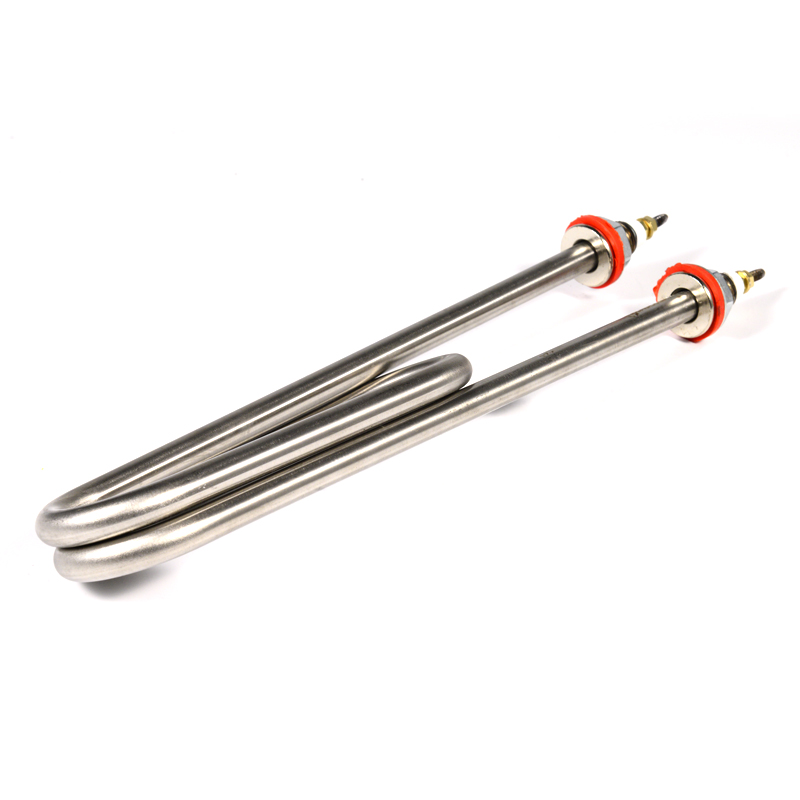

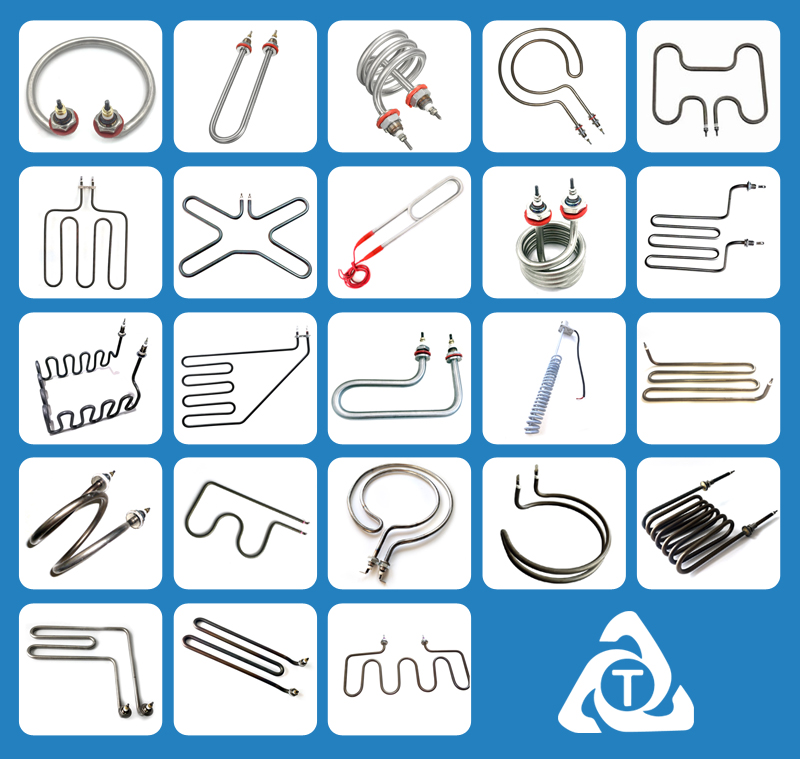

Products Show

How to order ?

Pls provide this informations:

1.Vottage :380V,240V, 220V,200V,110V and other can be customized.

2.Wattage :80W,100W,200W,250W and other can be customized.

3.Size: length*Diameter.

4. Quantity

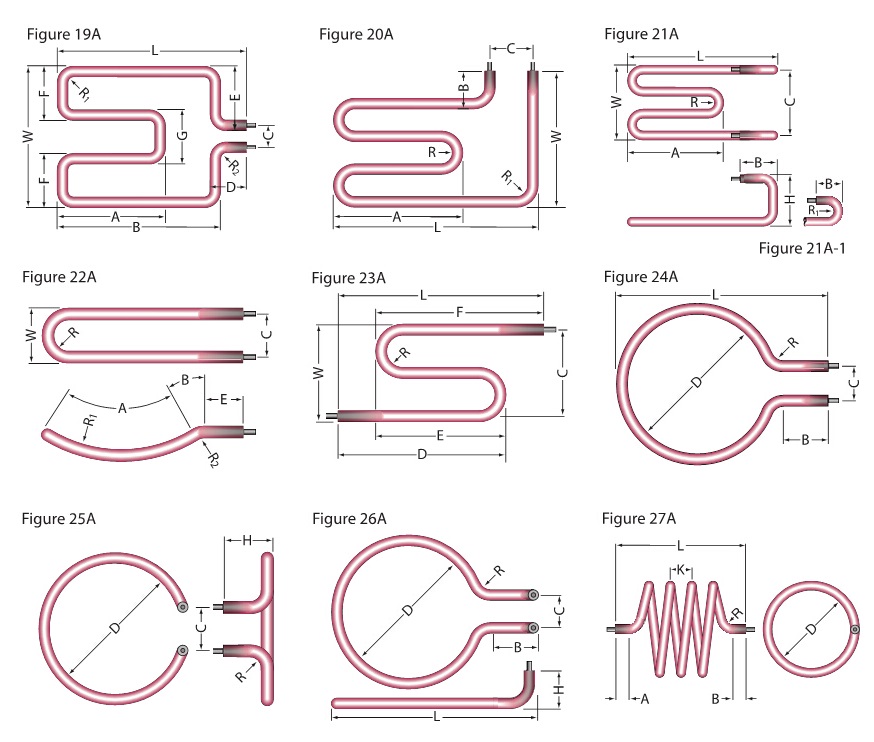

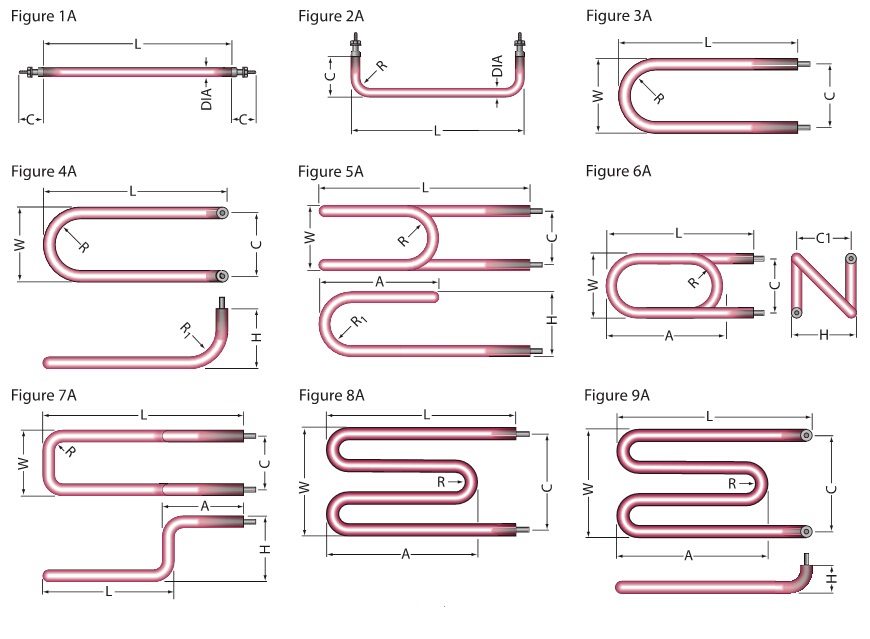

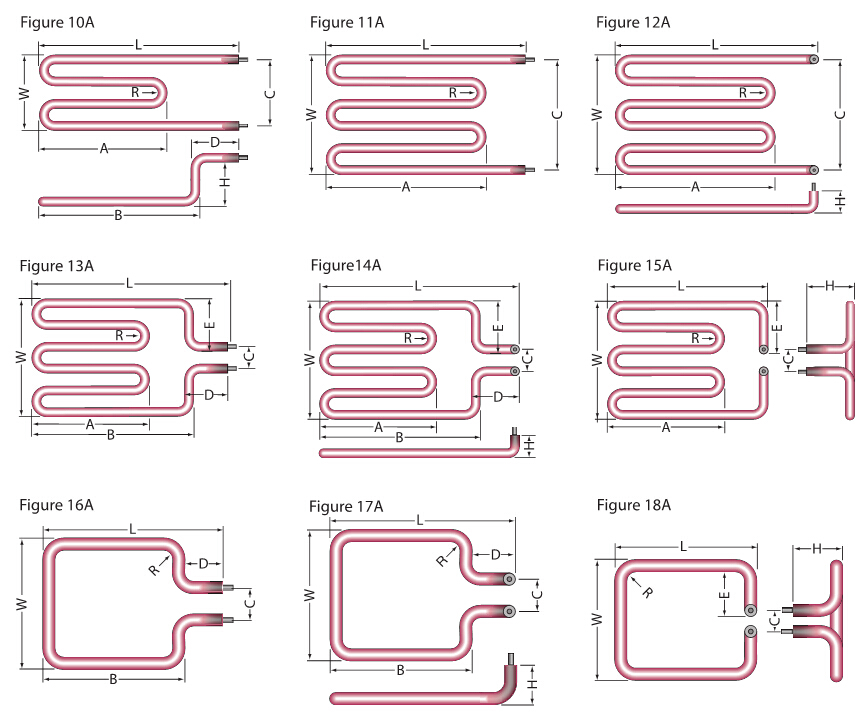

5. Pls check the below heater shape simple drawing, and choose the right one you want.

Various Tubular Heater shape , you can tell us directly the figure No.

All size can be customized.

How to Choose The right Material for the tubular heaters? Please check this table.
Material	Maximum Sheath Temperature
Copper	350℉(170℃) Application: Water, Oil, Grease
Steel	750℉(400℃) Application: Alkaline cleaning solutions, Tars, Asphalt or air heating
Stainless Steel	1200℉(600℃) Application: Corrosive liquids, food processing equipment, Radiant heating
Incoloy	1500℉(815℃) Application: Cleaning and degreasing solutions, Corrosive liquids

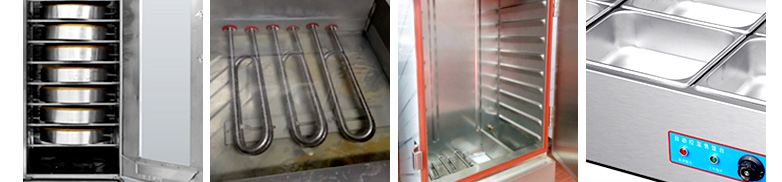

Application

1.Plastic Processing machinery.
2.Water and Oil Heating Appliances.
3.Packaging machinery
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipments
9.Medical equipments
Used in many other applications.
