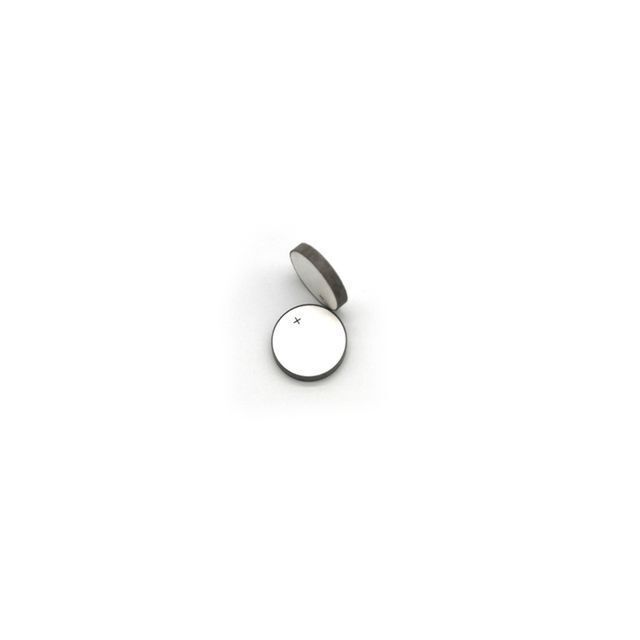

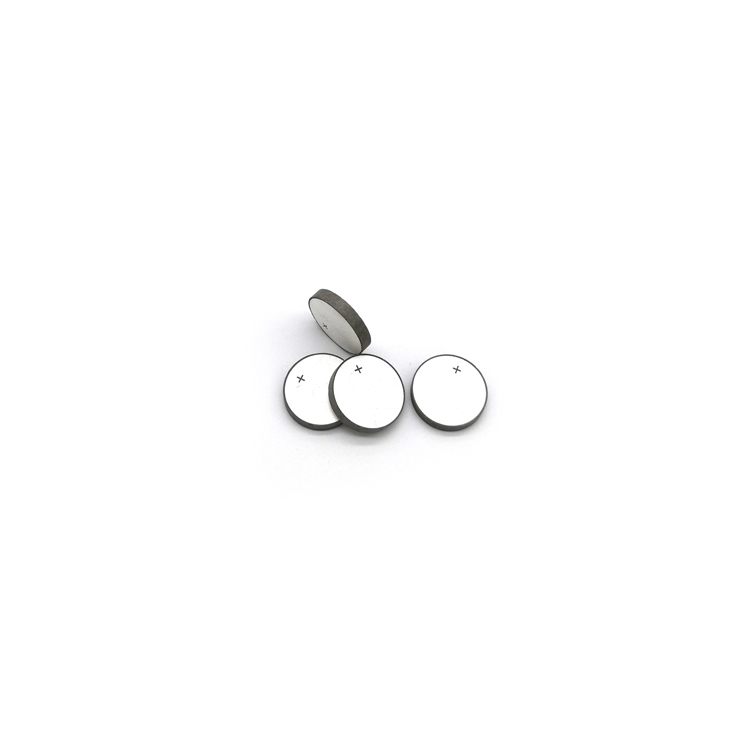

High Quality PZT Piezoelectric Ceramic Disc 17.5mm 125KHZ For Ultrasonic Sensor
-
Supplier: Chengdu Chengyao Technology Co., Ltd. -
Region: Sichuan, China -
Price: $0.40 / >=10 pieces -
Min. Order: 10 pieces
| Brand Name: | CHENG YAO; | Shape: | Disc; |
| Application: | Ultrasonic Sensor; | Type: | Piezoelectric Ceramics; |
| Feature: | Revers or not; | Port: | Shanghai port; |
| Place of Origin: | Sichuan, China; | Packaging Detail: | Carton Packing; |
| Supply Ability: | 100000 Pieces per Month; | Material: | PZT,P4; |
| Dimension: | Can be designed according to customer requirement; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |

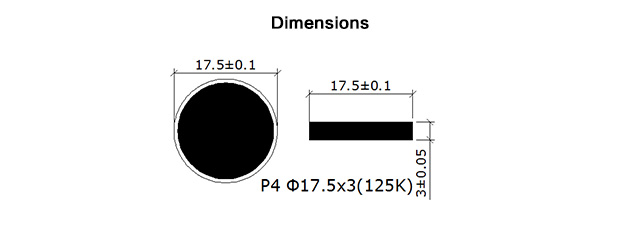

| Frequency: | 125KHZ; | Model Number: | P4-17.5mm-125KHZ; |
Specifications | |||
Item | Unit | Standard | Test Condition T=25℃ |
Resonant Frequency | KHz | 125±3% | Impedance Analyzer |
Relative Dielectric Constant | — | 1500±15% | Impedance Analyzer |
Electrical-Mechanical Coupling Coefficient | — | ≥0.6 | Impedance Analyzer |
Charge Constant | 10-12m/v or c/n | 300±10% | Static d33 Analyzer |
Mechanical Quality Factor | — | 600±15% | Impedance Analyzer |
 |  |  |  |
Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer of piezoelectric ceramics and sensitive components.
Q2: Where is your factory located?
A2: No.199,HuQiao Road, Industrial East District of Xindu District, Chengdu City , Sichuan Province, China.
Q3: What's your company MOQ?
A3: Sample and small quantity order are ok.
Q4: Can you send a sample for us to test ?
A4: Yes, most conventional samples are available for free. For samples whose cost is very high, the sample fee will return back in future order.
Q5: What's the payment term?
A5: 30% deposit, and 70% balance paid before shipment.
-
