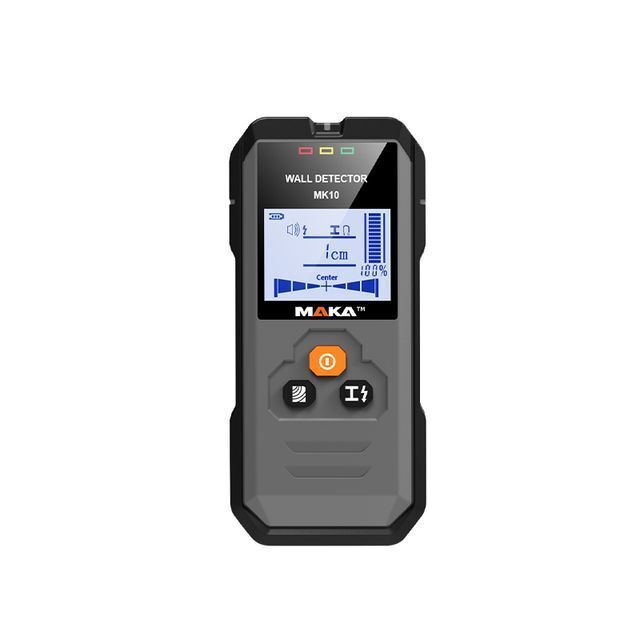

MAKA multi-functional metal wood detection function wall detector stud finder

Supplier: Jinhua Maka Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lizzy Xu
Price: $26.70 / 10 - 49 pieces
$17.80 / 50 - 99 pieces
$17.50 / 100 - 499 pieces
$16.80 / >=500 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Model 2:	copper detection;	Type:	Wall Detector;
Sensitivity:	accurate;	Package Preview:	;
Customized support:	OEM,ODM;	Warranty:	1 years;
Model 4:	wood detection;	Supply Ability:	1500 Pieces per Day;
Port:	Ningbo/Shanghai;	Model 1:	metal detection;
Payment Terms:	L/C,T/T;	Application:	CE/FCC,Wood,Drywall/Gypsum,Drywall,Wooden Beams,Live Cables,Non Ferrous Metals,Ferrous Metals;
Place of Origin:	Zhejiang, China;	Packaging Detail:	1pc/bag 1pc/color box;
Power supply:	1*9V Battery;	Model 3:	AC detection;

TUV Certified Factory

● Open for a wide cooperation

● All of our items are under the cover of patents applied

● More than 1 million pieces annual output to a top quality guarantee .

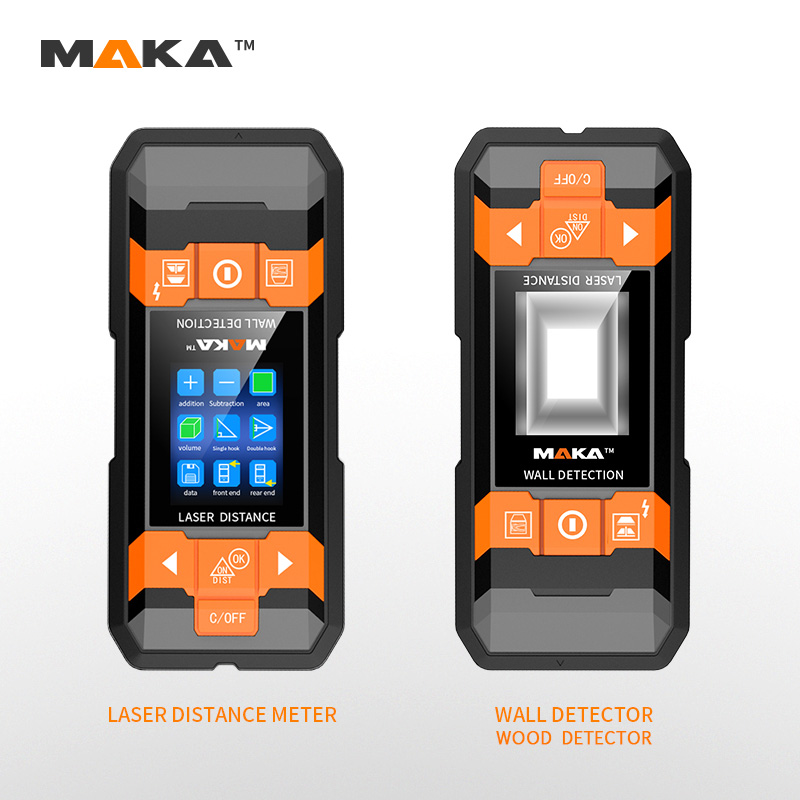

● Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc.

● Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed
certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.

● Many sound Long-term co-operations with giant companies globally

● A great pack of policies support to VIP clients

Lizzy Xu

E-mail： mk@makalaser.com
WeChat： 15258981196

Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075

Features:

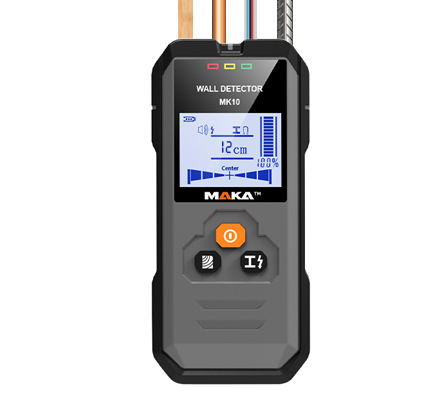

1.The detector can detect metal (steel bar, copper pipe) and cables hidden in walls, ceilings and floors. It can also detect wood
beams, metals and cables hidden beneath the plasterboard.

2.Precise measurement , stable performance, safe and reliable.

3. User-friendly interactive interface, easy to operate.

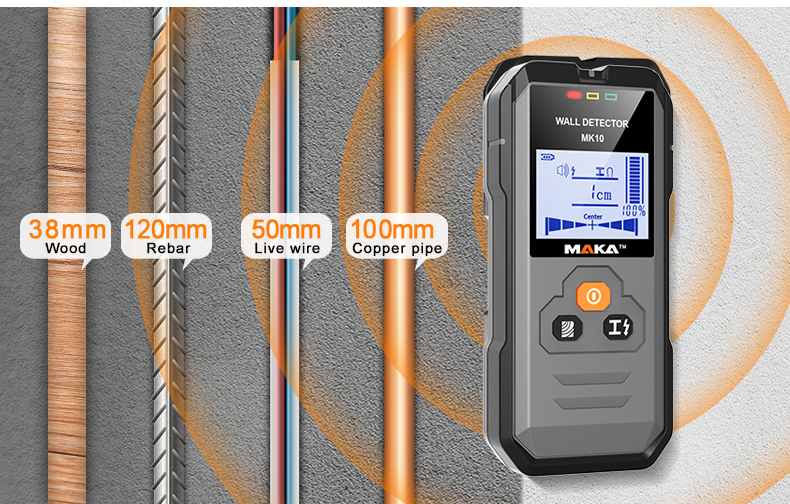

Maximum detection depth:
Ferrous metal					120mm
Non-ferrous metal (copper)					100mm
Alternating current (ac)					50mm
Copper wire (≥4 mm 2 )					40mm
Foreign body (Generally refers to the wooden block）					exact mode 20 mm /deep mode 38mm
Automatic shutdown time					5 minutes
Working humidity range					0-85%RH in metal mode 0-60%RH in foreign body mode
Operating temperature range					-10℃ +50℃
Storage temperature range					-20℃ +70℃
Battery					1x9 volt dry battery
The usage time					about 6 hours

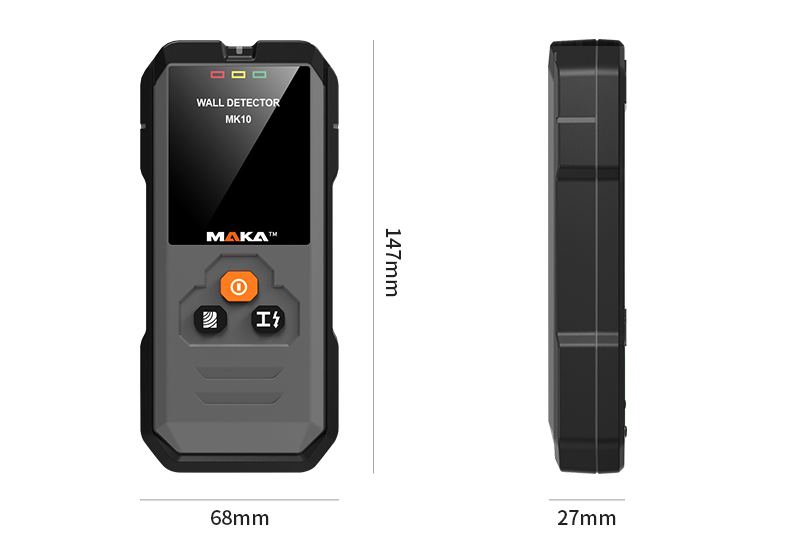

Body size					1476827mm

The detection result will be affected by the size and material of the detected object, as well as the material and condition of the detected surface and other factors; If the cable is uncharged, the probe depth will be reduced.

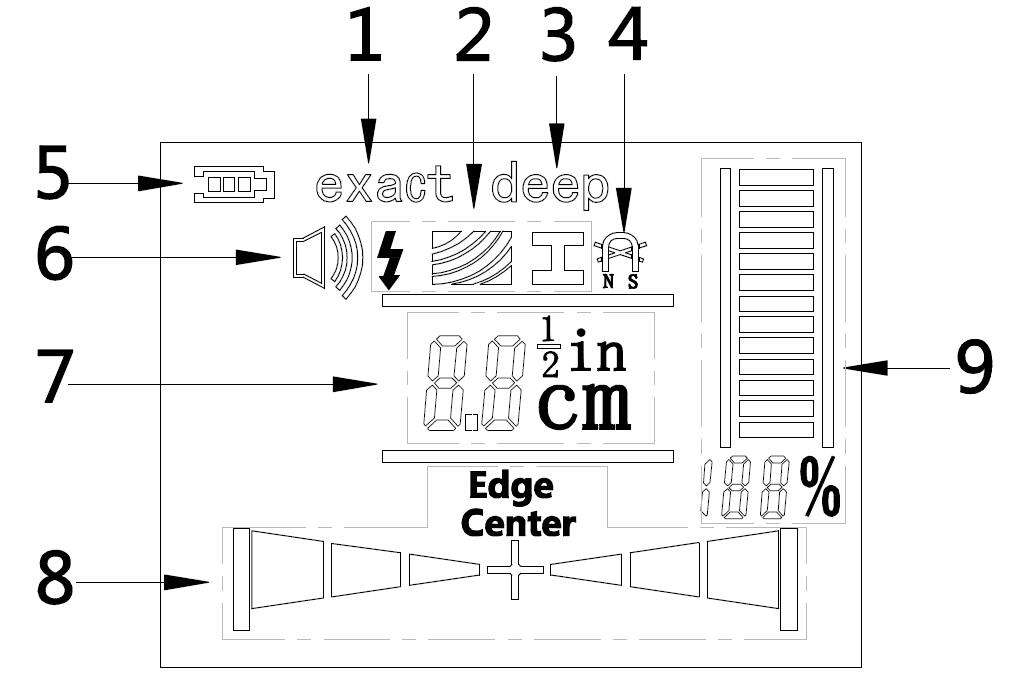

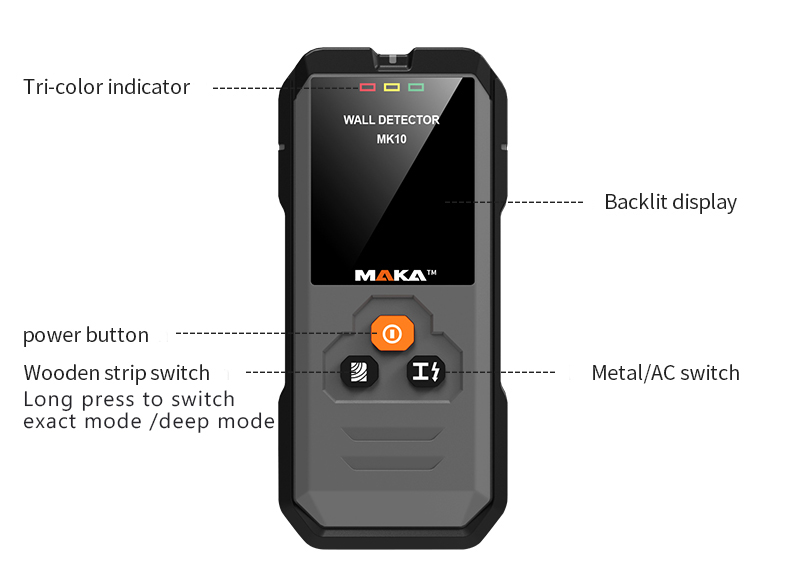

Display screen

1.The exact mode in which a foreign object is detected

(note: the maximum detection depth in the accurate mode is 20mm.)

2 .Current detection mode，They are alternating current and foreign bodies

（Generally refers to the wooden block）、metal.

3.The deep mode in which a foreign object is detected
(note: the maximum detection depth in the accurate mode is 38mm.)

4. Magnetic or non-magnetic display icons

5. Battery power

6. Sound icon (note: the sound can be turned on and off, at the same time press the detection wood button 6 and the detection metal or cable button 7 to turn off or on the sound)

7. Detection metal depth display area (this depth refers to the distance between the center point of the detection area and the measured object)

8. In the mode of detecting foreign bodies, the display icon indicating the boundary (Edge) or Center of the measured object to the Center line of the instrument is displayed; in the mode of metal and alternating current, Only the Center icon is displayed in metal mode.

9. Detection signal strength display area.

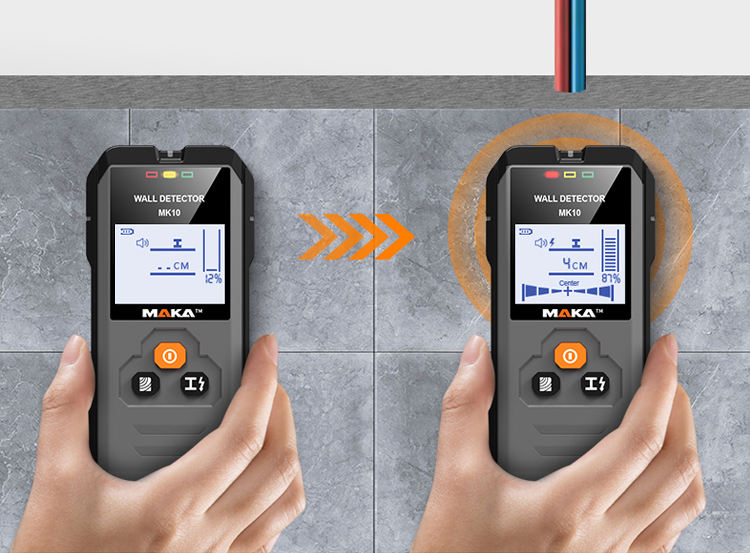

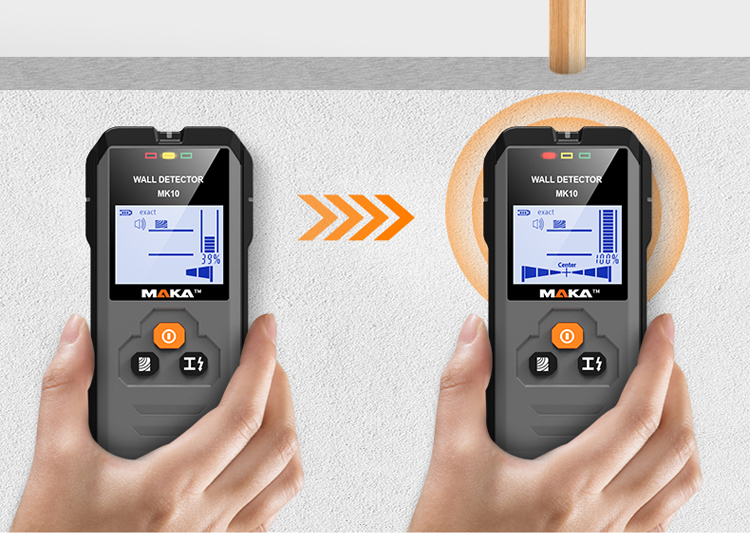

Detection

Ferrous metal detection

When wood, metal, ac and wood are detected, the proportion shows the percentage, and the correct proportion shows the direction of distance, the more complete the proportion image is.

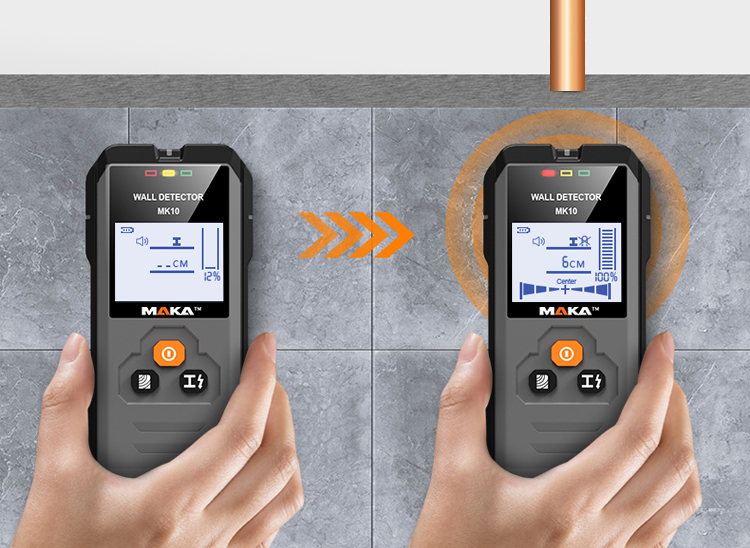

Non-ferrous metal (copper) detection

The accuracy of depth value is best when the measured object is a standard steel bar with a diameter of 18mm or a copper pipe with a diameter of 18mm.Otherwise, the depth value can only be used as an approximate reference value.

Non-ferrous metal (copper) detection

When a metallic substance is detected, the detector's yellow or red light lights up and a continuous sound is emitted from the instrument.

AC detection

The detector's red light flashes when both metal and ac signals are detected, and a beep is emitted from the detector.

Matters need attention:

1. When the detector displays a nonmagnetic metal symbol, the object under test is usually a wire or copper tube.
2. When the detector displays a magnetic metal symbol, the object under test is usually steel.
3. When the detector does not display magnetic or non-magnetic metal symbols, the object under test is usually an alloy.
4. When the ac symbol on the instrument flashes, it indicates that there is an AC signal nearby.

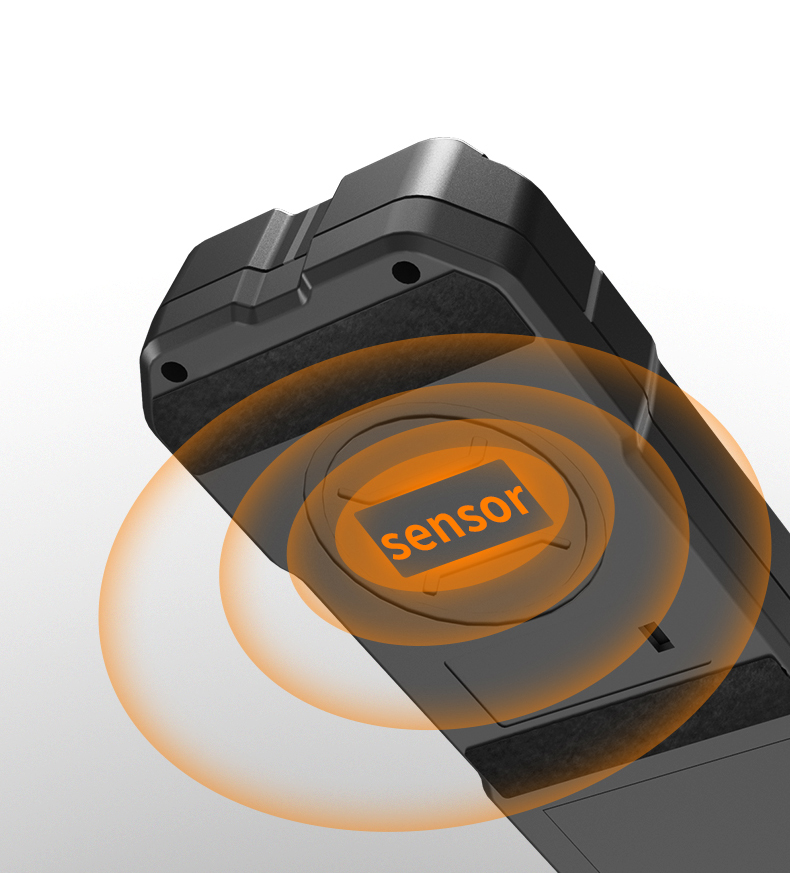

HIGH SENSITIVITY

The sensor is located near the marked hole and the center target is positioned ensure detection accuracy.

Lizzy Xu

E-mail： mk@makalaser.com
WeChat： 15258981196

Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075

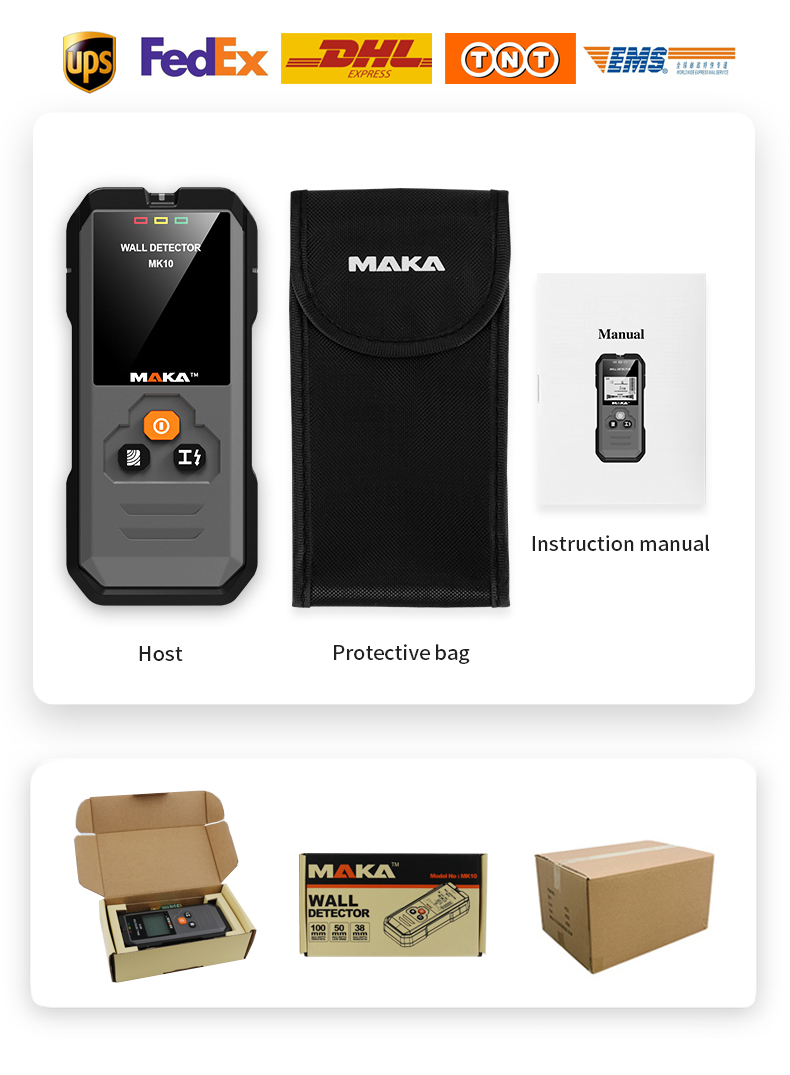

Package & Transportation

Warm tip: for small orders, the batteries are not included in the delivery.

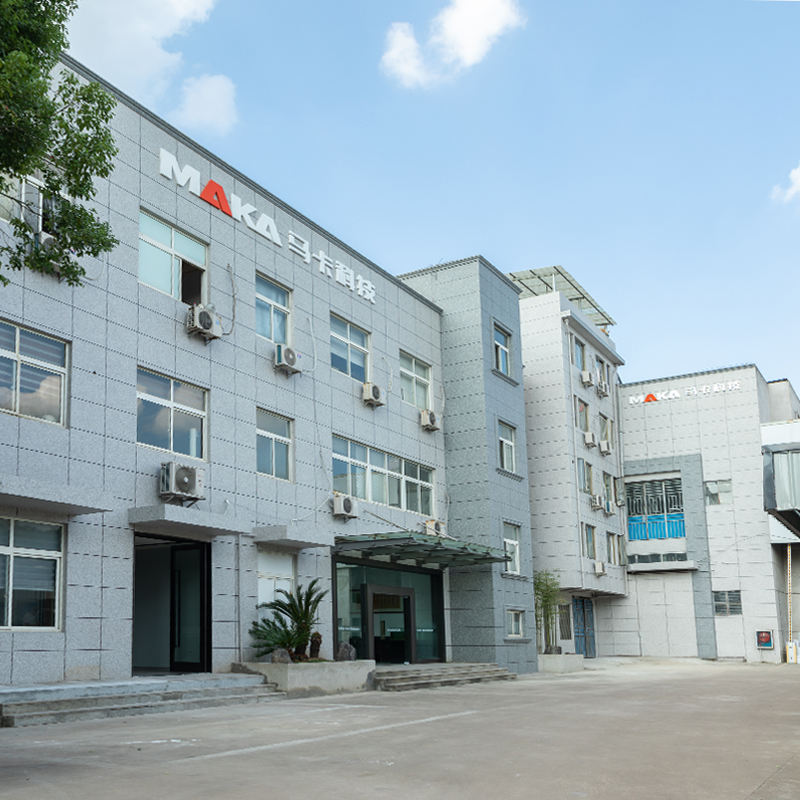

Company Profile

Jinhua maka technology co., LTD is an experienced professional designer and manufacturer of multi-functional wall detector,infrared thermal imager, laser rangefinder, laser level, humidity meter, endoscope products in the awards of high-tech enterprise and innovative patent demonstration enterprise, and has obtained ISO 9001-2018, BSCI certificates, CE/EMC, EM60825-1:2007, ETL,FCC,C-tick, ROHS, REACH etc.

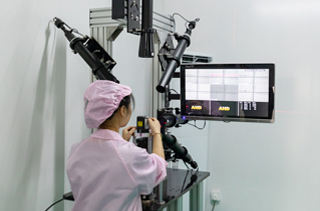

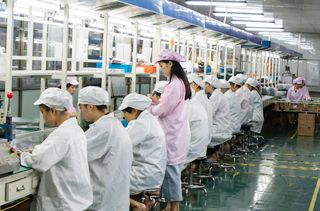

Adhering to the concept"Quality is the life of the enterprise", our company has built an experienced quality management team, the number of QC is more than 25% of the total employees. There has been a strict quality control chain from incoming material inspection (IQC), process inspection (PQC), outgoing inspection (QA) to reliability test verification (QE) to completely achieve quality control with no blind spots. We set up quick response system to collect products reviews or comments from the market and clients for any improvements and development and have successfully achieved zero customer complaints from our clients these years and been one of the quality suppliers of many famous company around the world.

Our company acts under the concept of "Innovation is the soul of enterprise development", insists on "Innovation-driven
development strategy" and yearly invests a great percentage of sales amount in the research and development; There is a gradually increasingly experienced and innovative R&D team. During the passed ten years, we successfully developed a good number of products with good market shares, most of which are patented and have been popular with consumers in their high reviews building us a good name home and abroad.

Certifications

A number of certification

The company's products have obtained ce-EMC,ROHS,EM60825-1:2014,ETL,FCC and other related certifications.

To download the certificate, click on the certificate picture and download it from the company profile.

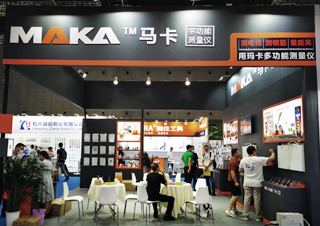

Exhibition

Our company participates in various exhibitions every year • Germany Cologne international hardware fair
• Las Vegas international mhardware fair
• Canton international hardware exhibition
• China International Hardware Fair
• Shanghai Hardware Expo

Lizzy Xu

E-mail： mk@makalaser.com
WeChat： 15258981196

Jack Jiang
E-mail：jackjiang@makalaser.com
WeChat：jjl7075

FAQ

Q 1. Are you a manufacturer or a foreign trade company? How about your pricing?

We are an experienced professional designer,manufacturer and exporter of laser meter, distance meter, wall scanner etc for over 10 years with strict quality controls. We are open for a negotiable price for all of our clients. You may send us emails for any of your concerns.

Your concerns are of the most importance to us and takes our first focus.

Q 2. How can I go to your factory?
Our factory is located in Yongkang, Zhejiang,China. About 1.5 hours from Guangzhou by air; 2 hours from Shanghai by highway , and 1.5 hours drive to Yiwu city. Warmly welcome to our factory!

Q3 . What's the annual outputs?
More than 1 million pieces each year.

Q 4. What's your MOQ? Can I buy some samples to test your quality or my market?
Generally MOQ is 100pcs. Sample order also is accepted. We are pleased that you can test our items' quality and market.

Q 5. Can you provide OEM&ODM service?
Yes, we do have much experiences with many giant companies in the industry globally. If you need more details, please contact us.

Q 6. Do you have neutral English labels, manuals and cartons?
Yes, we do.

Q 7. Do you have quality control?
Yes, all items shall be 100% inspected strictly before delivery. Yearly there are several times of annual audits from the third
parties and our clients.

Q 8. How about warranty?
We offer 1 year warranty.

Q 9. Did you attend Exhibitions?
Yes. Every year we attend Spring Canton fair during April 15th-19th and Autumn Canton fair during Oct 15th-19th. And we always go to Cologne, Vegas Show, MITEX Show etc. Welcome your visit.

Q10. Did you export goods to EU/South and North America/USA/Asia ect ?
Yes. If you need more details, please contact us for our company presentation.

Hot Sales
