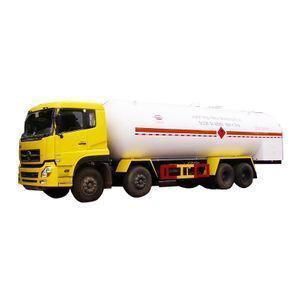

12 M3 5.040 tons Propane LPG used gas tank truck

Supplier: Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.
Region: Hubei, China
Contact: Mr John Zhang
Price: $30000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Corrosion allowance:	1 mm;	Product name:	HT5160GYQ 12 m3 LPG Tanker (Propane);
Condition:	New;	Tank material:	Q370R / Q345R;
Horsepower:	150 - 250hp;	Fuel Type:	Diesel;
Payment Terms:	L/C,D/A,D/P,T/T;	Payload (product weight):	5040 kg;
Engine Capacity:	1;	Chassis:	SX1165DL461;
Packaging Detail:	Nude packing;	Transmission Type:	Manual;
Drive Wheel:	4x2;	Storage:	LPG;
Tank mass:	3120 kg;	Water capacity:	12 m3;
Brand Name:	CIMC Enric Hongtu;	Design pressure:	1.61/-0.1MPa;
Tank Volume:	10001 - 15000L;	Place of Origin:	Hubei China (Mainland);
Port:	any port in China;	Dimensions (L x W x H) (mm):	8650x2500x3200;
Design temperature:	50℃;	Supply Ability:	500 Unit/Units per Month;
Kerb weight:	10290 kg;	Gross Vehicle Weight:	15500;

Product Description

Hongtu is qualified to design and manufacture bobtail truckers with pump, and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the bobtail tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries.

Technical specification

Design code:

ASME BPVC Ⅷ-1/Ⅷ-2,EN 12493,GB/T 19905,JB/T 4732

Vessel capacity:

5m3~40m3

Material:

SA-516, SA-612, P460, Q420R, Q370R, etc.

HT5160GYQ 12m³ LPG Tanker (Propane)
	Item		Data
Vehicle	Chassis		SX1165DL461
	Kerbweight		10290 kg
	Payload (Product weight)		5040 kg
	Gross Vehicle Weigh(GVW)		15500 kg
	External Dimensions (LengthWidthHeight)		8650x2500x3200
	Full load	First front axle load	5180 kg
		First front axle load
		Middle and rear axle load	10320 kg
	Max. Vehicle roll anlge		>35°
	Design the limited velocity	Straight road	60 km/h
		Turning	15 km/h
Tank	Design pressure		1.61 MPa
	Design temperature		50 ℃
	Water capacity		12 m3
	Filling medium		LPG (Propane)
	Tank material		Q370R / Q345R
	Corrosion allowance		1 mm
	Tank mass		3120 kg
	Hydraulic test pressure		2.10 MPa
	Pressure of leak test		1.61 MPa
	Heat treatment method		PWHT
	External dimensions (In-diameterThicknessLength)		1700x10.5(8)x5896
	Service years		Ten years

Certifications

Company Introduction

CIMC·Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd. has 30 years experience in the design and manufacturing of storage and transportation equipments for liquefied gas and dangerous chemicals. The company has participated in the compiling of National TSG R0005-2011 Mobile Pressure Vessel Safety Technology Supervision Regulation and GB 18564.1-2006 Liquid & Dangerous Goods Transport Tank Vehicle Standards.

The company has developed 62 models of liquefied gas transport vehicle which features more than 30 patented technologies. For 20 years, the production and sales volume always ranks the first in domestic market, and the products have been exported to more than 40 countries and areas.

Hongtu liquefied gas transport vehicle is specially used for the road transport of liquefied gas like LPG, propane, propene, liquid ammonia, butadiene, iso-butane, and isobutene. The company has more than 30 core technologies including stress analysis and design, high strength light aluminum alloy weather board made of aeronautical materials with military manufacturing technology, wholly embedded safety valve, quadrangular outriggers, precision assembly between the tank and the travel mechanism, etc. as well as professional modular manufacturing lines, robot welding, etc. For more than 20 years, the company is always in the leading position and ranks the first in terms of market share in the domestic market.

Our Workshop

Our Company has employed more than 1,300 people, including approx. 400 R&D professionals, and has workshop area totaling 130,000 m²_.

Main Products

Semi-trailer

Bobtail/Rigid Tanker

ISO Tank /Tank Container

Spherical Tank

Horizontal/Mounded/Domestic Storage Tank

LPG Plant/Filling Plant/Autogas Station

LPG/Autogas Filling Skid

John Zhang
International Business Division
CIMC ENRIC•Jingmen Hongtu Special Aircraft Manufacturing CO.,LTD
No. 16, Yingchun Avenue, Jingmen City, Hubei Province, China
Mobile: +86-17786224233 (Also whatsapp, wechat, telegram, viber, line & zalo)
Facebook & Skype: john_zhangheng(@)hotmail.com
