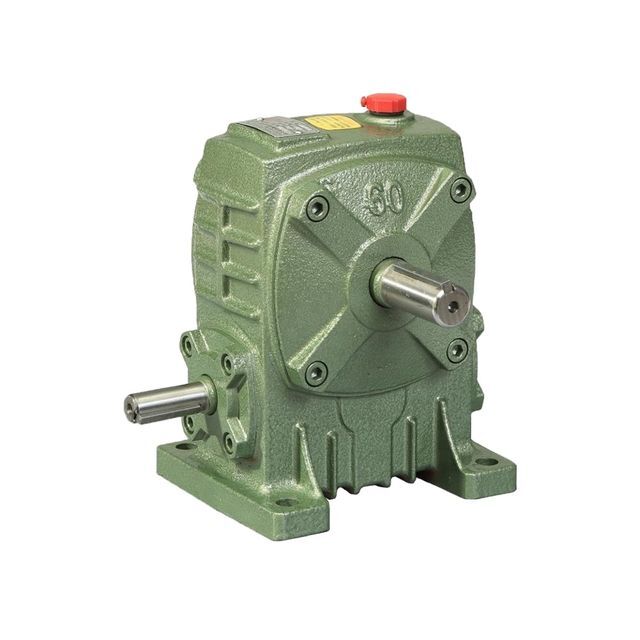

1440 Rpm Cast Iron Wpa Wp Reducer High Speed Worm Gearbox Reducer

Supplier: Hangzhou Yiding Transmission Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Dina Du
Price: $14.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certificate:	ISO9001;	Origin:	Zhejiang, China;
Package:	wooden box;	application:	machine tool;
product name:	gearbox;	Material:	cast iron;
Output speed:	24-144 rpm;	Packaging Details:	Inner packing: use plastic bag and foam box, restore the box.Outer packing: carton or wooden box per set or according to customer requirements.
Weight (kg):	5 kg;	Warranty:	12 months, 1 year;
transmission:	insect;	Output torque:	Maximum 2371nm;
ratio:	10-60;	Input speed:	1440 rpm;
Heat treatment:	quenching;	color:	customer requirements;
Packaging Preview:	;	brand:	code;
payment terms:	Letter of credit, wire transfer;	Installation location:	horizontal (foot mounted);
Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, retail, printing shops;

product description

1. Shell: cast iron
2. Low noise (<50DB)
3. Model: WP 40-250, Ratio: 10 to 60
4. Efficient and safe operation
5.ISO9001, ex-factory price, OEM
6. Technical data:

type:	Transmission WPDT
Model:	WP 40-250
ratio:	1:10,15,20,25,30,40,50,60
color:	blue/silver or as customer's request
Material:	Housing: Die-cast cast iron
		Worm gear-copper-10-3#
		Worm-20CrMn Ti carburizing and quenching, the surface harness is 56-62HRC
		Shaft - Chrome Steel - 45#
Package:	Carton and Wooden Box
Bearings:	C&U Bearings
seal:	Nack
Warranty:	1 year
input power:	0.06KW,0.09KW
use:	Industrial machinery: food, ceramics, chemicals, packaging, dyeing, Woodworking, glass.
IEC flange:	56B14, 63B14, 63B5, 63B5, 71B14, 80B14, etc.
Lubricant:	synthetic minerals

Components:
1. Housing: cast iron
2. Gear: worm gear, 1st stage
3. Enter the configuration:
Solid Input Shaft Motor Flange - IEC B54.Output configuration:
solid output shaft
hollow output shaft

feature:
1. Different variants, both input and output shafts can be mounted horizontally or vertically
2. Compact structure
3. Can be driven directly or indirectly
4. The output can be solid shaft or hollow hole

product category

product difference

about us

exhibition

Certificate

Packaging and Shipping

FAQ

1. Q: What information should I tell you to confirm the worm gearbox?
A: Model/Size, B: Ratio and Output Torque, C: Power and Flange Type, D: Shaft Direction, E: Housing Color, F: Order Quantity.

2. What types of payment methods do you accept?
A:T/T,B:B/L,C:CASH;

3. What is your warranty?
one year.

4. How to ship?
A: By sea - the buyer appoints the freight forwarder, or our sales team finds the right freight forwarder for the buyer.Air Freight - Buyers provide a collect courier account, or our sales team finds a suitable courier for buyers.(mainly samples) Others - We arrange delivery to a place in China designated by the buyer.

5. Can you do OEM/ODM orders?
Yes, we have rich experience in OEM/ODM order and like to sign NDA before sample making;
