Manufacture Wholesale Prefab Armored Rod 1/7 Galvanized Steel Wire Dead End Cable Tension Clamp Custom Guy Grip for ADSS OPGW

Supplier: Hebei Crown Wealth Trading Co., Ltd.
Region: Hebei, China
Contact: Ms Helen Wang
Price: $0.80 / >=2000 pieces
Min. Order: 2000 pieces

Click here to contact

Product details

usage:	ADSS cable OPGW cable;	type:	adjustable;
brand:	HBCW;	Original Equipment Manufacturer:	accept;
structure:	tension clamp;	model:	CWPGG-01;
port:	Tianjin;	size:	custom accept;
Certificate:	ISO9001;	application:	Overhead line accessories;
surface:	Smooth;	Packaging Details:	carton or as your request;
product name:	Prefabricated Full Grip Suspension Tension Clamp for ADSS;	payment terms:	L/C,Western Union,T/T;
Supply capacity:	100,000 pieces per month;	Material:	aluminum;
Origin:	Hebei china;

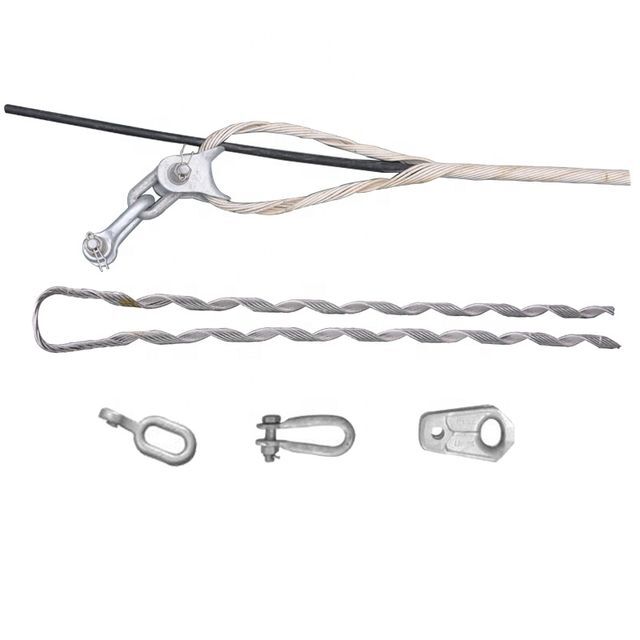

Prefabricated Armored Rod 1/7 Galvanized Steel Wire Dead End Cable Tension Clamp Custom Guy Grip for ADSS OPGW

product description

Preformed tension clamps are used for exposed conductor installation, grid transmission and distribution, overhead insulated conductors.Reliability and economic advantages over the bolt-on and hydraulic compression tensioners currently widely used on production lines.

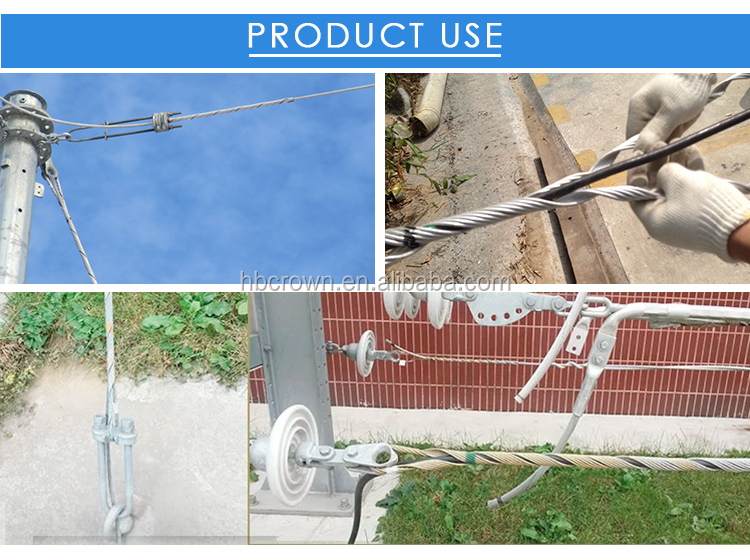

Support the full tensile strength of ADSS optical cable, connect ADSS optical cable to towers, corner towers and terminal towers with large height difference.

feature:

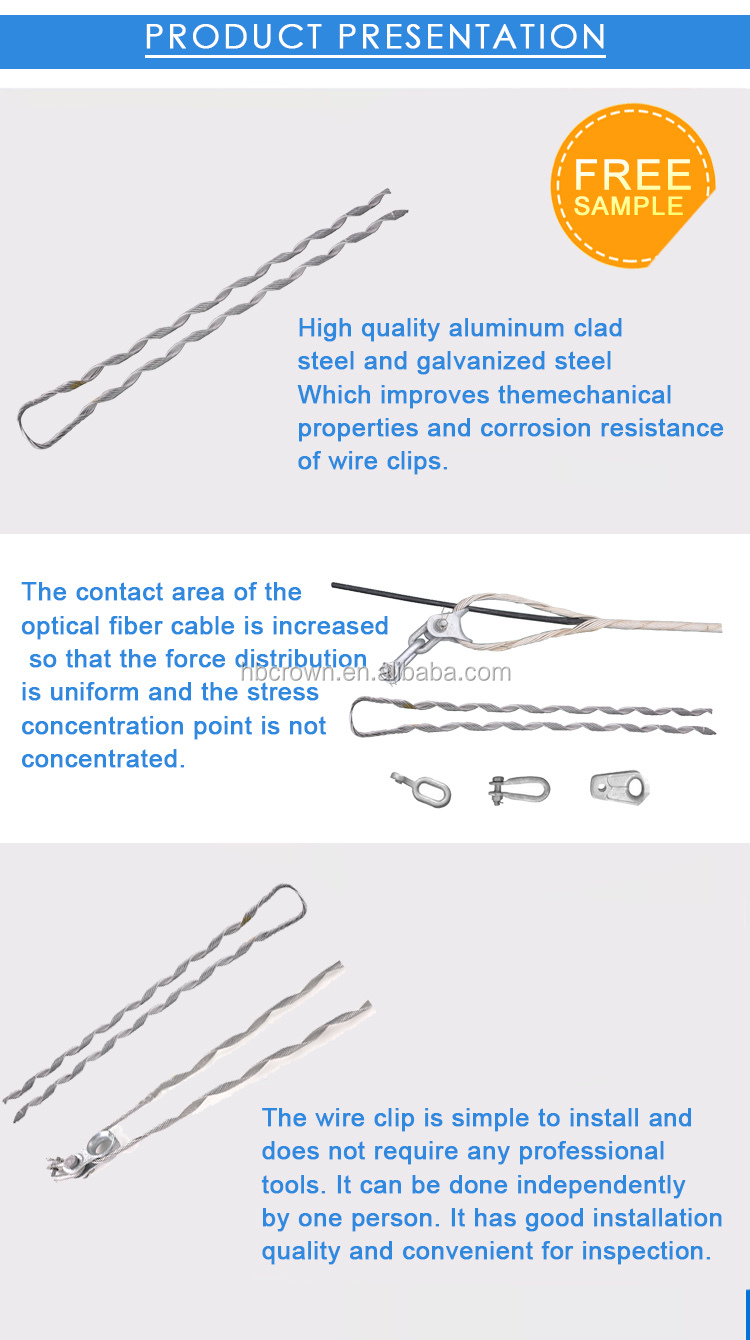

1. The material is aluminum clad steel wire or galvanized steel wire.

2. Different spans: 0-100m, 101-200m, 201-300m, 301-400m, etc.

3. The prefabricated cable clamp with a span of more than 200m consists of an inner pull rod and an outer pull rod.

4, marked with a variety of coding colors: yellow, red, green, blue, black, orange.

5. Grip strength can exceed 95% RTS or customized.

6. Installation with other hardware: thimble, U-shackle, lengthened chain link, tensioned chain link, straps, etc.

7. Save metal materials and reduce line costs.

8. Anti-aging.

9. Pack in carton or wooden pallet.

code	Diameter cable/mm	Holding strength (kN)	Available span (m)	Foreign Minister (mm)	inner length (mm)	weight (Kilogram)	code color
CW-GUYTA-020 0940	8.6-9.4	20	101-200	800	1100	0.88	yellow
CW-GUYTA-020 1010	9.5-10.1	20	101-200	800	1100	1.02	Red
CW-GUYTA-020 1070	10.2-10.7	20	101-200	800	1100	1.06	blue
CW-GUYTA-020 1140	10.8-11.4	20	101-200	800	1100	1.08	green
CW-GUYTA-020 1220	11.5-12.2	20	101-200	800	1100	1.35	orange
CW-GUYTA-020 1290	12.3-12.9	20	101-200	800	1100	1.38	Black
CW-GUYTA-020 1370	13.0-13.7	20	101-200	800	1100	1.54	yellow
