size: | Accept custom size; | Adhesive: | 3M467/468MP/200MP/9080AMP/55280MP; |
Supply capacity: | 200,000 pieces per month; | port: | Beijing; |
print: | Screen printing or digital printing; | model: | MBR-V391; |
Origin: | Hebei china; | feature: | waterproof; |
Packaging Details: | Customized Membrane Switch Keypads and Keypads 50 Pieces from Electronic Components and Suppliers are packed in plastic bubble bags and then put into large size carton, or as customer's request. | Certification: | ISO9001:2015 SGS; |
color: | Pantone; | type: | membrane keyboard; |
Material: | PET/PC; | Keyboard key material: | PET/PC; |
application: | Telecommunications equipment; | brand: | MBR; |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | dome: | Metal dome/poly dome; |
Key options: | flat or embossed; | Life expectancy: | Flattype>1 million times; |
1. Over 27 years experience in membrane switch design and manufacture.
2. Passed ISO 9001 and SGS certification.
3. Manufacturing and design engineers will suffice.They make up more than ten percent of the total.
cover material | The most commonly used substrates are automatic typeset polyester and polycarbonate. |
Adhesive | 3M 467MP, 3M 468MP and other double-sided tape; foam adhesive |

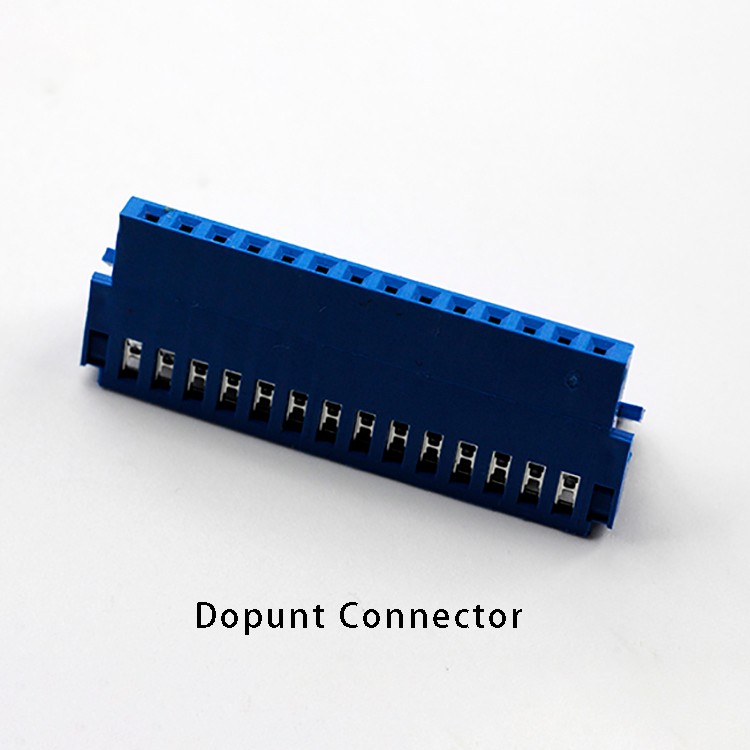

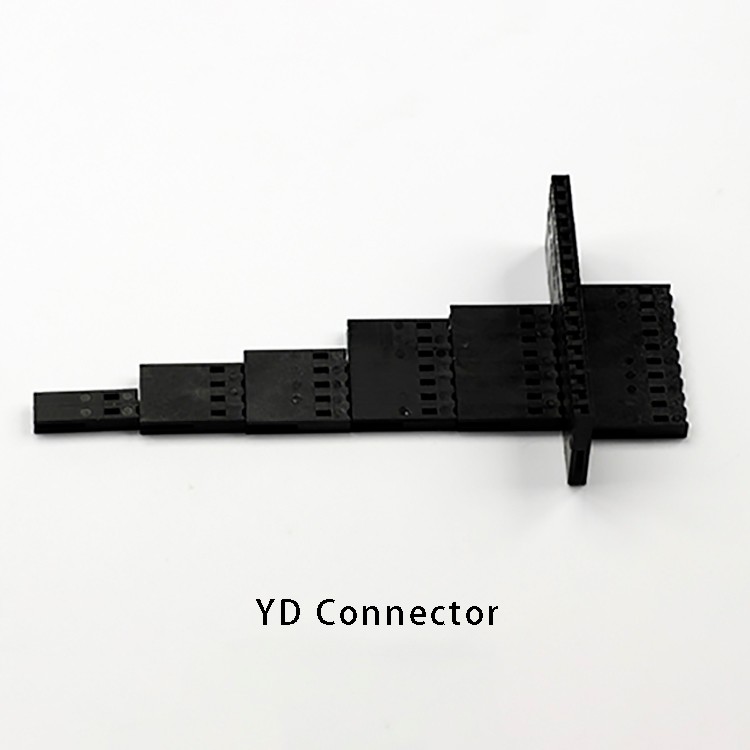

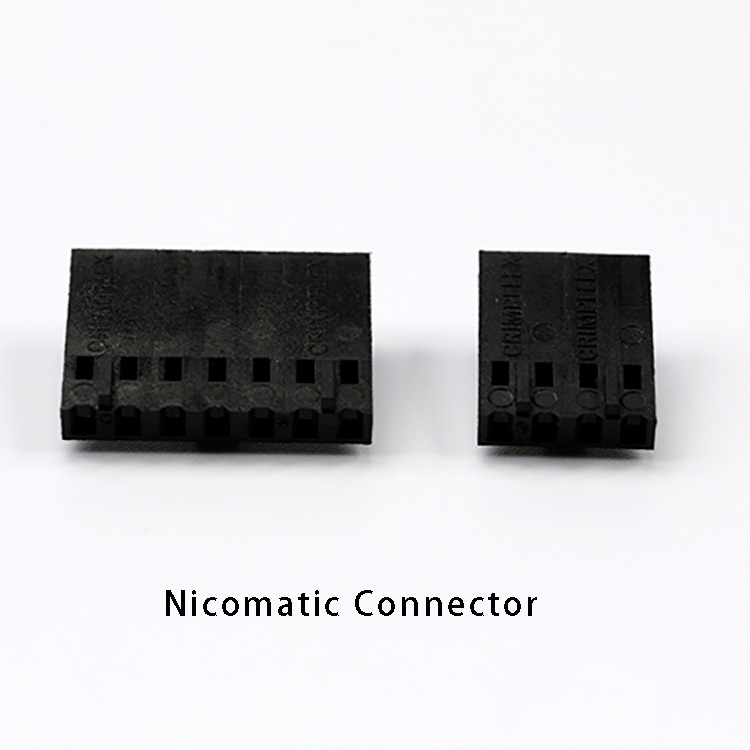

Connector | 2.54 Female or Male Connector, 2.54 Angled Pin Connector, Solder Pin, 1mm ZIF Connector |
window | Die-cut windows, clear windows, color windows. |
lead | Can be embedded with single or dual tone LEDs |
match colors | Pantone and RAL color matching system. |
printing type | Screen printing or digital printing. |
Standard tolerance | +/-.010" (+/-0.2mm) |
thickness | 0.4-1.2mm |
circuit layout | Silver Printed Conductive Circuit, FPC According to customer's detailed requirements, accept custom design |
Notice: We have the ability to provide you with other special requirements of membrane switches, such as shielding, transparent window, touch screen, glue drop, glass cover, embossing, embedded LED/LGF, UV gloss/matte/textured, backlingt, with support backing etc.
Key Features of Custom-Designed Membrane Switches
1. PC/PET as overlay (control panel)
2. Flat key or tactile type
3. Embossed buttons, feel good
4. Pre-assembled with or without metal dome
5. Waterproof, waterproof, dustproof, gasproof, scratchproof
6. Long life cycle.
The most widely used materials are polycarbonate and polyester.
Polyester (PET):
Highly versatile embossing
Highly resistant to chemicals
better durability
For internal and external use
Polycarbonate (PC):
Wide range of surface finishes and thicknesses
cheaper
For internal and external we
If embossed, the material loses its chemical resistance.
Gloss:
it is very similar to glass
easy to clean
Allow transparent windows
Texture:
Print and scratch resistant
Available in different glosses, from semi-gloss to matte
Available in a variety of finishes (suede, velvet, brushed, etc.)

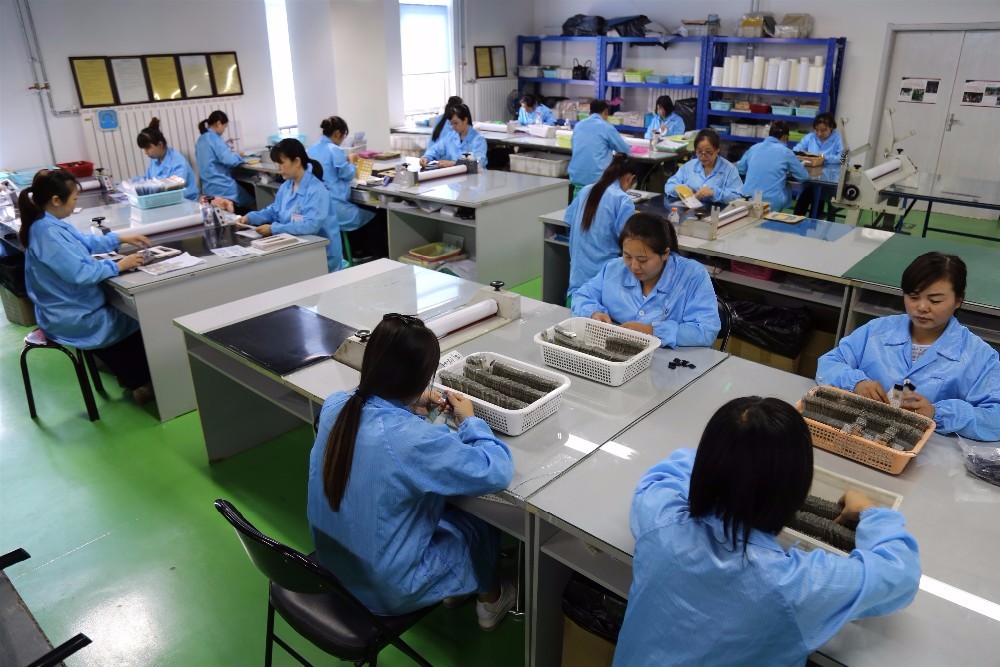

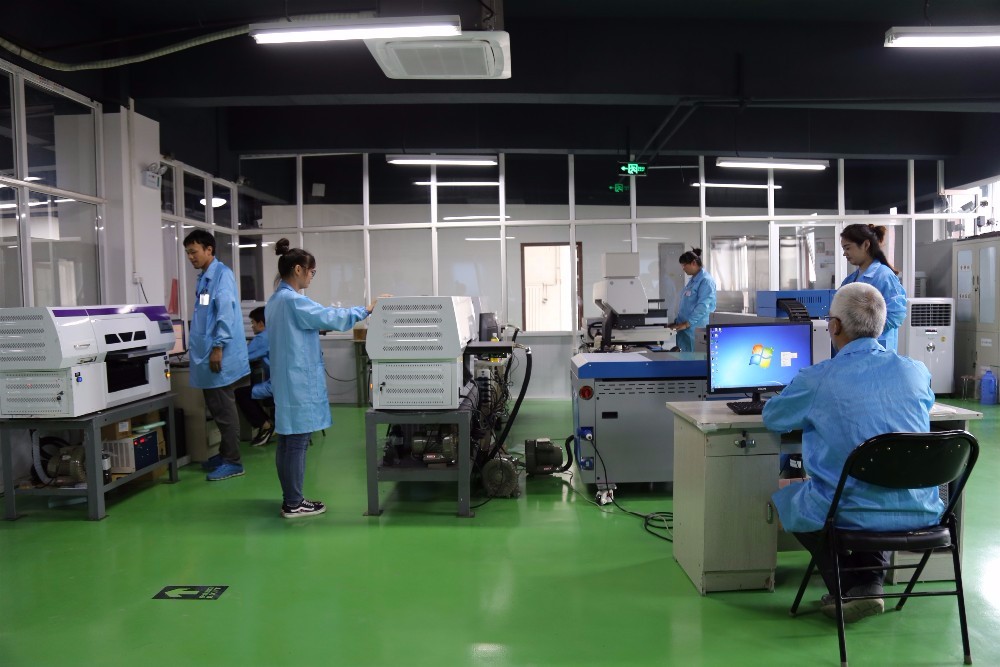

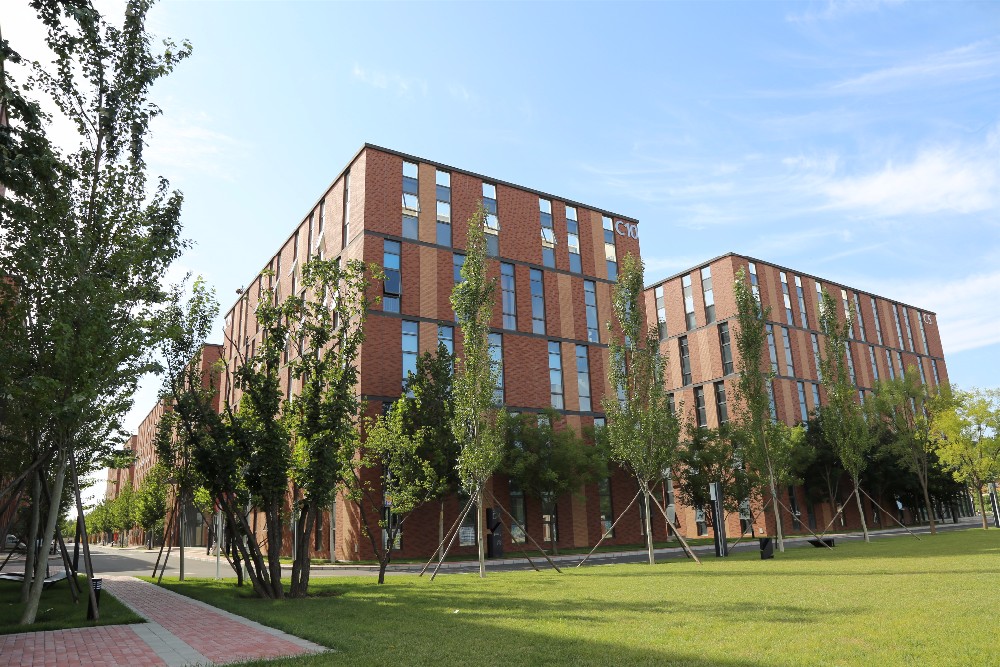

MerrillFounded in 1990, it has a history of nearly 27 years.Mainly engaged in the production and research and development of membrane switches, membrane panels and other related products.Our products are widely used in industrial control, home applications, instrumentation and other fields.Our company is located on the 5th floor of Building C10, Robot Industry Port, Langfang City, Xianghe County, with a construction area of about 2,300 square meters.Total assets of 20 million yuan.There are 200 employees and annual sales of 30 million yuan.
MeiBoRui(MBR)--membrane switch keyboard/graphic overlay
MeiBoRui(MBR) can provide a range of force non-tactile and tactile switches that can be combined with custom graphic overlays or silicon keyboards.We can customize the final solution to incorporate:
•PCB or flexible PCB– Integrate your membrane switches into one
PCB facilitates connection and reduces cost
a separate control panel.
•Metal or plastic backplane– increase rigidity
membrane and easy assembly to the housing.
•Backlight– Selective or indicator backlighting by placing SMD
intramembrane
•integrated electronics– Combining metal domes, LEDs,
Connect to your membrane plate.
•shield– Meet your ESD, EMI or RFI requirements
•Integrated with touch screen- Added membrane switch key to
Complement your touchscreen offering
Calculator Tactile Keyboard Membrane Switch Metal Dome
Digitally Printed PET/PC Laminated Capacitive Membrane Keyboard and PCB Board

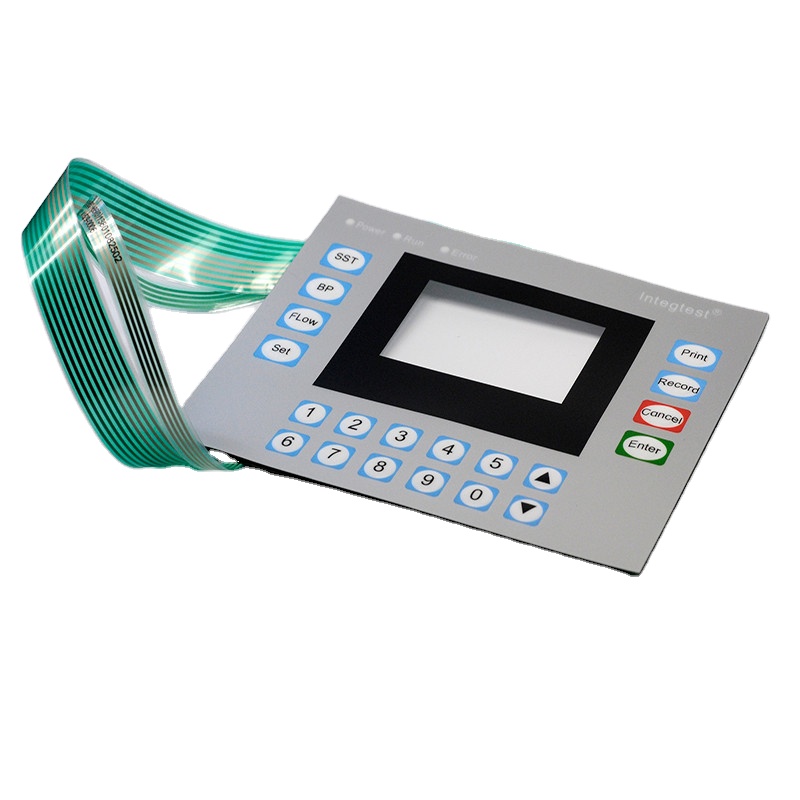

Clear Window Matte PET/PC Membrane Switch with Dopunt Connector
Packaging details: 1. Carton (outside) for flexible membrane switch
2. Touch membrane keyboard plastic bubble bag (inner layer).
Sampling time is 1-7 days
Small order: 7-14 days
Large order: 14-21 days
Since 2002, Meiborui has been a member of Alibaba Tradelink.We are very proud to be a gold member of Alibaba Trade Pass for 15 years, a pioneer in the same field.
Recently, it has obtained the certificate of high-tech enterprise for small and medium-sized enterprises in Hebei Province issued by the Science and Technology Department of Hebei Province.
Alibaba demonstrated our growth ten years ago.Since its establishment, the company has continuously expanded its scale, and its products have won the recognition of the international market.
1. We can quote competitive prices with quality products.
2. Reply within 12 hours.
3. Short delivery time.
4. Well packaged to avoid any shipping problems.
5. Accept small orders.
6. Provide OEM/ODM service.
1. What is the sample policy?
(1) Free samples: We can provide you with free samples if you pay the shipping cost.
(2) Customized samples: You can give me drawings, requirements and quantities, and we will give you a quotation.
2. What is the production time?
(1) Customized samples: about 7 days.
(2) Mass production: about 2--3 weeks
3. Can you do the design for us?
yes.
There are many professional engineers with extensive experience in graphics overlay and circuit design.
Just let us know what you think and we'll help you turn your idea into the perfect product.
If you send me the sample, we will design the drawing according to the sample, and can modify the facial figure.
4. What information is required for quotation?
(1) Drawings, photos, requirements, quantity
(2) Overlay size:
Material: PET/PC
Finish: Matte/Glossy
Adhesive: 3M467/3M468
Buttons embossed or flat
Button number: 3
LED number:
pin:
Spacing: 2.54mm
Cable length: 30mm
Connector: Female/Male/DoPont Connector
Holes: none
5. How to control the quality?
(1) We process products strictly according to the list of raw materials.
(2) Many of our engineers have many years of experience and are very responsible.
(3) The warranty period is one year.If you find some products are not good, you can tell us and we will give you solutions
