High Accuracy Rail Profile Grinder for Railway Welding Joints Grinding

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $11500.00 / 1 - 5 pieces
$10500.00 / 6 - 10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

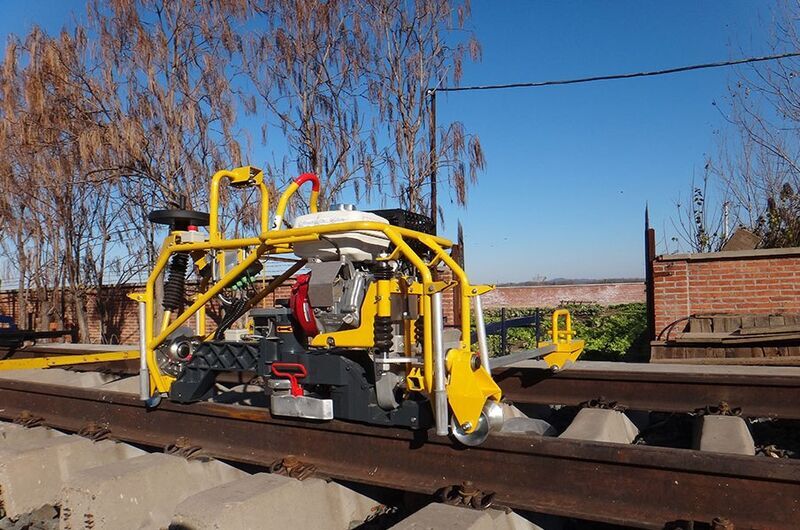

Rail Profile Grinding Machine

This machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs. The development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly improve the profiling accuracy and polishing efficiency.

BENIFITS

● Angle of the grinding head is set using an adjustment wheel, lowering/raising of the grinding stone is electrically contlled ● Equipped with spark protection device ● Equipped with electric control system prevents over grinding by limiting the lowering of the grinding stone ● Grinds the whole head of rail in one single operator, no need to turn the machine or to handle it

Specification

Model	NGM-5.1
Dimensions (L x W x H) (mm)	1450550900mm
Engine	HONDA GX270
Power	5.1 kW
Grinding wheel specifications	φ125x65 mm
Feeding accuracy	0.1 mm
Turning angle of grinding stone	±90°
Spindle revolution	4100r/min
Grinding stone feeding stroke	42 mm
Profile wheel span	1000 mm
Weight	100 kg
Weight of supporting rod	14 kg

Packing & Delivery

Wooden box, export standard

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
