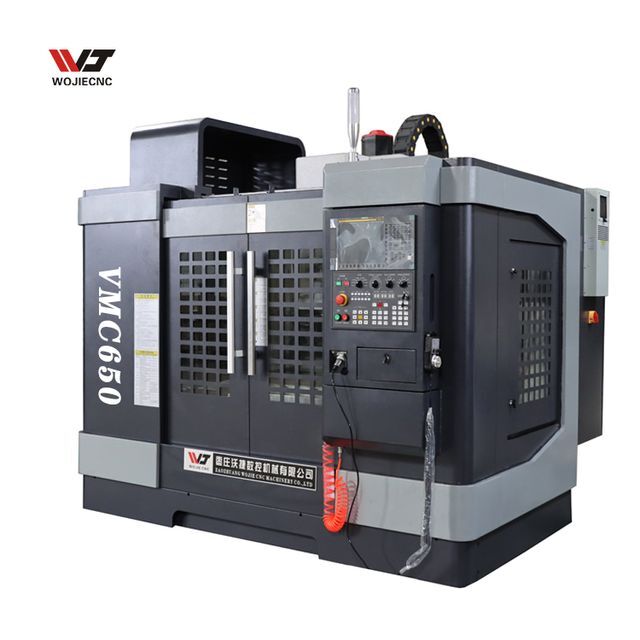

5-axis VMC 650 CNC milling machine Taiwan high quality machining center

Supplier: Zaozhuang Wojie CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Zhong
Price: $16000.00 / 1 - 2 sets
$12000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Dimensions (L * P * H):	2300 * 2200 * 2400mm;	Delivery speed (mm / min):	60 - 10000 mm / min;
Video inspection at the exit:	With one condition;	Guarantee:	1 year;
Travel in the table (Z) (mm):	500 mm;	Country of origin:	Shandong, China;
Capacity of tool magazine:	24,16;	Condition:	New;
Machinery test report:	With one condition;	Travel at the table (X) (mm):	650 mm;
Packaging Details:	The machine will be packed from CNC plywood box 5-axis VMC 650 High quality vertical processing center of Taiwan;	Max. Table load (kg):	450 kg;
Shaft motor power (kW):	7.5;	Table size:	800 * 400 mm;
Weight (T):	4.5 T;	Tensions:	380 V;
Positioning accuracy (mm):	0.020;	X / Y / Z shaft servo motor torque:	10/10/15 NM;
Travel in the table (Y) (mm):	400 mm;	Brand Name:	WOJIE;
Payment terms:	L / C, Western Union, D / P, D / A, T / T, CNC 5-axis milling machine VMC 650 Taiwan High Quality Vertical Processing Center;	Location of the exhibition hall:	Egypt, Canada, Italy, France, Philippines, Brazil, Indonesia, Pakistan, Spain, Kenya, Argentina, United Arab Emirates, Colombia, Romania, Kazakhstan, Ukraine, Tajikistan, Japan, Australia, None;
finger speed:	80-10000 rpm;	Automatic gearbox:	16 Armless type (optional: arm 24;
Type of marketing:	New product 2020;	Number of axes:	3.4;
Shaft taper:	BT40;	Conical axis:	BT40;
But you:	Qingdao or port of Shanghai;	Main ingredients:	bearings;
CNC control system:	GSK, FANUC, KND, Siemens, DELEM;	Applicable industries:	Hotels, Production Factory;
Tool diameter:	100 (Attached) / 150 (Separate);	Highlights:	Automatic;
Slots T:	3-18 * 125;	Travel on the X / Y / Z axis:	650 * 400 * 500mm;
Length of the vehicle:	250/350 mm;	Supply cutting speed:	10 m / min;
Fast supply speed (m / min):	24/24/20;	Preview of the package:	;
Finger speed range (rpm):	60 - 8000 rpm;	Supply Ability:	50 sets per month;
Basic components warranty:	2 years;	Table size (mm):	900x400;
Number of axles:	Single;	Min. Tool change time:	1;
Repeatability (X / Y / Z) (mm):	0.004;	Type:	VERTICAL;

product description

Product application

This VMC is suitable for mechanical processing and mold production. And can be adapted to processing requirements from rough processing to finished processing. Many work procedures such as grinding, drilling, knocking, boring, etc. can also be completed.

Main technical specifications of the product:

specification	unit	VMC650
Table size	mm	800x400
Travel on the X axis	mm	650
Travel on the Y axis	mm	400
Travel on the Z axis	mm	500
The distance between the shafts the center and surface of the column	mm	469
The distance between the nose of the finger and table surface	mm	100-600
slot T		3-18 * 125
Taper shaft	mm	BT40
Max. finger speed	r / min	8000 (10000 optional)
Main engine power	kw	5.5
X / Y / Z shaft servo motor torque	NM	10/10/15
X / Y / Z motor connection		directly
Guidance Rail Form X / Y / Z		3-axis linear guide rail
Maximum desk load	kg	450
Automatic gearbox		16 Wingless type (optional: wing type 24)
Maximum tool weight	kg	7
Max. vehicle length	mm	250/350
Max. tool diameter	mm	100 (Attached) / 150 (Separate)
Rapid intersection of the X / Y / Z axis	M / min	24 (optional: 48)
Food cutting speed	M / min	10
Position accuracy	mm	± 0.005
Repeat positioning accuracy	mm	± 0.003
Dimension of the machine	mm	2400x2000x2550
Car weight	kg	4000

Standard accessories:Optional accessories:

Magazine of wingless type toolsSystems: FANUC, Siemens, GS etc.
Automatic lubrication systemATC wing type
Cooling system4 axis or 5 axis
Heat exchangerAutomatic chip conveyor
Pneumatic systemsCentral shaft coolant
Full car coverHgreater finger speed
Air system / Air weaponsair conditioner

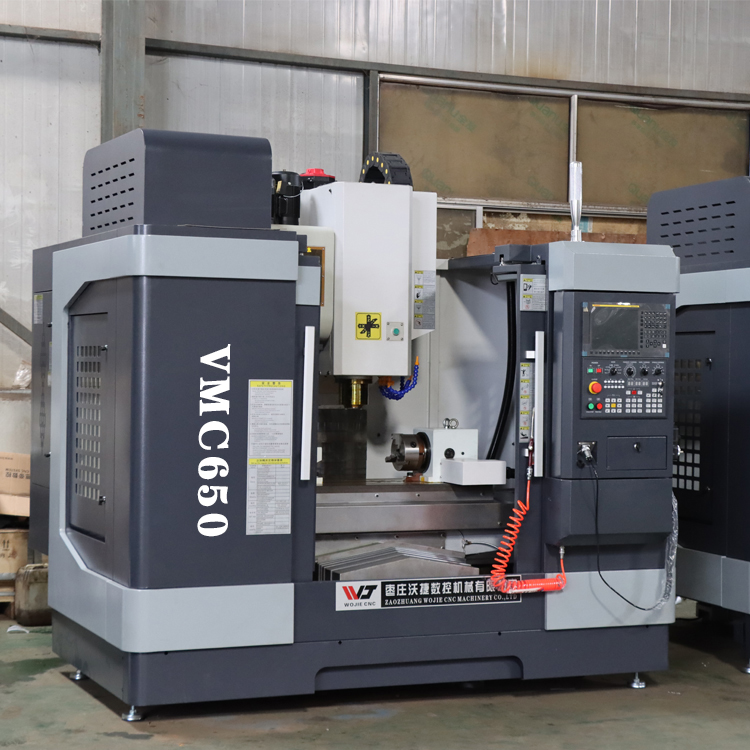

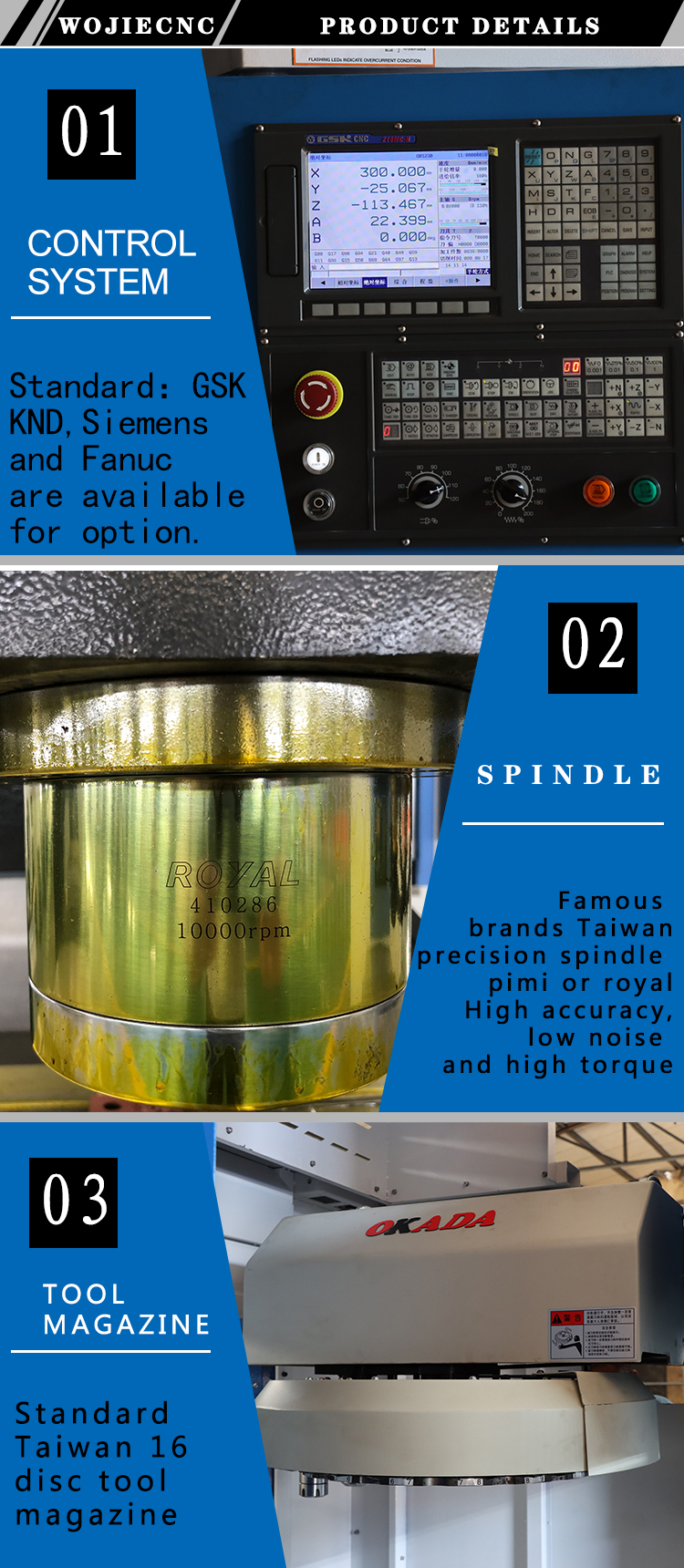

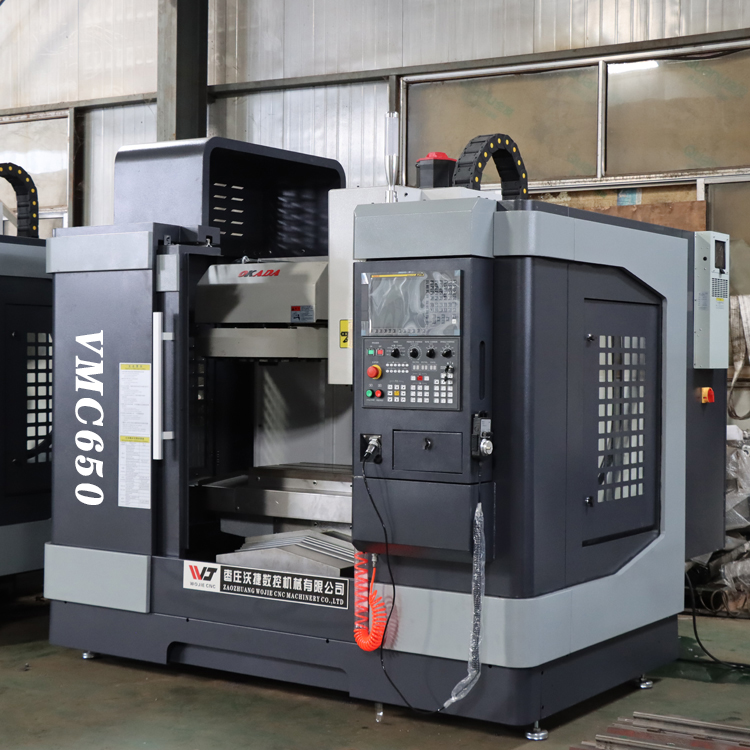

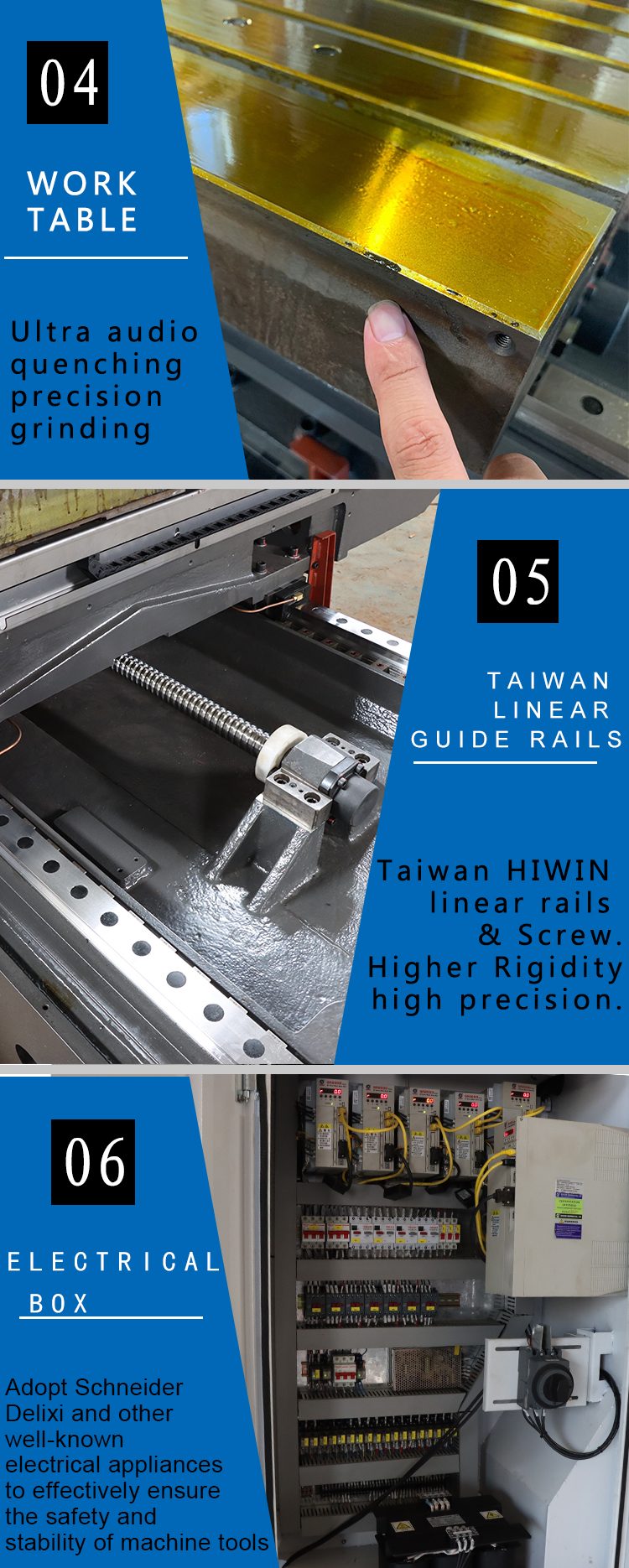

Detailed images

Similar products

Company Presentation

Packing and Transportation

FAQ

1. What are the payment terms?
A: T / T, 30% initial payment when ordering, 70% balance payment before shipment; Irreversible LC at sight.
When we get the down payment, we will start doing the production. when the car is ready, we will take pictures of you. after we have received the balance payment. we will send you the car.

2. What are your trading conditions?
Answer: FOB, CFR and CIF all acceptable.

3. When is the delivery time?
Answer: If the machine you are going to order is standard machine, we can prepare the machine within 15 days. if some special cars will be some longer. Ship time is about 30 days in Europe, America. If you are from Australia, or Asia, it will be shorter. You can place the order according to the delivery time and delivery time.we will give you the answer accordingly.

4. What are your trading conditions?
Answer: FOB, CFR, CIF or other terms are all acceptable.

5. What is your minimum order quantity and guarantee?
Answer: The MOQ is a set, and the warranty is one year. but we will provide lifetime service for the car.

6. What is the package of machinery?
Answer: The standard of the machines will be packed in plywood boxes.
