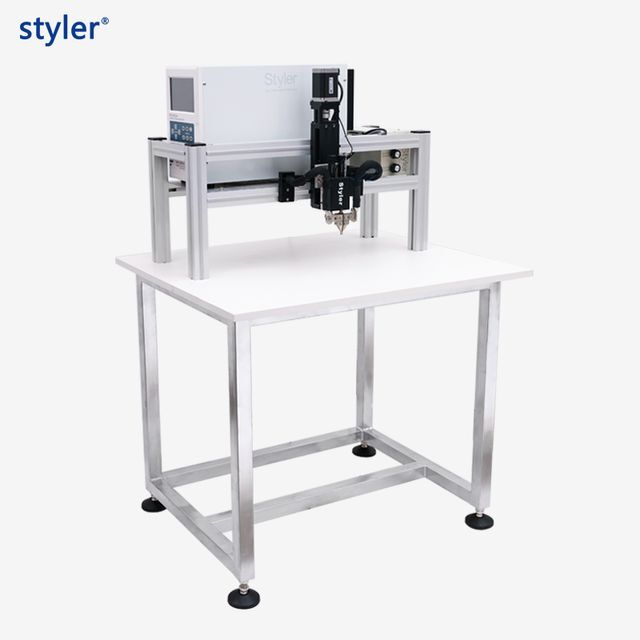

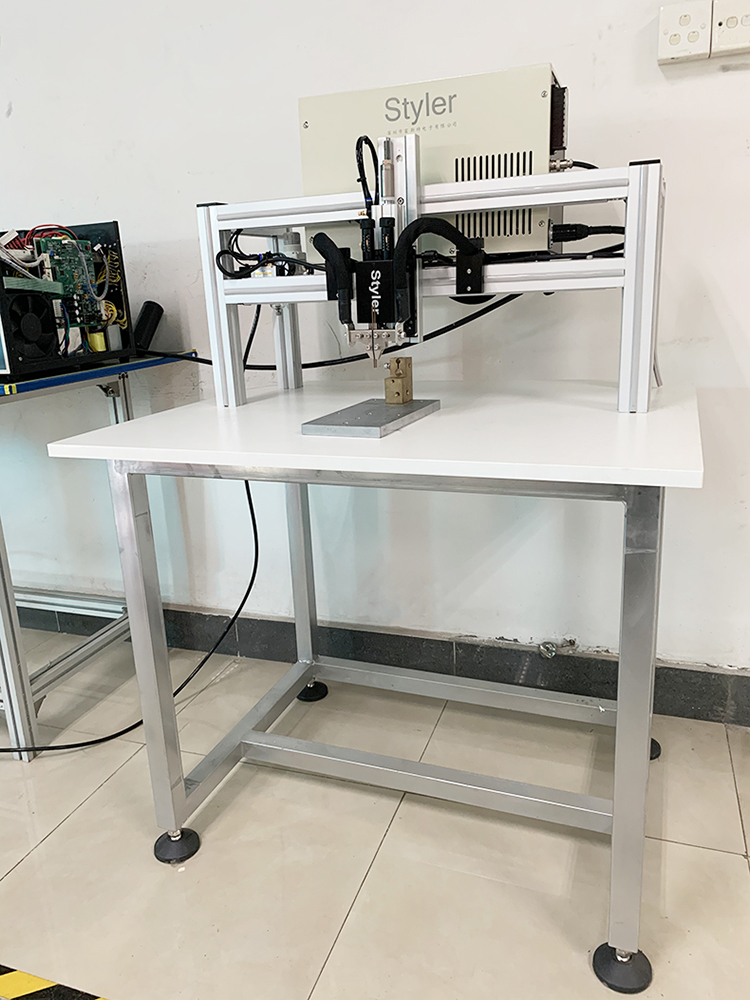

Resistant welder of welding machine instead of battery for 18650 22700 battery pack Welder with inverter with multifunctional precision point

Product details
Features:High efficiency;Weight (KG):28 kg;
Tensions:220 V;Warranty service:video technical support;
Basic components warranty:1 year;Main ingredients:PLC, Engines;
Welding method:Double pulse;Preview of the package:;
Product name:On-site welding machine;Condition:New;
Highlights:Automatic;Advantages:High welding speed;
Country of origin:Guangdong, China;Applicable industries:Production plant, other;
Brand Name:Stilues;Packing:Wooden case;
Payment terms:Western Union, L / C, D / P, D / A, T / T, MoneyGram;Machinery test report:With one condition;
But you:Shenzhen / Guangzhou / Shanghai / Ningbo;Max. Welding thickness:0.5 mm;
Location of the exhibition hall:Asnje;Type of marketing:Ordinary product;
Video inspection at the exit:With one condition;Packaging Details:wooden box packing or cartoon box packing;
Battery Type:18650/26650/21700/32650;Dimensions:205 (W) * 310 (H) * 446 (D);
Guarantee:1 year;Usage:battery welding;
Welding thickness:0.03mm ~ 0.5mm;Supply Ability:1000 sets per month;
Related product recommendation
Product description

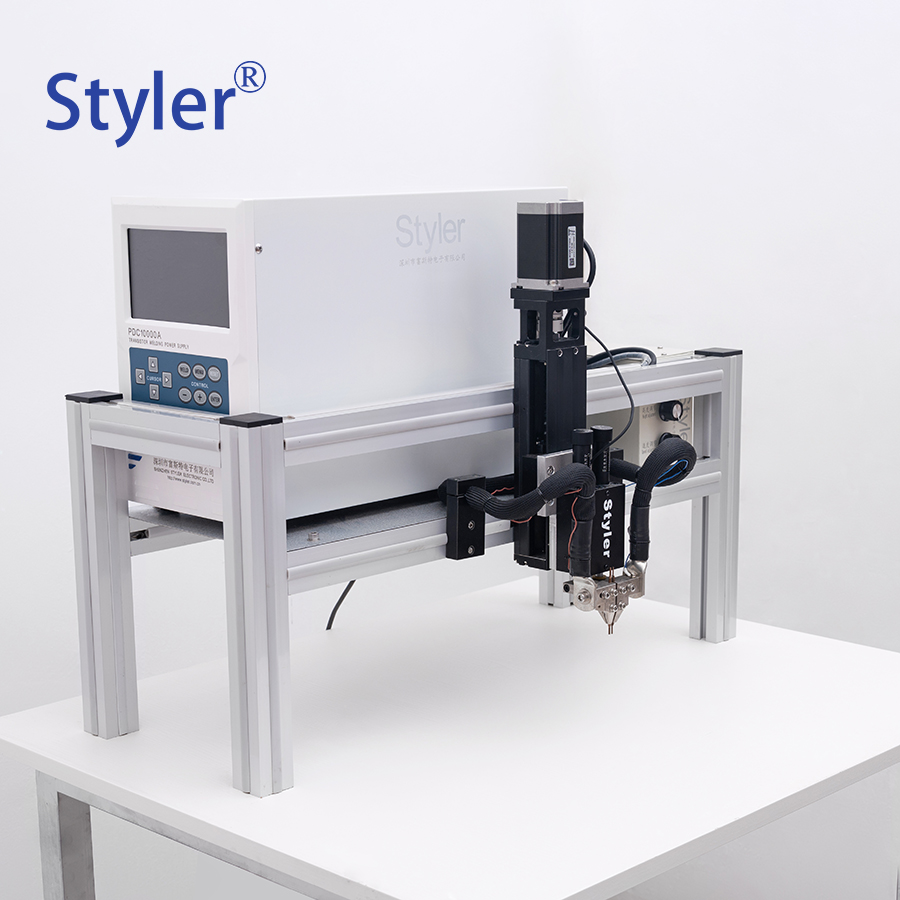

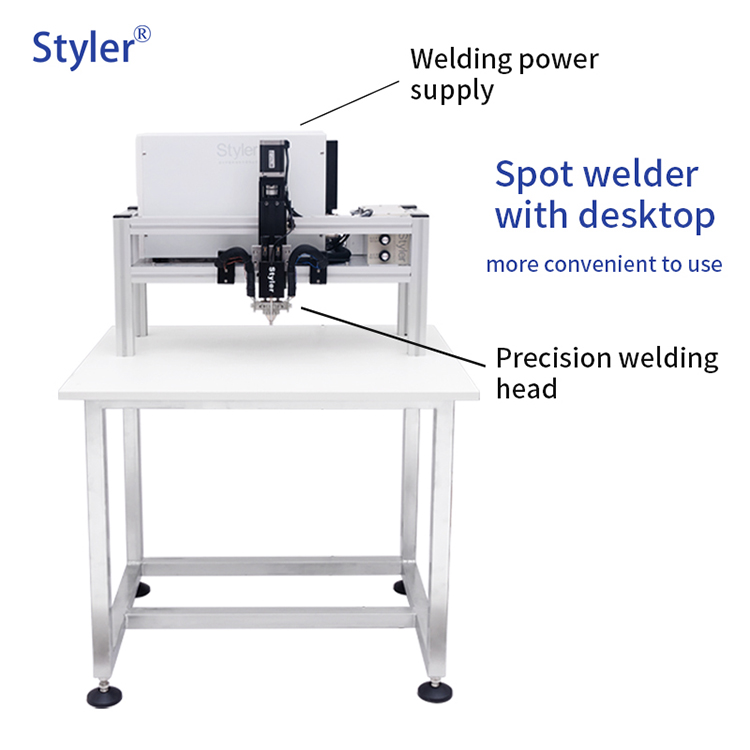

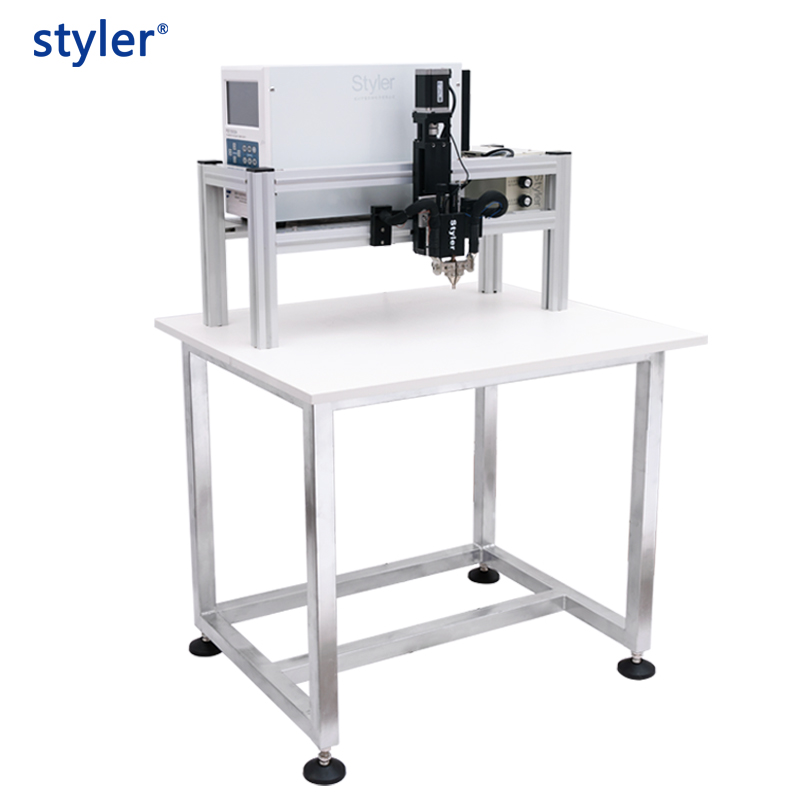

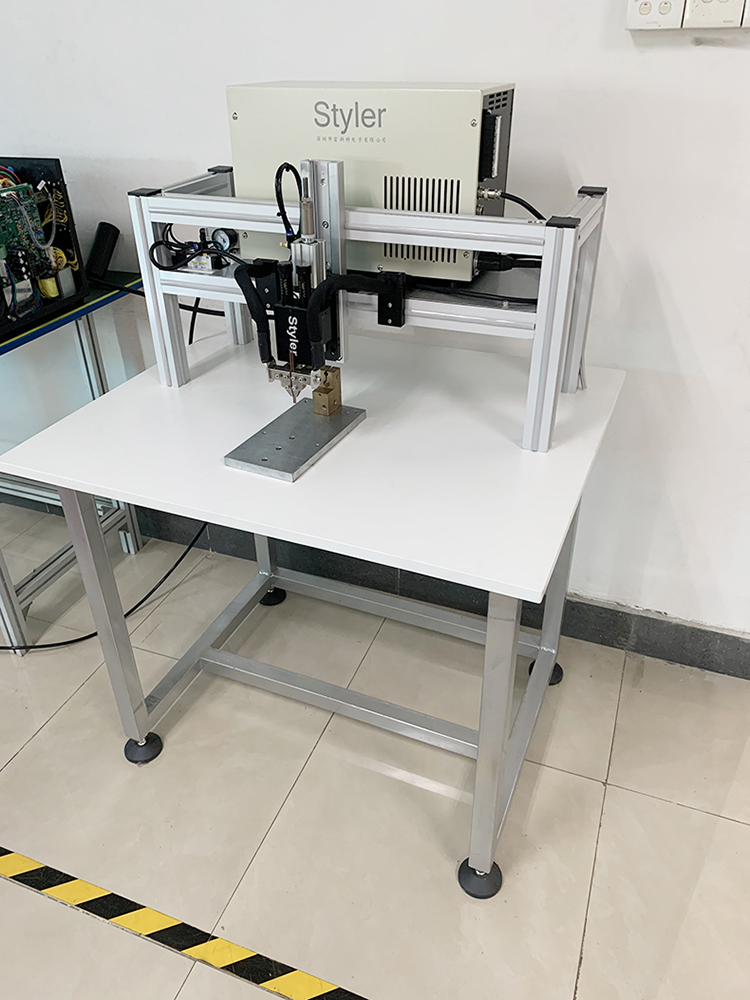

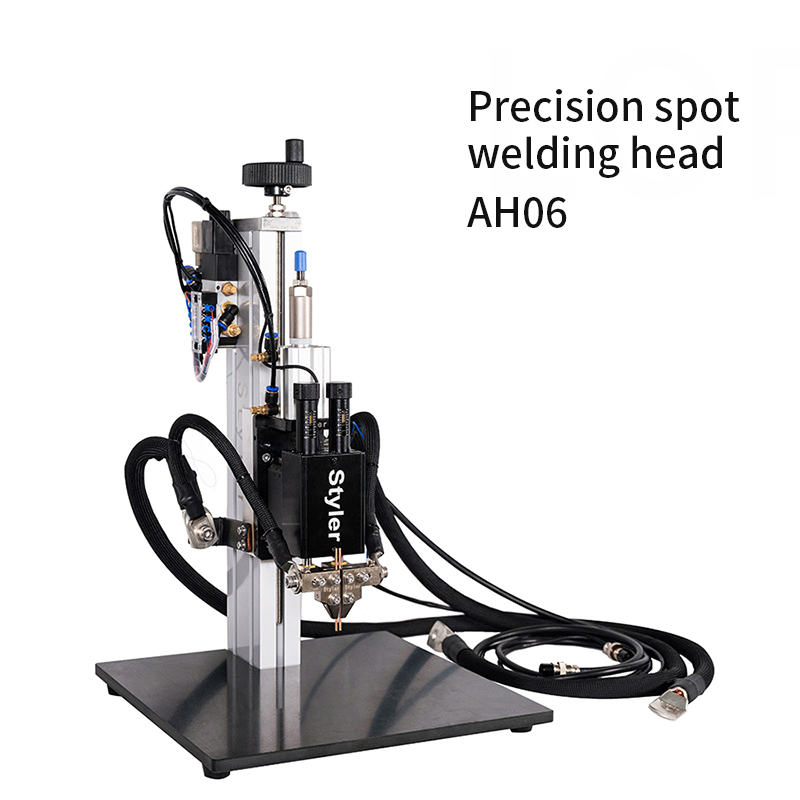

Transistor type energy saving point welder
The welding current of the transistor welding machine increases very quickly, it can complete the welding process in a short time, the area affected by the welding heat is small and the welding process has no splashing. It is most suitable for welding with ultra-precision precision, such as thin wires, as battery connectors with buttons, small contacts and relay sheet metal.

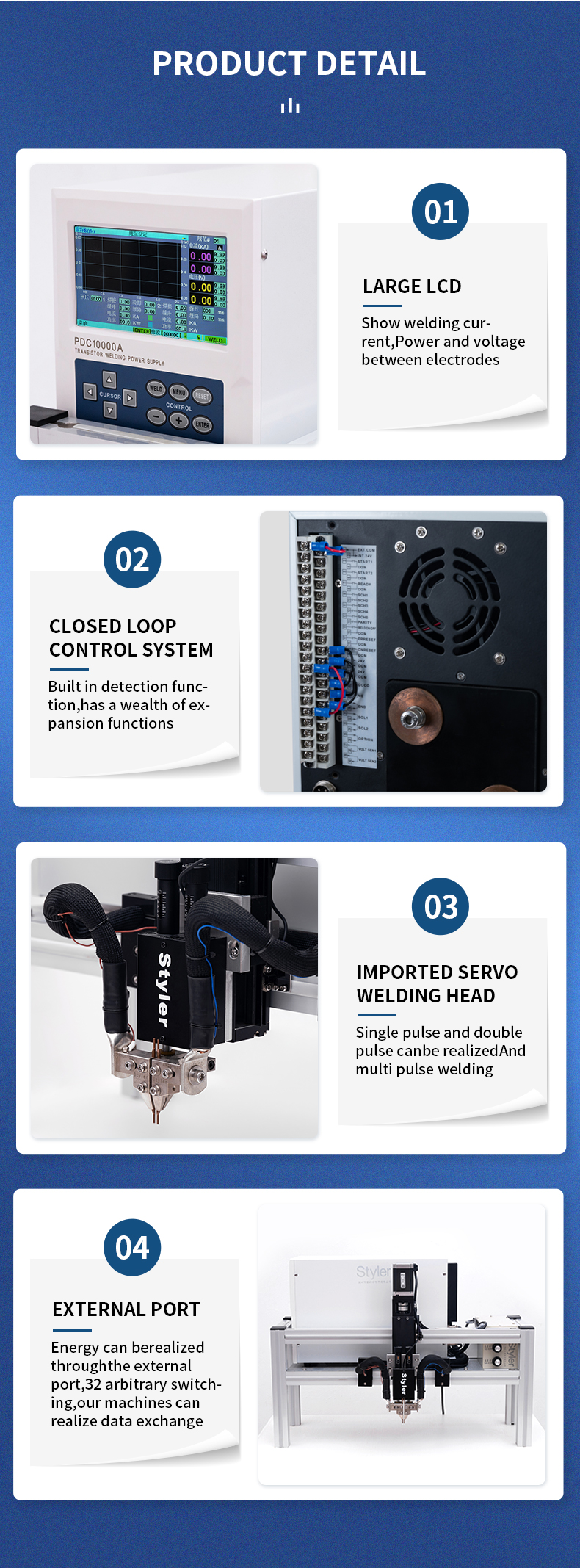

Details Images

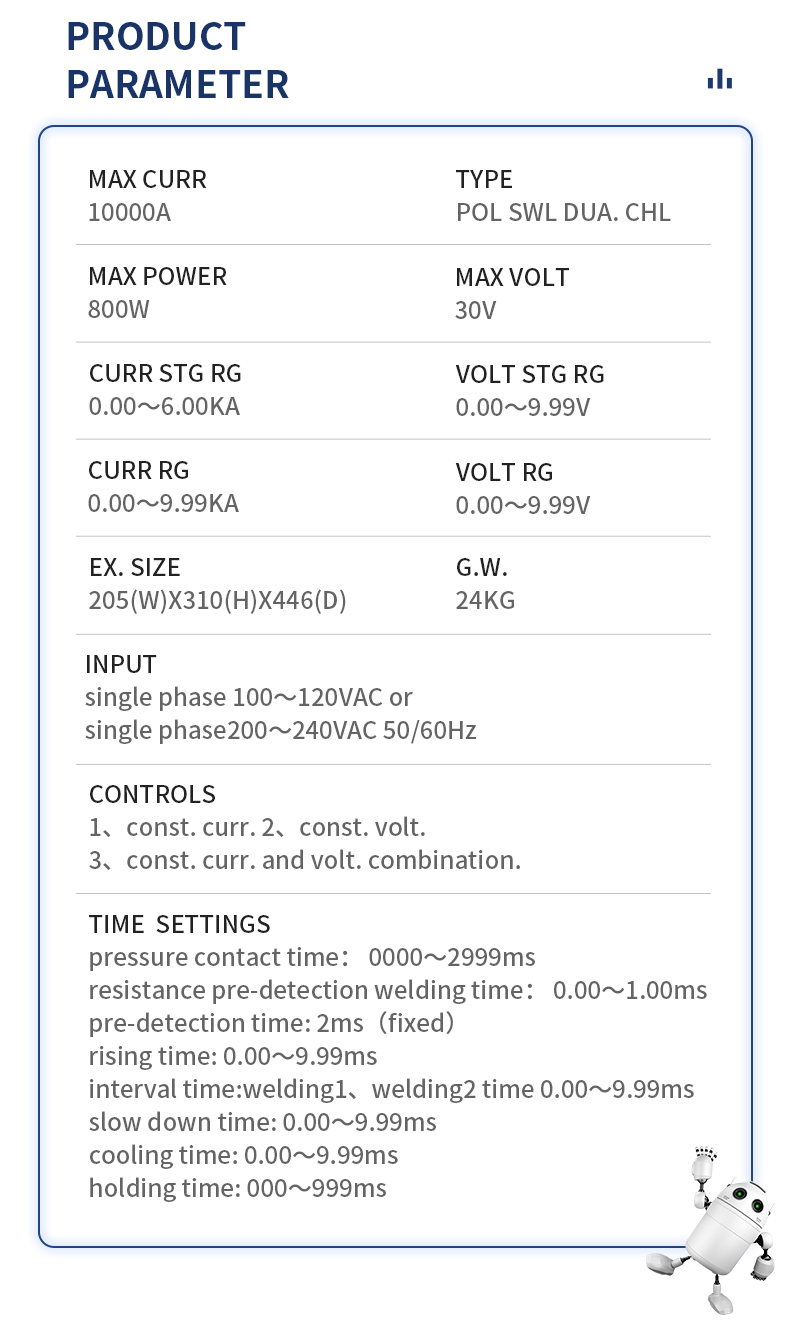

Product parameters
pattern
LOW ENERGY SUPPLY TRANSISTOR WELDING
pattern
PDC4000A (25000 rmb = 3850 USD)
MAX CURR
2000 A
MAX POWER
300 W
VOLT MAX
30 V
entry
single phase 100 ~ 120 VAC or single phase 200 ~ 240 VAC 50/60 Hz
CONTROLS
1, const. curr. 2, const. volt. 3, const. curr. and volts. combination.
pressure contact time
0000 ~ 2999 ms
resistance detection welding time
0.00-1.00 ms
pre-detection time
2 ms (adjusted)
increasing time
0.00 ~ 9.99 ms
interval time
welding 1, welding 2 time 0.00-9.99 ms
slow down time
0.00 ~ 9.99 ms
cooling time
0.00 ~ 9.99 ms
retention time
0.00 ~ 9.99 ms
CURR STG RG
0.00 ~ 2.00 KA
VOLT STG RG
0.00-9.99 V
VOLT RG
0.00-9.99 V
SH.SH. MAGNITUDE
205 (P) X310 (H) X368 (D)
GW
16 kg
why we are chosen
Styler has a professional engineering and technical service team, provides automatic PACK lithium battery production line, technical instructions for lithium battery assembly and technical training.

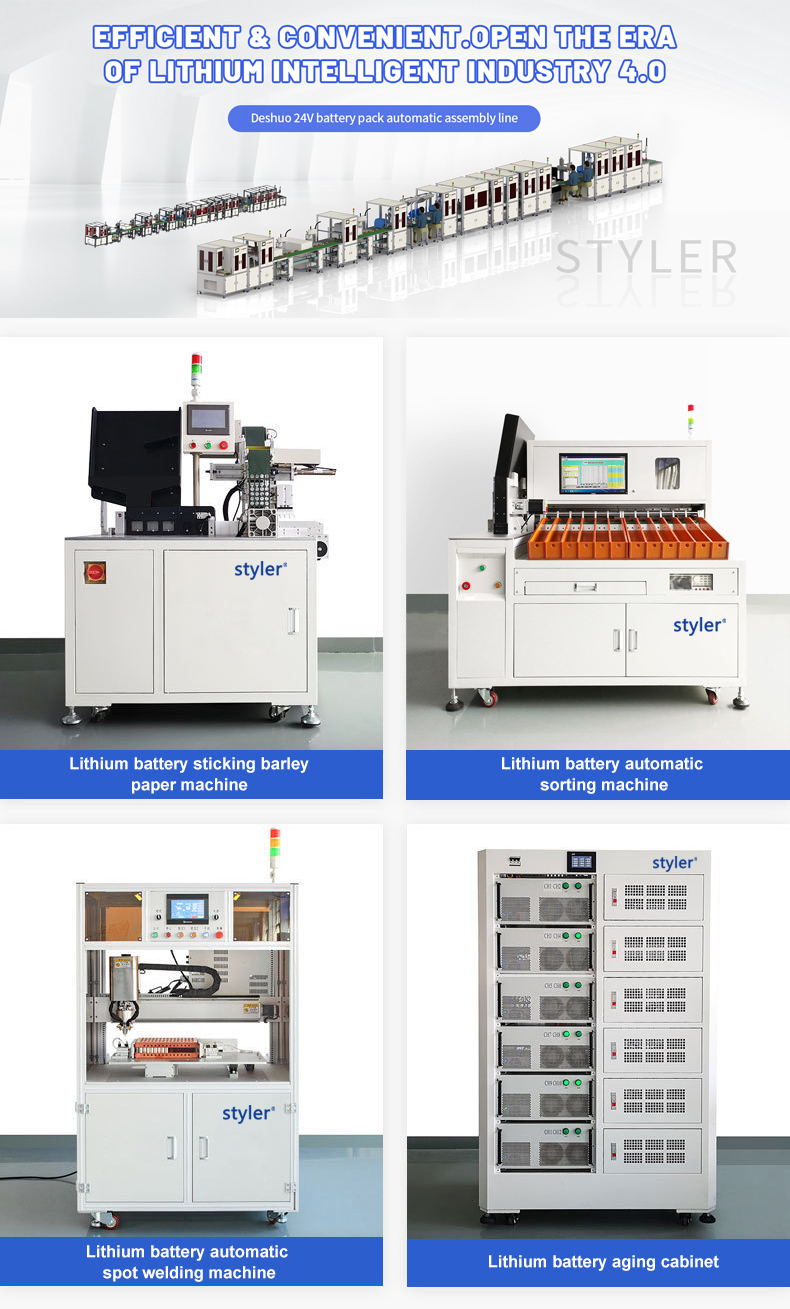

We can offer you a complete line of equipment for the production of battery packs
We can offer you the most competitive price directly from the factory
We can offer you the most professional after sales service 7 * 24 hours

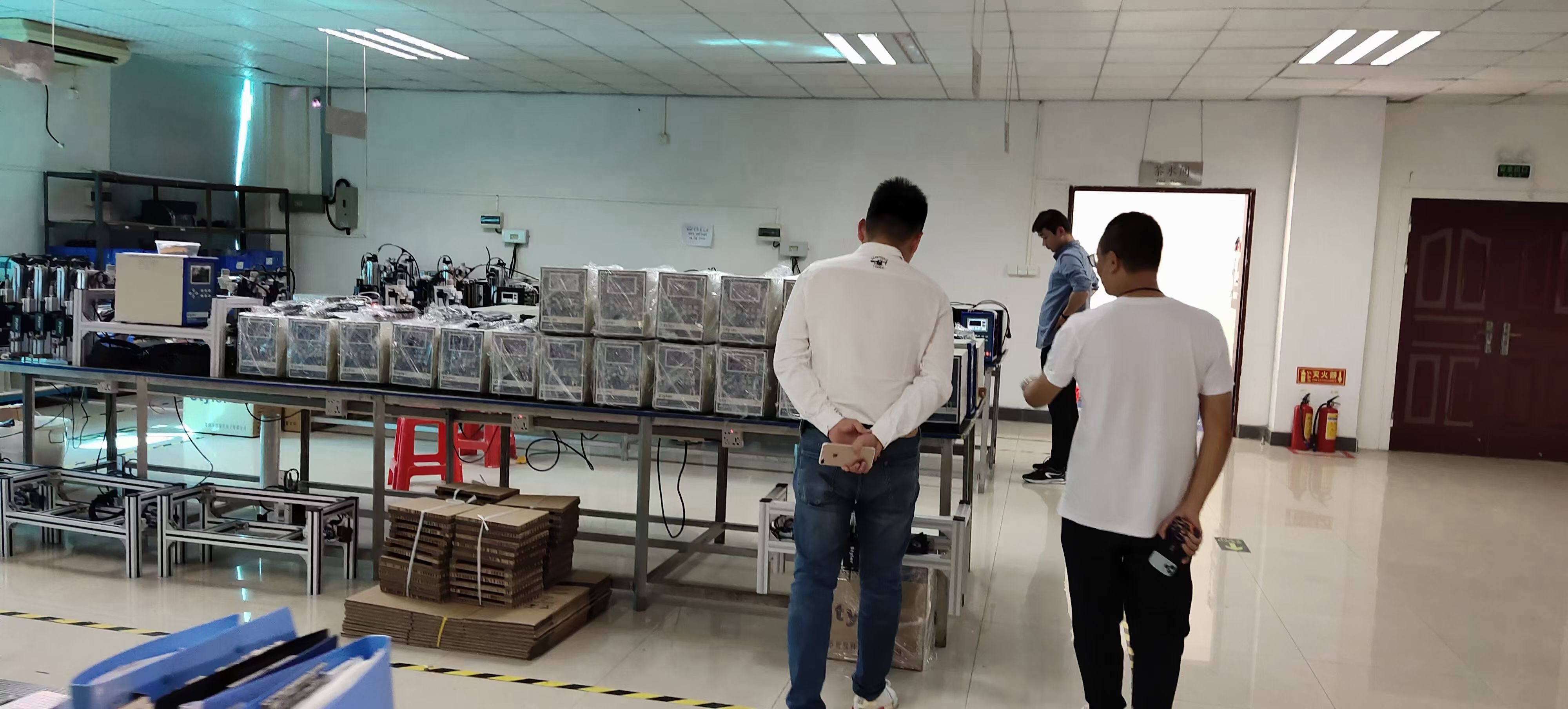

Company Profile
