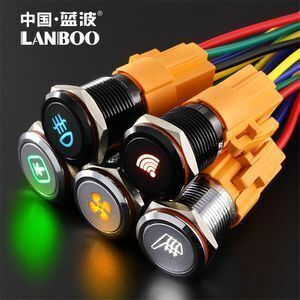

LANBOO 12V 24V car yach power on off and Signal control push button switch with stainless steel or Aluminum oxidation

Product details
Lamp voltage:2V/3V/6V/12V/24V/36V/110V/220V/250V;Max. Voltage:250VAC;
Emitting Type:Ring LED/Dot LED/Symbol LED;Switch Combination:1NO1NC-Normal Open/Normal Close;
Product name:16MM DPST ON OFF IP67 IK10 momentary stainless steel push button;Operation type:Momentary or Latching;
Lamp color:Red Green Yellow Blue White Orange Purple Pink;Shell Metal:Stainless Steel/Copper plating/Aluminum oxide;
Protection Level:IP67;Model Number:LB16A-PUSH BUTTON SWITCH;
Packaging Detail:Blister Package+ Foam+Color box Or Upon your request Push button;Port:NINGBO/WENZHOU;
Supply Ability:10000 Piece/Pieces per Day;Max. Current:3A;
Rated Voltage/Current:AC250V/3A;Brand Name:LANBOO;
Waterproof/Protection:IP67/IK10;Diameter:16~40mm;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Place of Origin:Zhejiang China (Mainland);

LANBOO  Push button with Latching Action with red green blue  color led light for IP67

Product Description

1.3A metal push button switch;

2.Optional connector,To ensure contact performance,reduce waste of labor;

3.With concave design,operation is more convenient;

4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5.Waterproof and dustproof grade up to IP67;

6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;

7.1NO1NC function;

8.It has applied of many patents ,CCC,CE ,ISO9001,approved;

9.16MM DPST ON OFF IP67 IK10 momentary stainless steel push button;



Specification



                               Model Description
  Model NO.                         LB-16A metal push button switch
  Mounting diameter            16MM
  Head shape                      Plat Head
  Switch Combination          1NO1NC
  Operation type                 Momentary/Latch
  Illuminating type               Annular,power symbol,dot
  Illuminating color               red,green,blue,yellow,orange,white,purple,pink
  Lamp voltage                    2V/3V/6V/12V/24V/36V/110V/220V/250V

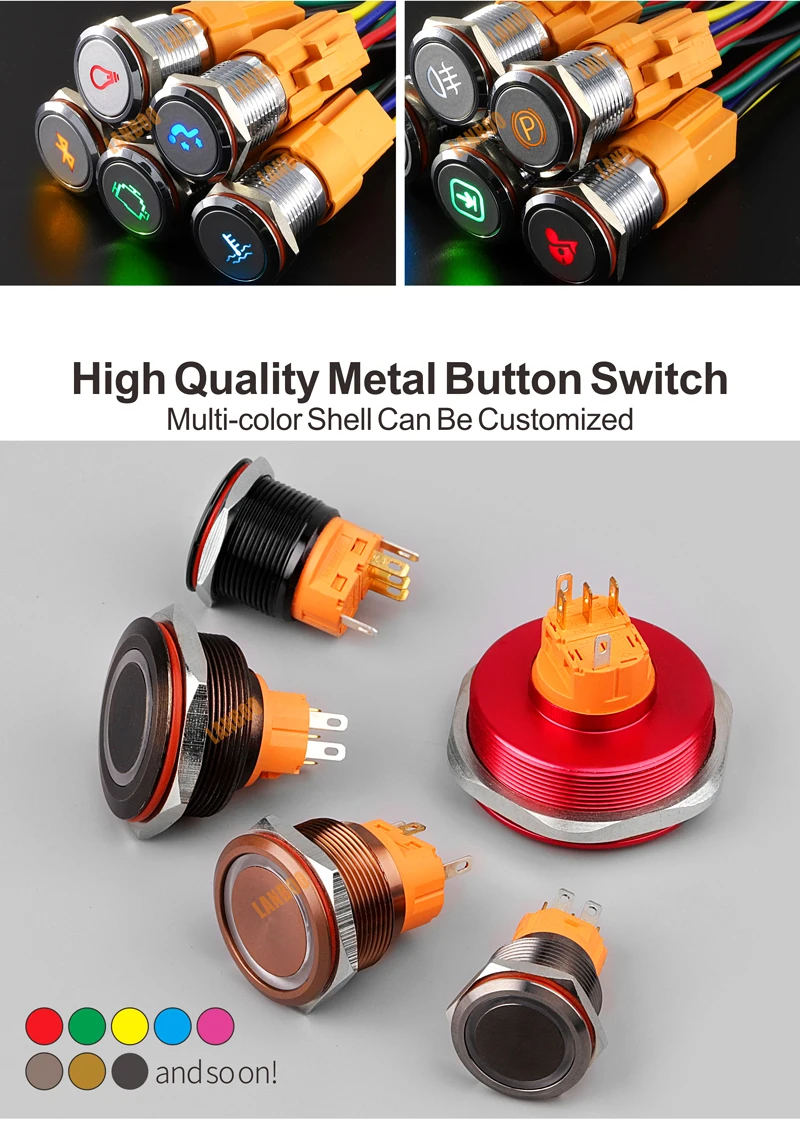

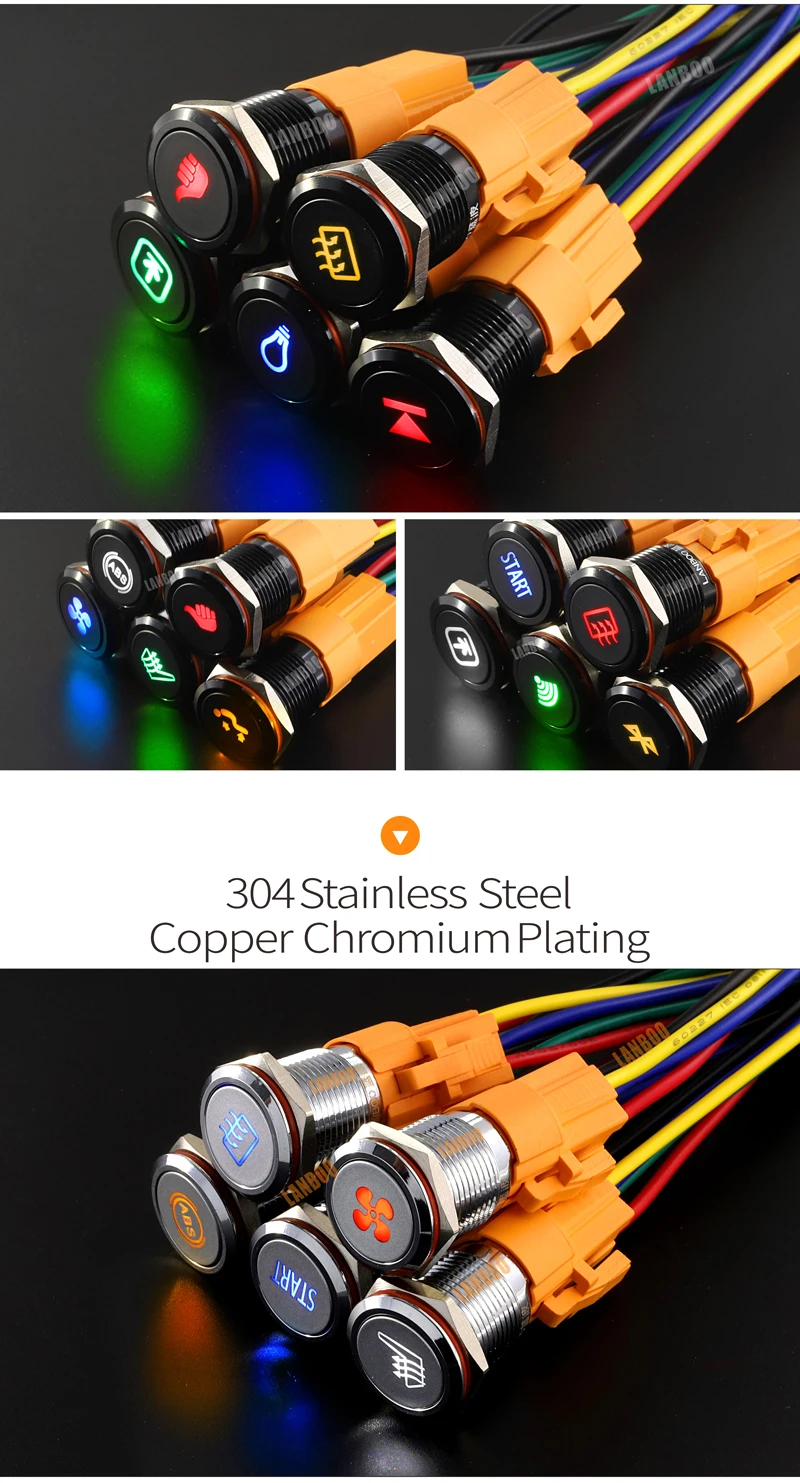

  Shell material                    Stainless steel,aluminum oxide,copper plating



The Others Parameters
ProjectParameterProjectParameter
 Contact type  Slow moving single contact Operation Schedule Connected:1.8mm,Total:3.1mm
 Contact Resistance  ≤50mΩ Actuating Force about 4N
 Insulation  Resistance  ≥1000mΩ Mounting panel thickness ≤11mm. customised the others
 Dielectric Strength  1000VAC min Nut torque 5~14N.m
 Ambient  Temperature  -30℃~+80℃

 Outshell/Press Key







 Stainless Steel/aluminum oxide/copper plate







 Protection Levels  IK10 Diffuser PC
 Electrical Life

  Rated:2A250VAC-      100,000 times

  Rated:5A250VAC-50,000    times

  Rated:8A250VAC-20,000  times

  Reated:10A250VAC-  20,000 times

 Nut



 Base Seat/

 Bottom Seat

 Nickel brass





 PA66

 Mechanical Life

  Maintained-200,000 times

  Self-locking-800,000    times



 Pins                      Contact



 PA66

 H65 Silver Plated

 Waterproof   IP65/67 Spring Improved steel wire
Switch Rated Load

 Project

 Parameter
 Reated Insulation Voltage AC250V
 Fusing Current 5A
 Rated VoltageDC12VDC24VAC110VAC250V
 Rated Current Nonreactive Load3223
 Inductive Load10.50.50.5



Led Lamp Parameters
ProjectParameter
 Led type High Brightness LED lamp,cool
 Luminous color Red,Green,Blue,Yellow,Orange,White,Purple,Pink
 Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
 Rated Current ≤20mA
 Reference Life 40,000hours
Packaging & Shipping







Company Information



FAQ



Q1: What's the payment terms?
A1: We accept TT,Western Union,L/C,PAYPAL, 30% deposit and 70% balance against copy of BL.



Q2: How's the delivery time ?
A2: It rests with the quantity you need,1-30days usually



Q3: Tell me the standard of package?
A3: For the small capacity, small box and EPS as inner package and carton as delivery package. But also we can pack it according to your requirment.



Q4: How about the logo? Would you accept to use our logo ?
A4: Our logo is LANBOO. If your order has good quantity, it absolute no problem to do OEM. But you use our logo LANBOO will be high appreciated.





Q5: How do it know that you have sent the products out?

A5: Onece the products already finished ,We will send pictures ,video to you .Also a tracking number will be provided so that you can check where your goods at all time.



Q6: Could you offer Form A or C/O ?
A6: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.





Q7: We want to know month capacity?
A7: It depends on which model.For example for 16mm metal button switch , month capacity can reach near 500,000pcs



Q8: Where is your market?
A8: Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Q9: What kind of certificate you have ?
A9: Our company already Obtained RoHS,CQC,CE,CCC,IP67,IK10 ,design and technical patents certificates

Q10: Can I ask for a sample?

A10: Of course ,my friends. It’s free for you .



Now pls feel free contact with us asap. J
