Product details

Product Description

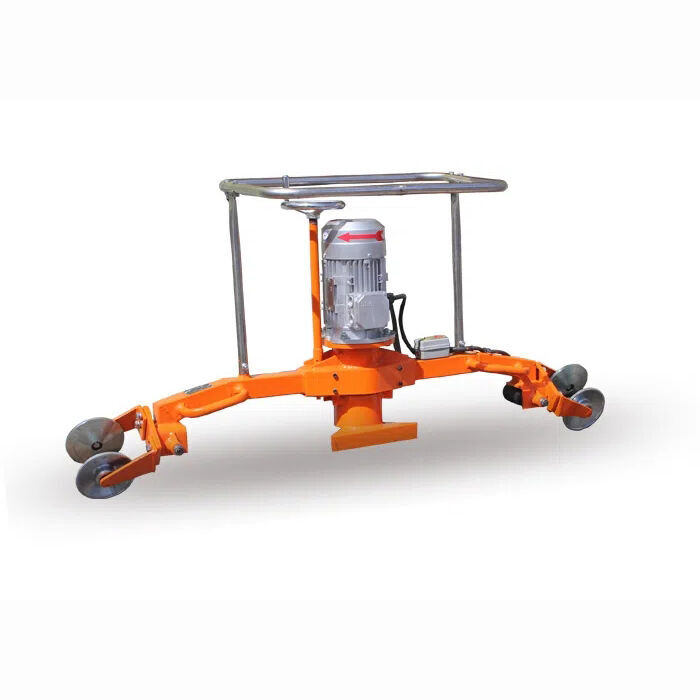

Electric Rail Grinding Machine

GM-2.2 electric rail grinding machine for 43kg / m-75kg / m rail weld, uneven joints, rail side fat side, rail welding and other parts of the grinding. It has the advantages of high operation efficiency, good grinding quality, easy operation and convenient operation of the upper and lower roads. It is an essential tool for overhaul, maintenance and repair of railway.

Working Principle

How it works: GM-2.2 electric rail grinding machine, with the motor as the driving force, the guide key to pass to the cup wheel to produce rotary motion, through a feed hand wheel to adjust the grinding wheel feed, so as to achieve the purpose of grinding rail.

Specification

Model	GM-2.2
Type	Electrical Rail Grinding Machine
Material	Stainless Steel
Dimensions (L x W x H) (mm)	1500* 630*760mm
Motor	Y2-90L-2
Number of revolutions	2840r / min
Power	2.2kW
Grinding wheel -Bowl type wheel	∮ 110 × ∮ 22 × 55mm
Wheel span	1000mm
Grinding wheel travel	50mm
Weight	54kg

Packing & Delivery

Woodex box , export standard
