Product details

Product Description

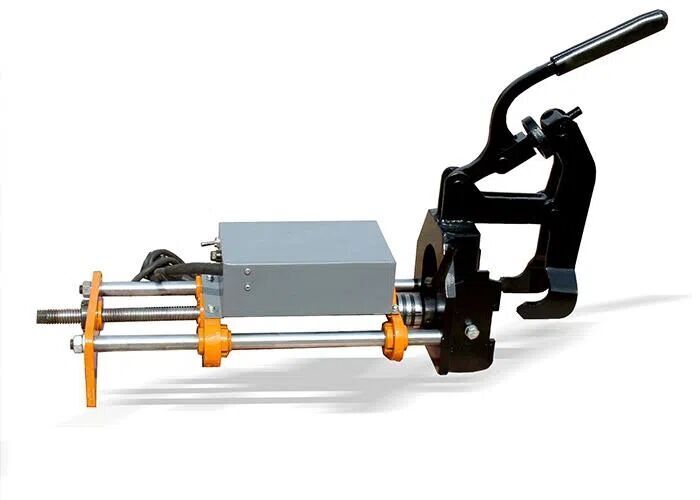

Electric Rail Drilling Machine

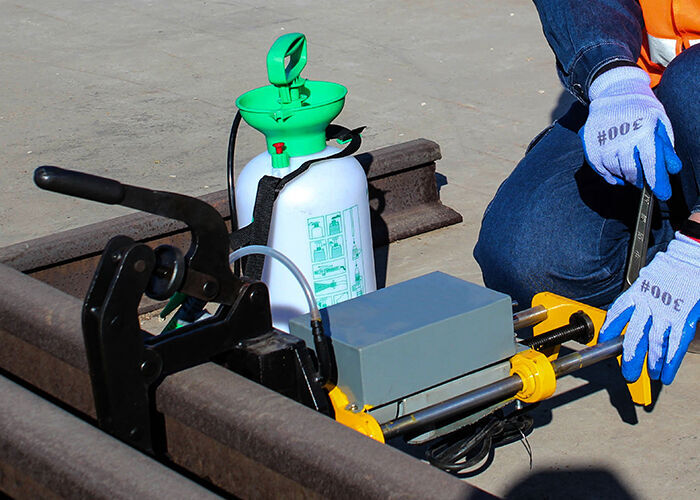

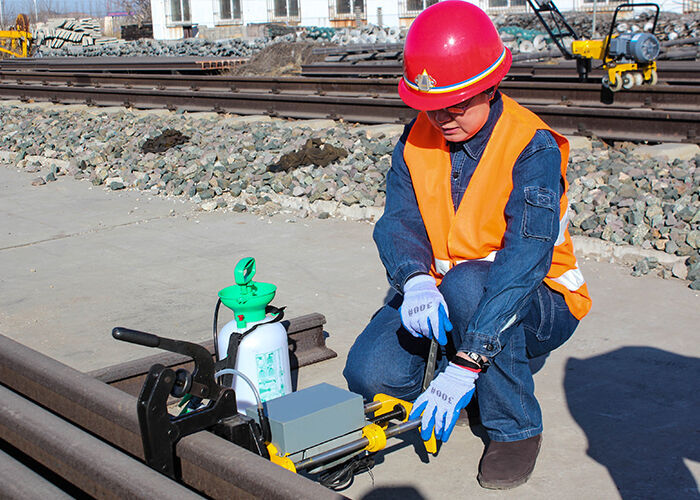

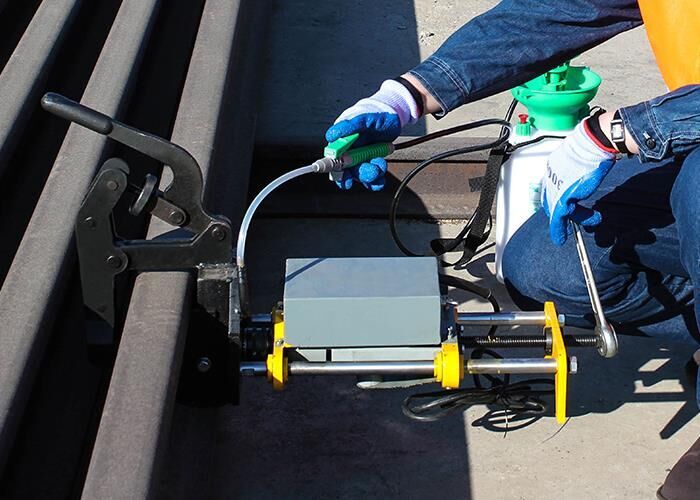

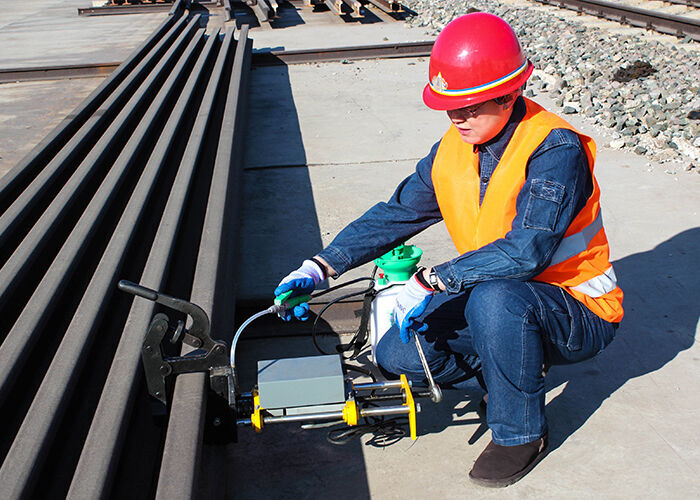

ZG-13 electric rail drilling machine is suitable for drilling 75kg/m，60kg/m，50kg/m，43kg/m type rail. Its rail clamping device has self-locking function. It possesses features of correct borehole positioning and high drilling precision. It adopts hollow drill bit, while drilling process, the coolant can be supplied automatically. It’s an indispensable tool employed in railway maintenance, repairing and overhaul operation.

Working principle

The motor transfers the power directly to the head of the spindle, drives the bit to rotate, and rotates the feed screw with the ratchet wrench to realize the movement of the feed and reach the purpose of drilling.

Specification

Model	ZG-13
Type	Electric Rail Drilling Machine
Material	Stainless Steel
Dimensions (L x W x H) (mm)	650200280mm
Motor voltage	220V
Frequency	50Hz
Power	0.65kw
The diameter of the maximum drill hole	Φ13
Spindle speed	550r/min
The quality of the whole machine	16KG
Drill stroke	100mm

Packing & Delivery

Wooden box, export standard
