New Pressure Transmitter Digital Density Tuning Fork Densitometer

Supplier: Xi'an Shelok Instrument Technology Co., Ltd.
Region: Shaanxi, China
Contact: Mr Summer Nan
Price: $952.00 / 1 - 9 pieces
$875.00 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	New Digital Density Tuning Fork Density Meter Pressure Transmitter Standard Export Packaging	style:	Fork Density Meter
place of origin; place of origin:	Shaanxi, China	port:	any port in China
model:	SK-806	application:	High precision density measurement, mainly used in power plants.
Supply capacity:	1000 pieces per week	Name:	Pressure Transmitter Digital Density Tuning Fork Densitometer
output:	4-20 mA 4-wire (2-wire cannot be used)	Key words:	Fork Density Meter
Warranty:	1 year, 18 months	payment terms:	L/C, Western Union, T/T, MoneyGram, PayPal
brand:	Sherlock	Accessories:	4-20 mA output signal temperature
type:	density transmitter	Custom Support:	OEM, ODM
exhibit:	LED/LCD	product name:	China Manufacturer Digital Tuning Fork Densitometer

New Pressure Transmitter Digital Density Tuning Fork Densitometer

Description numberdensityTuning Fork Densitometer

Leading Manufacturers of Tuning Fork Density Meters Principles:
Fork sensor ------------ A pair of fork ceramic chips
Piezoceramics are responsible for collecting vibrations
The fork always vibrates at the resonant frequency of the vibration
Forks have different resonance frequencies under different densities, and the density is calculated according to the relationship between different vibrations and densities
The resonance frequency of a tuning fork is between 1600-2400
The higher the frequency, the lower the density.

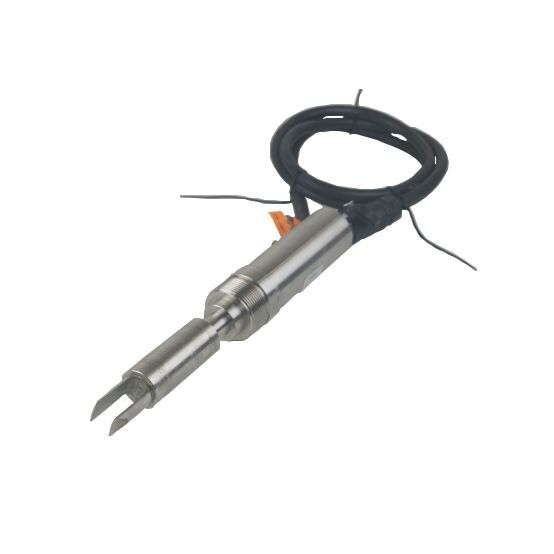

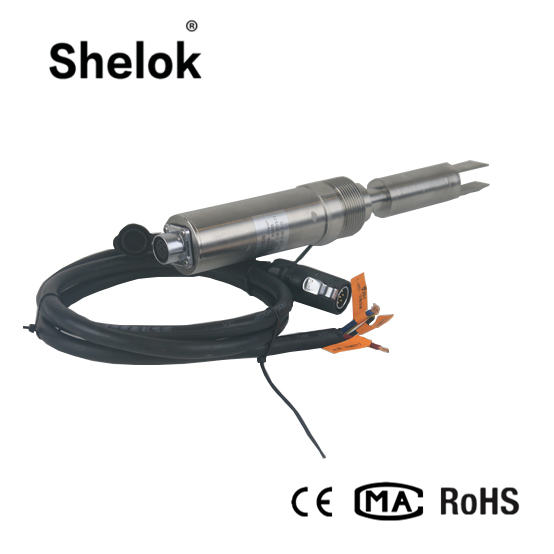

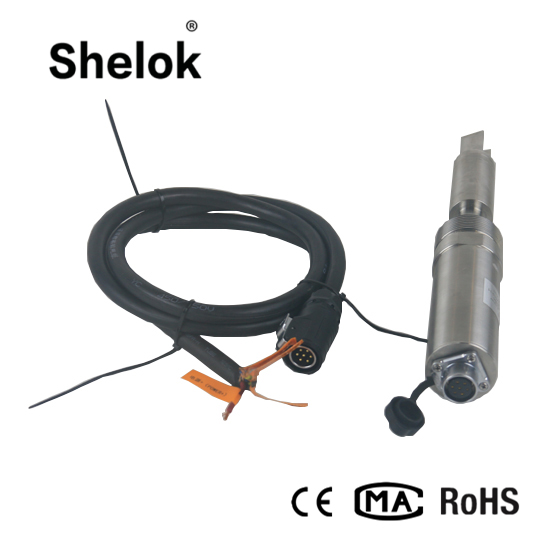

detailed imageDigital Density Tuning Fork Densitometer

SpecificationDigital Density Tuning Fork Densitometer

New Digital Tuning Fork Density Transmitter
Density range	0-3 g/CM3 (3 /2.5/ 2 /1.5/ 1)
output	4-20 mA 4-wire (2-wire cannot be used)
accuracy	0.001 g/cc with a resolution of 0.0001 g/cc
Insertion depth	(distance from flange to fork end, min. 125mm, max. 2m)
exhibit	On the density value, the density value can be switched to kg/m3 or g/cm3 through the unit key. A temperature value (the temperature of the measured medium) is displayed downward. The temperature is the original PT1000
accessories	4-20 mA output signal temperature
Function Description	The internal circuit board has automatic filtering, and other vibrations such as pipe vibration can be eliminated from the side of the circuit and software, ensuring accuracy.

featureDigital Density Tuning Fork Densitometer

1. Using German piezoelectric ceramic chip, gold-plated process, increase the oxidation resistance of the ceramic chip, and also prolong the service life of the density meter.
2. The original chip of the tuning fork vibration adopts the high-performance original chip made in Japan, with a built-in 24-bit AD converter, the frequency identification accuracy is 0.01HZ, and the warranty 3. The sensitivity and accuracy of the instrument. 3. The tuning fork density calibration adopts the national density standard solution to ensure the source and accuracy of the density.
4. The current circuit is independent of the vibration circuit of the tuning fork, and there is isolation and anti-interference inside to reduce the influence of interference on the instrument.
5. It has functions such as three-point quick calibration of set density, range adjustment, and current calibration to meet the needs of field work.

Pressure Transmitter Digital Tuning Fork Density Meter

application

1. High-precision density measurement applications, mainly used in power plants.

2. It is not affected by temperature, pressure and flow, and there are few factors that affect the measurement accuracy.

FAQ

Q: How often do you get back to me?

A: We will contact you as soon as possible, but within 12 hours

Q: Can I get some samples?

A: Yes, sample orders are available for quality inspection and market testing. But you have to pay for the courier.

Q: How soon can you schedule production?

A: After receiving your product confirmation and receiving the advance payment, the production will start immediately.

Q: What is the delivery time?

A: It usually takes 3-5 working days for small orders and 10-15 days for large orders.

Q: How do you control the quality?

A: Three inspections (original, production, finished product) + good warranty service (1 year free replacement for new one, without any human damage factor).

Q: What certificate do you have?

A: ISO9000, CE, Ex-approval, RoHs ready. And before the goods are shipped, the quality and safety inspection certificate issued by the third party can also be provided.

Q: Can I visit your factory?

A: Very welcome! Fly to Xianyang Airport. This is a lot of fun for us.

Q: What are your warranty terms?

A: We provide 12 months warranty.

Q: Can you provide OEM and customized service?

A: Yes, both OEM and ODM are available, we have a professional R&D department that can provide you with professional solutions.
