Toray screwdriver machine with screw automatic feeder 100w power

Click here to contact
Product details

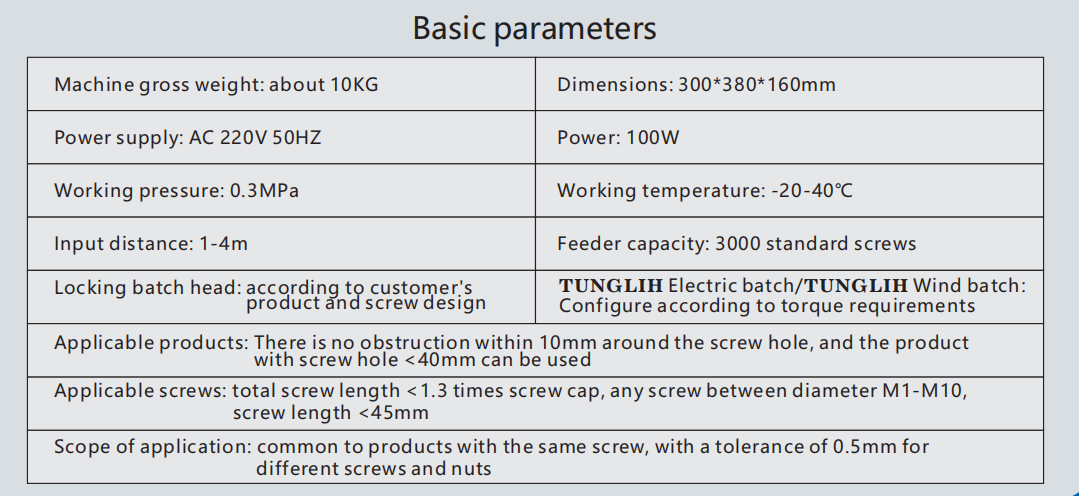

aspect:300*380*160MMMachine weight:About 10KG
place of origin; place of origin:Guangdong, ChinaConveying distance:1-4m
Warranty:1 yearport:Guangdong, China
payment terms:Western Union, T/T, Alibaba orderFeeder capacity:3000 standard screws
Packaging Preview:Packaging Details:carton
Custom Support:OEM, ODM, OBMmodel:car
Operating temperature:-20~40℃strength:100W
power supply:AC 220V 50HzNo-load speed:.
Supply capacity:1000 pieces per monthWorking pressure:0.3MPa

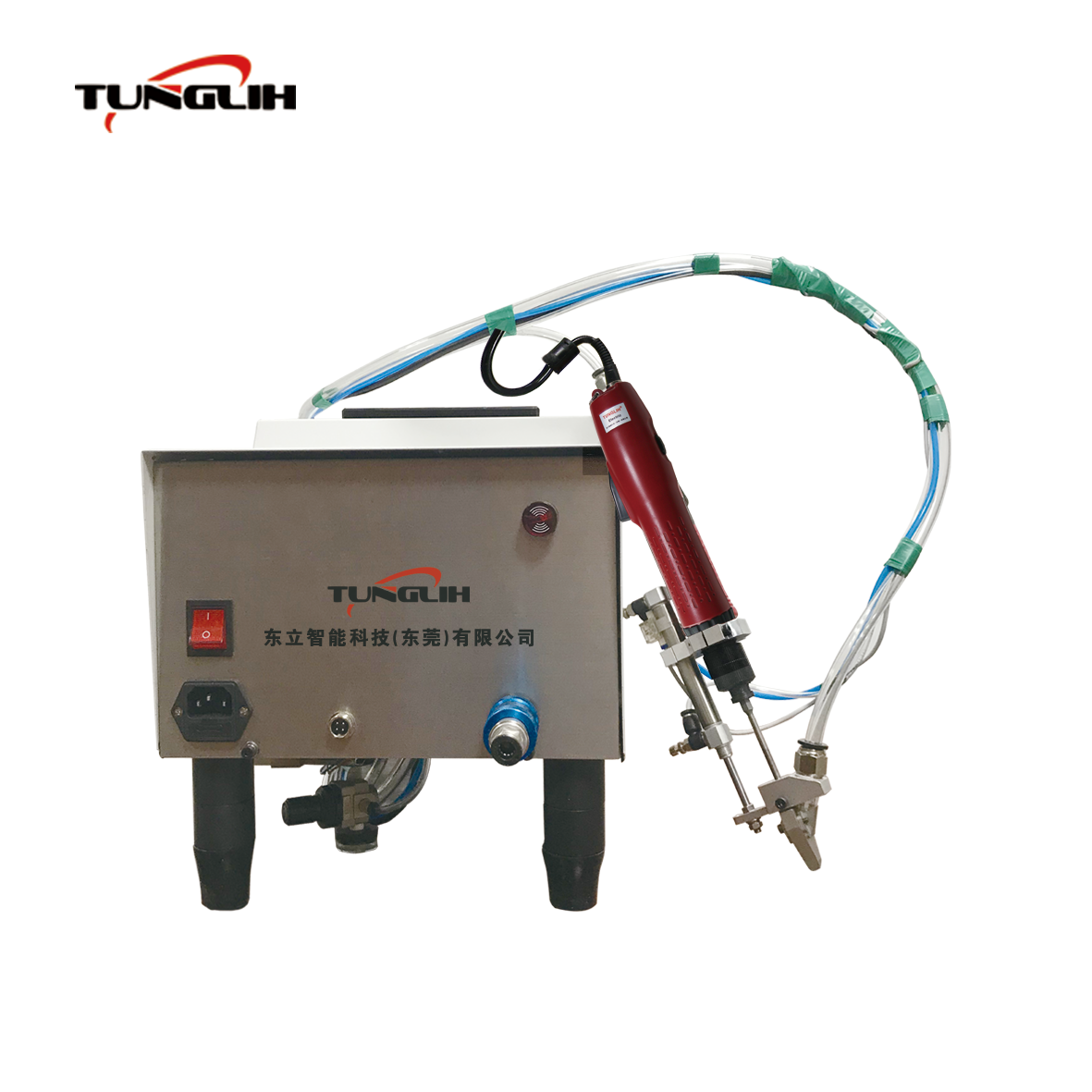

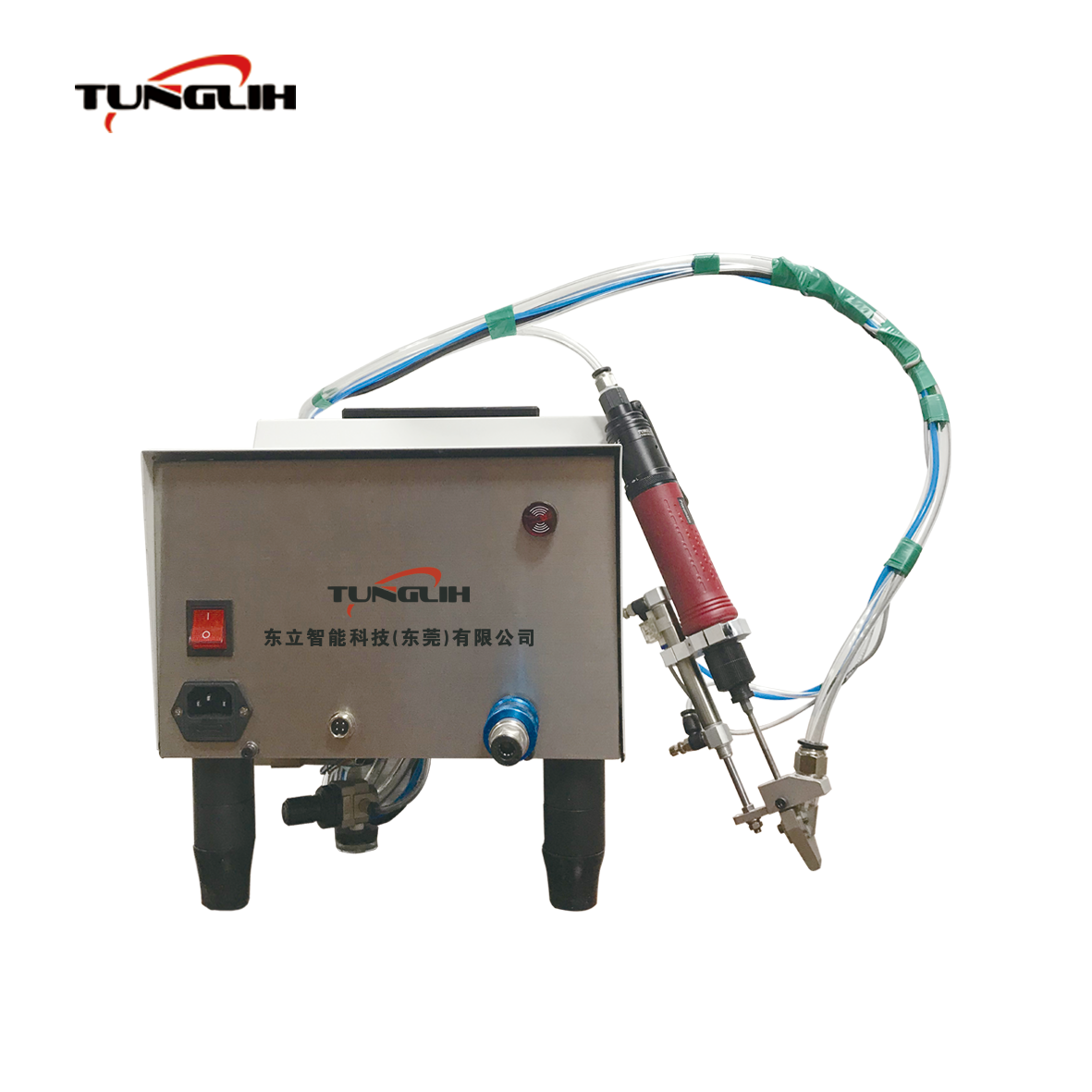

Screwdriver Machine with Screw Auto Feeder
Product Description
The hand-held automatic locking screw machine needs an external air duct, through the feeding system, scheduling system, and locking screw system
All three parts of the system are completed by screw locking. All actions are controlled by the program of the device itself.
All system components are subject to the actual screw specifications, angle and size of the locking position, etc.
Cases are bespoke and are all non-standardised parts.

feature

1. Automatic screw feeding, sorting and tightening of various shapes of screws. One-handed operation.
2. Accurate torque, easy adjustment, ensure the quality of screw tightening
3. Turbine feeding, small size, low noise and easy maintenance. Light weight, small size, good maneuverability and space saving.
4. Lack of screw alarm function. (Audible alarm)
5. High efficiency, no need to pick up the screw, move the screw, put the screw, just align the hole to fasten the screw
6. The sensor controls the screw to feed one by one to avoid repeated feeding.
7. Quickly tighten the screws, about 60 screws per minute.

OneApplicationscope

1. Scope of application of screws:M1-M10, the length of the screw should be less than 1.3 times the diameter of the screw head,The screw length is less than 45mm
2. Scope of application of screw head:Cross groove, triangular groove, trox, hexagonal groove, H head, etc.
3. Screw surface treatment:Electrolytic nickel plating, color zinc plating, white zinc plating, copper plating, etc.
4. Screw material:Iron, copper, stainless steel, etc.
5. The material of the screwed product:Plastic, iron, aluminum, etc.
6. Application industry:Mobile phone photos, hard drives, keyboards, toys, LCD/LED modules, communication equipment, electrical appliances, auto parts, etc.

Packaging and Delivery

Company Profile


Dongli Intelligent Technology (Dongguan) Co., Ltd. Founded in December 2006, it is committed to the research and development, production, sales and professional solutions of industrial-grade pneumatic tools and power tools. Its TUNGLIH series products are well received by users at home and abroad. Brushless electric screwdrivers, pneumatic screwdrivers, pneumatic riveting guns, pneumatic scissors, etc. have passed a number of international certifications and domestic patents. Development path:

December 2006, Dongguan Liqiang Electronic Tools was established (agent sales and maintenance of electric screwdrivers, pneumatic screwdrivers, pneumatic riveting guns, etc.)

May 2008, established the KONE brand and put into production pneumatic nailers. In November 2011, we developed pneumatic screwdrivers and pneumatic scissors, and provided a large number of OEM services.

May 2013, Established Shenzhen Youlixu Electronic Technology Co., Ltd. to develop brushless electric screwdrivers and provide parts processing services for other industries.

December 2015, established a factory in Dongguan (Xingdongli Hardware Manufacturing), mainly engaged in OEM pneumatic tools

May 2020, changed its name to Dongli Intelligent Technology (Dongguan) Co., Ltd., and launched the TUNGLIH series of brushless electric screwdrivers and pneumatic screwdrivers.Products have passed CE.ROHS certification.

FAQ

1. What is your minimum order quantity?
Re: 1pc is also acceptable

2. When can I get a quote?
Reply: We will hear from you within 24 hours on working days. Then we will send you a quotation within 2 days.

3. Which payment method is a safe transaction method?
Reply: We accept T/T, Paypal, trade guarantee and secure payment on Alibaba platform.

4. Regarding your products, can you do OEM?
Reply: Yes. OEM orders are also acceptable.

5. What is the shipping method?
Reply: We can ship the goods by sea or air to all over the world. The machine will be packaged in a safe and protective manner to ensure you get a brand new machine.

6. What is the warranty and after-sales service?
Re: We offer a one-year term from the date of purchase.

7. How long is the delivery time?
Reply: The goods are normally in stock, and we can ship them to you as soon as possible.

8. Can I mix different models in one package?
Re: Sorry, different models cannot be mixed in one bag.

9. How is the quality control in your factory?
Re: We attach great importance to quality control from the very beginning, every product must be checked one by one before shipping.
