CNC machining timing belt pulley MXL 3M 5M S3M S5M GT2 GT3 GT5 T5 T10 AT5 AT10 timing belt pulley

Click here to contact

Product details

application:	machinery and tools	Custom Support:	OEM, ODM
Certification:	ISO9001:2008	Material:	Aluminum alloy, stainless steel, S45C,
Surface treatment:	Anodized, Black Anodized, Color	place of origin; place of origin:	Guangdong, China
Packaging Details:	1. Standard packaging to ensure product safety 2. According to customer requirements	Name:	timing pulley
Warranty:	1 year	brand:	OEM
Package:	carton	size:	custom size
port:	Shenzhen Port	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Shops
Aperture Type:	Keyway hole, taper hole, pilot hole, round hole	Packaging Preview:
Tooth profile:	MXL XL L T5 T10 AT5 GT2 GT3 GT5 3M 5M 8M	payment terms:	Western Union, wire transfer
color:	Silver, black, blue. Customizable colors	type:	Customized according to drawings, TIMING
Supply capacity:	200,000 pieces per month

Product Description

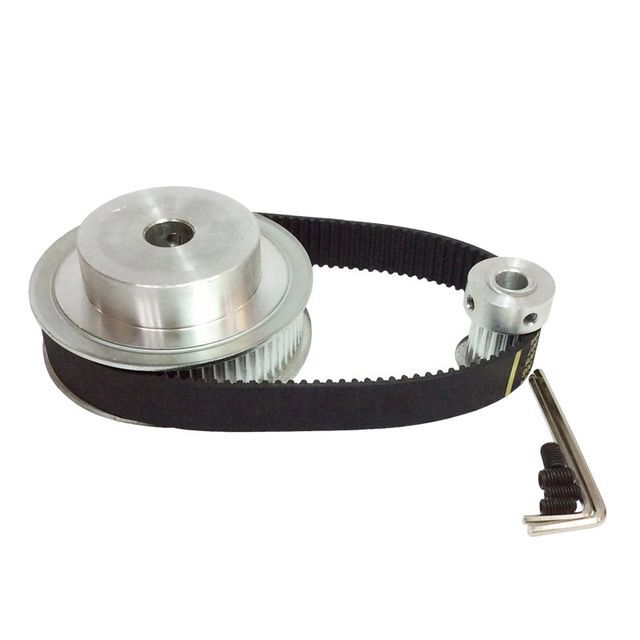

product name	CNC machining timing belt pulley MXL 3M 5M S3M S5M GT2 GT3 GT5 T5 T10 AT5 AT10 Pulley
tooth outline	trapezoidal tooth	MXL, XXL, XL, L, H, XH, XXH
		T-teeth	T2.5, T5, T10, T20
		Arc tooth	HTD3M, HTD5M, HTD8M, HTD14M, HTD20M, Gt1.5, Gt2, Gt3, Gt5
		S tooth	S2M, S3M, S4.5M, S5M, S8M, S14M
		Parabolic tooth	P2M, P3M, P5M, P8M, P14M
number of teeth	10-150 teeth or customized
Bore	2-200mm H7 precision or customized
Belt width	4mm, 6mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 1/4'', 5/16'', 3/8'', 1/2'', 3/4'', 1'', 1.5'', 2'' or customized
application	3D printers, automation equipment, power transmission, embroidery machines, etc.
Accessories	We can provide services for assembling set screws, bearings, shafts or taper sleeves
surface treatment	Anodized, Black Anodized, Phosphate and Zinc Plated
Material	Aluminum, Steel, Stainless Steel, POM, Plastic, Nylon

detailed picture

Product packaging
