Hydraulic Railway Track Lifting and Lining Machine For Sale

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $4000.00 / 1 - 5 pieces
$3800.00 / 6 - 10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

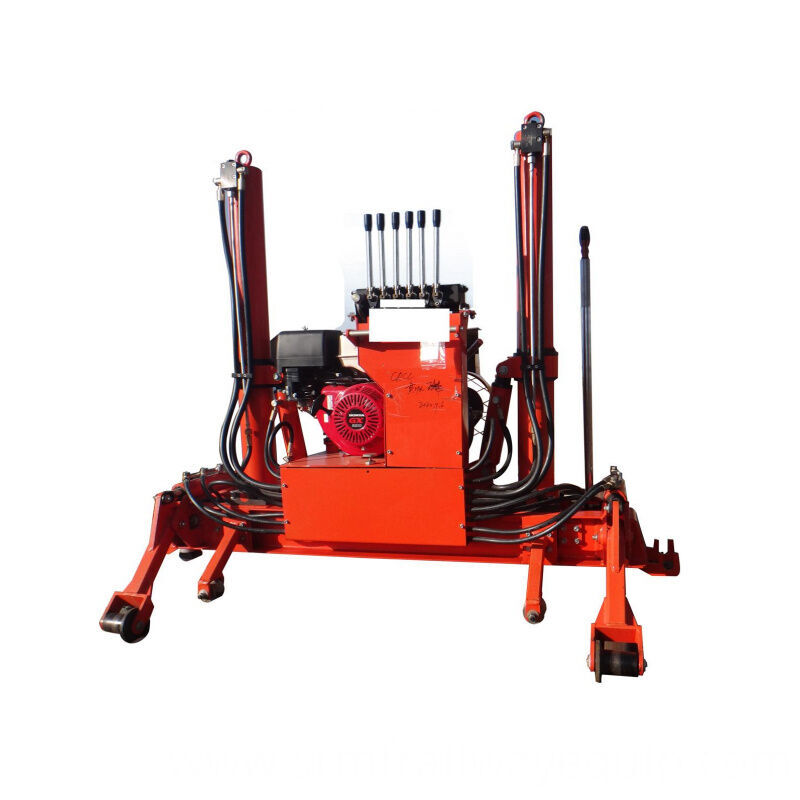

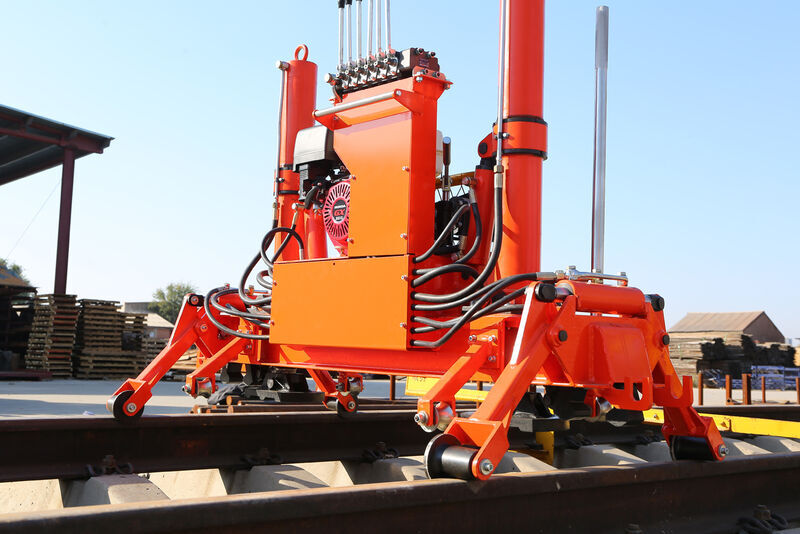

Hydraulic Track Rail Lifting and Lining Machine

The. product has the. fuction of ifting and lining. Its srucur is. simple, light, flexible, safe and reliable. This machine is powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.

BENIFITS

When the two lifing cylinders stand upright, the lifing operation can be carried out When a lifing cylinder is tited out, the track can be dialed Adopt Honda GX390 gasoline engine as the power,the rail hook device adopts gear-engaged double hook synchronous rail clamping mechanism. The starting, cylinder, rail hook cylinder, traveling cylinder, and tilt cylinder are all hydraulicaly controlled.

Specification

Model	YQBJ-300*130
Type	Rail Lifting Equipment
Material	Stainless Steel
Dimensions (L x W x H) (mm)	17609001500 mm
Engine	Honda GX390, 6.6 kW
Max. lifting force	150 kNx2
Max. lining force	130 kN
Max. lifting stroke	1020 mm
Max. lining stroke	≥310mm/time
System pressure	20 MPa
Operation handle working force	≤200N
Weight	550 kg

Packing & Delivery

Wooden box, export standard
