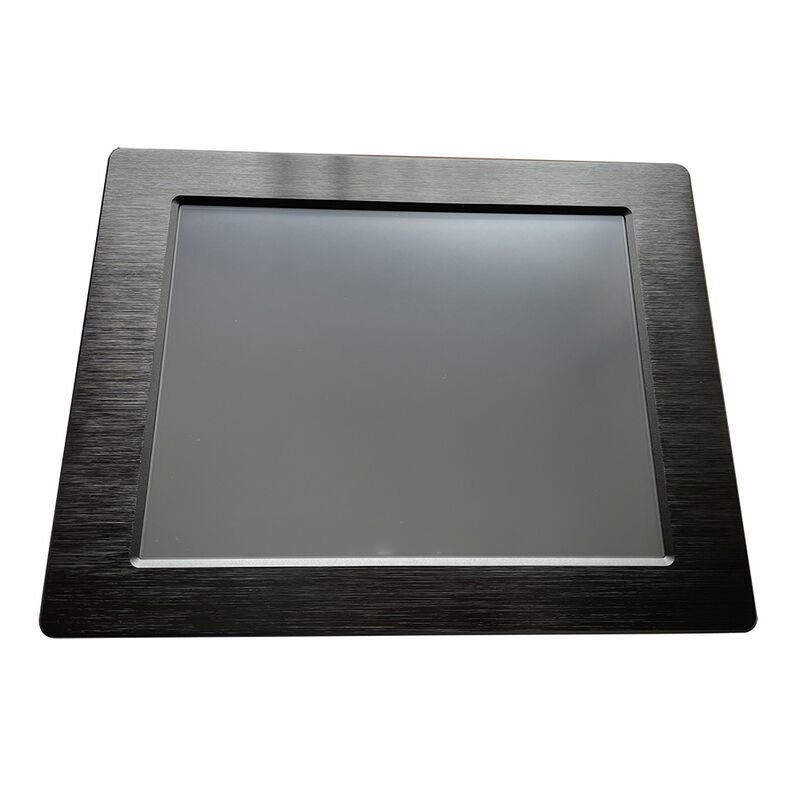

Panel pc for Industrial all in one with 15 inch lcd touchscreen and 1x LPT

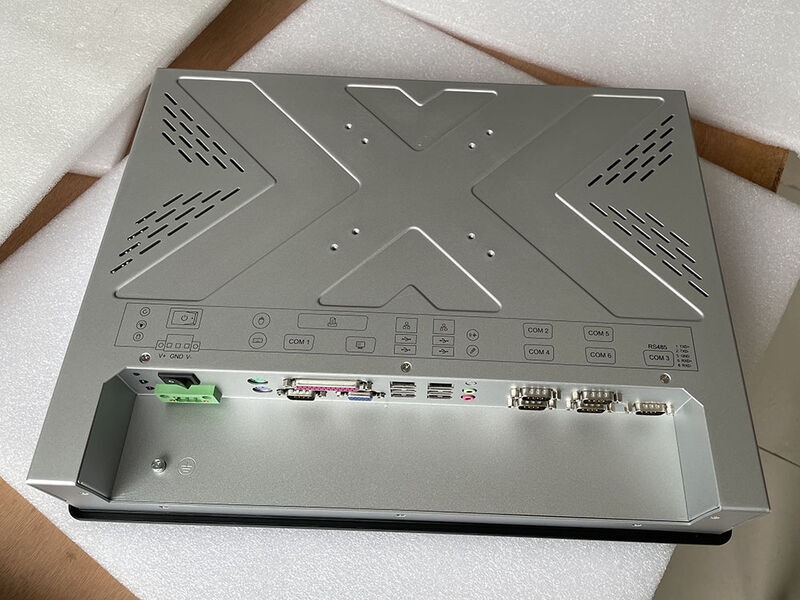

IPC-15A is a Panel pc for Industrial application all in one with 15 inch lcd panel touchscreen 5x S232 1x RS422/RS485 and 1x LPT interface.

System

Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage 500G HDD(SSD optional)
Graphic Intel HD chipset
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-inand 1x Line-out
USB Port 4 x USB 2.0
Serial Port 6*COM(5* RS232,1*RS422/RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(6 mm) and steel chassis

LCD display

Display Type 15" XGA TFT LCD(LED backlight)
Resolution 1024x768
Max.color 16.2M
Luminance 450 cd/m2
View Angle 160°(H) , 140°(V)
Pixel Pitch 0.297 x 0.297 mm
Contrast Ratio 700:1
Response Time 12 ms
LCD MTBF 50, 000hrs

Touchscreen

Type Resistive Touchscreen with internal USB interface controller
Resolution Continuous
Light Transmission 80% or more
Surface hardness 3H
Operating Force ≤100g
Life Expectancy 35 Millions

Environmental

Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Power supply

Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 32W

Packing info

Dimensions (WxHxD) 406 x 312 x 75mm
Weight Net: 6.8kg , Gross:8.6kg
