Locomotive Automatic Coupler Buffer Height Gauge

Supplier: Xiangyang Lianjie Mechanical&Electrical Co., Ltd
Region: Hubei, China
Contact: Mr Jodie Yuan
Price: $1050.00 / 1 - 5 pieces
$950.00 / 6 - 10 pieces
Min. Order: 1 piece

Click here to contact

Product details

Product Description

Locomotive Automatic Coupler Buffer Height Gauge

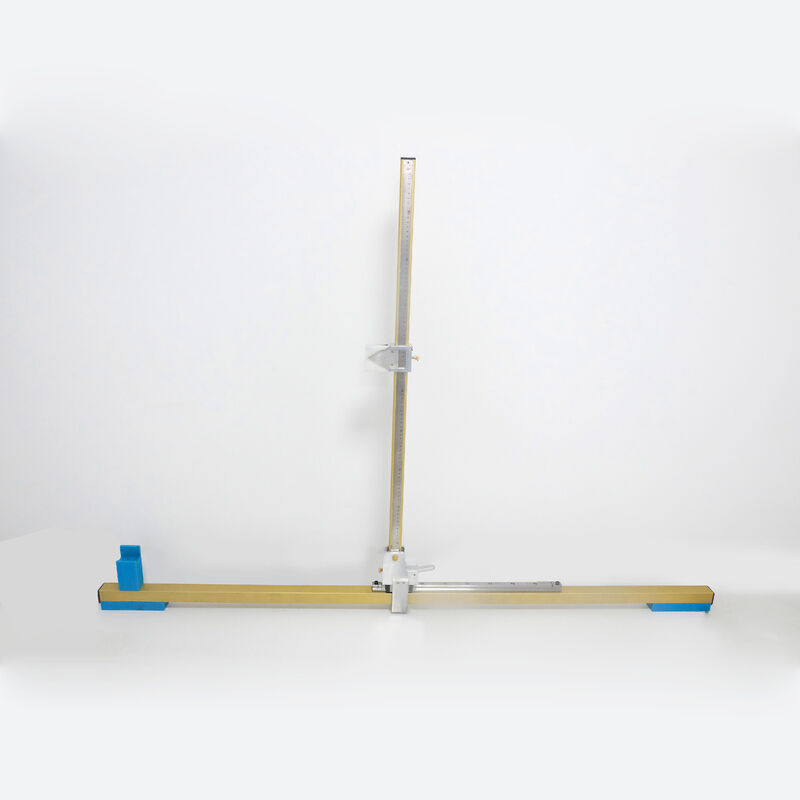

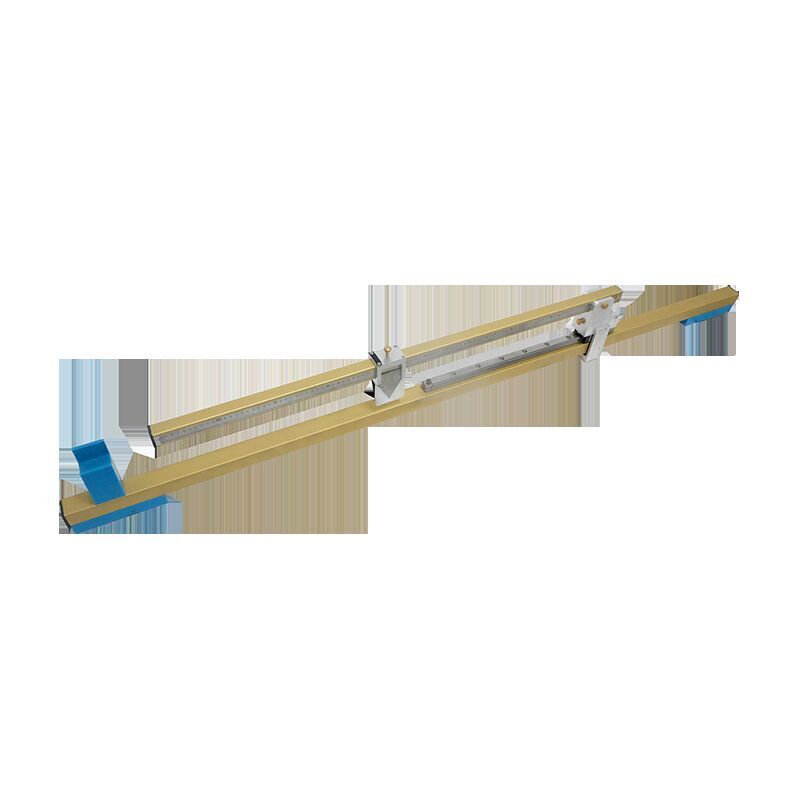

Special railway measuring instrument for measuring the center height of closely connected couplers of multiple vehicle types, Consists of foldable track base and vertical column with a measuring scale & pointer. This column has a verticality bubble and is foldable for compactness and ease in storing and transportation.

Specification

Model	LJ-GGC-A
Type	Buffer Height Gauge
Material	Aluminum alloy
Measuring Range	830mm~1010mm
Accuracy of gauge	±0.5 mm
Resolution:	0.1mm
Insulation resistance	≥1MΩ
Weight	5.6KG
Working Temperature	-10℃~﹢50℃

Packing & Delivery

Carton box

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
