model: | fuel injector | size: | 3/4", 1'' |
Supply capacity: | 30000 pieces per month | car model: | all types |
Warranty: | 3 years | temperature: | -20℃-55℃ |
Auto off sensitivity: | 0.1 seconds | Working pressure: | 0.2MPa |
brand: | ZVA | port: | Shanghai/Ningbo |
payment terms: | L/C, T/T, Western Union, PayPal | Seals: | Nitrile rubber, Viton |
Packaging Details: | Each ZVA automatic sprinkler head is packed in a plastic bag and then packed in a box. 10 in a carton. | Entry thread: | M34 *1.5 |
Original serial number: | Do not | cover: | PVC |
Flow rate: | 15 - 45L/M | place of origin; place of origin: | Zhejiang, China |
ZVA close nozzle
New ZVA automatic nozzle with snap nozzle, customer can choose magnet handle and DEF type.
Ø All types of guards are available upon request.
Ø All types of guards with block magnets are available on request.
o "ZVA" logo or blank available.
Ø 100% factory tested.
Ø Factory direct sales
Ø One year warranty and warranty

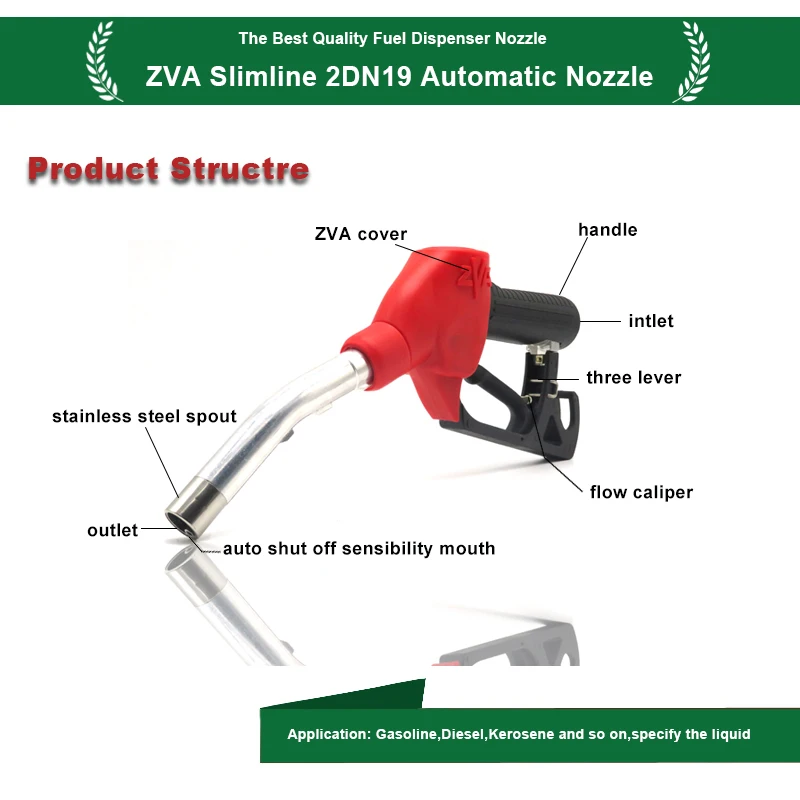

Material | |
Body | aluminum |
spout | aluminum |
rotate | aluminum |
Seals | Nitrile rubber, Viton |
cover | PVC |
Technical Specifications | |
work pressure | 0.2 MPa |
flow | 15 - 45 l/m |
Auto Power Off Sensitivity | 0.1 seconds |

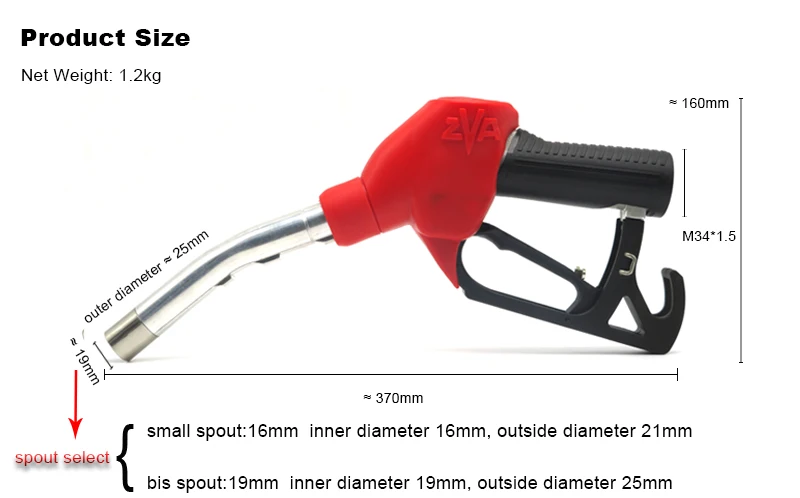

Nozzle inner diameter | 19mm |
Intel threads | M34×1.5 |
net weight | 1.2kg |
Order Specifications | ||
Numbering. | rotate | Inlet size |
ZVA2 DN1901 | without rotation | M34×1.5 |
ZVA2 DN1902 | with swivel | Female, BSP, 3/4" |
ZVA2 DN1903 | with swivel | Female, NPT, 3/4" |
ZVA2 DN1904 | with swivel | Male, BSP, 3/4" |
ZVA2 DN1905 | with swivel | Male, NPT, 3/4" |
ZVA2 DN1906 | with swivel | Female, BSP, 1" |
ZVA2 DN1907 | with swivel | Female, NPT, 1" |
ZVA2 DN1908 | with swivel | Male, BSP, 1" |
ZVA2 DN1909 | with swivel | Male, NPT, 1" |

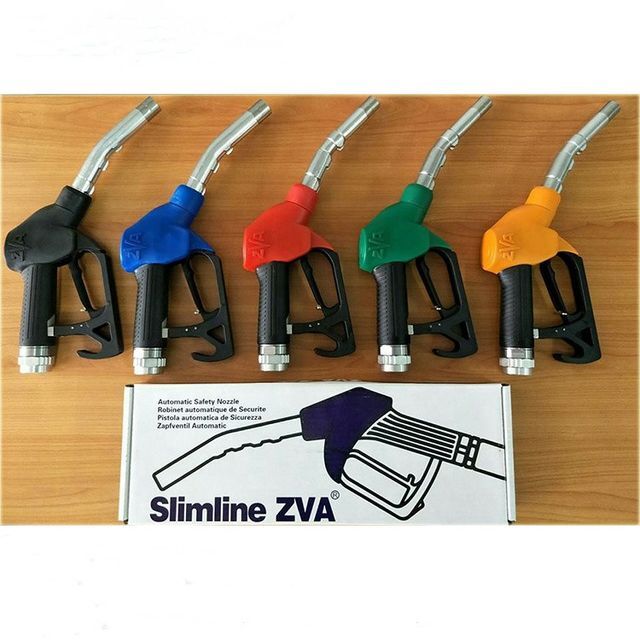

color options | |
red, green, blue, yellow, orange, black |
packaging data | |
size | gross weight |
1 piece = 48*17*6cm (box) | 1.38 kg |
10 pieces = 0.057 club (carton) | 14.1 kg |
