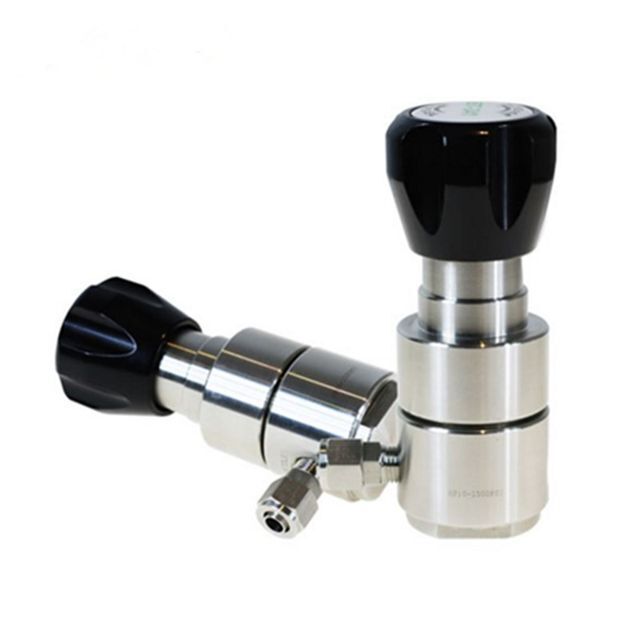

High pressure air gas pressure regulator

Supplier: Xi'an Yunyi Instrument Co., Ltd.
Region: Shaanxi, China
Contact: Ms Sunny Zhang
Price: $159.20 / 2 - 9 pieces
$139.20 / 10 - 49 pieces
$112.20 / 50 - 99 pieces
$108.20 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Sales unit:	single product	Single package size:	18X15X10 cm
Output pressure:	0-100psi, 0-200psi, 0-300psi, 0-800psi	Package dimensions:	17cm17cm17cm
CV:	(Cv)0.025 0.06, 0.08	Name:	High pressure adjustable air pressure regulator
Wire:	1/4npt, 1/2npt	Custom Support:	OEM, ODM
model:	YR31 series	Gross weight per piece:	2.500 kg
seat:	PCTFE, Vesper	Warranty:	2 years
Material:	Stainless steel	brand:	Yunyi
place of origin; place of origin:	Shaanxi, China	Input pressure:	3000psi or 6000psi
temperature:	-40℉~+165℉(-40℃~+74℃)	structure:	single stage
Packaging Details:	High Voltage Adjustable Air Pressure Regulator Anti-Static Plastic Bags and Corrugated Boxes. Other packaging methods can also be customized.

Pressure regulator

Product Description

Description of High Pressure Gas Pressure Regulator

High-pressure gas pressure regulator, single-stage diaphragm type decompression structure, stable output pressure. This pressure regulator is a general-purpose pressure reducing valve that can be used in semiconductor, laboratory, chemical analysis, instrumentation and other fields. Regulators are an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel stem and adjusting handle protect against environmental corrosion. The surface finish inside the fuselage is very high. You can choose from a variety of different seat materials, multiple bore diameters and multiple pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

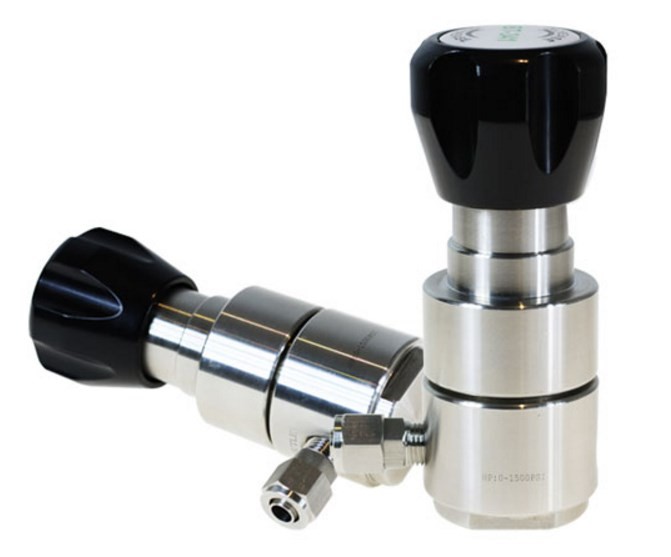

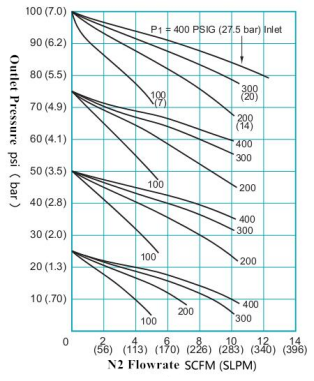

detailed image

Specification

thing	High pressure gas pressure regulator
Standard input pressure	1500psi, 3000psi, 6000psi
custom input pressure	10000psi, 15000psi
output pressure	0-50psi, 150psi, 300psi, 500psi, 750psi, 1500psi, 3000psi
application	Air, gas, oxygen, nitrogen, water (to be customized)
Body material	ss316L or brass

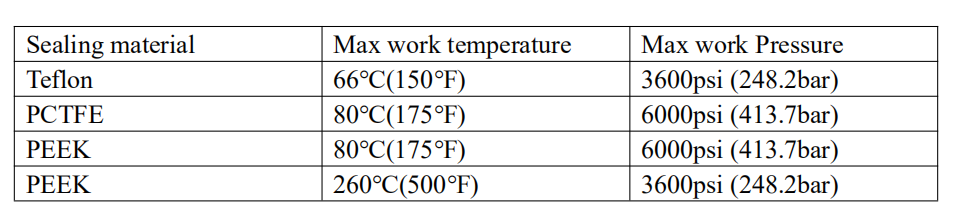

Sealing material	PTFE, PCTFE, Viton, Vespel, etc.
structure	Diaphragm, Piston, One Stage, Two Stage, Back
filter	Optional, usually must require water
CV	0.06, 0.08 standard
port thread	Standard 1/4NPTF, others can be customized
port	Standard 4 ports, 3 ports and 6 ports can be customized

feature

Structure of high pressure gas pressure regulator

1. Single-stage relief structure
2. The mother body and diaphragm are in the form of hard sealing
3. The internal structure is easy to purge, with filter
4. Can be installed using panel or wall mount
