2.5 kf 3.5 kf 5 kf 6 kf 7 kf 2-stroke 4-stroke engine out

Supplier: Shanxi Keyou Machinery Equipment Co., Ltd.
Region: Shanxi, China
Contact: Mr Ares Cheng
Price: $999.00 / 1 - 99 sets
$99.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Type of gasoline:	gasoline	Maximum output power (kw/r/min):	1.5(2.5)@5000 etc.
Supply capacity:	10 sets per week	product name:	outboard motor
Bore diameter*stroke (mm):	4538/5543/5650/6246/63*58.1	cylinder:	2
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Beam Height(mm)(S/L):	as follows
Idle speed (r/min):	900-1000, 1000-1100, 110-1200, 1500, 1800	engine:	2 stroke
Type of engine:	2/4 stroke	Gear ratio:	2.08 (27/13)
Fuel tank (L):	1.3/1.8/2.5/24/12	Health status:	new
Displacement (cc):	61-362	Dimensions (L x W x H) (mm):	as follows
Engine Location:	outboard

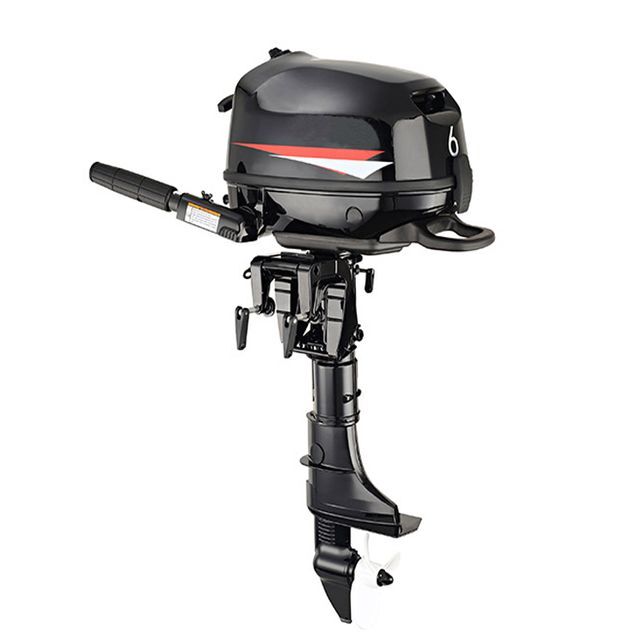

2 stroke 4 stroke marine engine outboard motor
Demand parameters	engine type
	idle speed
	shift
	Aperture*Stroke
	maximum output power
	gear ratio
	beam height
	tank
	Cylinder number
	usage

Advantage

1. Low fuel consumption

2. Super anti-corrosion

3. Integrated CDI ignition system

4. New technology, lighter weight

5. Long service life

6. Easy maintenance

7. High efficiency

8. Low noise

9. Reliable operation

10. Good startup and running performance

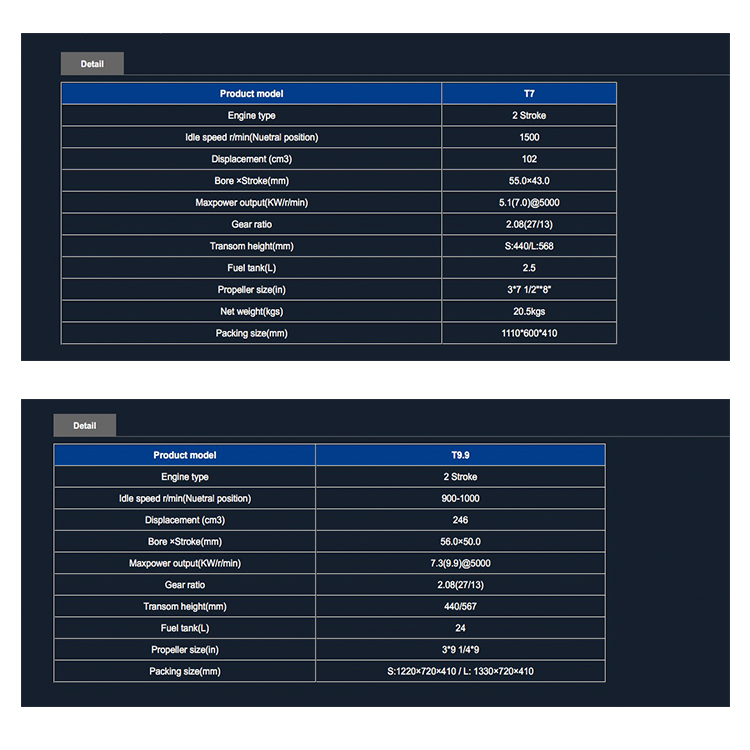

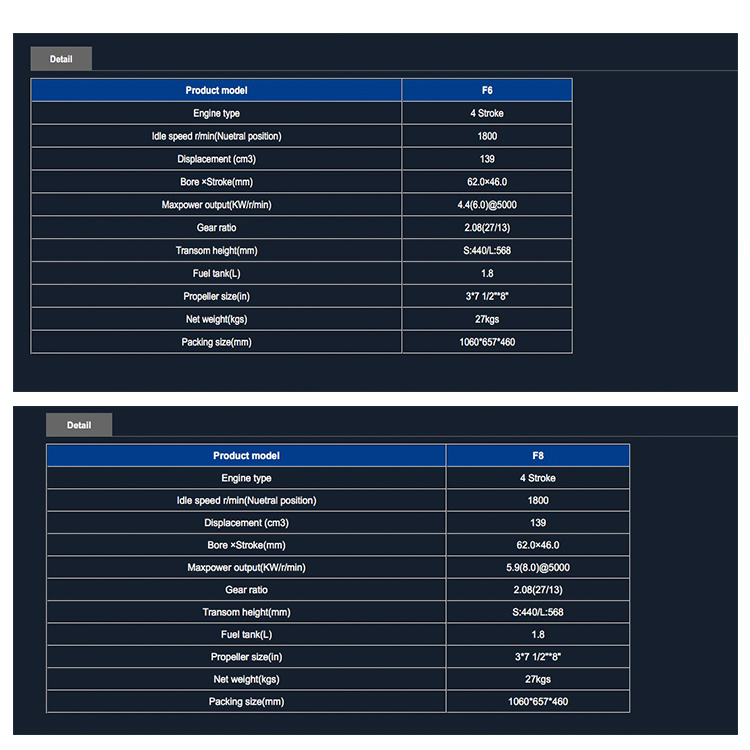

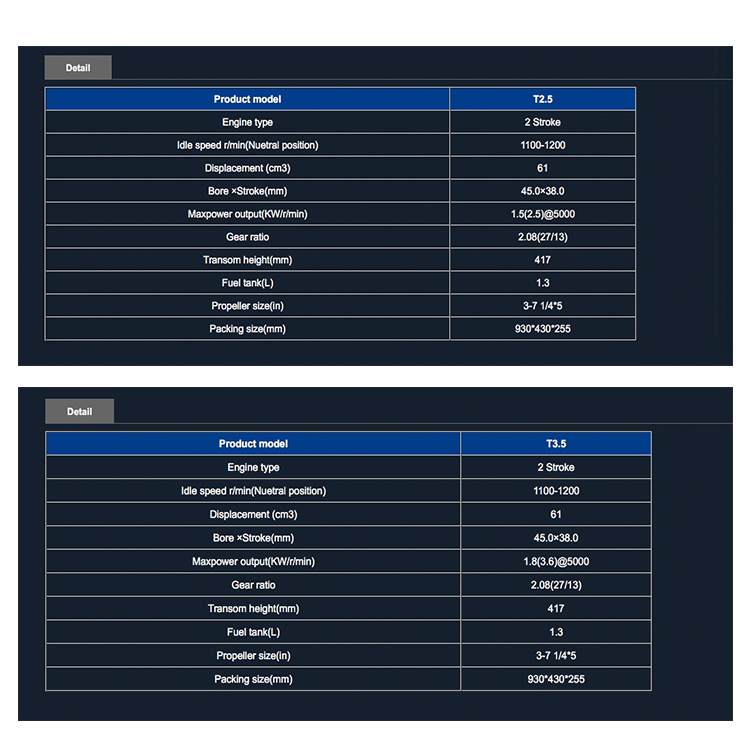

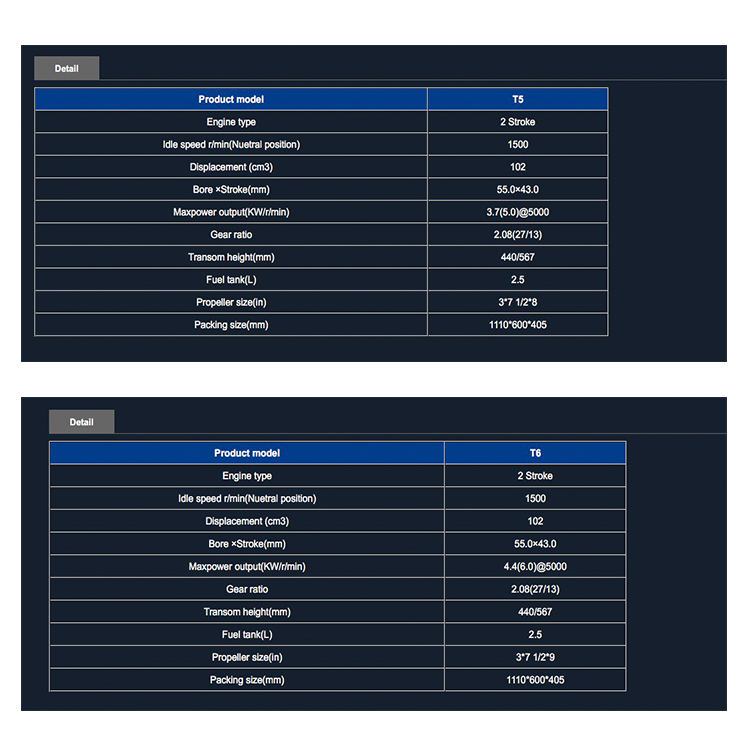

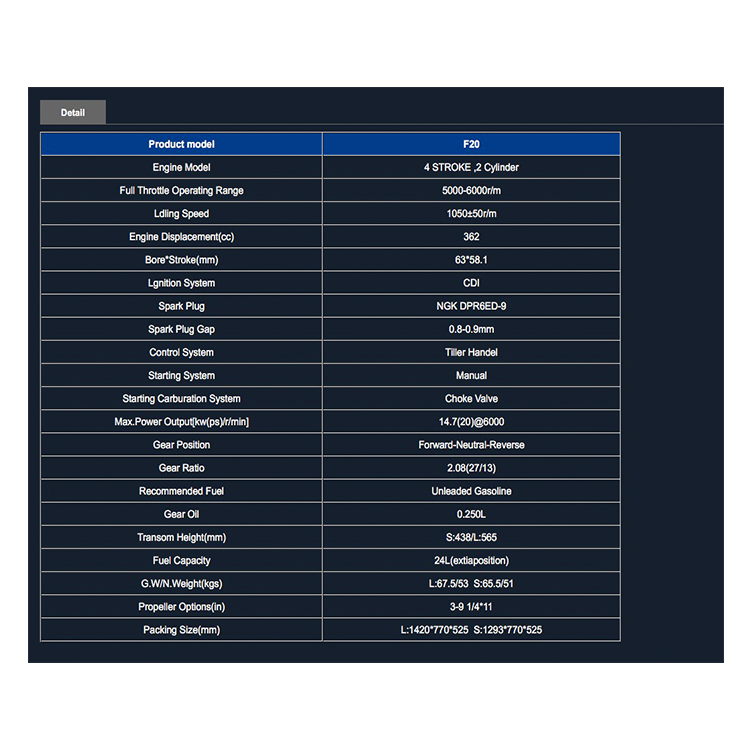

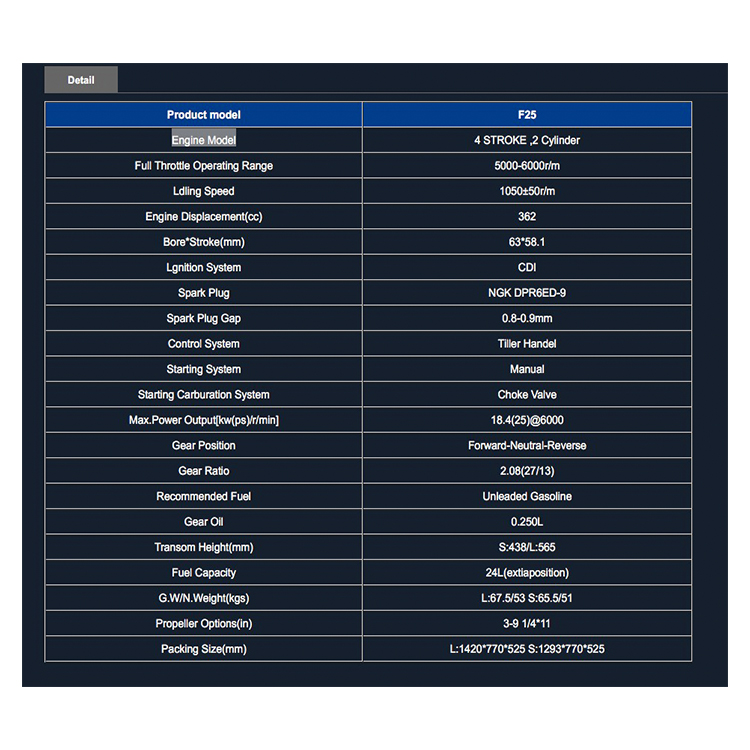

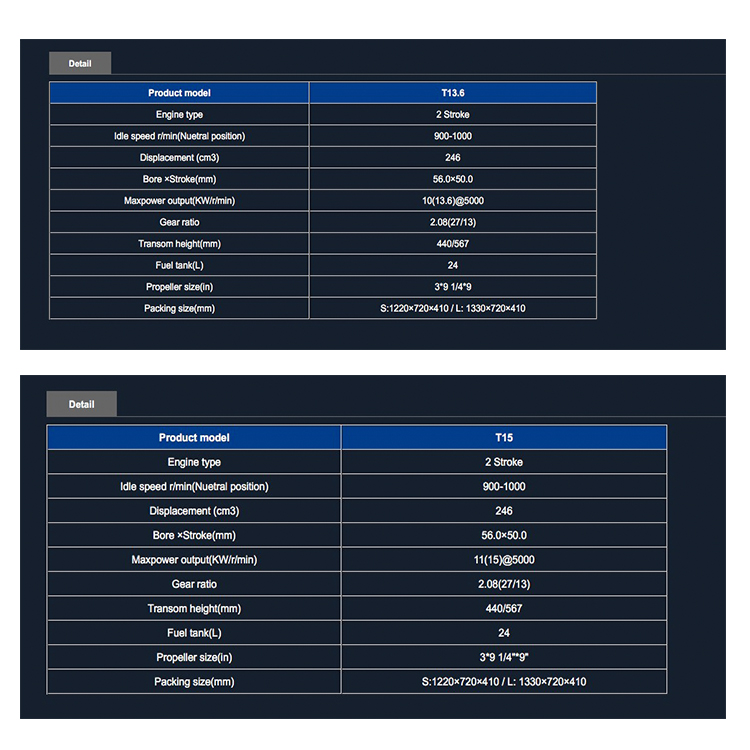

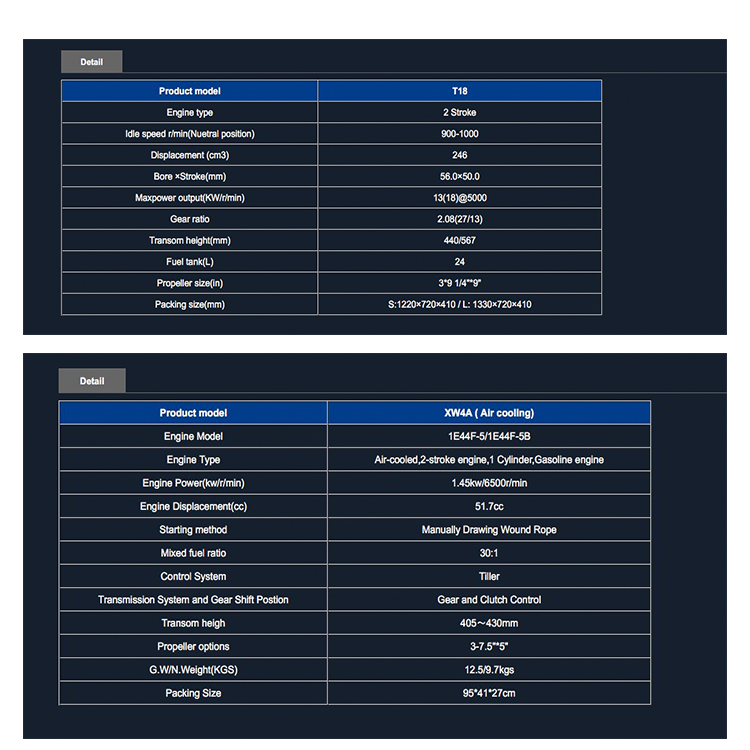

selection table

Instructions for use

1. 10 hours before the new machine belongs to the running-in period. New machines need to be added to the 4-stroke oil for the outboard. Please refer to the instruction manual for oil quantity (connect the oil pipe, the oil pipe arrow is connected to the upper end of the oil pipe, loosen the vent on the fuel tank cover. Put the bolt, pump oil, propeller and water inlet into the water, the gear is in the neutral position, pull out the choke valve, insert the The red flame rope starts the engine and pushes the choke back immediately after the machine starts.

2. After starting, observe the outflow hole of the cooling water of the outboard motor, and there should be enough water to discharge (if it is not stopped immediately for inspection).

3. Before sailing or stopping, run at idle speed for 3 minutes to warm up or cool down the engine.

4. The gear should be fast and in place (it needs to be carried out at idle speed, otherwise the gear will be broken). When accelerating, the accelerator should be slowed down.

5. Change the oil after 10 hours of running-in period, and change the oil once every 3-6 months, depending on the usage.

6. After 10 hours, change the gear oil. After the replacement is full, inject from the bottom up. There is no professional tool to inject from top to bottom.

7. Cherish the water source and do not dump the waste oil at will.

8. The outboard engine warranty must use the original outboard engine oil (four-stroke engine oil) and gear oil (for outboard engine). Read the engine manual for details.
