Supply capacity: | 500 sets per month | Marketing Type: | New Products 2020 |
Video external inspection: | if | Warranty: | 1 year |
strength: | 1000W | place of origin; place of origin: | Zhejiang, China |
Showroom location: | Canada, UK | Voltage: | 220V/380V |
port: | Ningbo | Core components: | engine |
Applicable industries: | manufacturing plant | payment terms: | letter of credit, wire transfer |
weight: | 1000kg | Dimensions (L*W*H): | depending on model |
Processing: | Sterilizer | Health status: | new |
brand: | Taikang | model: | traditional knowledge |
Processing Type: | Carbonated drinks | Packaging Details: | wooden box |
Mechanical test report: | if | Core Components Warranty: | 1 year |

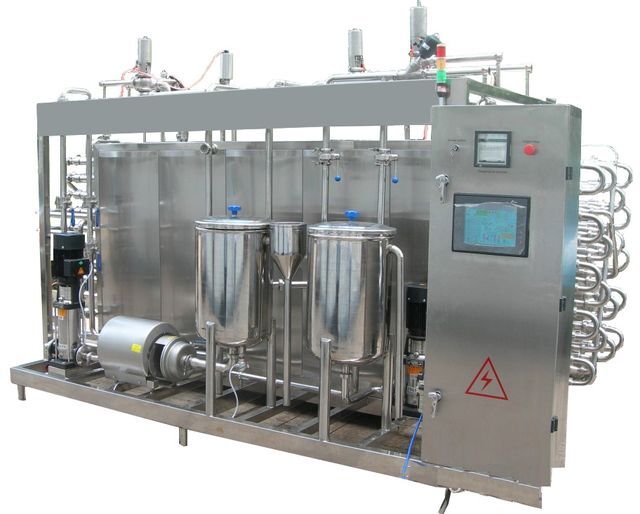

Chinese brand multi-purpose sterilizer sterilization equipment
Sterilization principleIt uses ultra-high pressure sterilization equipment EHV to destroy mold and bacterial tissue to maintain food freshness. In the process of food sterilization, there is absolutely no conventional sterilization methods such as heating and adding preservatives, so as to reduce the loss of unfavorable flavor caused by food nutrition. With the increasing demand for food by the country and the people, food processed by ultra-high pressure equipment is more and more favored by all sectors of society.
The sealing technology of the ultra-high pressure sterilization equipment is the key to the operation of the entire system. The company has accumulated a large number of high-pressure technologies, which are full of vitality. Combined with foreign materials and sealing technologies, after many continuous tests, the company's ultra-high pressure sealing technology has formed a standard. The ultra-high pressure equipment was successfully sealed for use in the test equipment, and it worked very stably under the pressure of 600MPa.
Model | TK-600/50L | TK-600/100L | TK-600/200L | TK-600/250L | TK-600/300L | TK-600/400L | TK-500/400L |
greatest pressure | 600MPa | 600MPa | 600MPa | 600MPa | 600MPa | 600MPa | 400MPa |
media substance | water | water | water | water | water | water | water |
Internal dimensions | diameter:ø220mm length:1500mm |
diameter:ø260mm length:2125mm |
diameter:ø300mm length:3030mm |
diameter:ø300mm length:3740mm |
diameter:ø320mm length:3930mm |
diameter:ø360mm length:4300mm |
diameter:ø400mm length:4400mm |
Equipment size | 4MeterX3MeterX2Meter (transition zone6Meter) |
5MeterX3MeterX2Meter (Transition zone 8 m) |
5.5MeterX3MeterX2Meter (Transition zone 10 m) |
6MeterX3MeterX2Meter (Transition zone 12 m) |
6MeterX3MeterX2Meter (Transition zone 12 m) |
6.5MeterX3MeterX2Meter (Transition zone 14 m) |
7MeterX3MeterX2Meter (Transition zone 15 m) |
White | 25Ton | 33Ton | 45Ton | 55Ton | 60Ton | 80Ton | 90Ton |
phosphorusPressurization time | 3-5minimum | 3-5minimum | 3-5minimum | 3-5minimum | 3-5minimum | 3-5minimum | 3-5minimum |
strength | 40KW | 80KW | 120kW | 160KW | 160KW | 240KW | 240KW |
Equipment size (mm) |
1700X1300X1800 |
Equipment weight (kg) | 3000 |
Rated capacity (L) | 2-5 |
Power equipment (kw/h) | 12 |
Start power equipment (v) | 380V |
Pressurization time | 180-280 |
part | Touch screen control system, cooling system, heating system, water treatment system |
Media device application: | Low pressure control 46# anti-wear hydraulic oil |
High pressure system | Filtered local tap water |
