Gross weight per piece: | 0.100 kg | Substrate: | Glass |

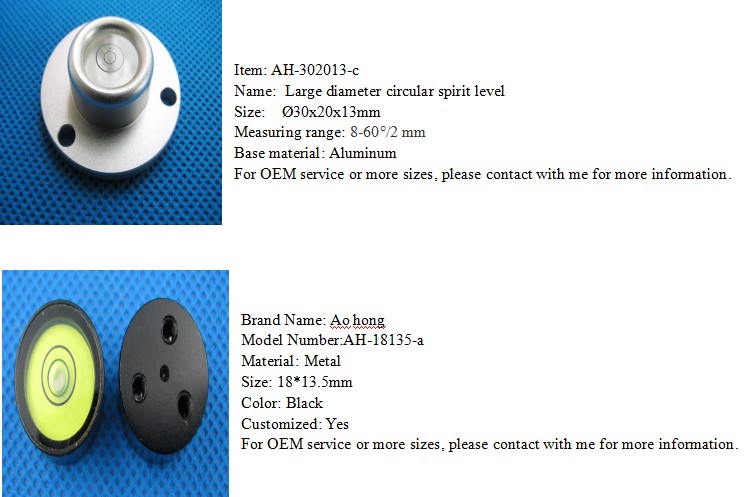

brand: | proud red | Name: | Large diameter circular spirit level |
Single package size: | 7X4X2 cm | Packaging Details: | Plastic bag and carton, standard export packing. |
place of origin; place of origin: | Hebei china | Sales unit: | single product |
Packaging Preview: | Sensitivity: | 15'/2mm | |
model: | AH-1007520-a | size: | 60*10mm |
Tubular Level Bubble Glass Level
We specialize in the production of bubble level bottles. Our advanced production technology and equipment allow us to produce standard and customized bubble levels at competitive prices. Our stringent inspection standards and temperature tests allow us to produce high quality and high performance spirit level bottles.

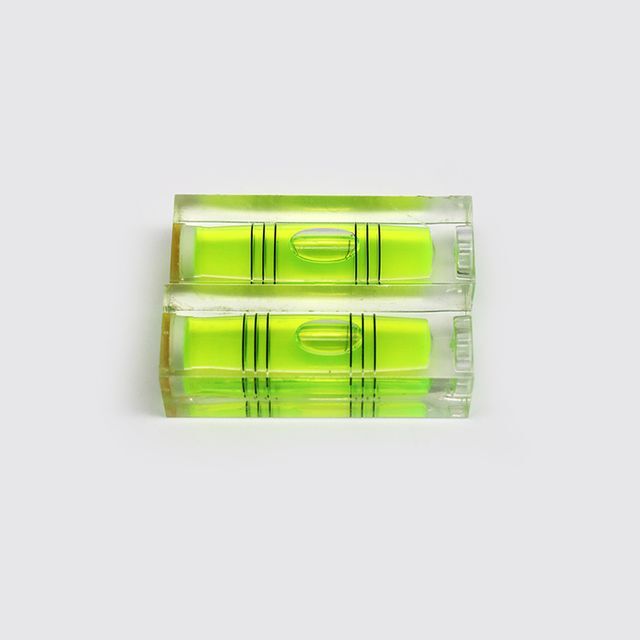

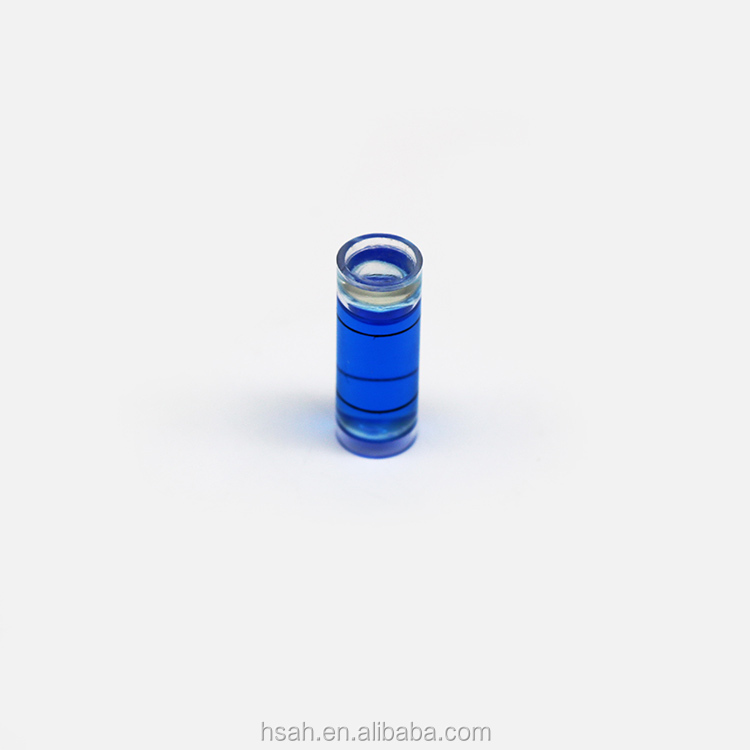

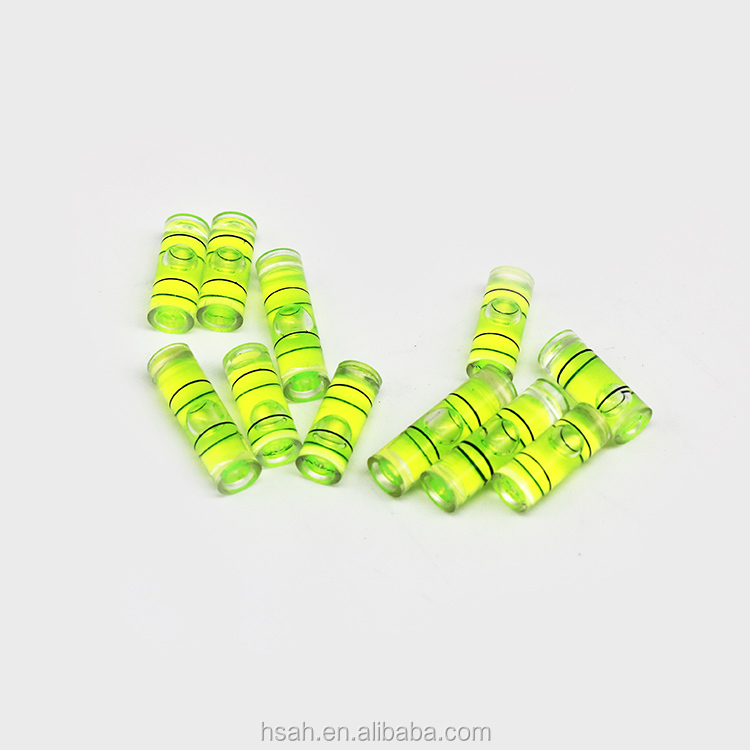

1. Tubular spirit level
Tubular spirit level bottles are often used in applications that require more precision than can be achieved with low-cost plastic bottles. We manufacture products in a variety of sizes and sensitivities, as well as many standard types as well as custom made for OEMs.
General size: diameter 6-18mm, sensitive 2 seconds-10 seconds. Custom sizes and designs are available.
part number | diameter | shoulder length | full length | Sensitive |
AH-1358 | 13mm | 58mm | 63mm | 10 seconds |
AH-1366 | 13mm | 66mm | 68mm | 10 seconds |
AH-1395 | 13mm | 95mm | 99mm | 4 seconds |
AH1496 | 14mm | 96mm | 99mm | 4 seconds |

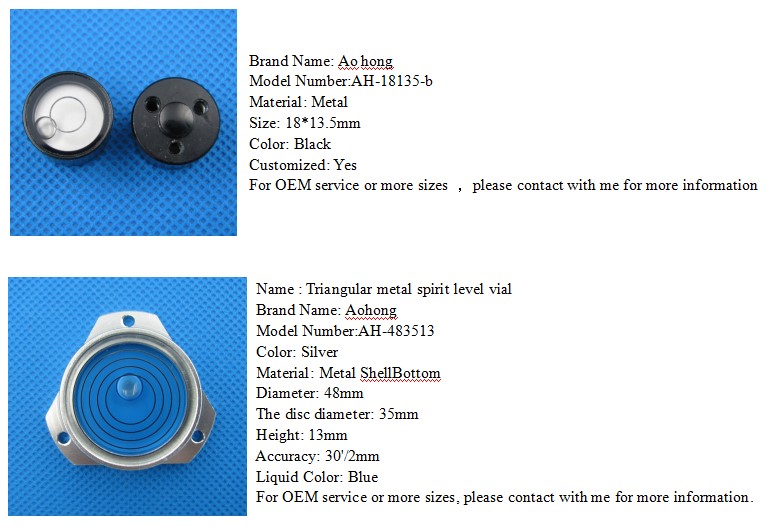

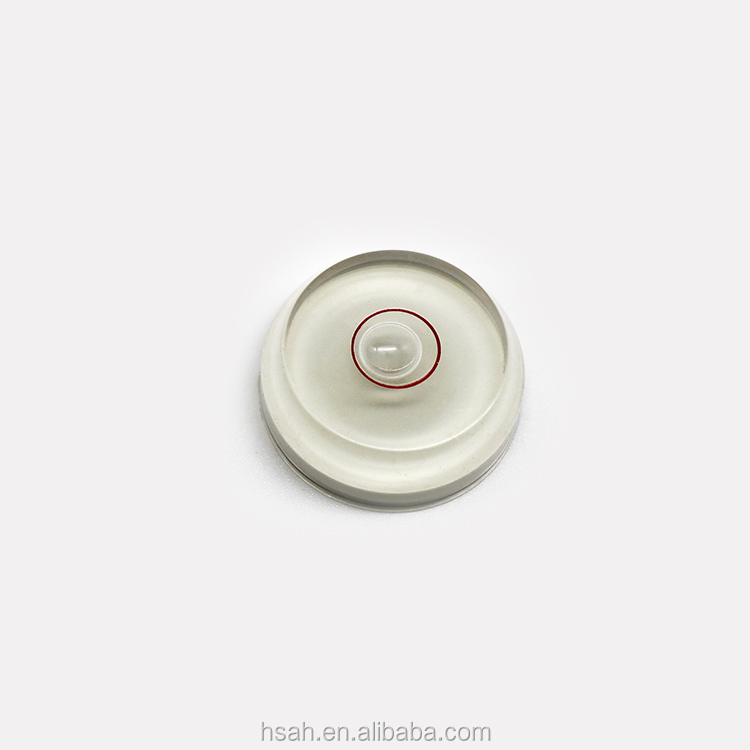

2.circular spirit level
Material: Borosilicate glass
Liquid color: green, red, transparent
Size as needed.
part number | diameter | high | accurate |
AH-4112 | 41mm | 12mm | 6 seconds |
AH-4112 | 51mm | 12mm | 6 seconds |
AH-1507 | 15mm | 7mm | 10 seconds |
3.Bending Level
The curved spirit level bottle can be used for leveling and measuring angles. They are generally less sensitive than ground vials and are used in place of plastic vials where custom size, sensitivity or line markings are required.
part number | diameter | shoulder length | Sensitive | Bending radius |
AH-945B | 9mm | 45.5mm | 15 minutes | 460mm |
AH-752B | 7mm | 52mm | 24 minutes | 203mm |
Custom sizes and designs available |
