Mould die spring and Customized industrial compressing spring

Supplier: Shenzhen Xuting Mould Technology Business Department
Region: Guangdong, China
Contact: Ms Tovi D
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Usage:	Industrial;	Style:	Spiral;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Detector Flaw:	100%;
Packaging Detail:	Carton;	Fatigue Test:	>60,000,000;
Model Number:	variety;	Material:	Steel;
Supply Ability:	8000000 Piece/Pieces per Day coil spring;	Wire diameter:	0.03mm-12.00mm;
Salt Spray Test:	>800H;	Port:	shenzhen;
Brand Name:	XT;	Materials:	Steel;
Load Type:	Compression;	Place of Origin:	Guangdong China (Mainland);

Product Description

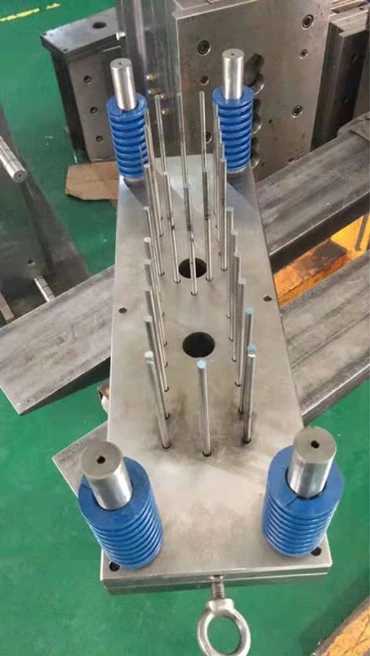

1. The use of the mold spring

The mold spring is a flat coil spring used for punching metal molds. It can also be used in other mechanical manufacturing applications. It can be designed according to the application scenario to match.

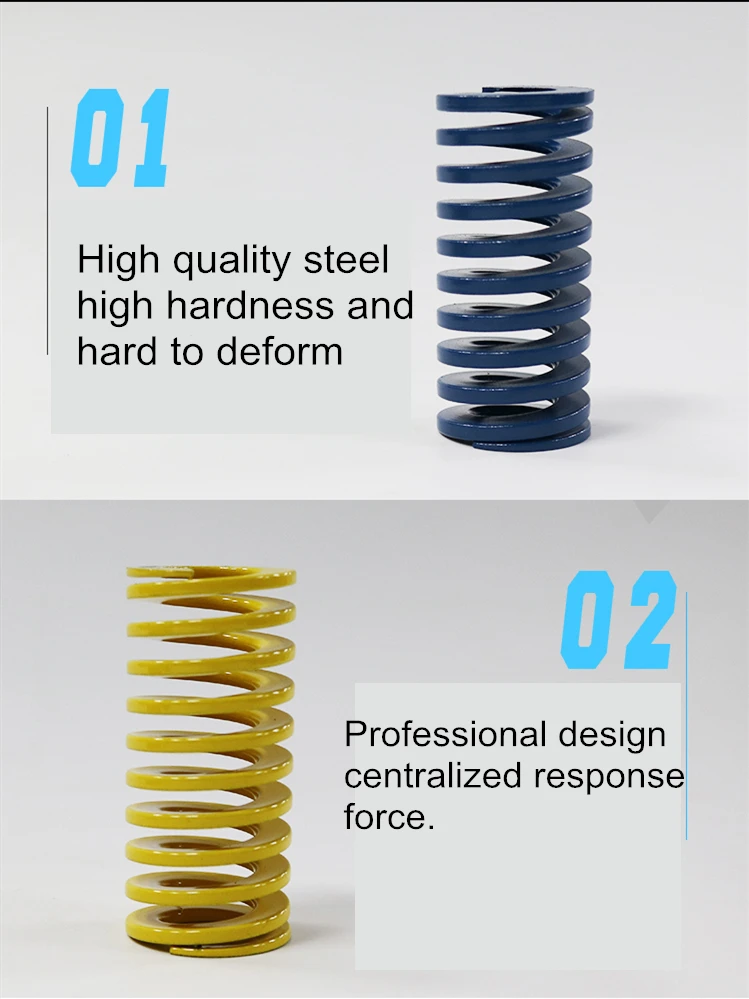

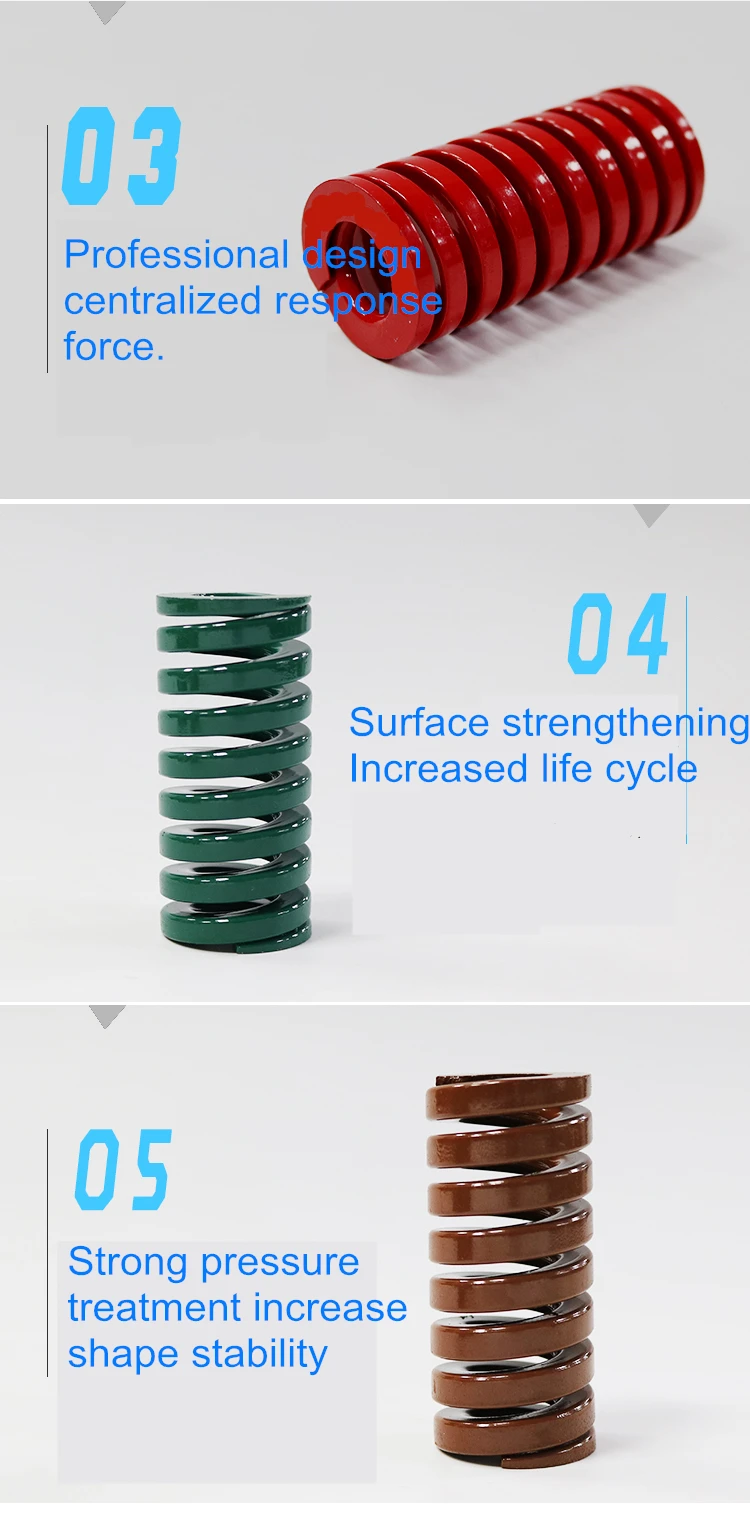

2. Characteristics

(1) High-strength manufacturing

(2) The spring is resistant to high temperatures up to 280 degrees Celsius

(3) All springs have passed the strong pressure test

(4) Durable material after life test

(5) The spring surface is strengthened

3. Type

(1) Light and small load (TF)

(2) Light load (TL)

(3) Moderate Force (TM)

(4) Heavy Force (TH)

(5) Extremely Heavy Force (TB)

4.How to choose the right spring?

(1) 2D/3D drawing customization

(2) Provide parameters: load, spring outer diameter, spring wire diameter, number of coils, life cycle, compression, tolerance.

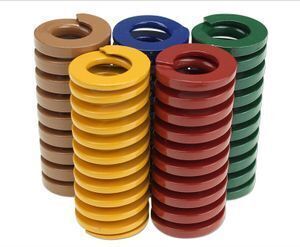

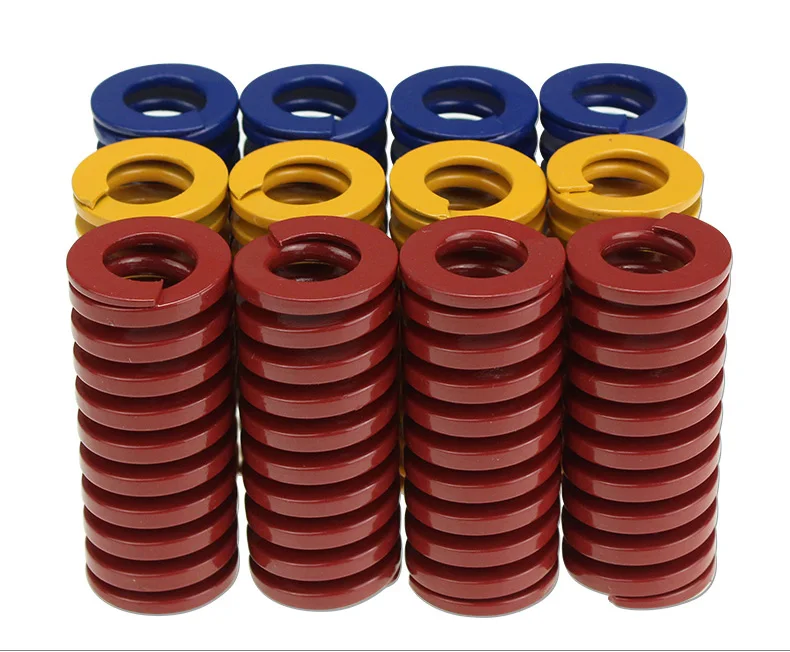

5. The list of spring example specifications is as follows:(Different colors with different prices).

Outer diameter	Inner diameter	Yellow	Green	Red	Blue	Brown
8×	4.0+	0.32	0.32	0.32	0.32	0.35
10×	5.0+	0.30	0.30	0.30	0.32	0.37
12×	6.0+	0.30	0.30	0.32	0.32	0.42
14×	7.0+	0.30	0.30	0.32	0.32	0.42
16×	8.0+	0.30	0.30	0.30	0.32	0.39
18×	9.0+	0.32	0.32	0.42	0.46	0.53
20×	10.0+	0.50	0.55	0.61	0.66	0.77
22×	11.0+	1.61	0.72	0.77	0.88	1.05
25×	12.5+	0.77	0.83	0.94	1.05	1.27
27×	13.5+	0.94	1.05	1.16	1.27	1.43
30×	15.0+	1.05	1.16	1.27	1.38	1.54
35×	17.5+	1.38	1.38	1.54	1.65	1.93
40×	20.0+	1.93	2.04	2.31	2.53	3.03
50×	25.0+	3.08	3.30	3.58	4.40	8.64
60×	30.0+	4.24	4.68	9.00

QC System	100% inspection before shipment.
Packaging	Standard package, Pallet or container, As per customized specifications
Delivery Date	7-30 working days based on quantity
Payment Terms	1. Ali thrade assurance (Transaction Service Fee 2%) 2. Paypal account: xushengmoju@163. (Paypal fee 6%) 3. WESTERNUNION SURNAME(LAST NAME): DUAN FIRSTNAME: GUOQIAONG Bank account: T/T transfer fees should be borne by buyer (bank fee 6%) Beneficiary Bank: Bank of ningbo ShenZhen (Arrive account after 4 working days) Beneficiary: ShenZhen XuTing Mould Techology Co.,Ltd Account Number: 73082029000019615 ADD:1-3F Fortune Building 88 FuHua 3rd Road FuTian,ShenZhen Swift code: BKNBCN2N Bank hot line: +86 95574
Shipment Terms	1) Express & FOB
Shipment Terms	3) As per customized specifications

Q: What do you need to provide a quote?

A: Please kindly send us the drawing or sample of your product. Details below should be included,

1.Materials 2. Surface Finish 3. Tolerance 4. Quantity 5.other special requirements

Q: Do you provide samples ? Is it free or extra ?

A: Yes, we are honored to offer you samples or raw material for quality inspection,but do not pay the cost of freight.

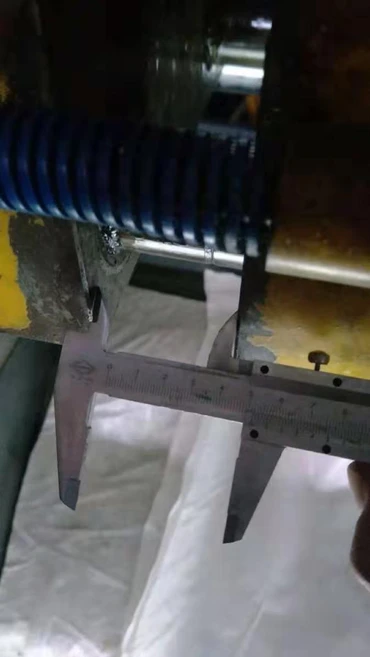

Q: How does your factory do regarding quality control?

A: Quality is priority. XuTina always attach great importance to quality control from the very beginning to the end of the production.Before processing we need to test the material first. During the processing we use bar code to tracking the proceeding.Every product will be fully polished and we will do 100% quality inspection before shipment.
