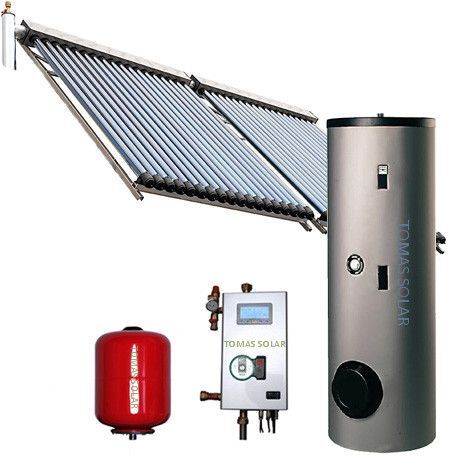

3000W Solar Hot Water System 300L

Supplier: Jiangsu Imposol New Energy Co., Ltd.
Region: Jiangsu, China
Contact: Mr Tomas Zhou
Price: $902.00 /set
Min. Order: 1 set

Click here to contact

Product details

Tube:	Glass	Collector tube type:	transition heat pipe
Material:	Aluminum alloy	port:	Shanghai
Working pressure:	< 10bar	payment terms:	letter of credit, wire transfer
Supply capacity:	10000 sets per month	Certificate:	CE , solar key mark
Hail Resistance:	25mm	place of origin; place of origin:	Jiangsu, China
connect:	22mm or 3/4'	Tube number:	30
model:	IPSV	Operating temperature:	-50 degrees to 100 degrees
frame:	0 - 60 degrees	color:	silver
Warranty:	5 years	Packaging Details:	Standard export packaging of solar collector includes wooden box and carton packaging
brand:	IMPOSOL	Tube:	copper

Evacuated Tube Heat Pipe Solar Collector with CE ISO TUV SGS

Heat Pipe Solar Collector Kit - 3000W Heating Capacity

We are a professional solar water heater manufacturer

Has ISO and CE certificates in Changzhou, China.

describe:
1) Reliable and efficient double glass solar tube
2) Copper heat pipe for fast heat transfer
3) Simple plugin installation
4) Free maintenance
5) Suitable for main pressure water (up to 8 bar/116psi)
6) Corrosion resistant silver brazed copper joint
7) The surface is made of aluminum plate.
8) Powder Coated (Black, Brown or Silver) Aluminum Housing
9) Stable solar energy conversion during the day.
10) The perfect solar collector for home solar water heater systems
11) Ideal for commercial solar water heating applications
How this works:
1) The operation of the solar collector is very simple.
2) Solar absorption: The solar radiation is absorbed by the solar tube and converted into heat.
3) Solar heat transfer: The heat pipe conducts heat from the solar pipe to the main pipe
4) Solar energy storage: Water is circulated through headers and through intermittent pumps. Every time the water is cycled through
Header, temperature rise 5-10º C. Throughout the day, the water in the tank gradually heats up

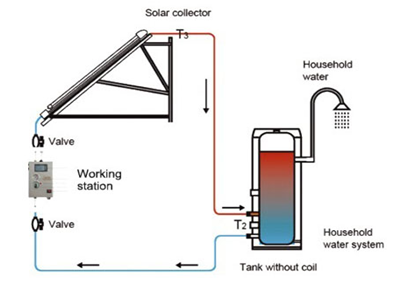

Vacuum tube split solar water heater

- Coilless heat exchanger

(Open Loop & Active & Direct System)

capacity		200 liters	300 liters	400 liters	500 liters
solar collector	type	Vacuum tube heat pipe pressure, working pressure 6bar, test pressure 10bar.
	Model	IPRB581820	IPRB581830	IPRB581820	IPRB581825
	Number of tubes	20	30	20×2	25×2
solar water tank	type	Pressure, SUS304 stainless steel liner, working pressure 6bar, test pressure 10bar.
	Model	IPWT-200	IPWT-300	IPWT-400	IPWT-500
	Number of coils	No stainless steel coil
Solar Pumping Station	type	single pipe. EPP high density foam insulation housing, pump station with control unit
	Model	SR881 (with SR802 high power relay)
	Pump	Grundfos or Wilo RS 15/6 230V
Connectors & Valves		Tee, Exhaust Valve, 22mm Connector
Package Size (CBM)		1.07	1.56	1.96	2.37

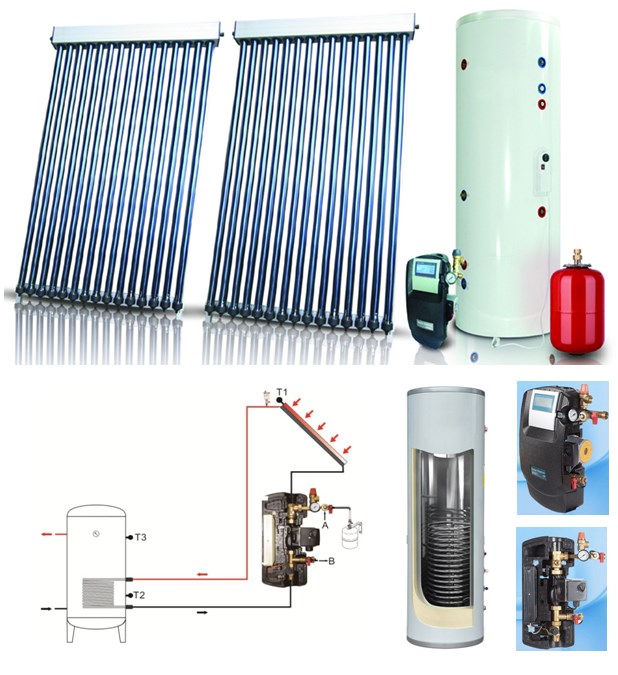

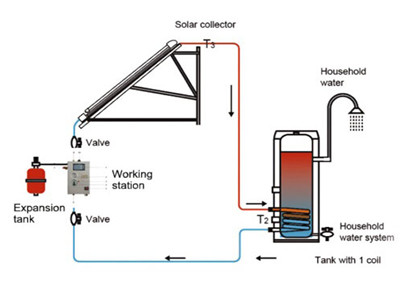

Vacuum tube split solar water heater

- a coil heat exchanger

(Closed Loop & Active & Indirect System)

Model		IPSV200(1)-20	IPSV300(1)-30	IPSV400(1)-40	IPSV500(1)-50
capacity		200 liters	300 liters	400 liters	500 liters
solar collector	type	Vacuum tube heat pipe pressure, working pressure 6bar, test pressure 10bar.
	Model	IPRB581820	IPRB581830	IPRB581820	IPRB581825
	Number of tubes	20	30	20×2	25×2
solar water tank	type	Pressure, SUS304 stainless steel liner, working pressure 6bar, test pressure 10bar.
	Model	IPWT-200	IPWT-300	IPWT-400	IPWT-500
	Number of coils	1 stainless steel coil
Solar Pumping Station	type	single pipe. EPP high density foam insulation housing, pump station with control unit
	Model	SR881 (with SR802 high power relay)
	Pump	Grundfos or Wilo RS 15/6 230V
Expansion tank	type	Pressure, maximum 10Bar working pressure
Expansion tank	Model	12L	19L	19L	24L
Connectors & Valves		Tee, Exhaust Valve, Fill Valve, 22mm x 3/4inch Connector
Package Size (CBM)		1.07	1.56	1.96	2.37

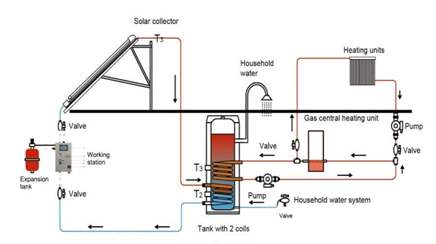

Vacuum tube split solar water heater

- Double coil heat exchanger

(Closed Loop & Active & Indirect System)

Model		IPSV200(2)-20	IPSV300(2)-30	IPSV400(2)-40	IPSV500(2)-50
capacity		200 liters	300 liters	400 liters	500 liters
solar collector	type	Vacuum tube heat pipe pressure, working pressure 6bar, test pressure 10bar.
	Model	IPRB581820	IPRB581830	IPRB581820	IPRB581825
	Number of tubes	20	30	20×2	25×2
solar water tank	type	Pressure, SUS304 stainless steel liner, working pressure 6bar, test pressure 10bar.
	Model	IPWT-200	IPWT-300	IPWT-400	IPWT-500
	Number of coils	Double stainless steel coil
Solar Pumping Station	type	single pipe. EPP high density foam insulation housing, pump station with control unit
	Model	SR881 (with SR802 high power relay)
	Pump	Grundfos or Wilo RS 15/6 230V
Expansion tank	type	Pressure, maximum 10Bar working pressure
Expansion tank	Model	12L	19L	19L	24L
Connectors & Valves		Tee, Exhaust Valve, Fill Valve, 22mm x 3/4inch Connector
Package Size (CBM)		1.07	1.56	1.96	2.37
