Pipe / Pipeline / Pipeline UL797 EMT 82

Click here to contact
Product details
port:Shanghai/Ningboplace of origin; place of origin:Zhejiang, China
model:EMTtechnology:Welding
Packaging Details:Bundled or knitted bagslength:10'
Key words:catheterSupply capacity:100 tons per month
payment terms:L/C,Western Union,T/Tbrand:PST
standard:ANSI 80.3 UL797Material:steel
Specification:1/2" to 4"product name:UL797 EMT Pipe/Conduit/Pipe
type:EMT
Product Description

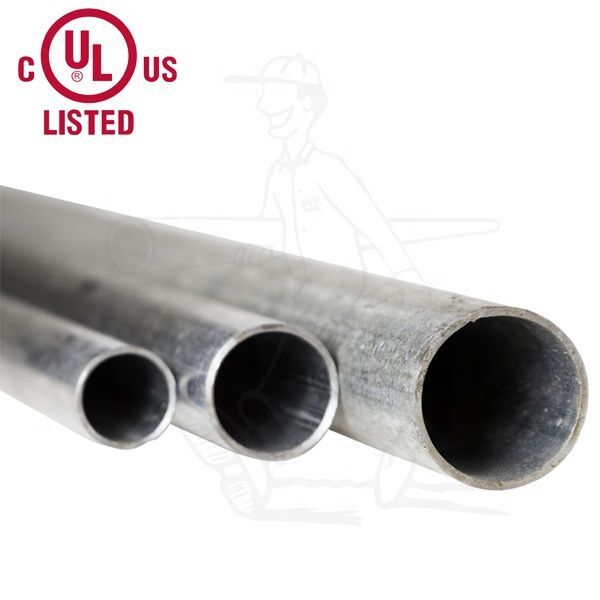

UL797 EMT Pipe/Conduit/Pipe

A range of conduit fittings for cable management offering a high level of mechanical strength.UL797 EMT Tube

product name
EMT catheterUL EMT emt emt pipe steel pipe
Material
steel/galvanized steel
Finish
Galvanized
standard
ANSI C80.3 / UL 797 / ISO
usage
Can be used for exposed and concealed work, can be used in floor lighting circuits, control lines and other low power applications
size
1/2''-4''
warn
EMT IMCRigid conduit with UL listed should behot dip galvanized,allPre-galvanizedorElectrogalvanizedPipes do not pass UL testing please note.
EMT IMCelbow shouldstandardIf the thickness is thinner, the elbow will wrinkle or break.
The standard is as follows: we can do any other thickness according to your needs. The specific standards are as follows, we also support customization
transaction size
aspect
ODx wall thickness x length
1/2"
17,93mm x 1,07mm x 3,05m
3/4"
23,42mm x 1,24mm x 3,05 m
1"
29,54mm x 1,45mm x 3,05m
1-1/4"
38,40mm x 1,60mm x 3,05m
1-1/2"
44,20mm x 1,65mm x 3,05 m
2"
55,80mm x 1,65mm x 3,05 m
2-1/2"
73,03mm x1,83mm x3,05m
3"
88,90mm x 1,83mm x 3,05m
3-1/2"
101,6mm x 2,11mm x 3,05 m
4"
114,3mm x2,11mm x3,05 m
thinner than a wall
type
transaction size
aspect
Outer Diameter x Wall Thickness x Length
1/2"
17,93mm x 0,85mm x 3,05m
3/4"
23,42 mm x 1,00 mm x 3,05 m
1"
29,54mm x 1,10mm x 3,05m
1-1/4"
38,40mm x 1,30mm x 3,05m
1-1/2"
44,20mm x 1,30mm x 3,05 m
2"
55,80mm x 1,40mm x 3,05m
Process flow chart
