size: | 1.8" | type: | External SSD Chassis |
External interface: | Thunderbolt 3/m.2 | Working standard: | Laptop or Desktop |
Supply capacity: | 10000 pieces per month | Internal interface: | NVME |
place of origin; place of origin: | Guangdong, China | Operating System Support: | Microsoft Windows and Mac OS |
brand: | Sino-Nepal Technology | Rated voltage/current: | 5V, <1.5A |
energy consumption: | < 7 watts | payment terms: | Western Union, T/T, MoneyGram |
model: | Thunderbolt 3 | flash: | W25Q80DV 8Mbit |
product name: | Thunderbolt 3 SSD Chassis | Private model: | Yes |
chipset: | JHL6540/TPS65983/Si52112 | maximum. speed: | 3,940 MB/s, normal sequential read 2800MB/s / write 2500MB/s |
product status: | in stock | Case material: | aluminum |
Close port: | Thunderbolt 3 Type-C , M-Key NVMe connector |
product:

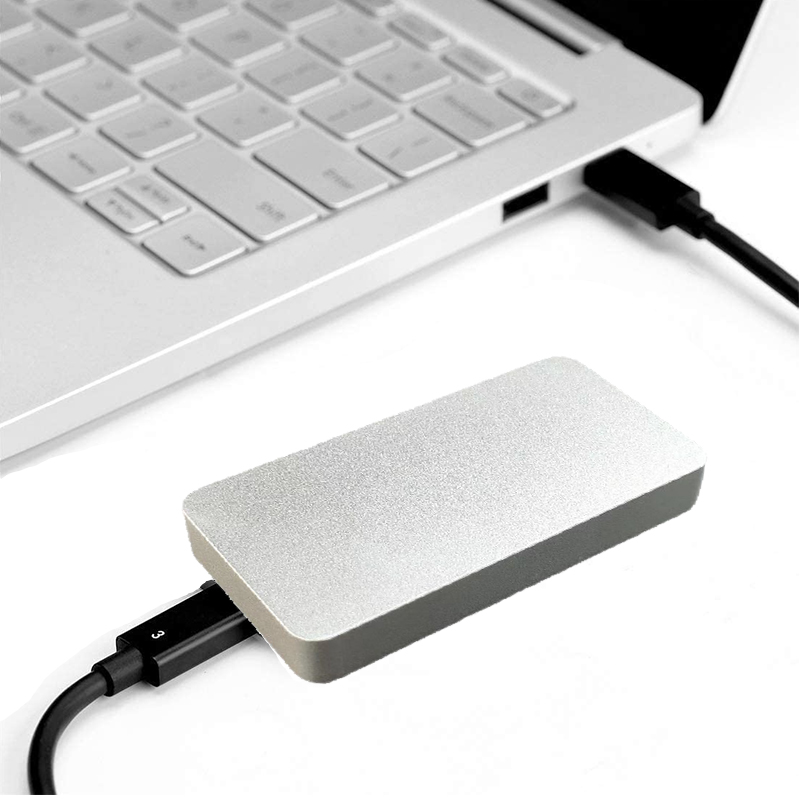

MAC Compatible Thunderbolt 3 Type C M.2 Slot 40Gbps NVME SSD Enclosure, Board Sold Separately

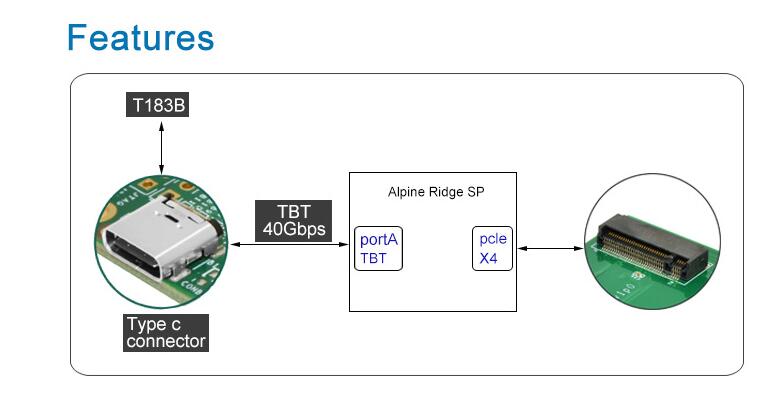

main feature:

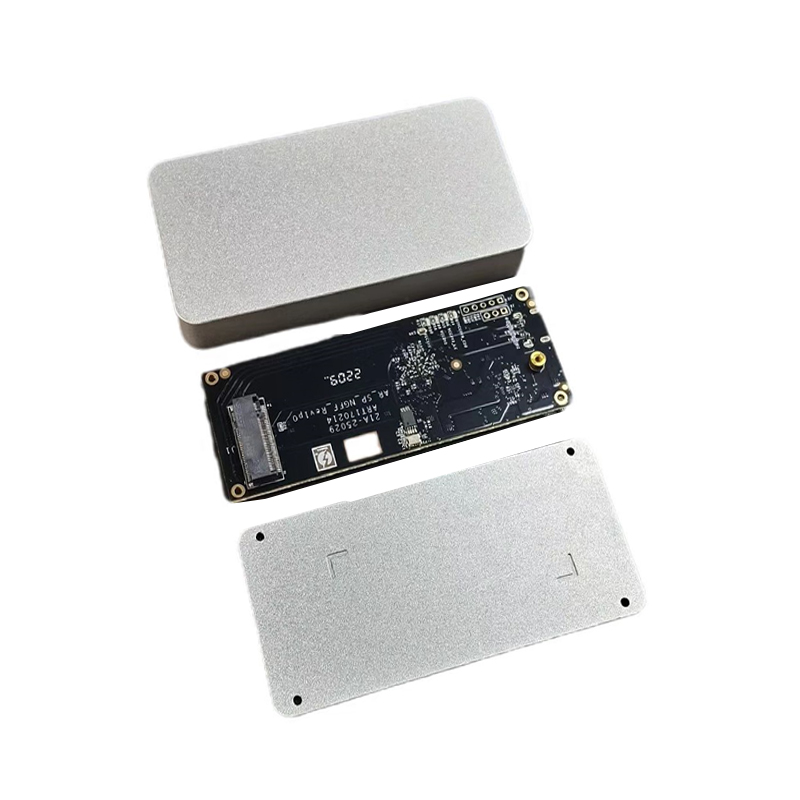

The Thunderbolt™ 3 NVMe SSD enclosure features a unique aluminum design with a plastic chassis and user-friendly installation. Thanks to its NVMe specification (PCIeGen3 x4 lanes), it has data transfer speeds 6-7 times faster than SATA and can transfer 4K movies in seconds. This product is popular with Thunderbolt™ 3 system users, such as Macbook enthusiasts.
1. Small and portable storage, aluminum design provides NVMe SSD, the maximum theoretical speed is up to 3,940 MB/s
2. Thunderbolt™ 3 provides speeds up to 40Gbps, allowing NVMe SSDs to reach peak performance, 6-7 times faster than SATA sequential read/write speeds.
3. Integrated heatsink for optimal ventilation for high-speed NVMe SSDs.
4. 0.5m Thunderbolt 3 pigtail (Intel certified) behind the case ensures the best performance of NVMe SSD
5. Plug and play connection, no installation required.
Specification Table:
port |
Thunderbolt 3 Type-C , M-Key NVMe connector |
chipset |
JHL6540/TPS65983/Si52112 |
flash |
W25Q80DV 8Mbit |
energy consumption |
< 7 watts |
Rated voltage/current |
5V, <1.5A |
Working standard |
Laptop or Dssktop with Thunderbolt 3 hardware system |
OS support |
Microsoft Windows and Apple Operating Systems |
maximum. speed |
Maximum theoretical speed 3,940 MB/s, normal |
Certification
|
Intel |
apple |
We can make the case of your design, MOQ is 1000pcs.

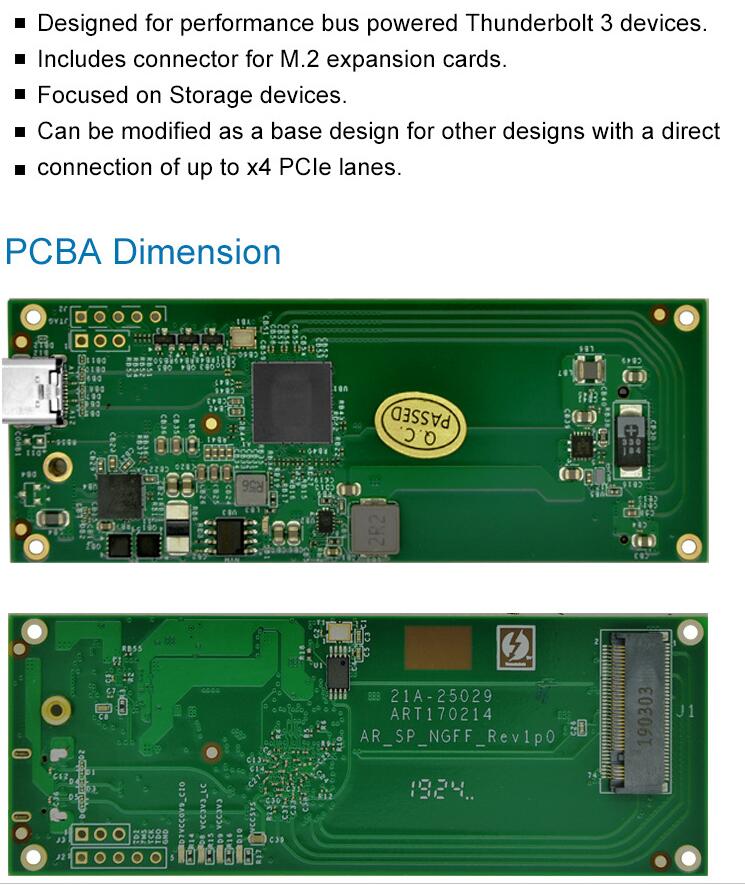

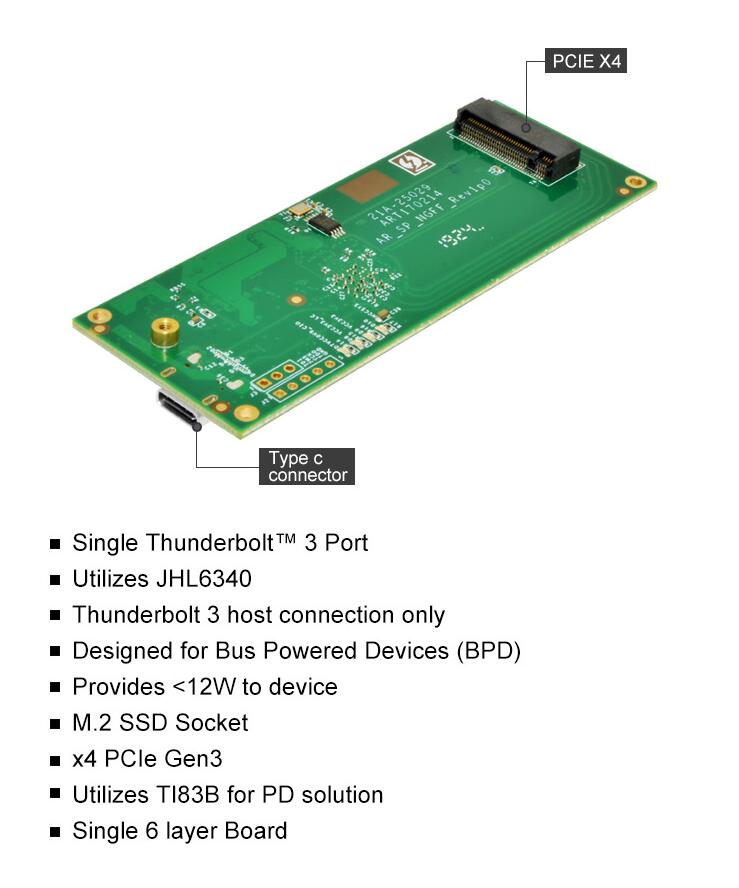

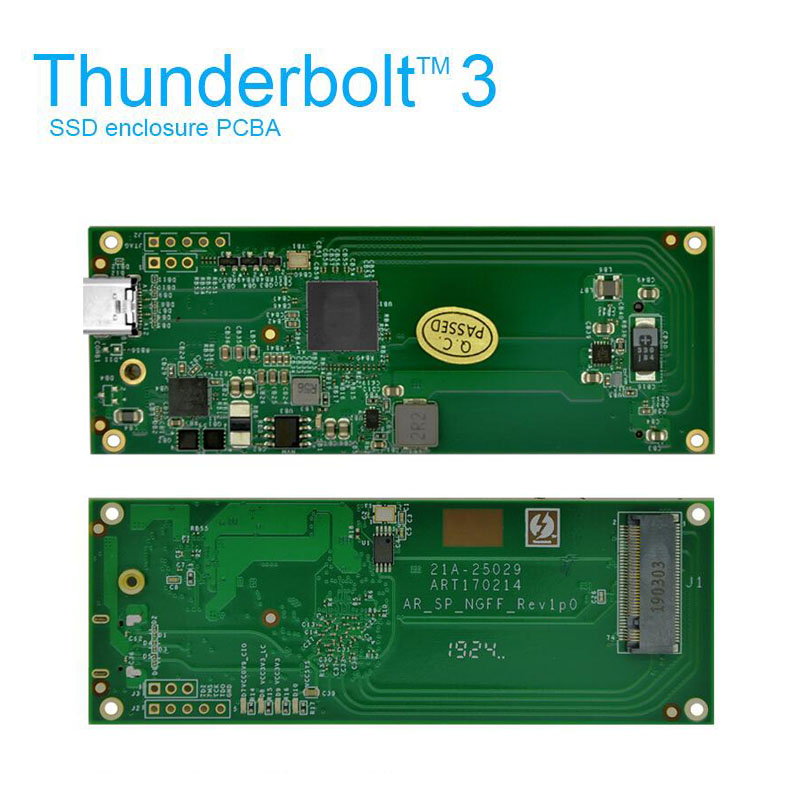

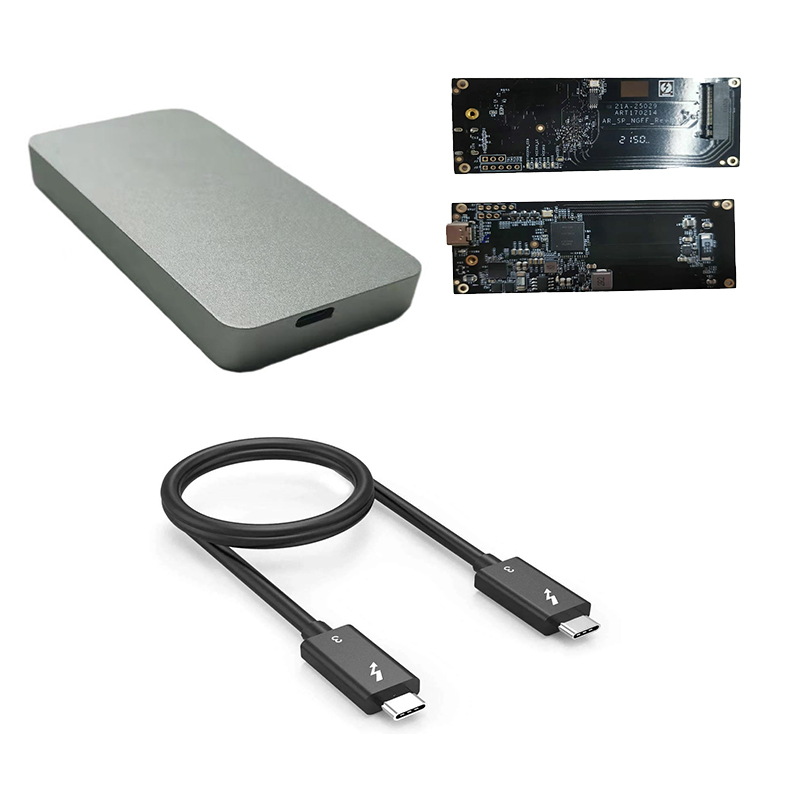

40GBPS motherboard photo:
