10 Inch Aluminum Powered Subwoofer Box 12V Slim Active Subwoofer Box Under Car Seat With Amplifier Under Car Under Seat

Supplier: Tongxiang Senon Audio Co., Ltd.
Region: Zhejiang, China
Contact: Ms Joyce Xu
Price: $76.00 / 2 - 49 pieces
$72.00 / 50 - 99 pieces
$67.00 / 100 - 299 pieces
$63.00 / >=300 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Sales unit:	single product	Sensitivity:	91 - 100 dB
size:	10 inches	impedance:	2 ohms
model:	BX1003	Gross weight per piece:	6.000 kg
brand:	Sennon Audio	Voltage:	DC 12V
Single package size:	49X12X32.5 cm	Packaging Details:	1 piece in a gift box 4 pieces in a shipping box
case:	aluminum	Warranty:	1 year
place of origin; place of origin:	Zhejiang, China

Product Description

feature:

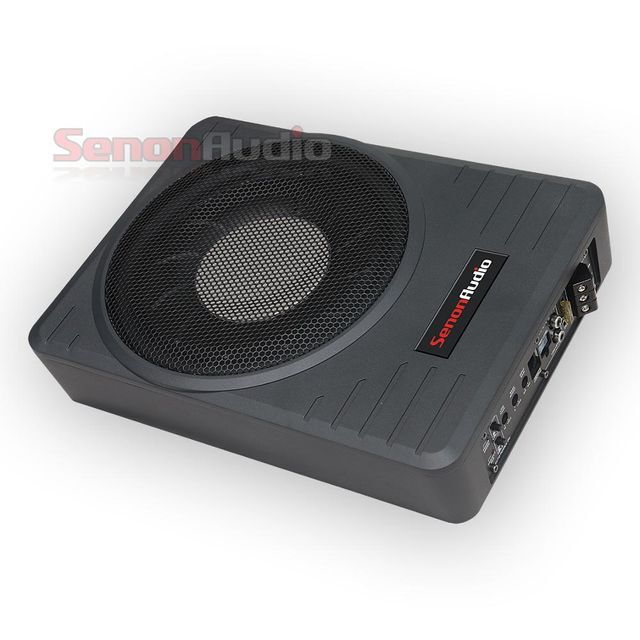

10" 400w Slim Under Seat Active Active Car/Truck Subwoofer Subwoofer
The housing is made of cast aluminum to keep it cool all the time
Peak power handling: 400 watts
RMS power handling: 100 watts
Heavy Duty Mounting Feet
PWM MOSFET power supply

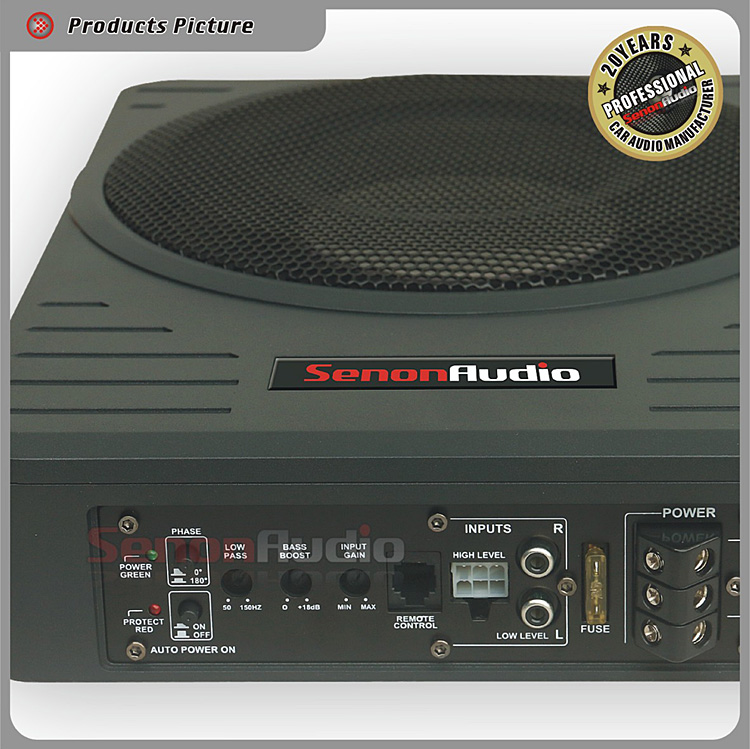

Low level RCA input
High-level input with auto-on technology
Adjustable Input Sensitivity
Soft Delay Remote On
Thermal protection circuit, short circuit protection circuit
Overload Protection Circuit
Green Power/Red Protection LED
Phase switch: 0° or 180°
Low Pass Filter: 50Hz - 150Hz
Bass Boost: 0 - 12dB @ 45Hz
Built-in subsonic filter @20Hz
Total Harmonic Distortion: < 0.4%
Subwoofer Level Remote Control

Specification:

300 watts of peak power
RMS power: 100 watts
Impedance: 2 ohms
Dimensions (LxW): 345x245x70mm
Frequency Response: 20Hz - 150Hz
Signal-to-noise ratio: >90dB
Sensitivity: 90dB @ 1w/1m
Input sensitivity, low level: 300mV
Input sensitivity, high level: 1.0V

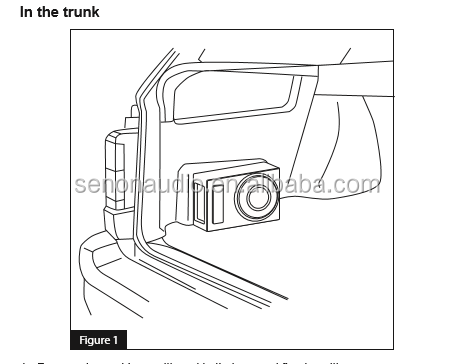

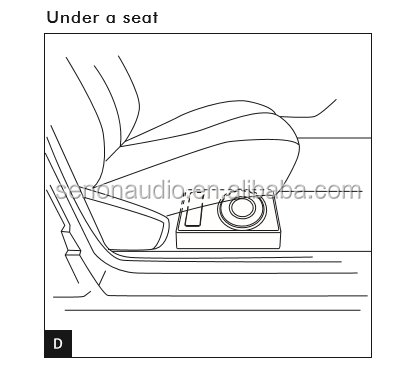

Two installation methods are possible

power connection

1. Connect the ground terminal to the closest point on the vehicle chassis. Keep the length of this ground wire below 39 inches (100 cm). Use 8 gauge (or thicker) wire.

2. Use a 16 gauge (or thicker) wire to connect the remote terminal to the remote output of the main unit.

3. Connect an empty fuse holder within 18" (45 cm) of the car battery and run a size 8 (or heavier) cable from that fuse to the amplifier location. Then connect the fuse holder to "BATT+" (+ 12V) connection on the rear panel of the subwoofer.

Card	Sennon Audio
Model	BX1003
Sensitivity	>90dB
Fuse rating	15A-20A
Frequency response	20-150Hz
rated power	100W
peak power	400W
aspect	345x245x70m
