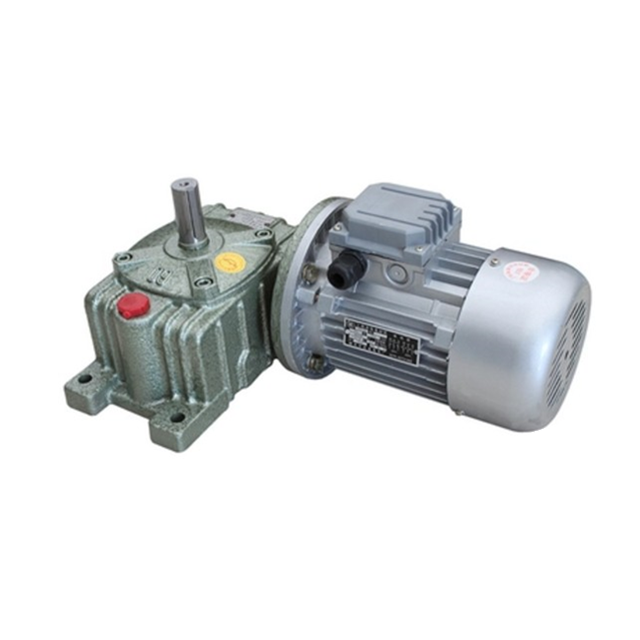

Wholesale price worm gear box WPO50 gear motor reducer

Product details
Building Materials:cast ironOutput torque:19-3000N.M
Output speed:14-280 rpmplace of origin; place of origin:China
Installation location:shaft mountedinput power:0.4-35kw
transmission:insectproduct name:worm gear box
Warranty:1-2 yearsSingle package size:22X17.5X14.7 cm
Applicable industries:Building material stores, manufacturing plants, farms, energy and miningGross weight per piece:6.000 kg
Output form:solid shaft hollow shaftSales unit:single product
Output torque:19-3000N.Mcolor:client needs
Input speed:750-3000 rpmbrand:silver heart
ratio:10-60Input speed:750-3000 rpm
Product Description

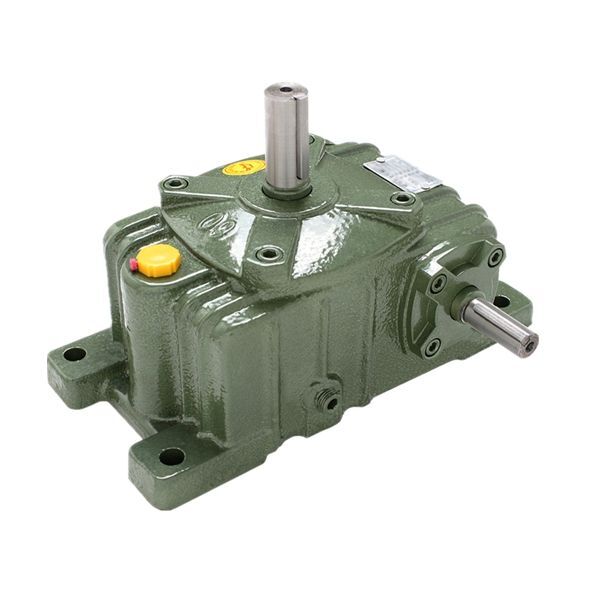

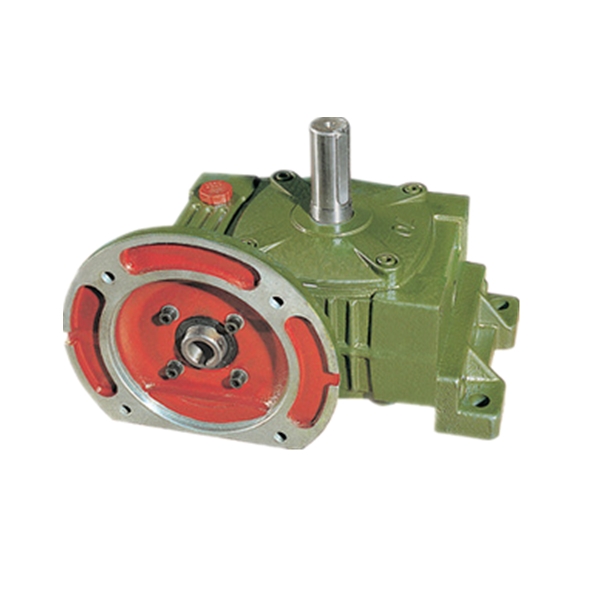

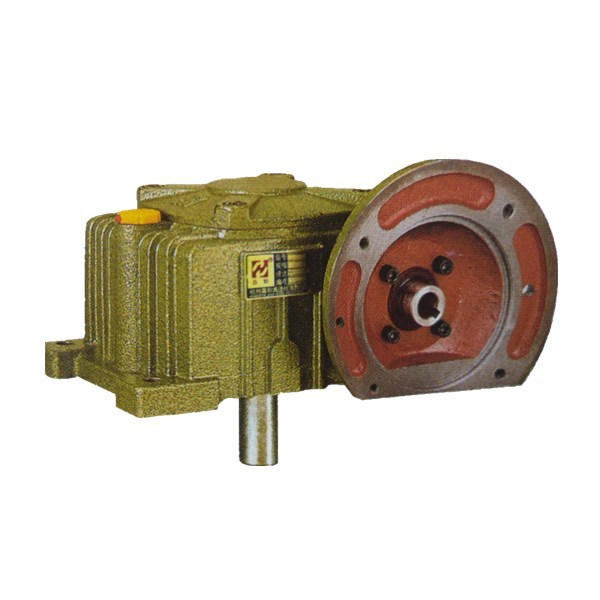

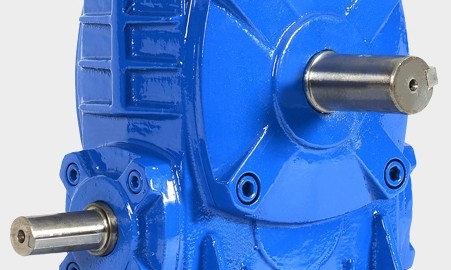

WP series worm gear reducer

WP type 40~250 reducer model is cast iron cast aluminum mold. The shape is beautiful and sturdy, and it can be used through multi-directional settings.
WP series reducer, the worm is heat treated with 45# high-quality steel, and the worm wheel is cast with tin bronze. It has good wear resistance, especially in terms of load-carrying capacity. It is mainly used for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverages, mining, lifting and transportation, chemical construction and so on.

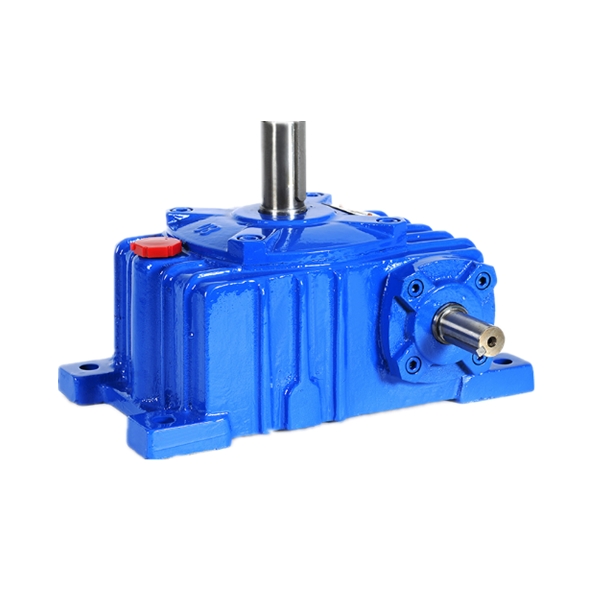

WP series worm gear reducer

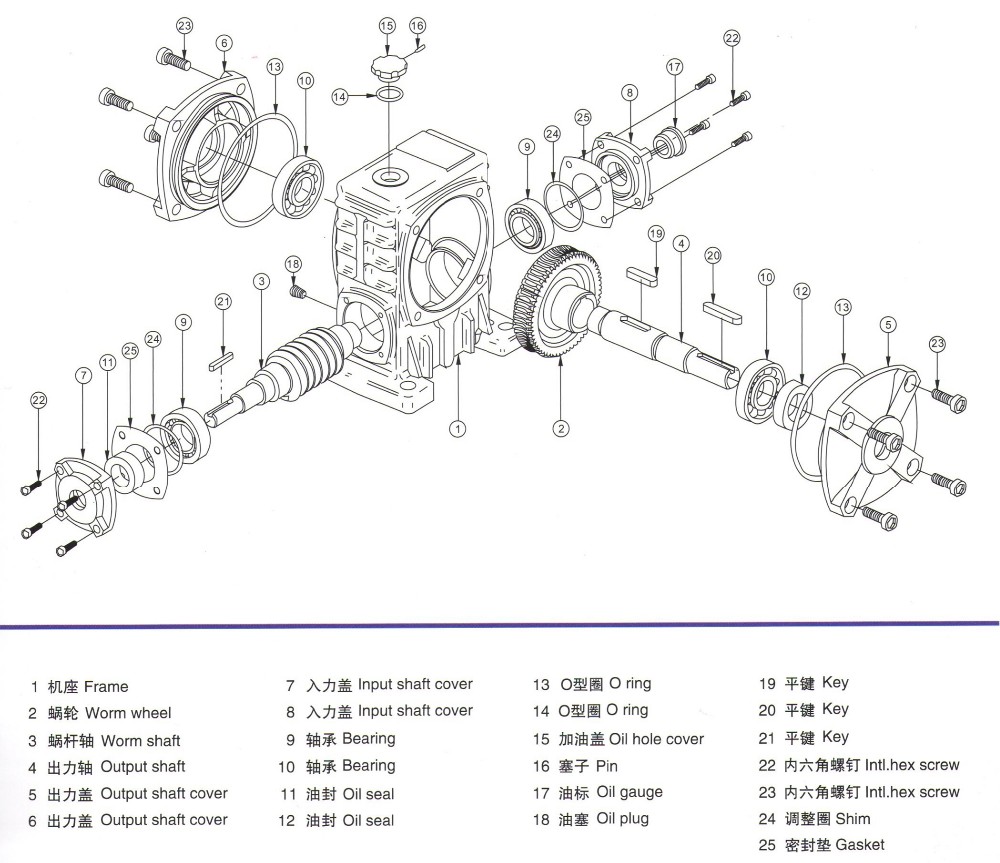

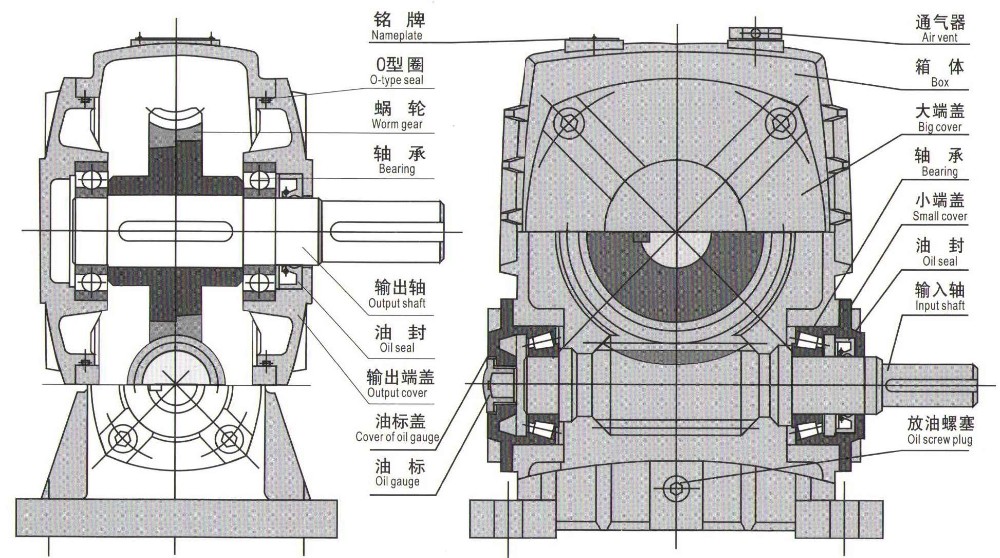

wp series structure diagram

Features of WP series worm gear reducer:

●Stable driving, low vibration, impact and noise, large reduction ratio, wide versatility, and can be used with a variety of mechanical equipment.

●Single-stage transmission can obtain large transmission ratio and compact structure. Most types of reducers have good self-locking performance. Mechanical equipment with braking requirements can omit the braking device.

●The meshing friction loss between the worm gear and the worm gear tooth surface is large, so the transmission efficiency is lower than that of the gear, and it is easy to generate heat and high temperature.

●Higher requirements for lubrication and cooling.

●Good compatibility, worm gears are manufactured according to national standards, and standard parts such as bearings and oil seals are used.


speed ratio
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60

efficiency

77~90%

76~88%

75~84%

72~82%

68~82%

64~75%

62~72%

60~71%

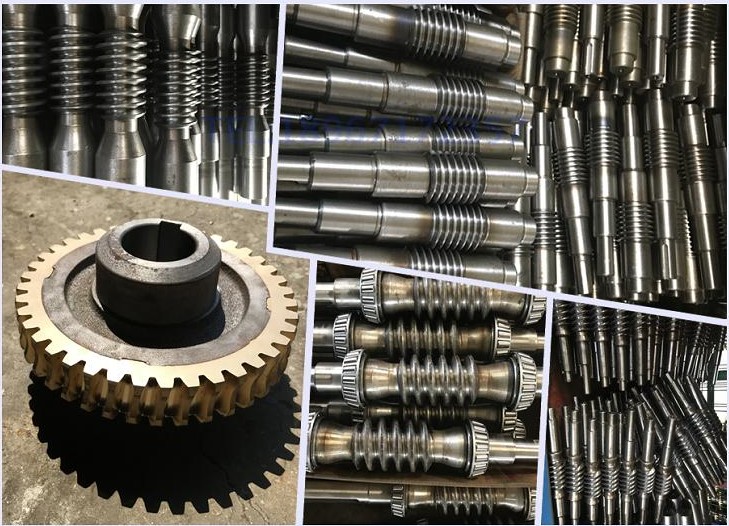

High quality output shaft

Brand new standard shaft, multi-precision machining, through strict dynamic and static balance test, to ensure low noise and smooth operation of the reducer.

Precision bevel gears

20CrMn titanium-low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, the carburizing layer is uniform.

Premium housing material

20CrMn titanium-low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.

Vacuum furnace carburizing heat treatment, the carburizing layer is uniform.

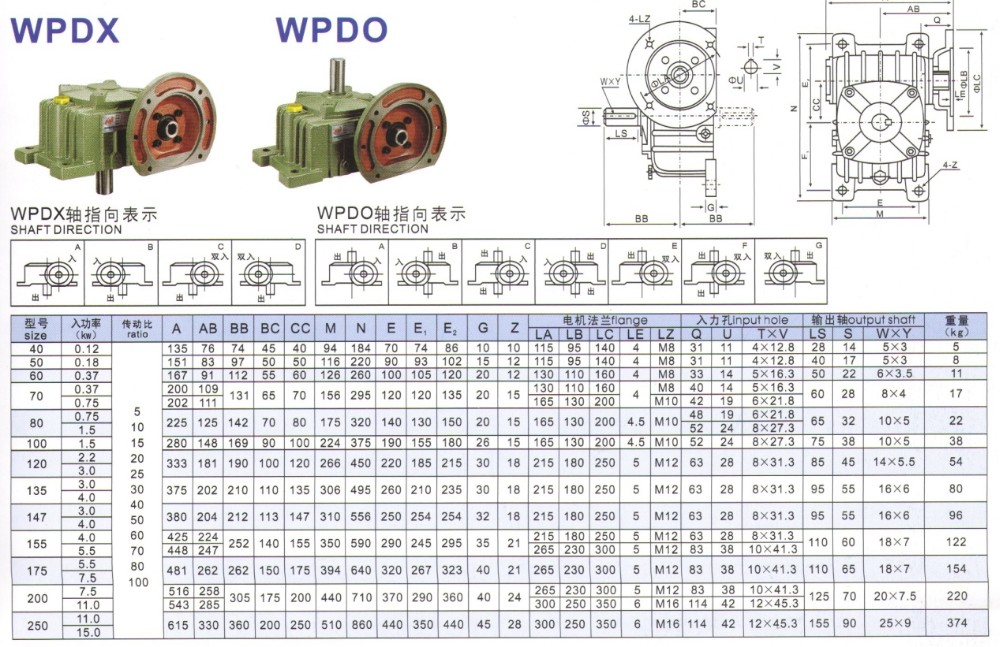

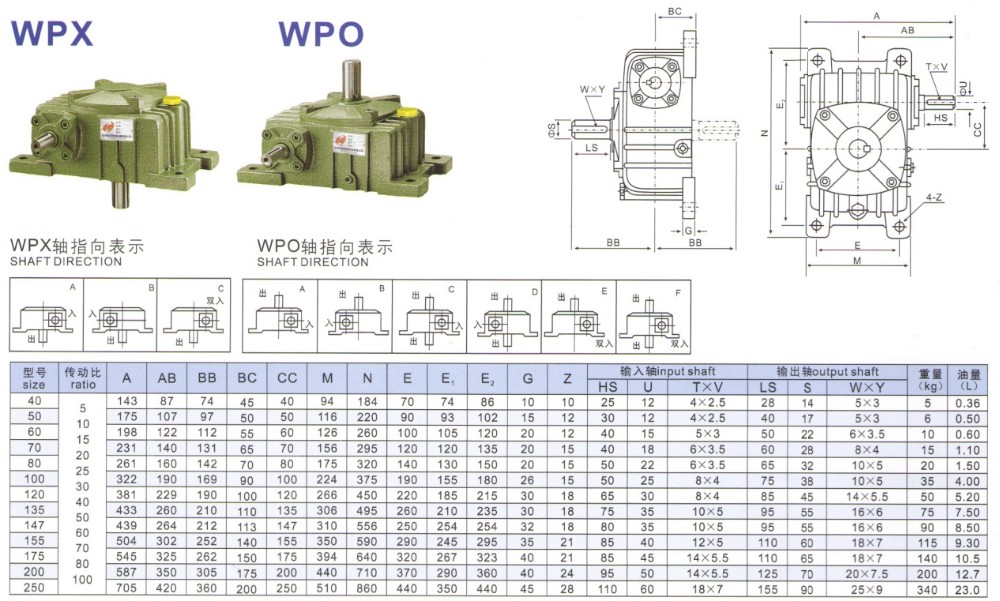

Installation size

WP series worm gear reducer installation size output shaft size and overview size
